USP-6000-A-NA-T-23
Matching main, detail and geometry-derived views of the same saved assembly.
ACHA separate CAD drawing is required for this configuration. The 23-inch roller-carrier study does not represent other tray widths or the chassis-only option.
USPE equipment
Model: USP-6000-A-NA-T-23
Quote only
Request a quote for your selected model and configuration.
Configuration review only; confirm selected options in your quote.
Choose options, add your quantity, then review your list and send one request. Custom requirements are confirmed in the written quote.

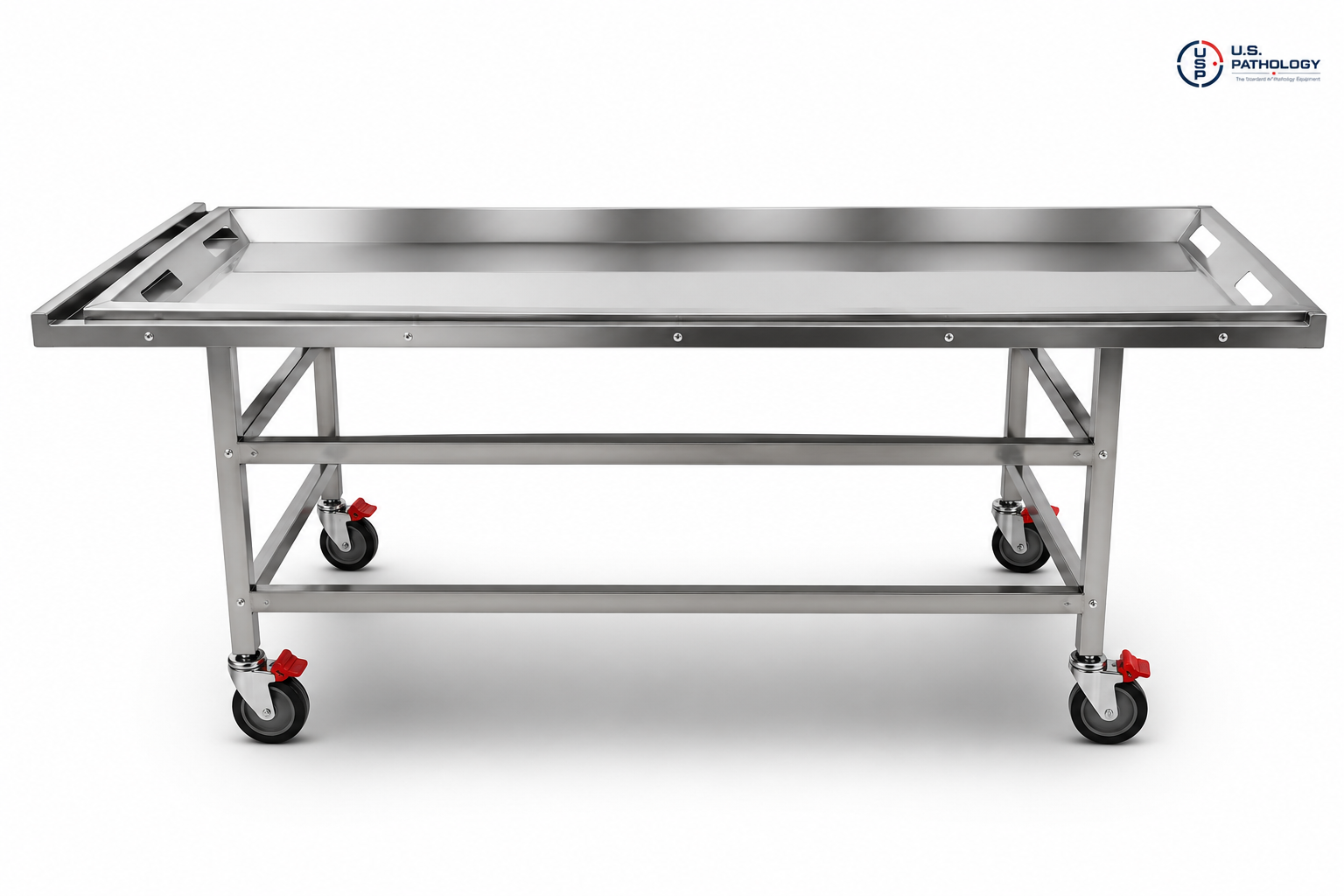

A cadaver carrier (USP-6000-A-NA-T) with an in-line nylon roller deck, so a loaded body tray slides on and off between cooler racks, autopsy tables and transfer stations with less lifting.

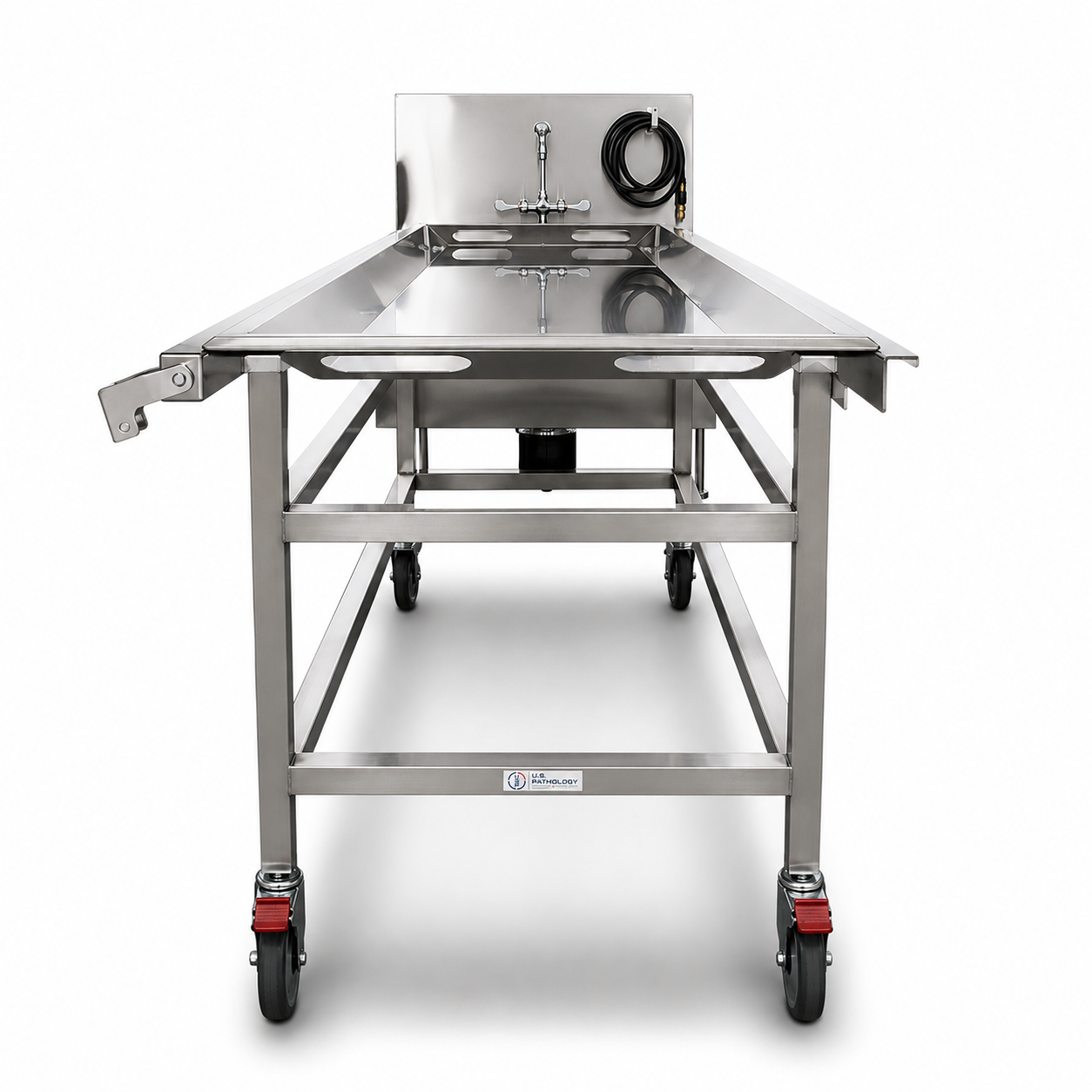

Durability is the point of this carrier. The frame is all-welded 16-gauge 304 stainless steel fabricated from 1.5" square tubing for rigidity under repeated loading. The roller system uses maintenance-free corrosion-proof nylon rollers, no lubrication, no seized bearings, no downtime. Four heavy-duty 8" casters carry the load and lock down solid for a stable working surface. 304 stainless construction handles repeated cleaning, disinfection, and high-temperature wash-down without pitting or hardware corrosion.
| Material | 304-grade stainless steel |
|---|---|
| Frame construction | All-welded, 16 gauge, 1.5" square stainless tubing |
| Roller deck | In-line maintenance-free nylon rollers |
| Slope | Permanent fabricated drainage slope |
| Casters | Four 8" heavy-duty braking casters, 3 total-lock + 1 directional lock |
| Tray latch | Flip latch retains tray during transport |
| Tray | Stainless tray included, drain hole and stopper plug |
| Fluid collection | No fluid-collection system |
| Height | 35 in. / 88.9 cm |
| Length | 79 in. / 200.66 cm |
| Width | 27.25 in. / 69.21 cm |
| Tray widths | 23" / 27" / 30", custom sizes available |
The carrier and frame are identical across every option, only the stainless tray width changes. Choose 23", 27", or 30" tray, or order Chassis Only (no tray) to pair with an existing tray. Need a non-standard width or caster package? Custom configurations are quoted on request.
Yes. A stainless steel body tray with a drain hole and stopper plug is included with the 23", 27", and 30" variants. The carrier and frame are identical across those options, only the tray width changes. Order the Chassis Only variant if you need the carrier without a tray.
Yes. Beyond the standard 23", 27", and 30" widths, custom tray sizes and caster packages are available. Send your specifications with your RFQ for a quote.
Four heavy-duty 8" braking casters: three total-lock and one directional lock for stable positioning and controlled movement.

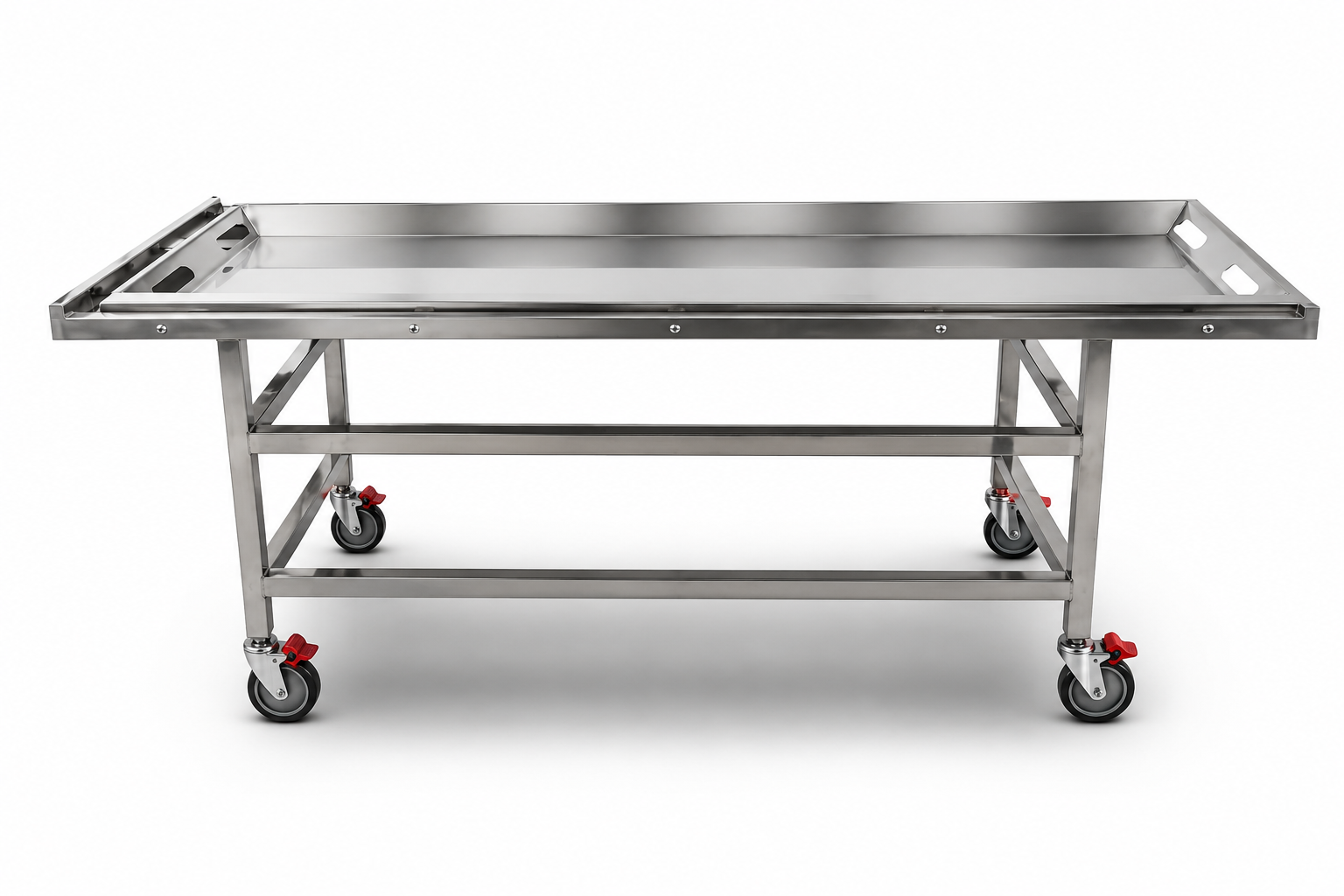

It is designed to work alongside U.S. Pathology autopsy sinks and the broader U.S. Pathology Equipment autopsy-room line.
Every U.S. Pathology Equipment model can be built to your specification. Common changes include length, width and working height, load capacity, left or right hand orientation, sinks, plumbing and ventilation, and drawer or door layouts. Custom powder-coat finishes are available on frames, bases, cabinets and exterior panels to match your facility colors, alongside Type 304 stainless steel work surfaces. You approve a shop drawing before fabrication starts.
Quote only. Every unit is built to order and priced on a formal written quote.
We supply hospitals and health systems, medical examiner and coroner offices, county, state and federal agencies, VA and military facilities, universities, medical schools and research labs.
