Dual Dissection Table Docking Station
Specifications, drawings & manualsModel: USPE-DS-D54-01
Quote only
Request a quote for your selected model and configuration.
Listed model-family reference. Confirm the supplied configuration in your quote.
Choose options, add your quantity, then review your list and send one request. Custom requirements are confirmed in the written quote.
Product details

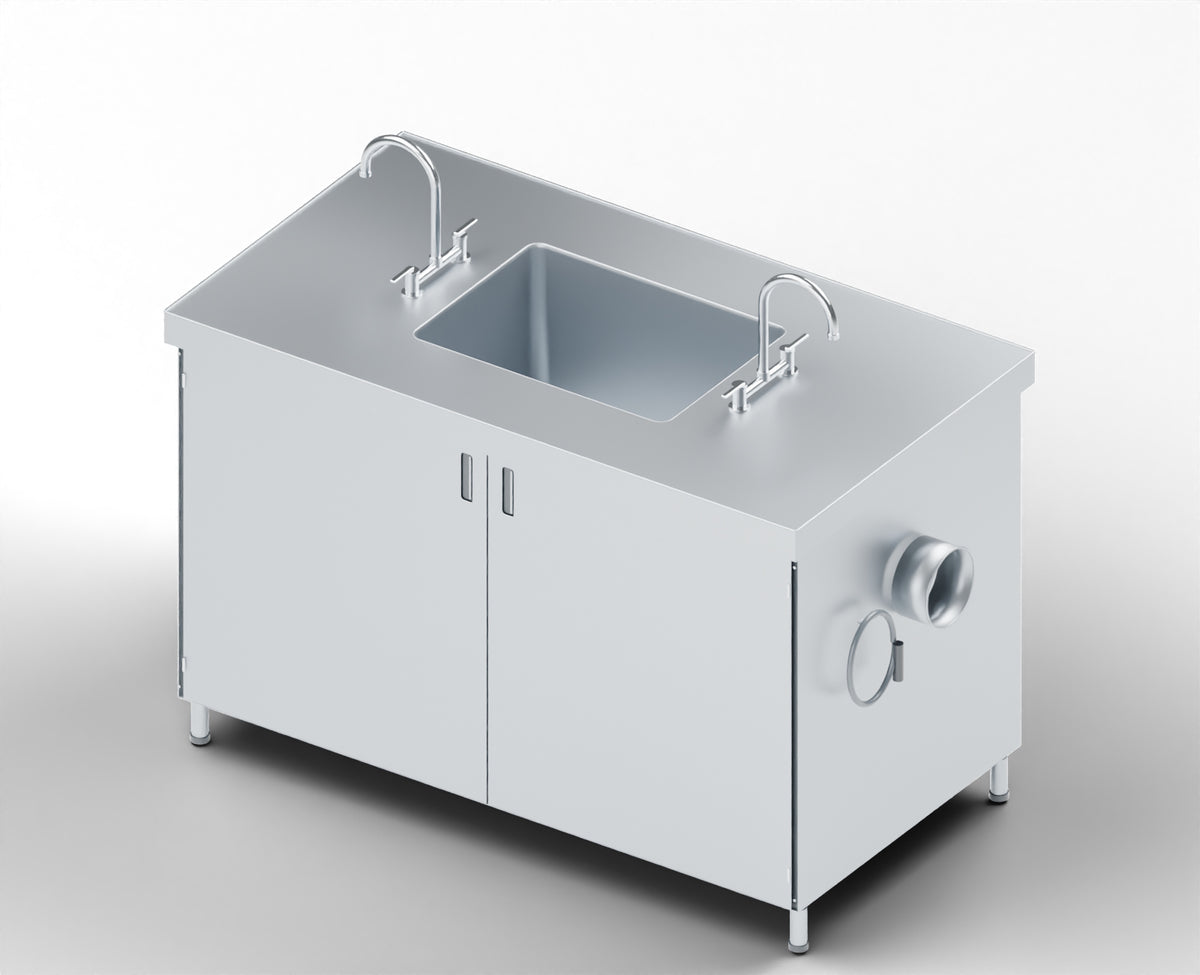

A two-sided dissection-table service station concept with a central sink, separate rinse points and opposed drain and exhaust interface zones. Build a quote for the station alone or add selected table models, variants and quantities as a coordinated package.
Quote only · USPE-DS-D54
Design-development listing. Configuration details require model-specific approval before production.
Planning targets
| Model | USPE-DS-D54 |
|---|---|
| Planning deck envelope | 54 x 30 in (1372 x 762 mm) |
| Deck-height target | 36 in |
| Configuration request | Fixed service station; two interface requests |
| Material request | 304 or 316 stainless steel |
| Disposer request | None, 0.5 hp, 0.75 hp or 1 hp; final selection by quote |
| Drain-valve request | 3/4-inch ball valve and hose connection; verify interface |
| Load / utilities / compliance | Not released; model-specific written approval required |
The nominal station target is 54 x 30 x 36 inches. A 0.75-inch drain ball valve and hose connection may be requested. Table selections are package requests, not a compatibility guarantee: approve interface height, exhaust balance, duct and drain connections, flexible services, electrical requirements and clearances for every selected model. Tables and accessories are separate quote items.
Build the complete table package
Choose any listed USPE dissection-table model, its native variant and the quantity to include in the same equipment request. Tables are separate quote items. Selecting a model does not establish docking compatibility; each drain, exhaust and mechanical interface must be approved.
Station options

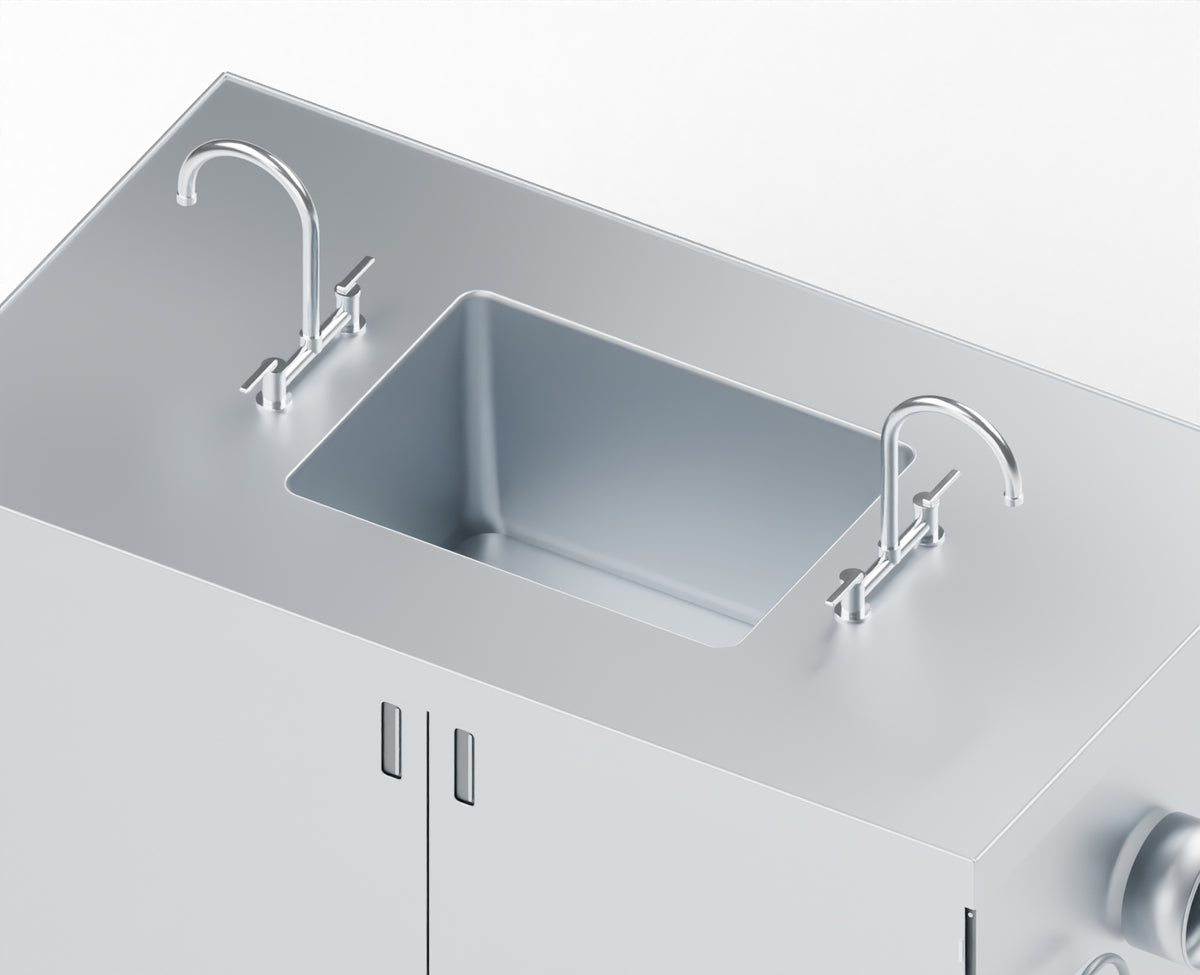

Request lever or hot/cold foot-operated faucet control, 304 or 316 stainless, a commercial disposer and a 3/4-inch drain ball valve. Disposer electrical supply, service clearances and plumbing are confirmed in the written quote.
Drawings and documentation
Request model-specific drawings with your equipment quote. Any technical-review draft is not approved for operation, installation or fabrication.
Dissection tables · Animal science equipment · USPE options · Request an equipment quote

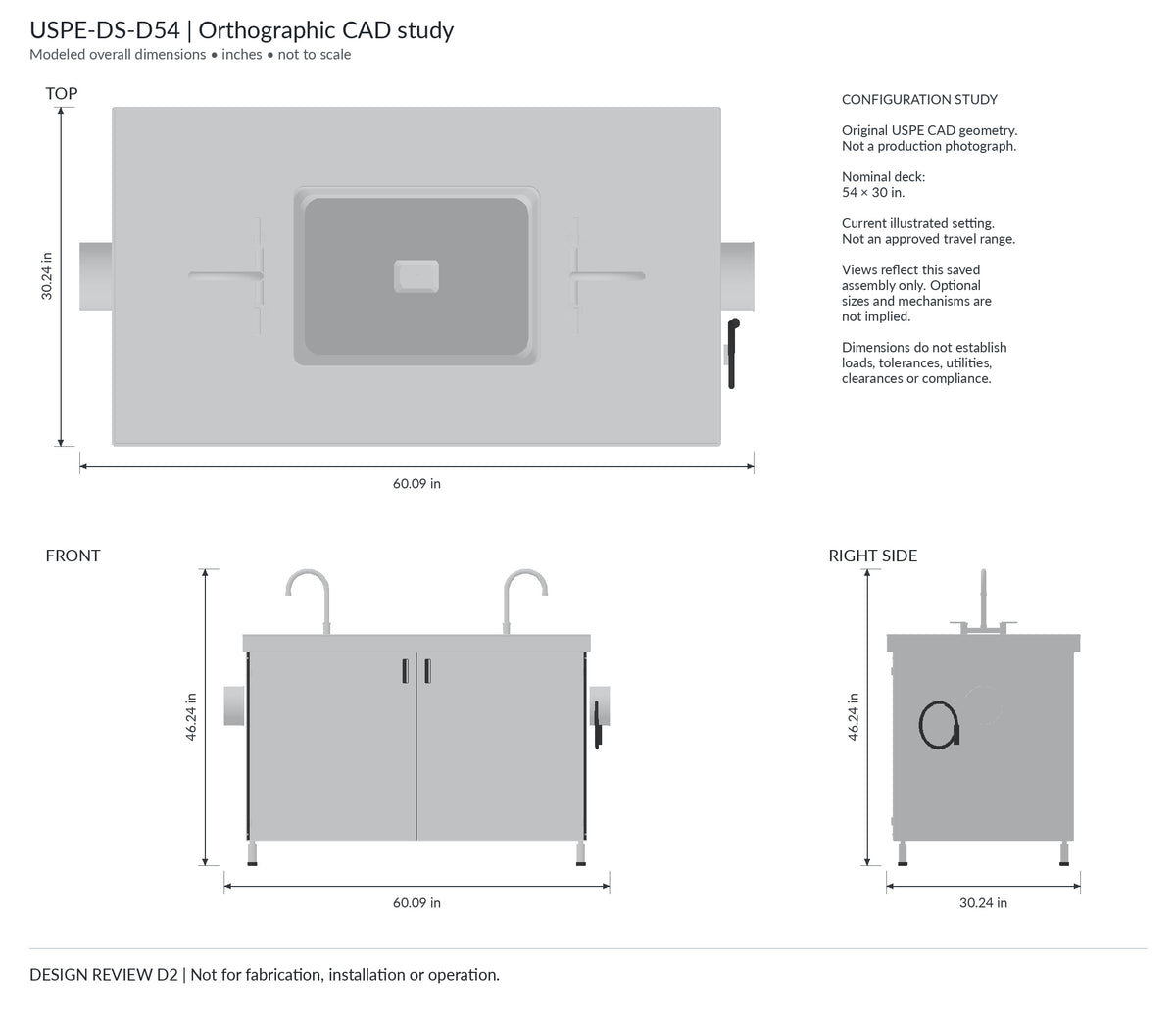

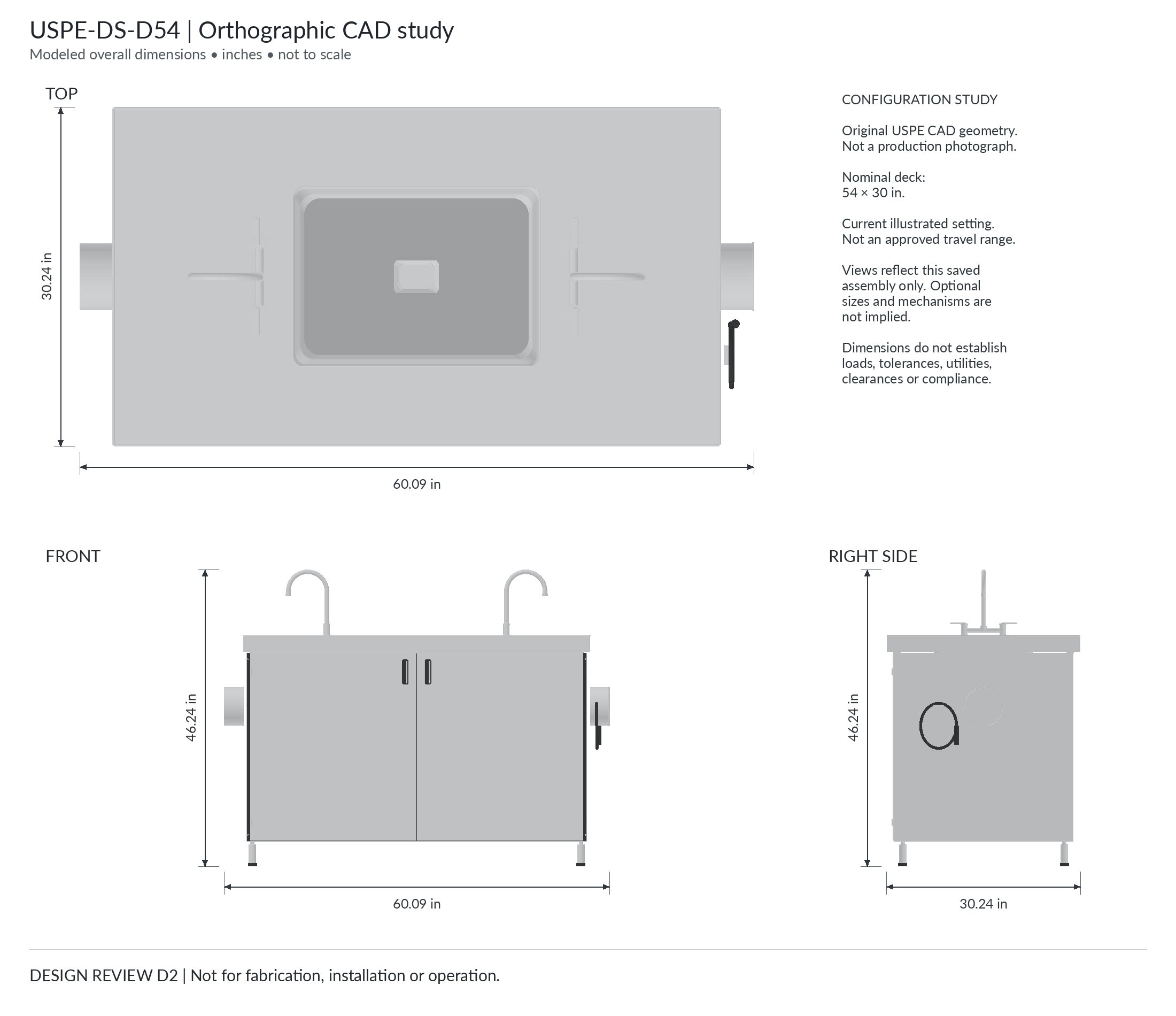

Current configuration review · Current three-view drawing
Unsigned CAD studies for configuration planning only. Not released operating instructions or approved fabrication drawings.
Other dissection docking station models in this family
Model USPE-DS-D54-01 is one of 3 USPE dissection docking station configurations. Compare it with Double Wall-Mounted Dissection Table Docking Station (USPE-DS-WD96-01) and Wall-Mounted Dissection Table Docking Station (USPE-DS-W54-01). Each model page lists its own options, drawings and documents, and any of them can be added to the same quote. Browse all USPE equipment.
-

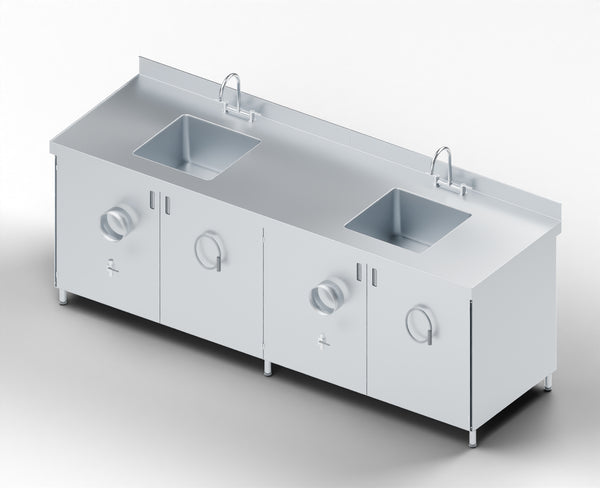

Double Wall-Mounted Dissection Table Docking StationUSPE-DS-WD96-01
-

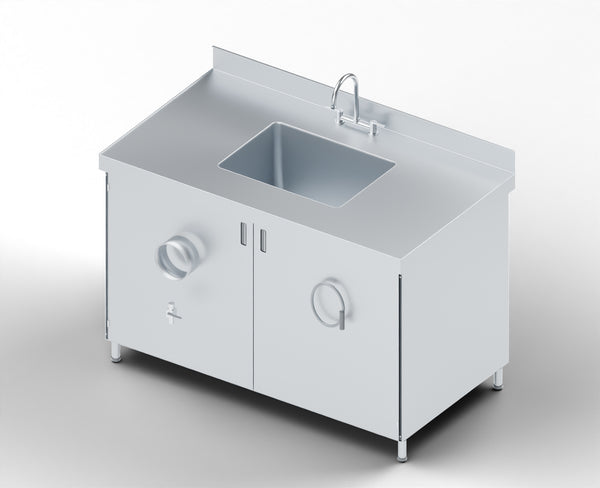

Wall-Mounted Dissection Table Docking StationUSPE-DS-W54-01
Anatomy lab and autopsy-room handling
Plan the table, lift and tray as one transfer workflow
A dissection table is one part of the handling route. Match the tray support, transfer direction, retaining stops and working height before pairing it with a lift or rack. A roller-equipped table can support a different transfer method from a fixed recessed top or an immersion tray; rolling transfer is not a standard feature on every model.
