AMC Side-Load Vault Morgue Cooler, 2-Body
Specifications, drawings & manualsModel: USPE-MC-2VLT
Quote only
Request a quote for your selected model and configuration.
Confirm custom dimensions, materials, load ratings, tray and rack compatibility, and freight in your written quote before ordering.
1-888-792-9315
140 Kwick Way Lane, Building 7, Johnson City, TN 37615
Product details
A 2-body side-load vault morgue cooler provides two vertically stacked storage bays, each with its own access door and slide-out tray arrangement; this U.S. Pathology Equipment model starts at $16,825.05 with self-contained 208–230V refrigeration.
A 2-body side-load vault morgue cooler provides two vertically stacked storage bays, each with its own access door and slide-out tray arrangement; this American Mortuary Coolers model starts at $16,825.05 with self-contained 208–230V refrigeration.
The separate-bay format suits facilities that need individual access within a compact floor layout. Check tray inclusion, loading height and room clearances below, and compare vault-style morgue refrigeration before finalizing a purchase specification.
Side-Load Vault Morgue Cooler, 2-Body from American Mortuary Coolers. A 2-body vault-style morgue cooler with vertically stacked bays, each with its own door and slide-out tray. Saves floor space in smaller morgues and hospitals.
What is a morgue refrigerator?
A morgue refrigerator, or morgue cooler, holds bodies at about 34 to 40 F to slow decomposition before autopsy, identification or release. Types include upright and multi-body coolers, vault coolers with an individual door per body, roll-in coolers and walk-in coolers with racks.
Key features
- 2 vertically stacked bays
- Right or left hinge

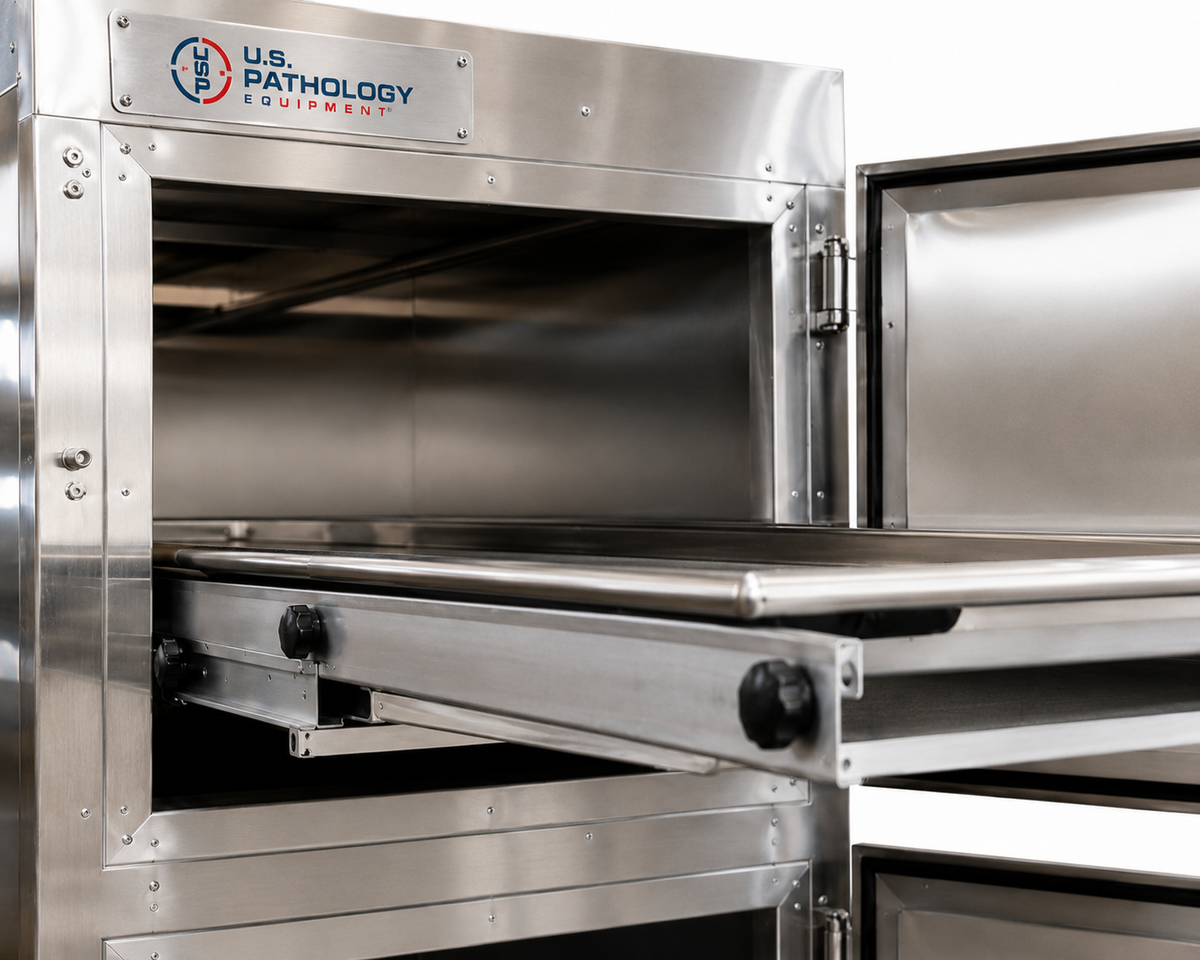

- Stainless slide-out trays
- 304 stainless interior
- Body holding range 34 to 40 F
Standard design features
- Self-contained condensing unit. The compressor, condenser and evaporator come as one factory-packaged unit mounted on the cabinet, so no refrigeration lines are run on site.
- Digital thermometer and temperature controller. A digital display shows the box temperature at a glance, and the controller holds the setpoint you choose for body holding.
Door seal and refrigeration
- Magnetic gasketed door seal. Each chamber door closes against a magnetic gasket that seals the whole door edge, which keeps cold air in and holds 34–40°F after the door is opened.
- Energy-compliant refrigeration. The self-contained refrigeration system uses A2L refrigerant and meets current DOE/EPA efficiency rules.
Specifications
| Model | USPE-MC-2VLT |
|---|---|
| Brand | American Mortuary Coolers |
| Tray system | Stainless steel slide-out trays |
| Interior construction | 304 stainless steel |
| Cabinet | Modular insulated panels, 4″ urethane core |
| Refrigeration | Self-contained |
| Operating range | 34–40°F body holding |
| Voltage | 208–230V, single-phase |
| Climate-controlled prep room, 65–75°F, normal door use | Standard |
| Warm room that regularly reaches 80°F | Level 1 |
| Hot room up to 90°F, or heavy daily door traffic | Level 2 |
| Pricing | Quote only, built to order |
Final dimensions, utilities and capacities are confirmed on your formal quote and shop drawing.
Fully customizable
Every unit is built to order. Common changes:
- 2 or 3 bays
- Hinge side
- Temperature monitoring
- Voltage
Facility fit and configuration
Send your required dimensions, working heights, equipment drawings and utility connections with your quote request. Our team will review the selected USPE configuration against your facility requirements.
Who uses it
- Hospital morgues
- Medical examiner and coroner offices
- Anatomy and willed-body programs
- Funeral homes
- Emergency and surge storage
Institutional procurement and RFQ
- Formal written quote with model number, options, lead time and freight to dock
- Purchase orders from government, hospital, university and research buyers
- W-9, tax-exempt certificates and net terms for qualified institutions
- Bid specifications, submittals, CAD and shop drawings on request
- Grant-funded and capital projects; quotes formatted for approval files
- Nationwide freight with liftgate and inside-delivery options
Morgue cooler types
| Upright multi-body | 2 to 12 bodies, compact footprint |
|---|---|
| Vault | Individual door and tray per body |
| Side-load | Full-width loading |
| Walk-in | Highest capacity with racks |
Frequently asked questions
What temperature should a morgue cooler be?
Short-term body holding is typically 34 to 40 F. Long-term storage uses freezers.
How much does a morgue refrigerator cost?
It depends on body capacity, doors, refrigeration and options. Request a quote with your capacity and room size.
Why is the Side-Load Vault Morgue Cooler, 2-Body quote only?
Each unit is built to order for your room, utilities and caseload. A formal quote gives your procurement office an exact price with lead time and freight to your dock.
Do you accept purchase orders and bids?
Yes. We accept purchase orders, provide a W-9, handle tax-exempt certificates, offer net terms to qualified institutions and respond to bids, RFQs and RFPs with specification sheets and submittals.
Can you review fit with our existing equipment?
Send equipment drawings, tray dimensions, transfer heights and utility connections with your request. Fit and included components are confirmed for the selected configuration before ordering.
Request a quote
Use Add to Quote to build a list, then submit your quote request, or call 1-888-792-9315. Browse more Morgue Coolers, the full American Mortuary Coolers line and our government procurement desk.
Full custom models and finishes
Every American Mortuary Coolers model can be built to your specification. Common changes include length, width and working height, load capacity, left or right hand orientation, sinks, plumbing and ventilation, and drawer or door layouts. Custom powder-coat finishes are available on frames, bases, cabinets and exterior panels to match your facility colors, alongside Type 304 stainless steel work surfaces. You approve a shop drawing before fabrication starts.
Quote only. Every unit is built to order and priced on a formal written quote.
Built for institutional buyers and bid packages
We supply hospitals and health systems, medical examiner and coroner offices, county, state and federal agencies, VA and military facilities, universities, medical schools and research labs.
- Formal written quotes with model numbers, options, lead time and freight to your dock
- Responses to RFQs, RFPs, ITBs and formal bids, with spec sheets, submittals and drawings
- Brand-equal documentation and sole-source letters when your specification calls for them
- Purchase orders accepted. Net terms, W-9 and tax-exempt certificates for qualified institutions
- Multi-unit, full-room and multi-site project pricing
Request a quote or bid package · Purchase order policy · Request a W-9 · Full-room equipment packages · Bid and submittal documentation · Call 1-888-792-9315
Related American Mortuary Coolers
4-Body 2-Door Morgue Cooler · 3-Body Side-Load Morgue Cooler · 6-Body 2-Door Morgue Cooler · Multi-Bay Vault Morgue Cooler · 12-Body 3-Bay Morgue Cooler · Hydraulic Covered Cadaver Carrier · Pedestal Autopsy Table, Adjustable Height
Shop Multi-bay morgue coolers, coroner and county body storage, hospital morgue equipment, All American Mortuary Coolers. Planning a new facility? See our medical examiner facility design guide.
Plan this AMC cooler with its loading equipment
Compare the actual door arrangement, loading direction and tray access shown for this model. For upright storage, check every transfer height against the selected lift travel. For individual compartments, allow space for the open door and the tray or rail extension. Body count alone does not establish fit or transfer compatibility.
- Provide the required body positions, preferred loading direction and selected tray width.
- Confirm the overall footprint, refrigeration service access, electrical supply and delivery route against this model's approved drawing.
- Identify which trays, racks, carrier, lift or body boards are required. Only the items listed in the accepted quote are included.
- Describe customization requests for review; new construction or load-capacity claims require documented specifications.
AMC base configuration: $16,952.51. Affordable current/reference price: $16,995.00, checked October 27, 2026. The AMC base is 0.25% below that reference, rounded to cents. This is a competitor reference, not AMC's former selling price. The benchmark uses a 2-body side-load, individual sliding-tray compartments; it does not establish identical dimensions, electrical service or supplied accessories. Confirm the actual inclusions in your quote.
