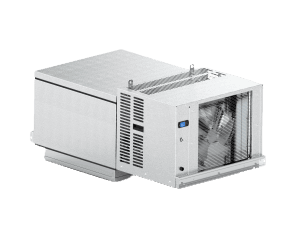

Mortuary Cooler Refrigeration Replacement, BOHN PRO3 3,200 BTU System (115V)

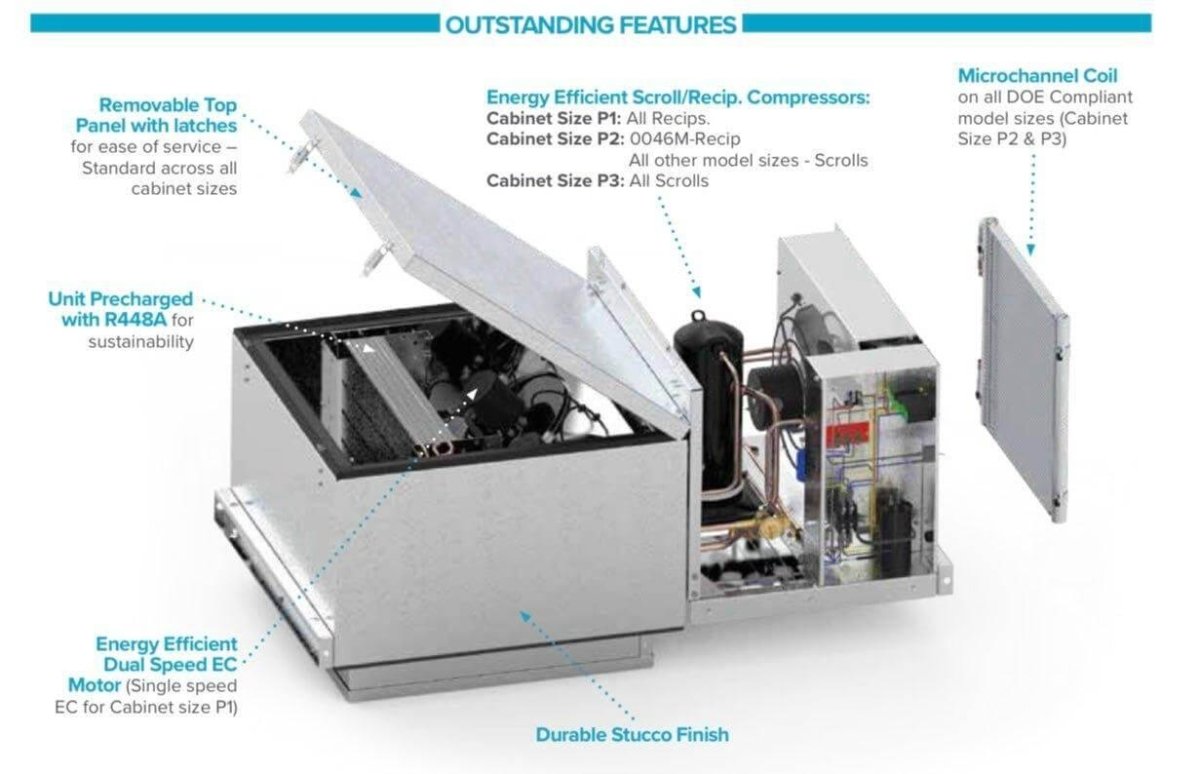

The BOHN PRO3 is a pre-charged, top-mounted package unit with the evaporator and condensing unit integrated into a single housing, the fastest route back to temperature when a mortuary cooler compressor fails. Manufacturer part number PT0032MANAESA-1 .
Refrigeration replacement systems are allocated and built to order.
Specifications
- Capacity: 3,200 BTU
- Electrical: 115V · 20 amp · single phase
- Controls: Microprocessor
- Dimensions: 26.2" H × 33.75" W × 32" D
- Weight: approx. 94 lbs
- Finish: Stucco-aluminum
- Configuration: Top-mounted, pre-charged, integrated evaporator and condensing unit
- Ambient rating: Operates to 95°F in conditioned, ventilated space
- Manufacturer part: PT0032MANAESA-1
Confirmed Direct Replacement
This 3,200 BTU system is the specified replacement refrigeration unit for the following cabinets:
- 3 Body Triple-Wide Roll-In Mortuary Cooler (TR3)
- 2 Body Extra Wide Mortuary Cooler (2BRX)
- 3 Body Extra Wide Mortuary Cooler (3BX)
Specifications & product identity
Review Product details for the published product information, and confirm the specifications of your selected configuration before ordering.
| Type | Commercial mortuary cooler refrigeration system |
|---|---|
| Cooling capacity | 3,200 BTU |
| Voltage | 208-230V single-phase |
| Use case | Walk-in and upright mortuary cooler integration |
| Manufacturer | BOHN (Heatcraft) |
| Duty cycle | Continuous-duty mortuary application |
| Material | Steel |
| Brand / vendor | American Mortuary Coolers |
|---|---|
| Equipment type | Cooler Refrigeration System |
| SKU | PT0032MANAESA-1 |
Dimensions & fit
Cabinet dimensions do not include required ventilation and service clearances.
Published dimensions remain in Product details when a separate dimensions section is not available.
