TR3-RH-STD

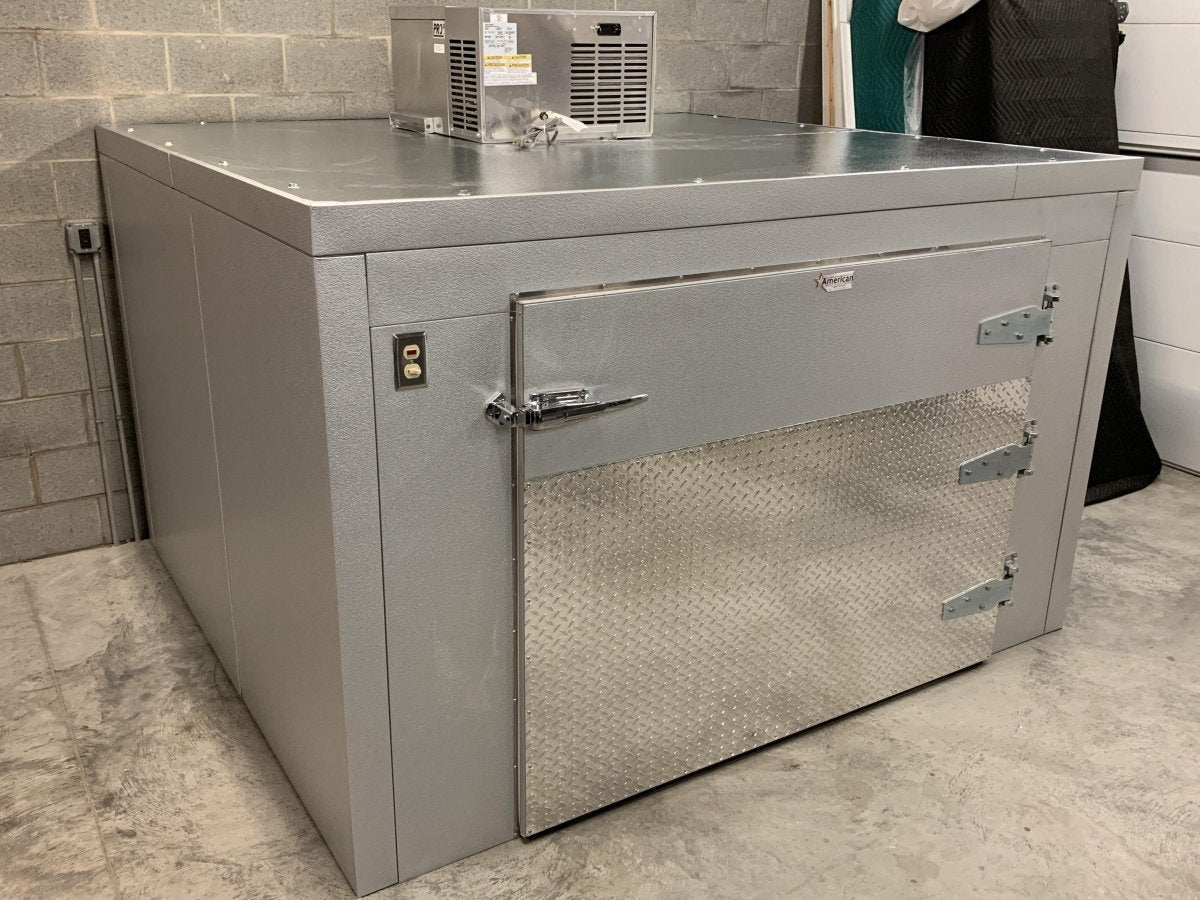

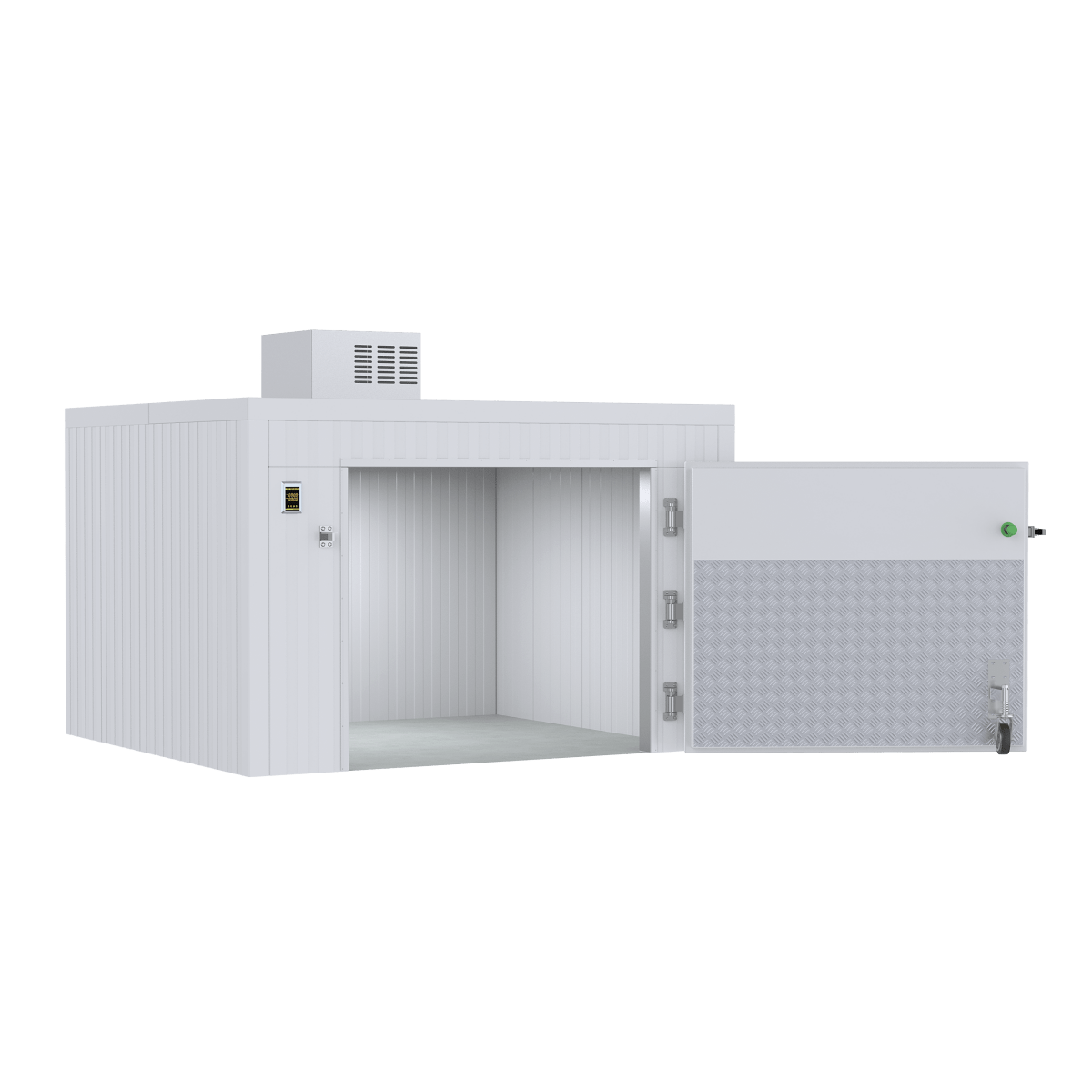

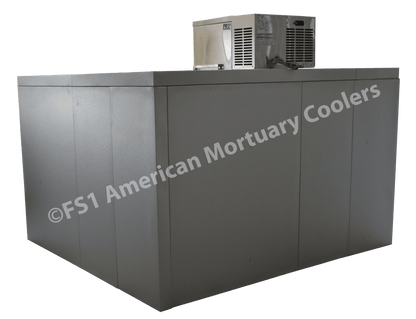

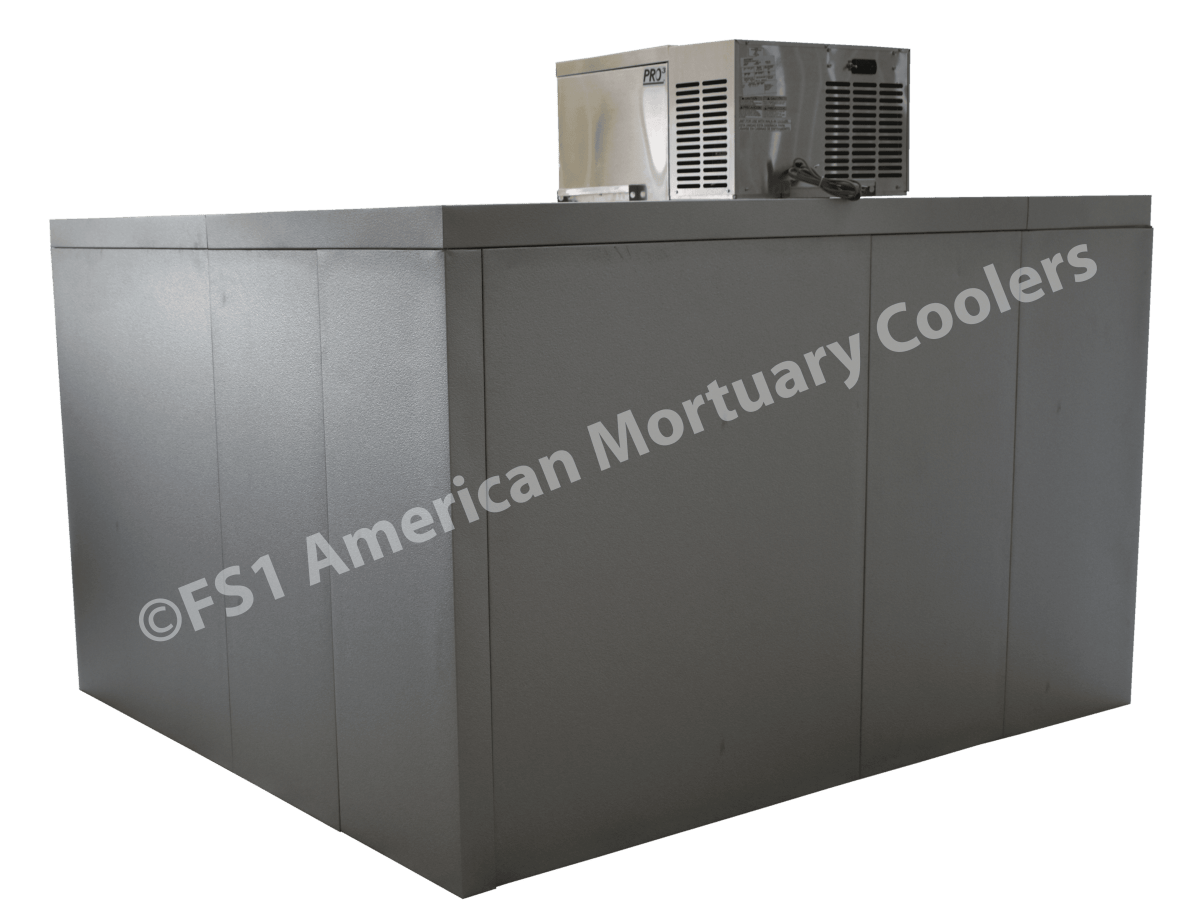

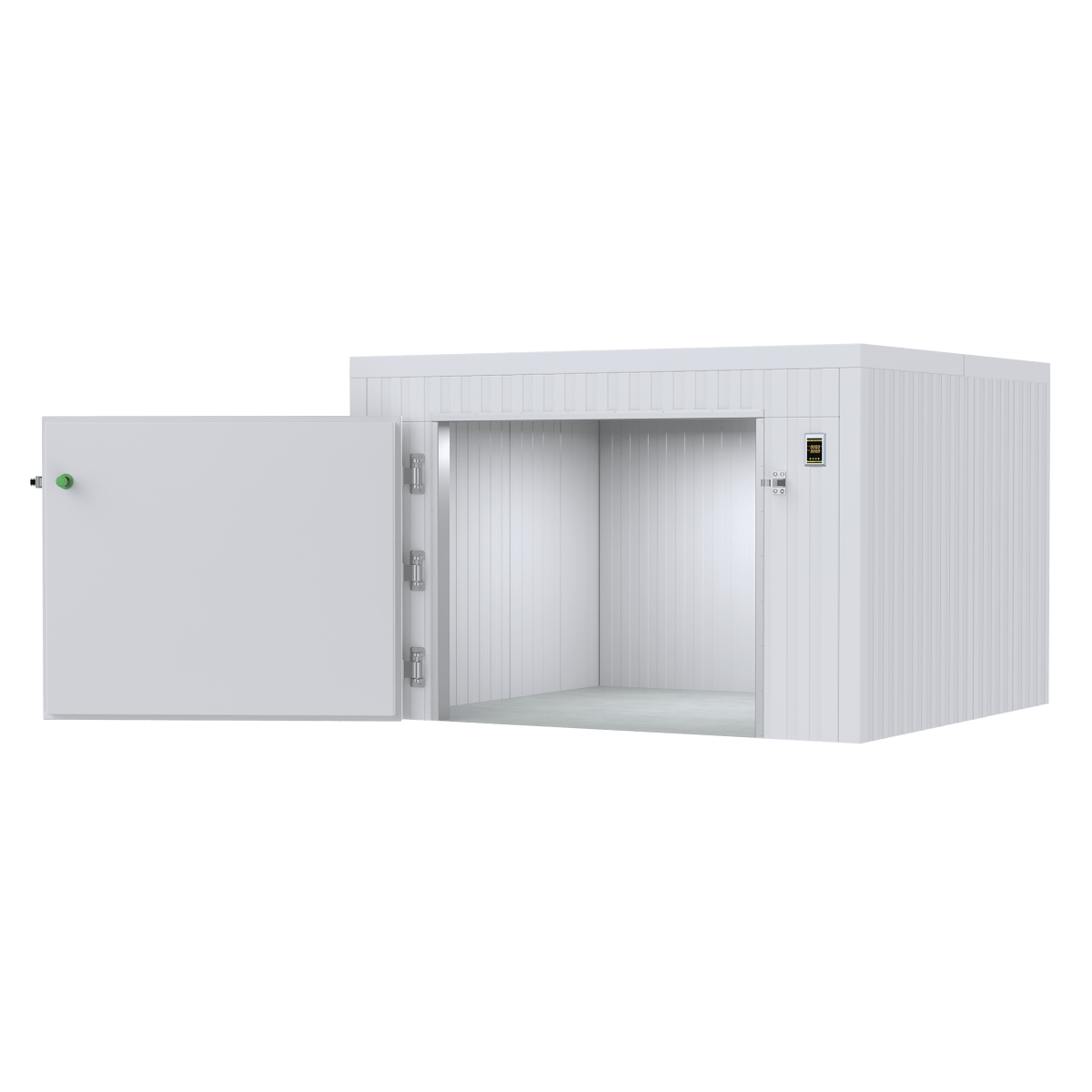

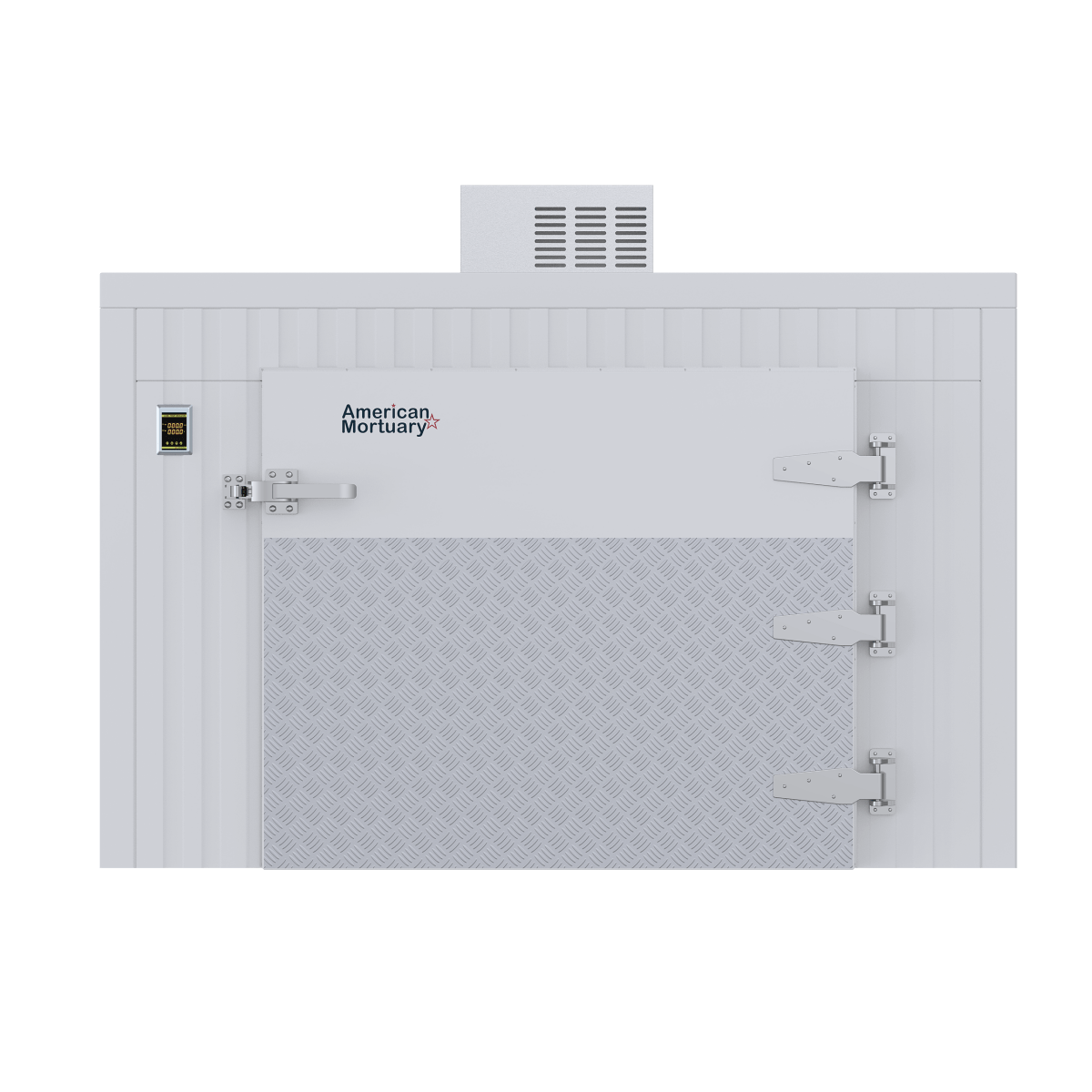

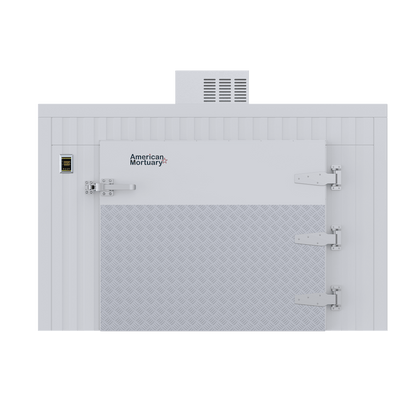

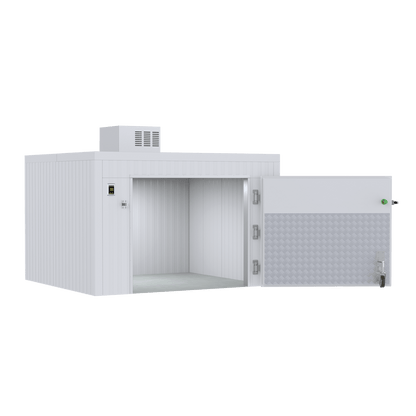

3 Body Triple-Wide Roll-In Mortuary Cooler
Regular price
$9,779.26
Sale price
$9,779.26
Regular price
$11,098.00
Unit price
per
Shipping calculated at checkout.
Over
mortuary products sold since 2009
Up to 12% off
Wide-format 3-cadaver roll-in — three parallel cot-direct positions side-by-side, 850 lbs per position, self-contained 115V refrigeration, built in Johnson City, Tennessee.
At a glance
- 3-body capacity — triple-wide cot-direct roll-in
- Parallel access — three roll-in positions side-by-side
- 850 lbs per tier weight rating — each of the three positions

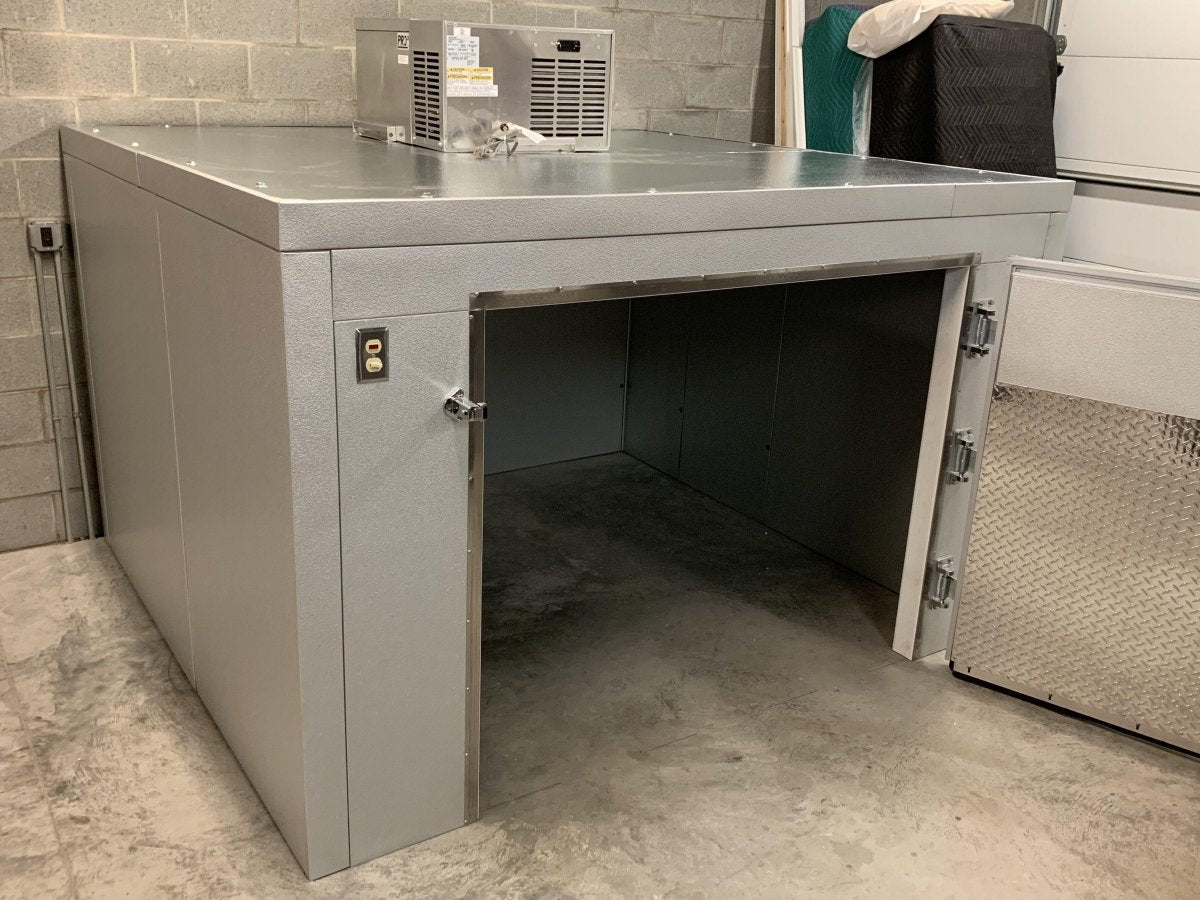

- Modular insulated cabinet, 4″ urethane core

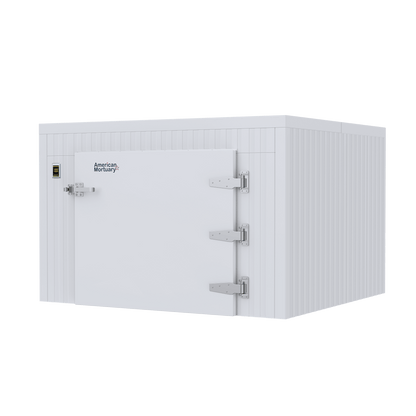

- Self-contained refrigeration — 115V single-phase, NEMA 5-20R plug
- NSF, UL, ASTM E84 certified · 15-year structural panel warranty · made in the USA
Specifications
| Body capacity | 3 cadavers, parallel cot-direct roll-in |
|---|---|
| Cabinet construction | Modular insulated, 4″ urethane core |

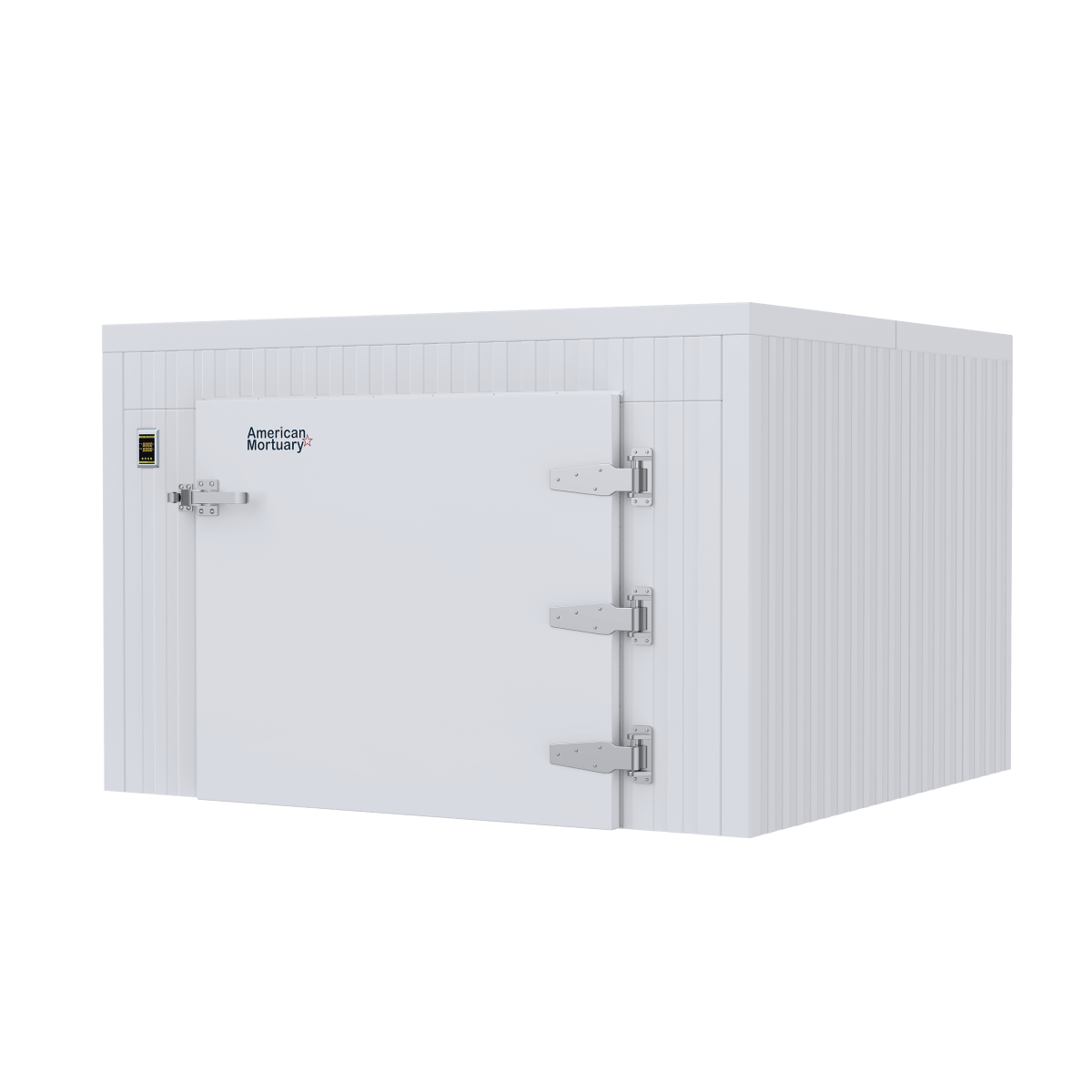

| Refrigeration | Self-contained |
| Operating range | 34–40°F body holding |
| Weight per tier | 850 lbs maximum per roll-in position (extra-wide rated) |
| Gross ship weight | 1,500 lbs (freight, liftgate delivery included) |
| Voltage | 115V / 1-phase / 60 Hz · 4.6 A · NEMA 5-20R plug |
| Certifications | NSF, UL, ASTM E84 Class A, DOE/EPA EISA 2007, Prop 65 |
| Warranty | 15-year panel structural — see Warranty Policy (WR-1.0) |
| Country of origin | United States — Johnson City, Tennessee |
| Manufacturer | American Mortuary Coolers |
Electrical & Compressor Specifications
Amperage
4.6 A
115V · 1-phase · 60 Hz
Plug Type
NEMA 5-20R
Cord & plug supplied
| Supply voltage | 115V / 1-phase / 60 Hz |
|---|---|
| Unit amps (running) | 4.6 A |
| Minimum circuit ampacity (MCA) | 15.0 A |
| Max overcurrent protection (MOPD) | 15 A fuse / breaker |
| Cord & plug | Supplied from factory — NEMA 5-20R |
| Compressor system capacity | 2,900 BTU/h @ 95°F ambient · 35°F box |
| Refrigerant | R-290 (low-GWP hydrocarbon) |
| Defrost | Air defrost |
| Evaporator fan motor | 2-speed EC · 250 CFM |
| Efficiency (AWEF) | 5.61 — meets DOE minimum |
| Refrigeration unit size | 20.75″ H × 28.56″ W × 29.75″ D · 115 lb package |
| Listing | UL listed — US & Canada |
| Refrigeration platform | Heatcraft Climate Control PRO³ — factory electrical spec sheet (PT0032MANAPNA) |
Plug-and-play on a dedicated 115V / 20-amp circuit — no hard-wiring required. A stamped electrical schedule ships with every quote.
Important — Read Before Startup: 2026 Packaged Refrigeration System
Due to the changing refrigerant models under new Freon regulations and updated guidelines, it is critical that you completely read all startup instructions before using your packaged refrigeration system. Please be sure you understand your startup settings and the proper overflow and humidity drainage ports, which require hose adapters.

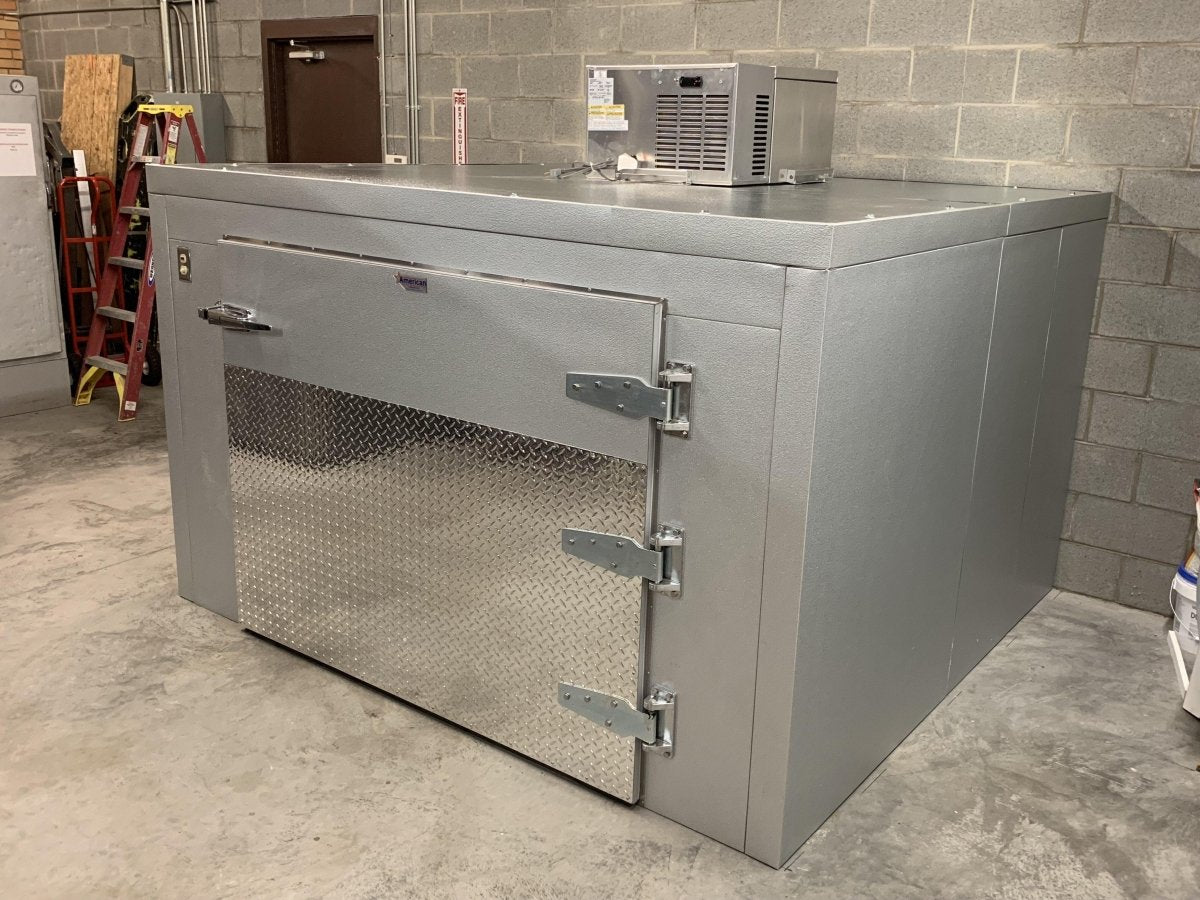

Condensation Drain Requirement
All 2026 Heatcraft compressors require a drain hose attached to the drain port for condensation, to maximize energy efficiency. Connect the supplied drain line to the drain port before startup.
External Drain Connection
In high-humidity environments or during continuous heavy run-times, the unit may experience overflow. To prevent this, the indoor unit is equipped with a 3/4″ NPT external drain connection that can be routed to an external drain line or a field-supplied condensate pump.
Internal Re-Evaporation
Indoor PRO³ models include a hot-gas re-evaporation pan beneath the compressor, which uses hot refrigerant gas to evaporate condensation naturally during normal operation.
2026 and Forward — Heatcraft PRO³
2026 and later packaged Heatcraft PRO³ systems include many new features made possible by an extremely high-efficiency process. Reviewing the startup documentation ensures these systems perform as designed.
American Mortuary Coolers accepts no liability or responsibility for a customer's failure to properly start up the new AW2 fully packaged, plug-in refrigeration units. If you have specific questions regarding functions and operations, please reach out prior to ordering.
Full startup manuals and tech bulletins: Packaged Refrigeration Manuals & Startup Guide
Questions before you order? Call 1-888-792-9315 or email cool@mymortuarycooler.com.
Sizing, weight ratings & cot compatibility

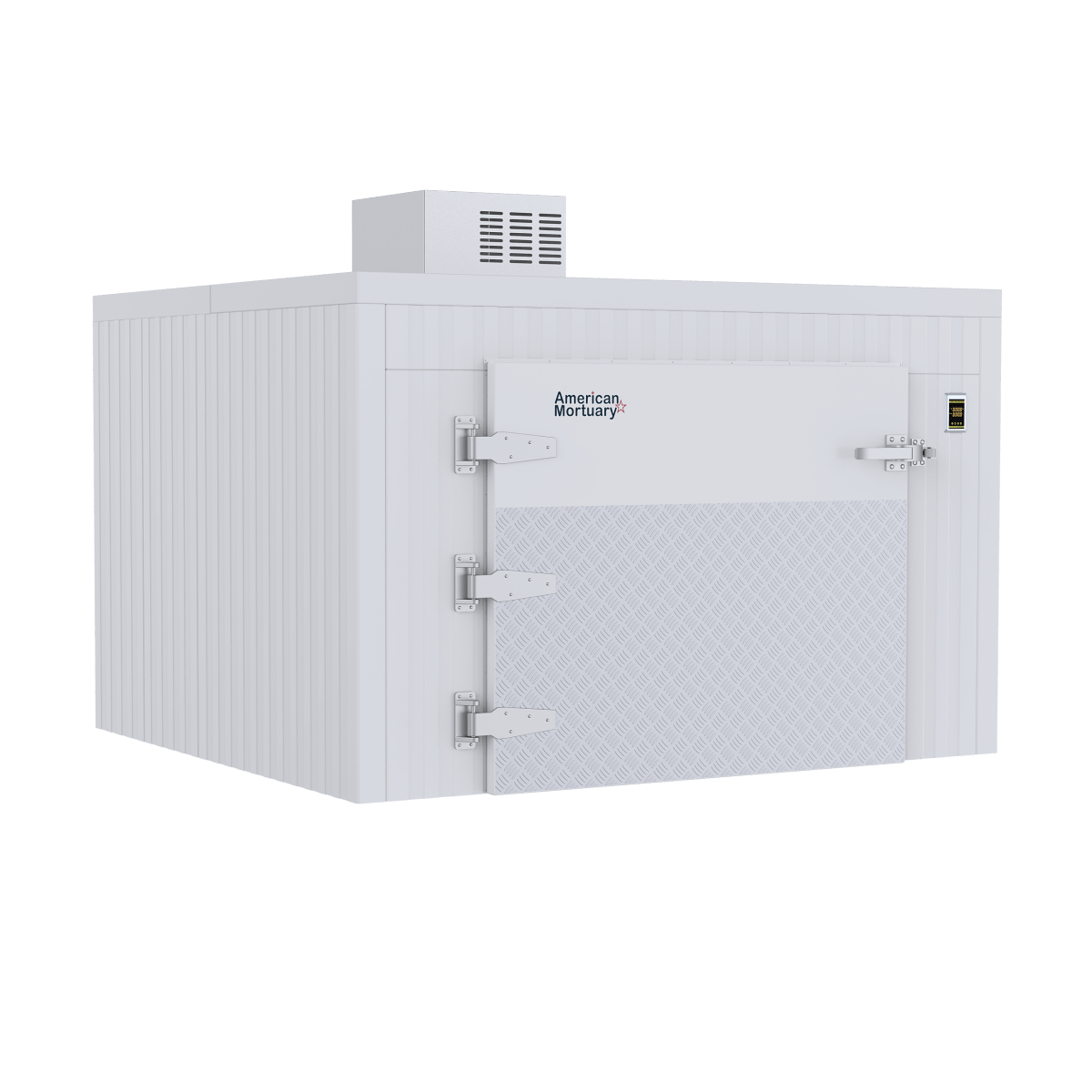

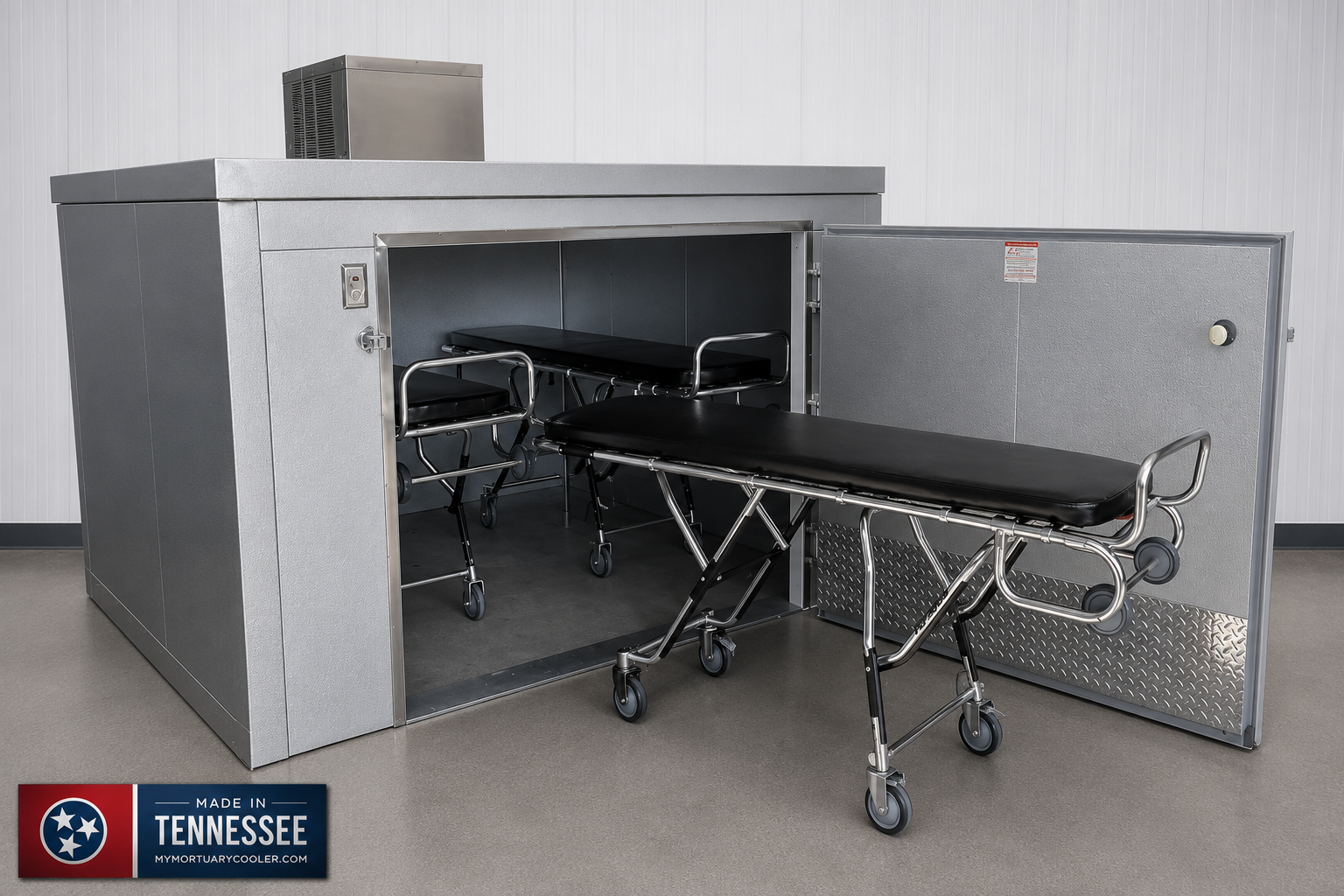

The 3-Body Triple-Wide Roll-In is the parallel-access answer to 3-body capacity, built for funeral homes, hospital morgues, and coroner offices where the prep room can accommodate horizontal width but not the depth of a walk-in. For depth-oriented roll-in workflow, see the 2-Body Standard Width or 2-Body Extra Wide. For higher capacity at this width class, see the 6-Body Dual-Door upright.
Weight per tier: each of the three roll-in positions is rated at 850 lbs maximum. The triple-wide cabinet is extra-wide by design — each parallel position accommodates the full bariatric cot envelope. Three positions, 850 lbs each, cot-direct roll-in. No body transfer required on arrival.

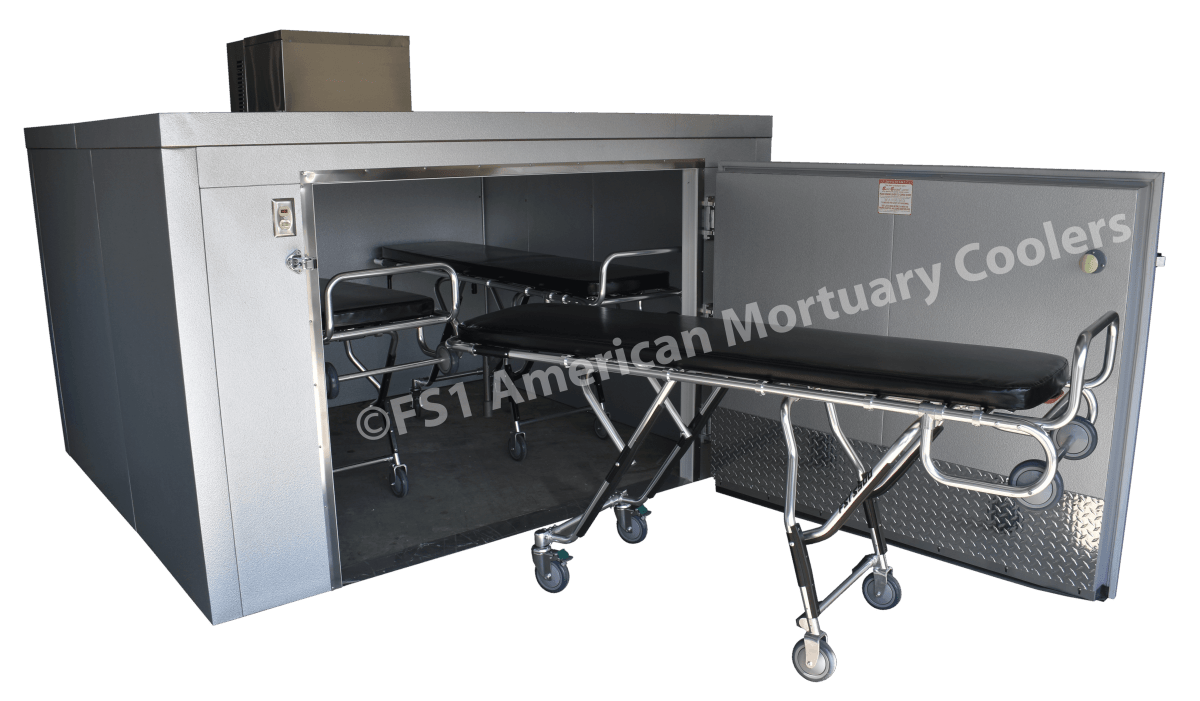

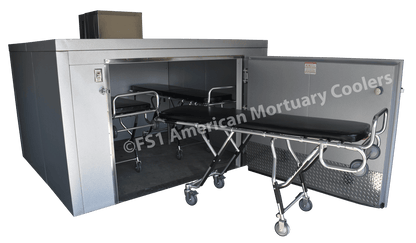

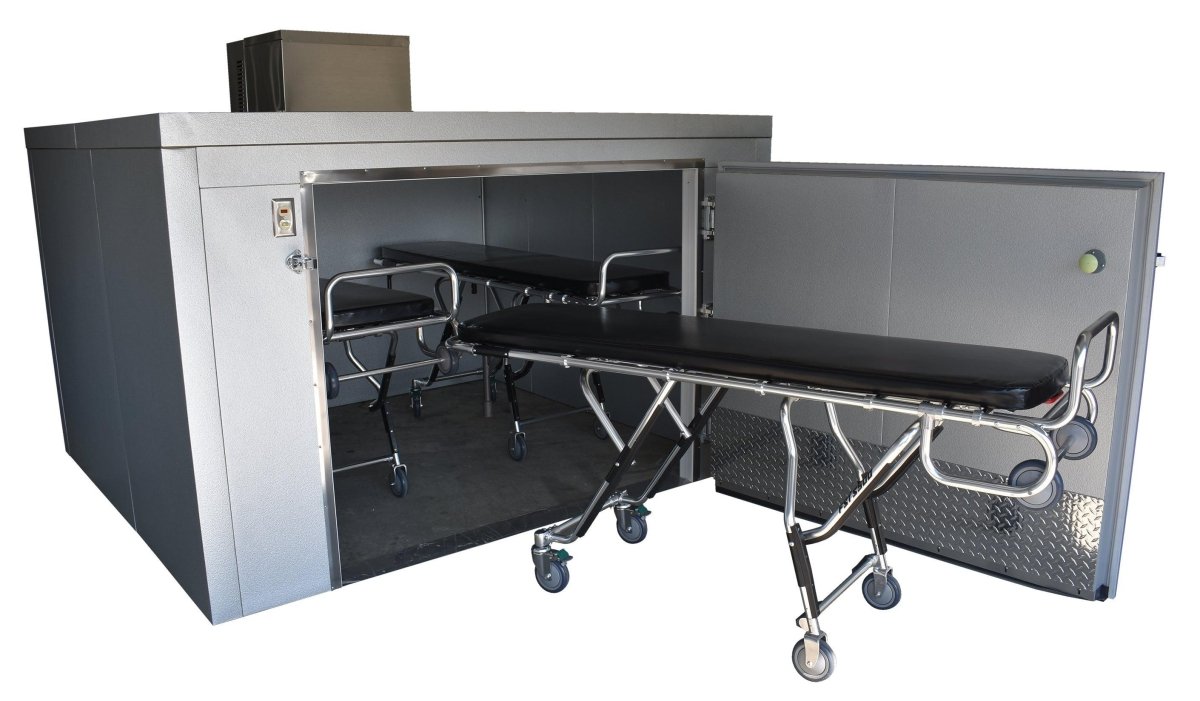

Cot compatibility: three parallel roll-in positions for the 500E, PRO 650X, or 1000E Bariatric cots. All three cases stay on their original cots inside the cooler — relevant for facilities that don't want to transfer-to-rack on arrival.
Full catalog: roll-in mortuary coolers · upright cooler line. Sizing methodology: size guide.
State-by-state availability & shipping
Ships factory-direct from Johnson City, Tennessee to all 50 states — most orders within 2 business days. Gross ship weight 1,500 lbs with liftgate delivery included.
Alabama · Arizona · Arkansas · California · Colorado · Florida · Georgia · Illinois · Indiana · Kentucky · Louisiana · Michigan · Minnesota · Mississippi · Missouri · North Carolina · Ohio · Oklahoma · Pennsylvania · South Carolina · Tennessee · Texas · Virginia · Washington · Wisconsin
Regional desks: Southeast · Midwest · Northeast · Southwest · Rocky Mountain · Pacific · Canada.
Financing & planning guides
- 0% financing at checkout — Shop Pay Installments
- Extended financing on orders over $5,000 — apply here
- Section 179 in-year tax treatment
Frequently asked questions
What is the weight limit per roll-in position?
850 lbs maximum per position — each of the three parallel roll-in bays. Extra-wide rated across all positions.
What is the gross ship weight?
1,500 lbs gross. Liftgate delivery included from Johnson City, Tennessee.
What electrical supply does it need?
A dedicated 115V / 20-amp circuit. The unit draws 4.6 running amps and ships with a NEMA 5-20R cord and plug — plug-and-play, no hard-wiring. See the Electrical & Compressor Specifications above.
Do I need a drain line?
In high-humidity or high-temperature environments, yes — attach a hose to the external drain connection and route to a drainage source. See the packaged refrigeration manuals page.
How does triple-wide differ from a 3-body upright?
Triple-wide gives three parallel cot-direct roll-in positions across the cabinet width. A 3-body upright stacks 3 bodies vertically on a single rack behind one door — requiring body transfer off the cot.
What cots fit?
The 500E, PRO 650X, and 1000E Bariatric cots all roll directly in at 850 lbs per position.
Where is it manufactured?
Johnson City, Tennessee. American Mortuary Coolers, family-owned since 2009, A+ Rated by the Better Business Bureau.
