USPE Vet Necropsy Grossing Workstation

Product details

Bring specimen preparation, rinsing and instrument staging into one veterinary wet-work layout. The USPE Vet necropsy grossing workstation concept combines a perforated working platform, adjacent sink and rear service zone for animal-science and veterinary pathology planning.

Base standard configuration

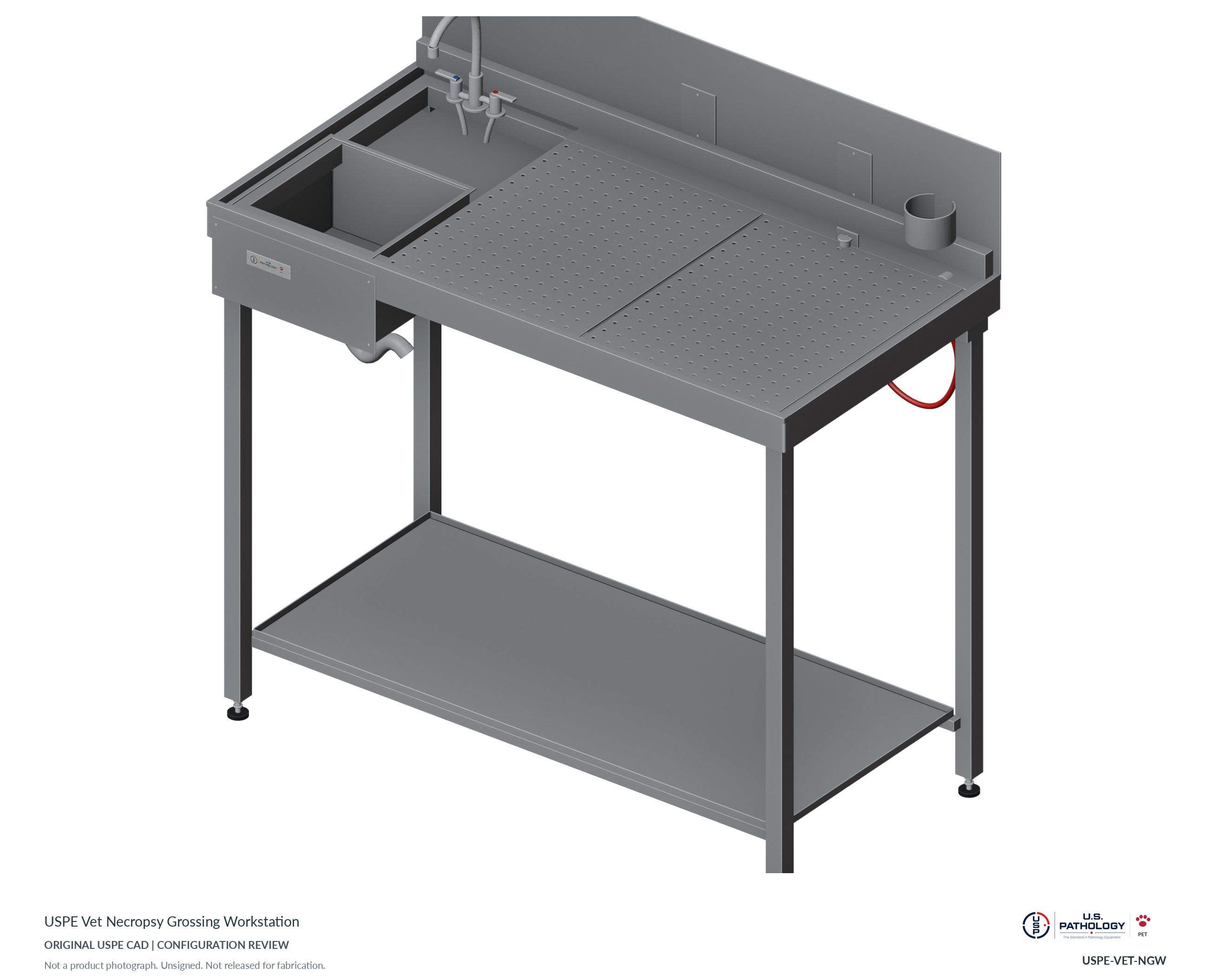

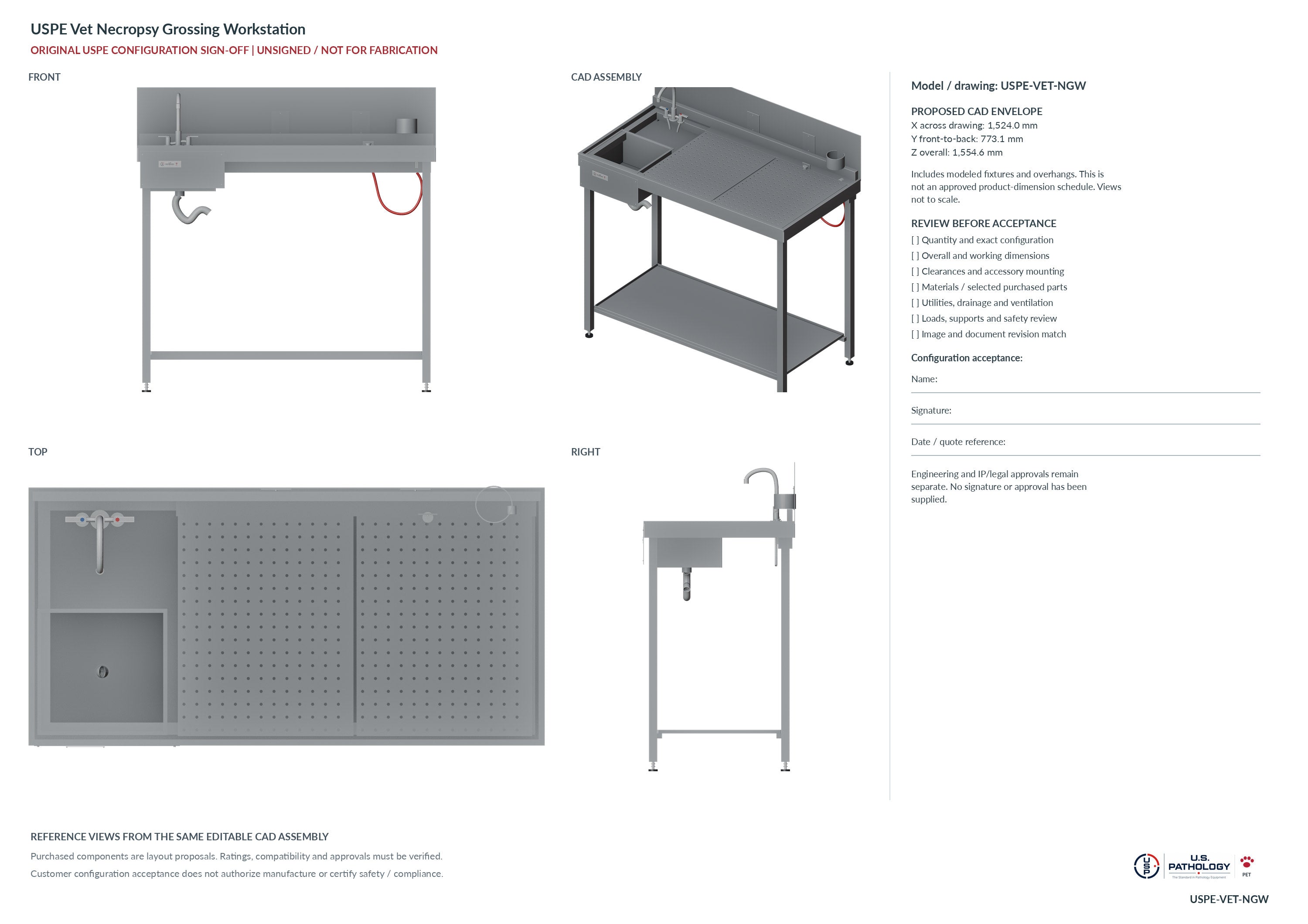

The base planning configuration is a fixed-height wet-work station with sink, removable specimen platform, faucet, rear service plenum, cabinet storage and leveling feet. The illustration shows optional red spray-hose and task-light requests. Final inclusions must be listed in the accepted quotation.

Model and configuration requests

• USPE-VET-NGW-48: 48-inch planning configuration
• USPE-VET-NGW-60: 60-inch planning configuration
• USPE-VET-NGW-72: 72-inch planning configuration
• USPE-VET-NGW-C: Custom layout review

Product details

Specimen deck and sink

A removable perforated platform and separate basin organize wet-work tasks. Final basin size, grid geometry, waste path and cleaning access require approved submittals.

Water and washdown

Specify wrist-blade mixing faucet, swivel spout, vacuum-breaker requirements and red spray-hose routing. A pictured accessory is not automatically part of the base configuration.

Backdraft planning

The rear plenum is a building-exhaust connection concept, not a certified containment system. Confirm exhaust location, duct size, airflow, pressure, alarm scope and commissioning with the facility engineer.

Storage and servicing

Under-deck cabinets and an open center shelf are proposed for segregated storage and service access. Confirm utility chases, access panels, door swing and floor cleaning clearance.

Specification and utility review

Water

Hot/cold supply, isolation, pressure and backflow protection to be specified.

Waste

Drain size, trap, waste chemistry and disposal arrangement require approval.

Ventilation

Building exhaust interface only; no airflow or exposure-control rating established.

Electrical

Only if selected: exact voltage, circuit, grounding and wet-location protection to be confirmed.

Materials

Request 14-gauge Type 304 stainless or alternative material review; not an approved manufacturing specification.

Load / height

No accepted load rating; target envelope is planning-only. Accessibility and lift options require separate review.

Options and upgrades

Select the requirements for review. An option is not an included feature or a confirmed compatible component until accepted in the written proposal.

• Red spray hose assembly
• Task light
• Elevating base review
• Waste disposer and water control
• Eyewash
• Scale bracket
• Air / gas / vacuum valve
• Electrical outlet review
• Rinse / flushing system
• Custom sink orientation
• Custom cabinet layout
• Material and finish review

Frequently asked questions

Is this for human autopsy use?

This USPE Vet configuration is intended for animal-science and veterinary necropsy planning. Human pathology equipment is identified separately under USPE.

Is the workstation ventilated?

The illustrated rear plenum proposes a connection to building exhaust. Required airflow, ductwork, monitoring and commissioning must be engineered for the specific facility.

Can the layout be customized?

Request changes to width, sink orientation, cabinets, utilities and accessories. Each change is subject to feasibility review and approval of the written scope.

What is included in the standard offering?

Use the base configuration description as the starting scope. The accepted quotation and approved submittal, not a rendered accessory, define what is supplied.

Request a quote or submit a PO for review

Choose the base configuration and quantity, then add your customization requirements. Requests are reviewed by staff and do not place an order or certify fit. No payment or installment option is offered for this quote-only equipment.

Request a USPE quote | Submit a PO / RFQ request | USPE casework planning

Related veterinary equipment

Compare the complementary USPE Vet wet-work concept. Cross-reference only: no cart connection or mechanical compatibility is implied.

USPE black nitrile gloves | USPE high-risk nitrile gloves. Select PPE for your facility procedures; no chemical-protection or fit claim is established by this cross-link.

Professional supply and documentation

U.S. Pathology Equipment is a company owned by American Mortuary Equipment and Funeral Source One. Ask for the exact approved configuration, supplied-component documents, applicable sourcing details and warranty terms before purchase. Original concept images are not product photographs or evidence of certification.
