USPE Powered-Lifting Fork Stacker | USPE-EFL76

Product details

USPE-EFL76 | Quote Only

Request a fork-stacker configuration with powered lifting for pathology handling planning. Powered travel is not established and is not claimed. This is separate from the hand-crank platforms.

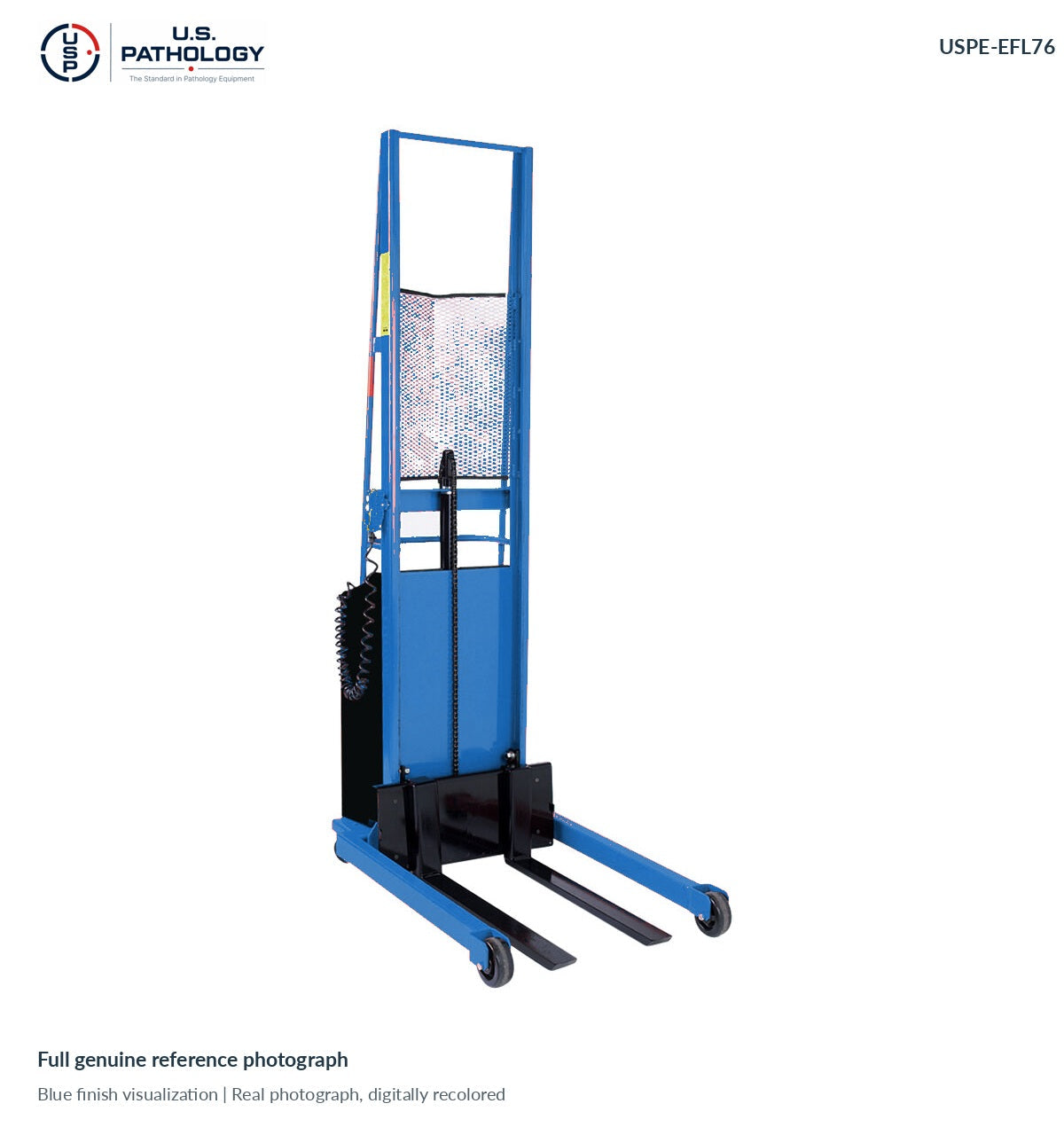

Published reference-chassis specifications

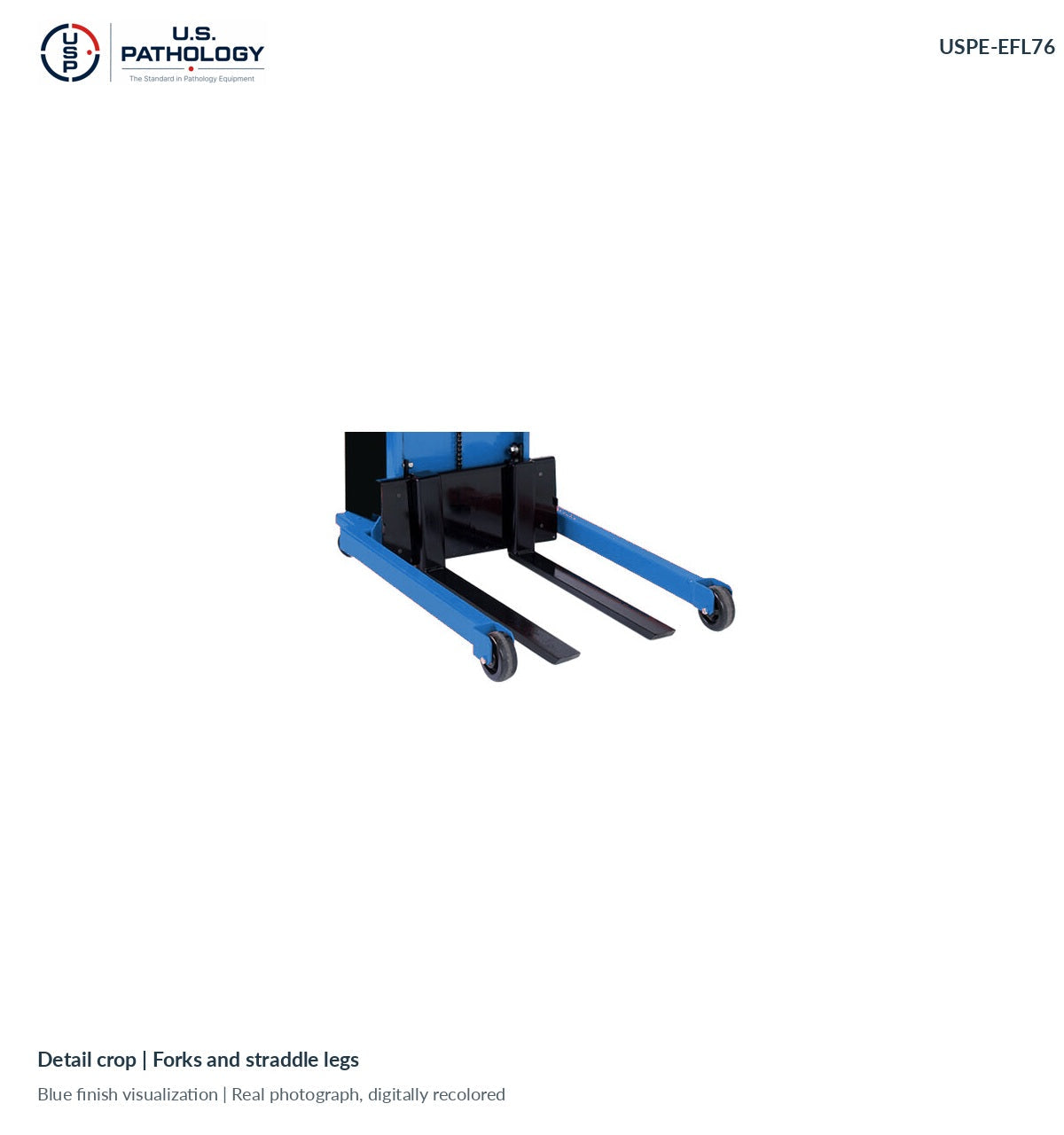

The selected reference chassis specifies a 1,000 lb base capacity, 76-inch maximum lift height, 92-inch overall height and 30 × 3-inch forks. Fork spacing is listed as 6–25 inches. Listed overall dimensions are 25½ inches wide × 44½ inches deep × 92 inches high, but the base legs are 32 inches outside to outside with a 25½-inch inside span. Use the complete 32-inch deployed base span, not the narrower overall-width entry, for initial clearance planning.

Battery lifting and wheel arrangement

The reference chassis includes battery and charger, two 5-inch front wheels and two 4-inch swivel casters. Battery voltage, battery capacity and load center are not established by the selected reference page and are not invented here. Confirm electrical supply, charger, battery, floor requirements and the accepted unit documentation in the quotation.

Final configuration and accessory review

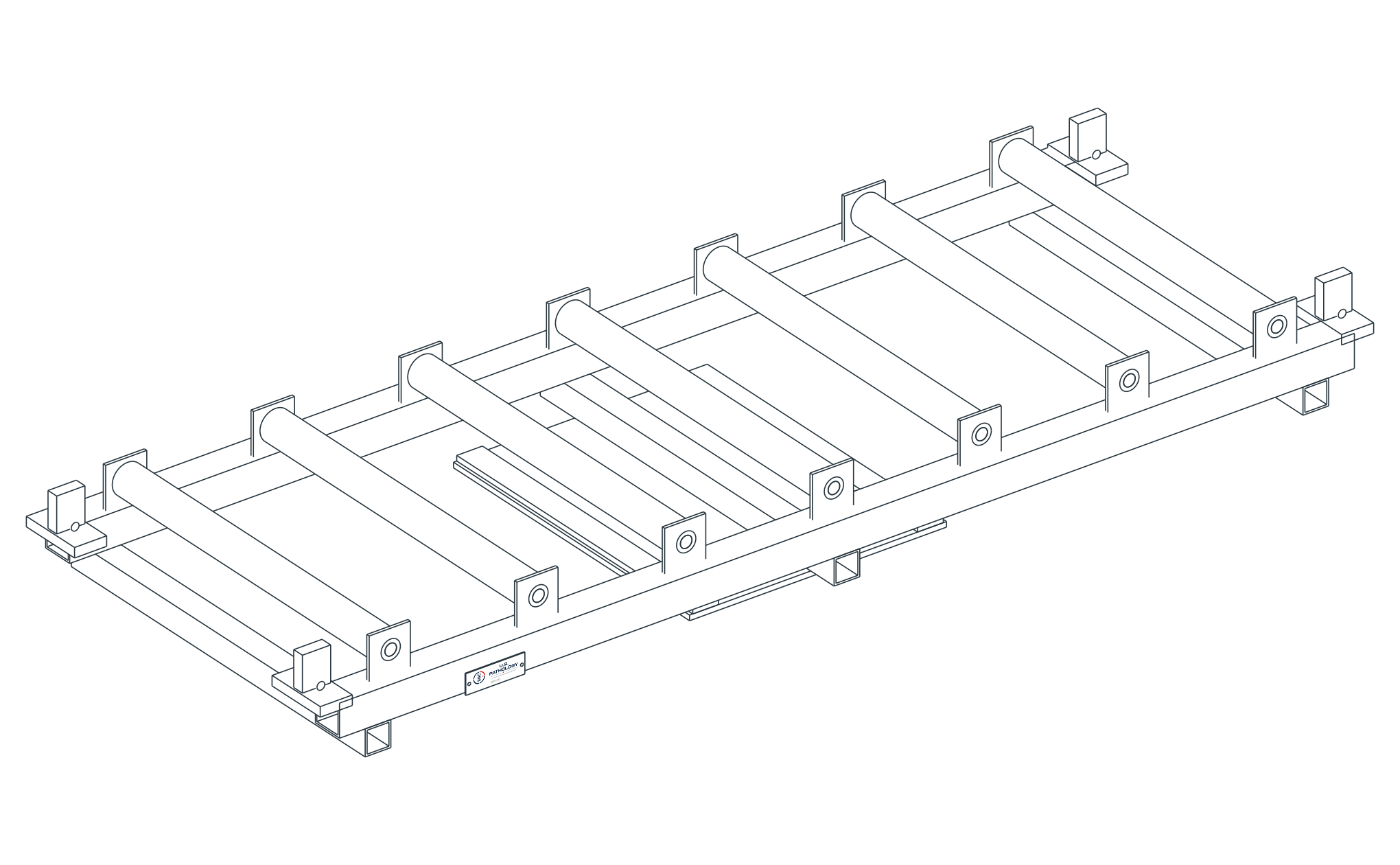

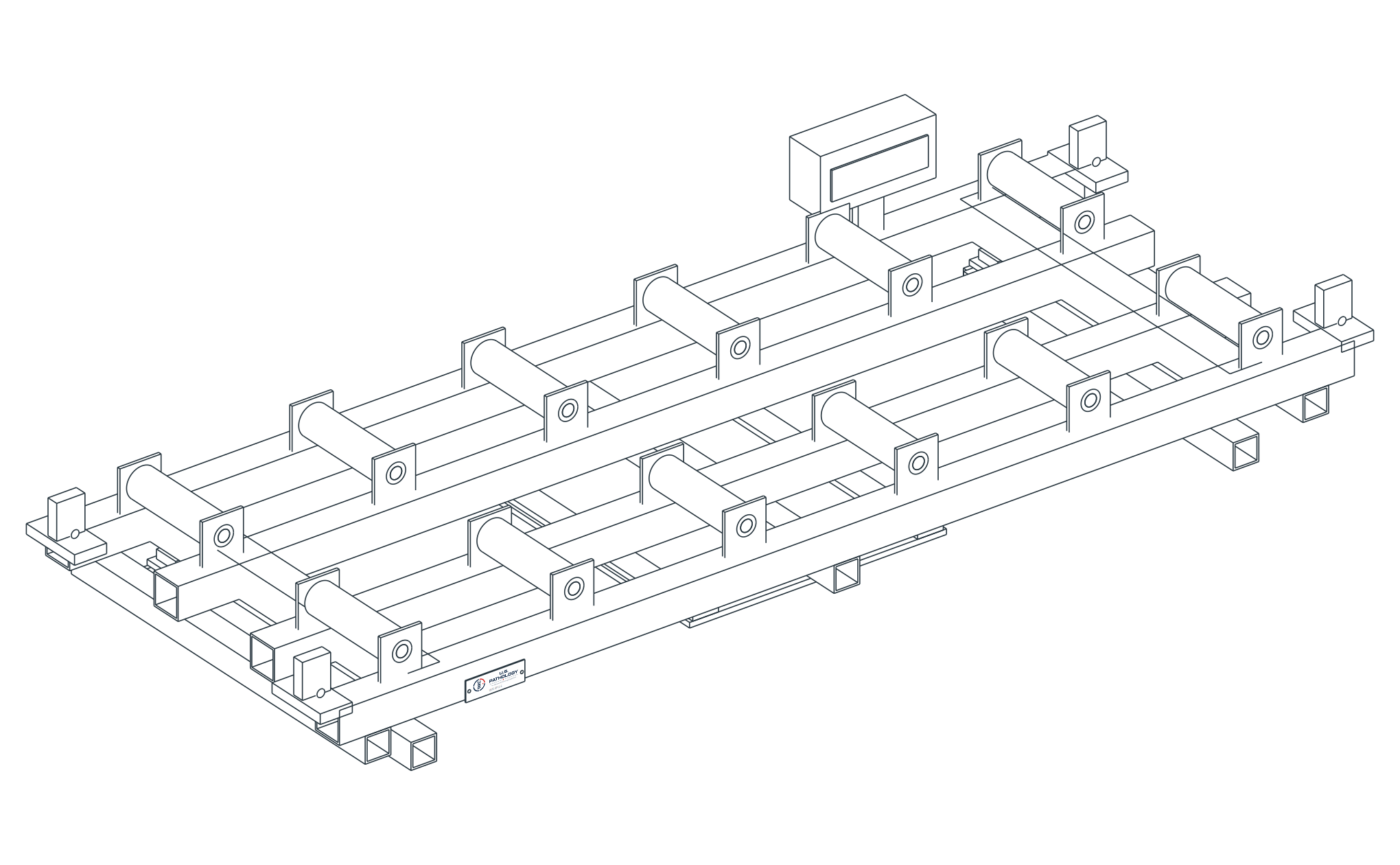

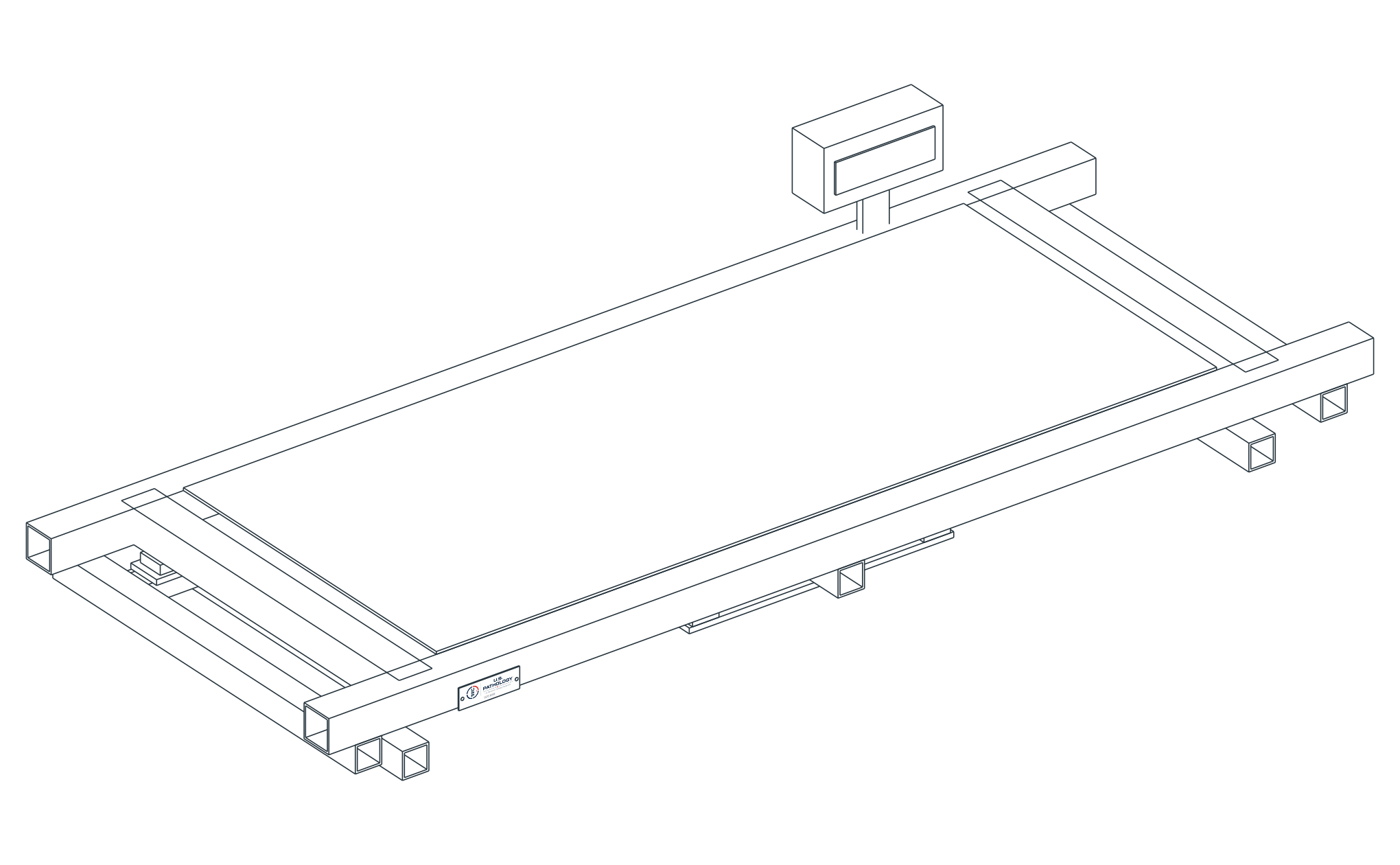

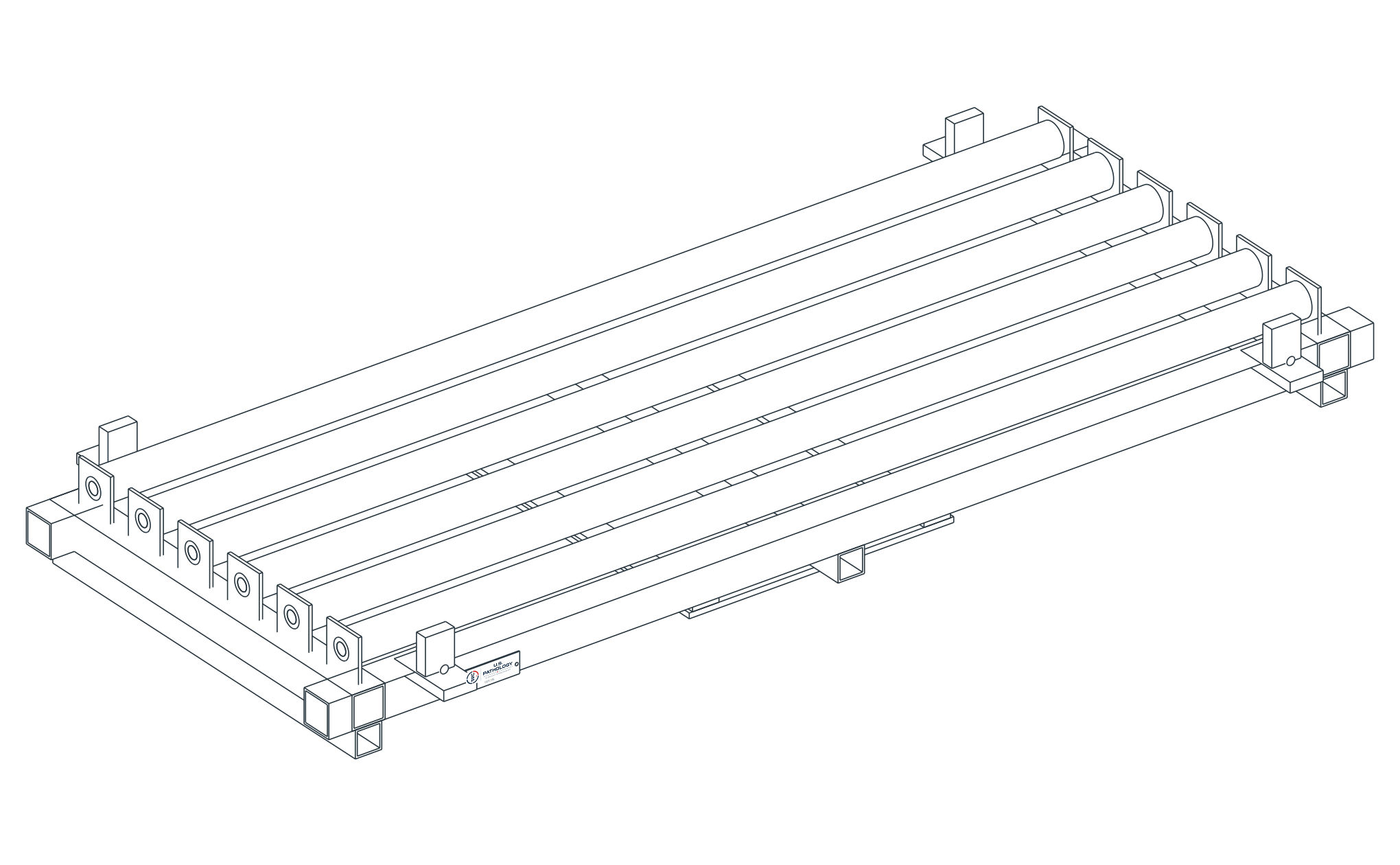

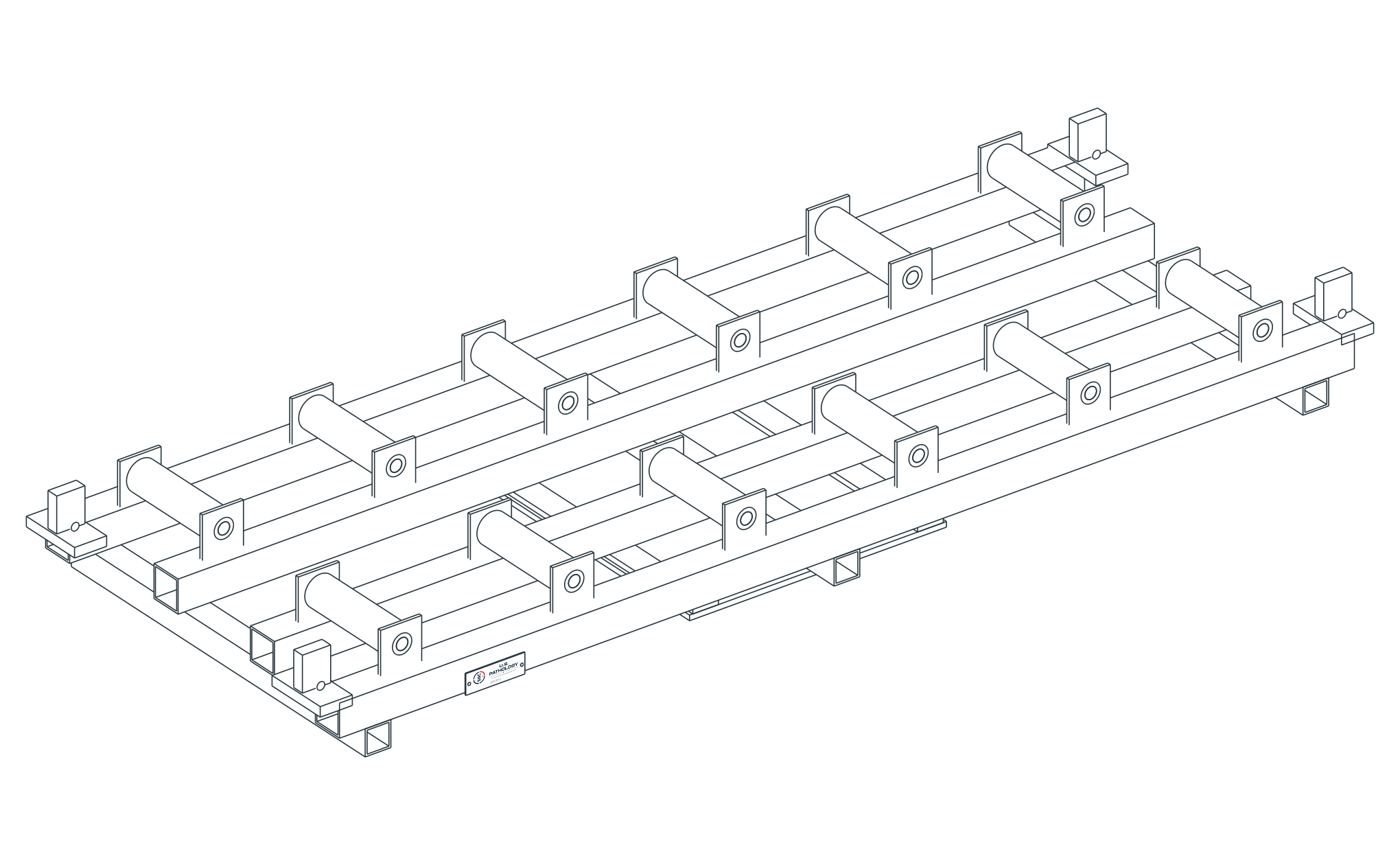

These reference-chassis values do not establish a modified-USPE assembly capacity or approved tray interface. Request roller-pallet, retention and weighing-module options individually. No universal pallet fit, combined-system load rating or weighing accuracy is established. Genuine photographs show a digitally proposed blue finish; final supplied finish must be confirmed.
