USPE Vet Wall-Mount Fold-Down Veterinary Exam Table – Model USPE-VET-WM45
Specifications, drawings & manualsModel: USPE-VET-WM45
Quote only
Request a quote for your selected model and configuration.
Confirm custom dimensions, materials, load ratings, tray and rack compatibility, and freight in your written quote before ordering.
1-888-792-9315
140 Kwick Way Lane, Building 7, Johnson City, TN 37615
Product details

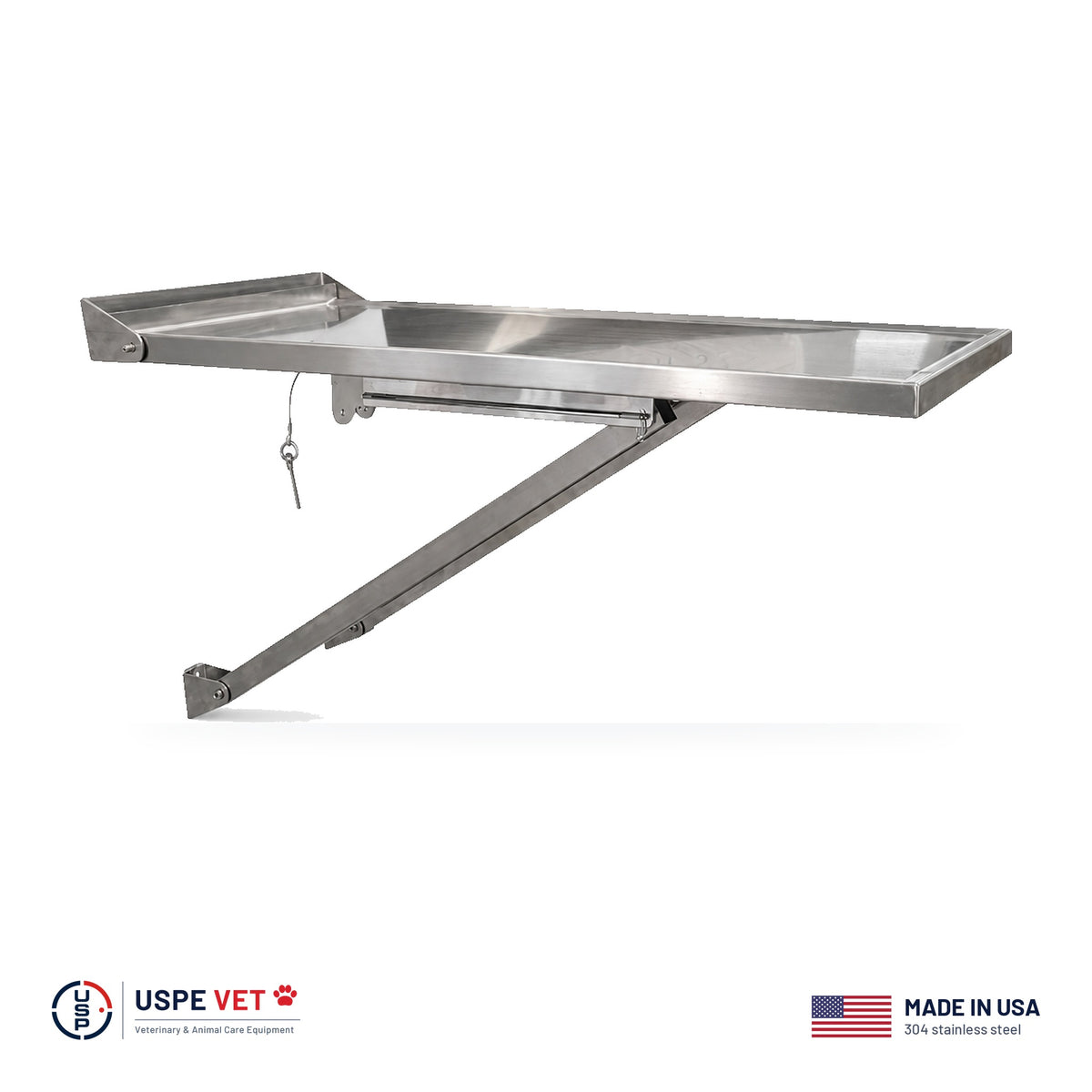

USPE Vet Wall-Mount Fold-Down Veterinary Exam Table, 304 Stainless, Made in USA

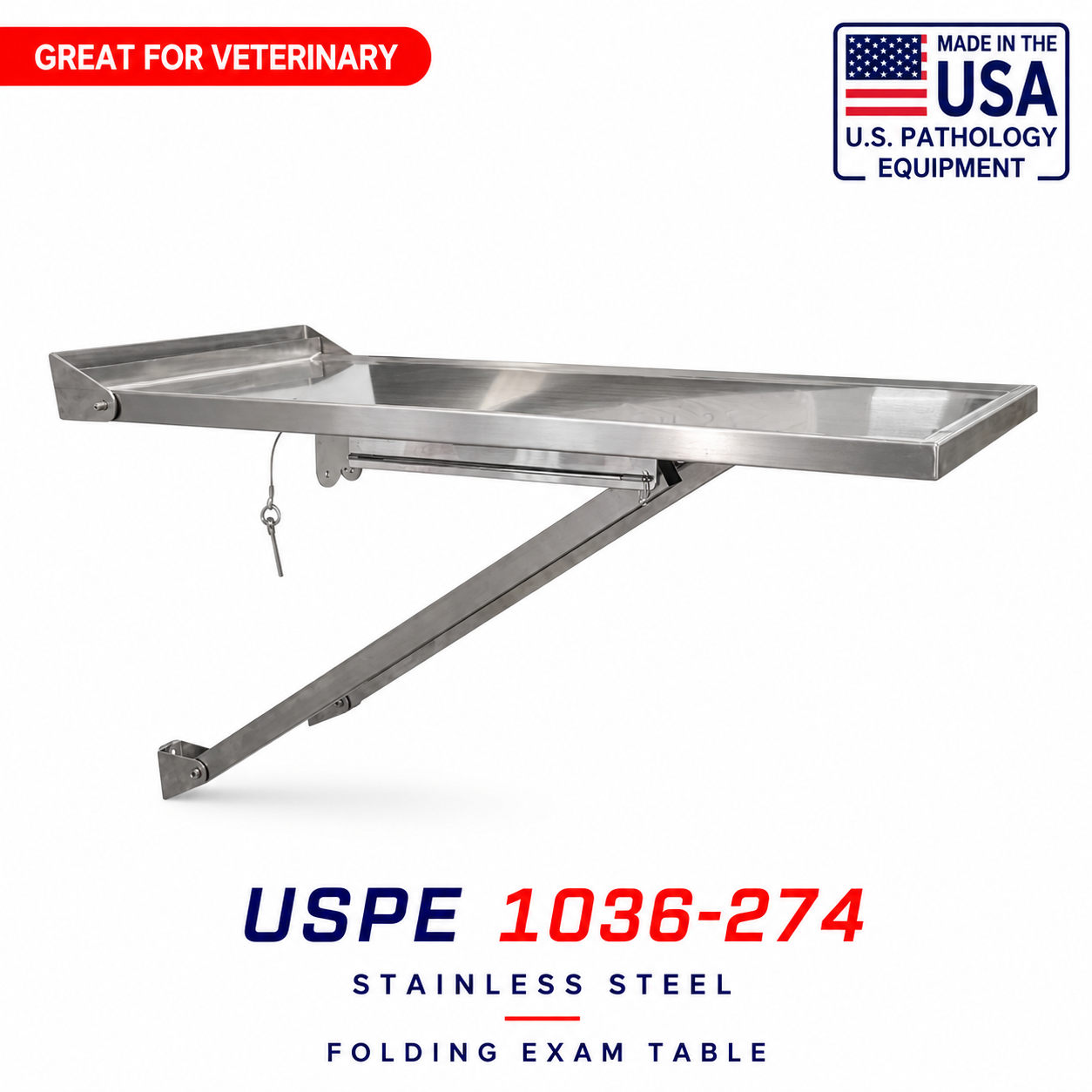

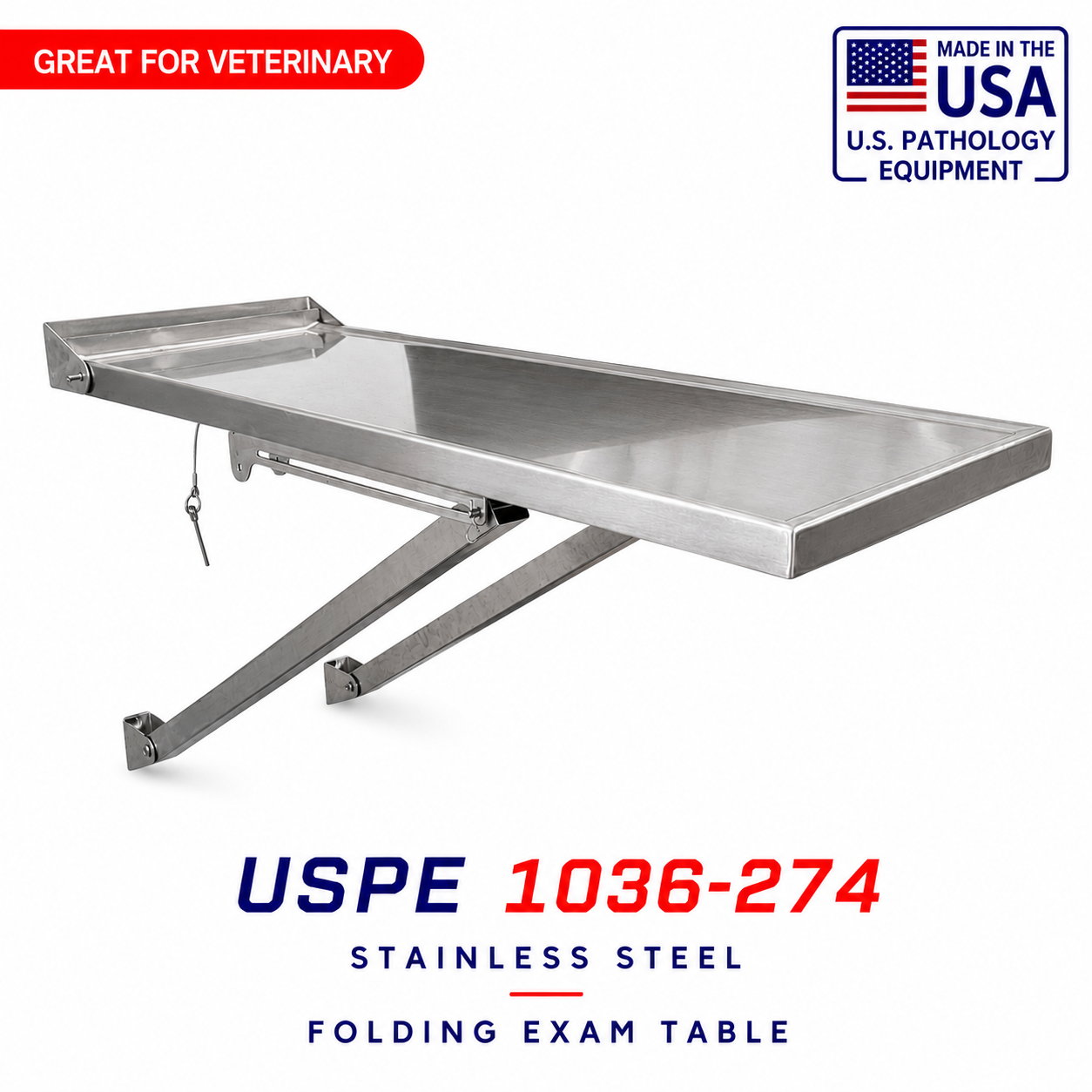

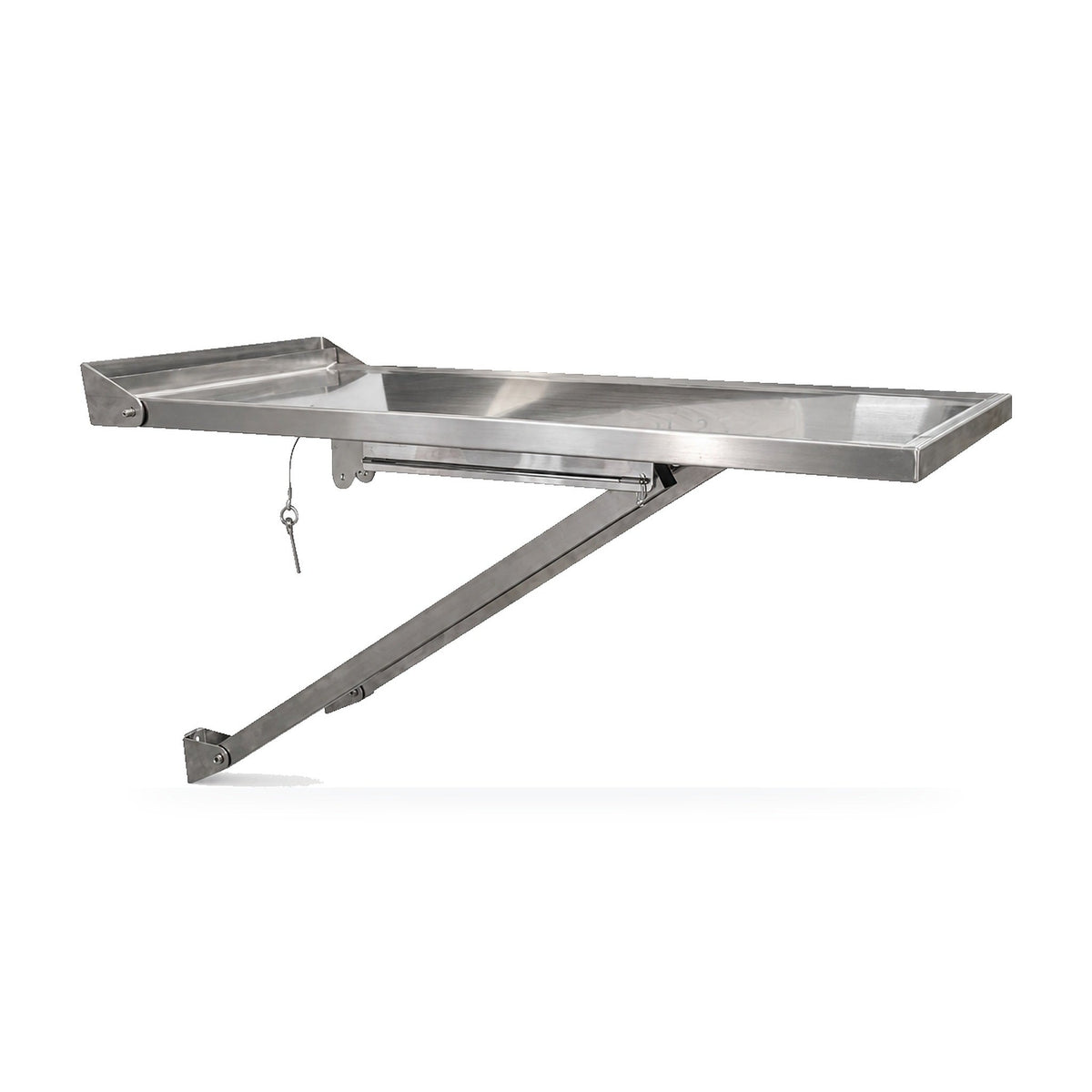

The USPE Vet USPE-VET-WM45 is a fold-down exam table that mounts to the wall and gives small exam rooms a full 45″ × 18½″ stainless work surface without giving up floor space. Two stainless tubing supports carry the top from four wall brackets, pull pins lock it in place, and it folds flat against the wall when the room is needed for something else. This is our base model; add it to your quote and we confirm size, mounting height and wall details before it is built.
Form USPE-DS-VET-WM45 Rev. A · Last updated January 15, 2026 · PDF

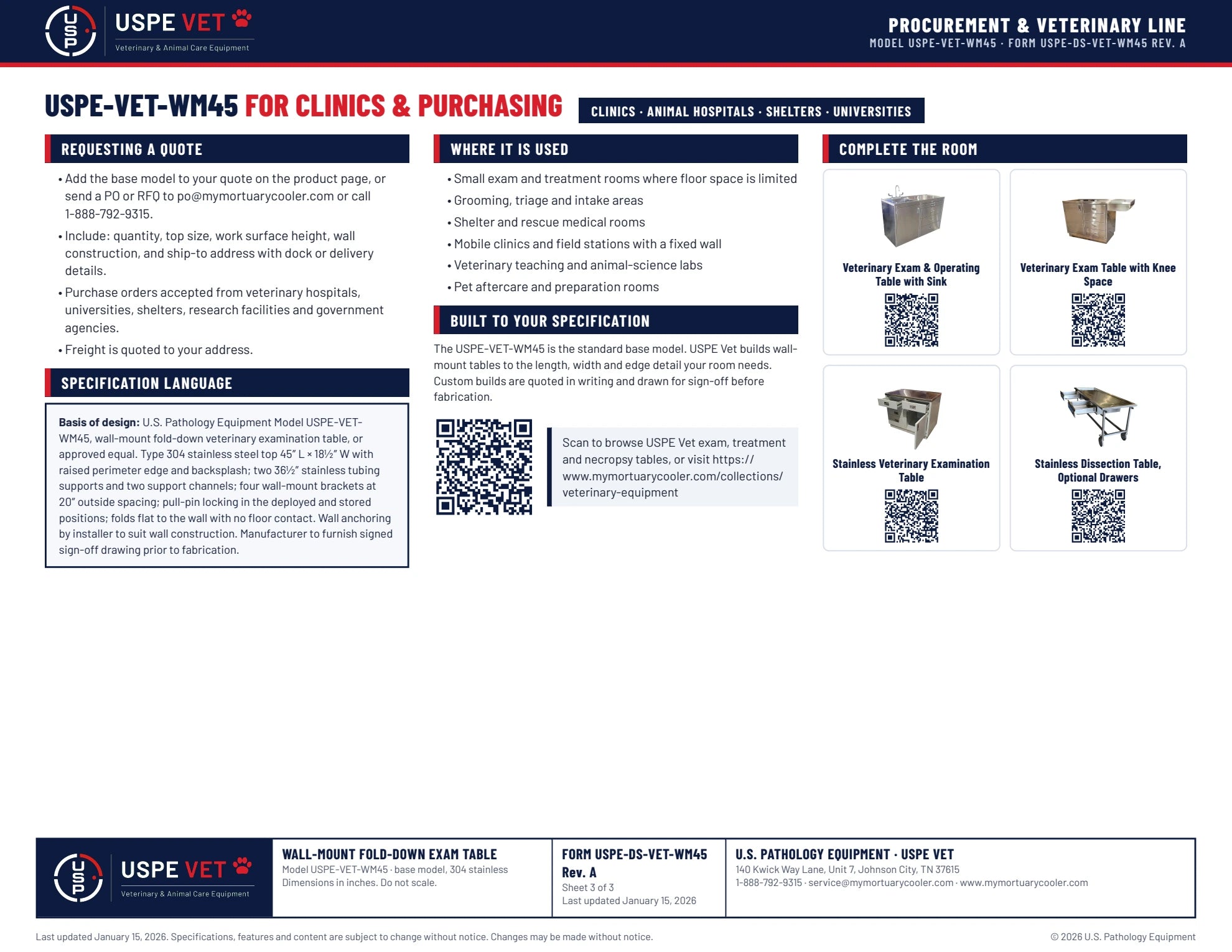

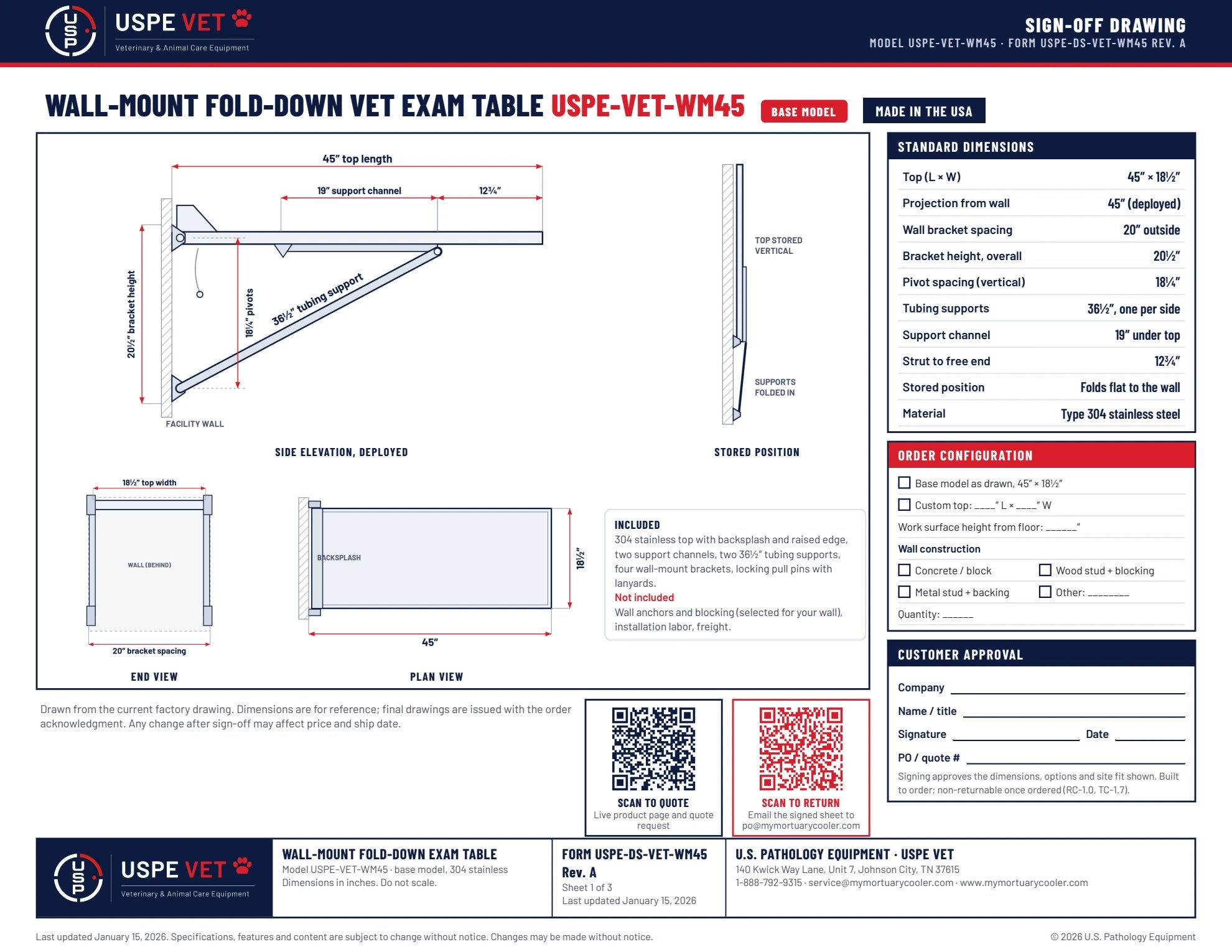

USPE-VET-WM45 Wall-Mount Fold-Down Veterinary Exam Table Sign-Off Drawing
Dimensioned drawing, specifications, wall-mounting and installation guidance, operation, cleaning, warranty terms and specification language for bids.
Download Sign-Off Drawing All manuals & drawingsAt a glance
- Base model USPE-VET-WM45: 45″ × 18½″ Type 304 stainless top

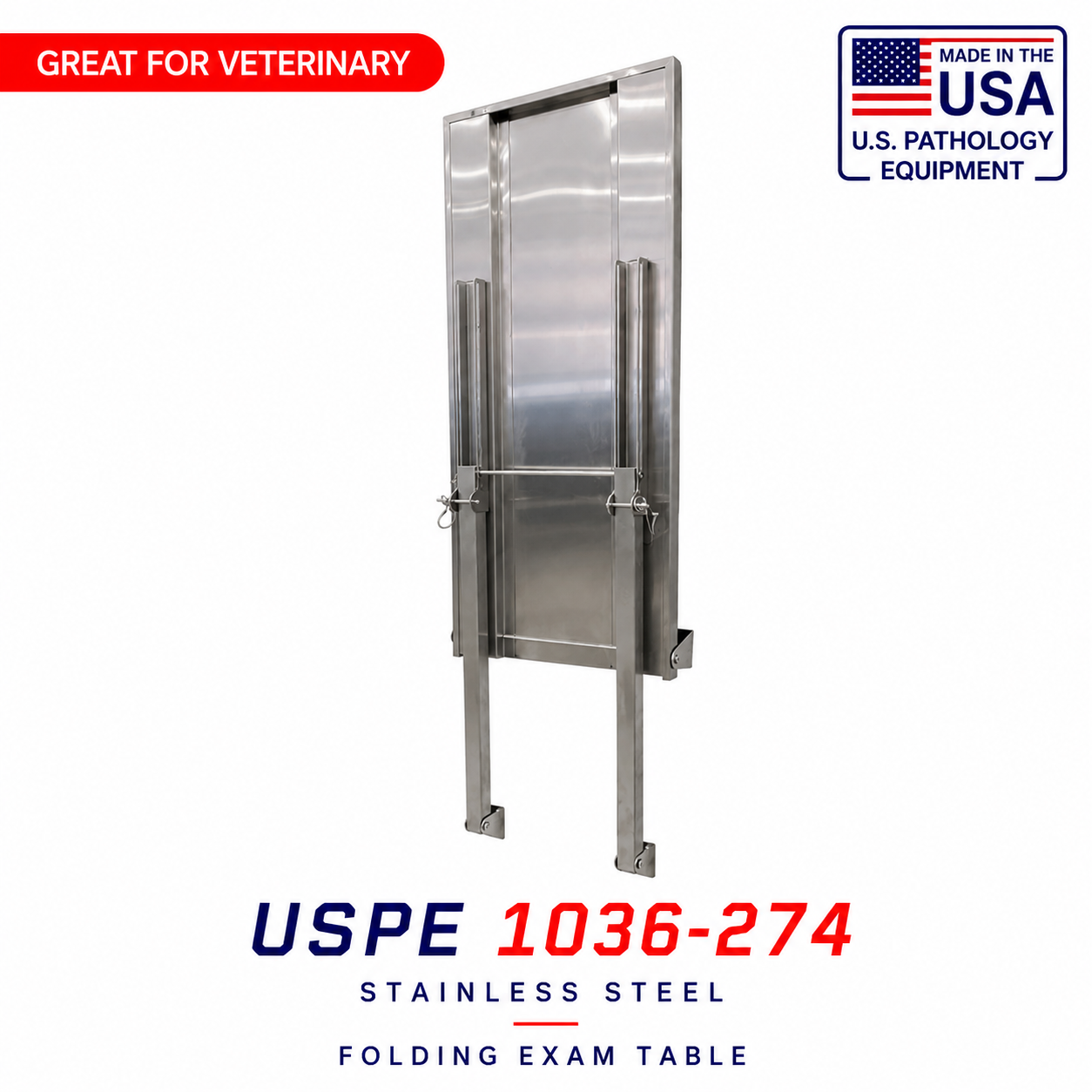

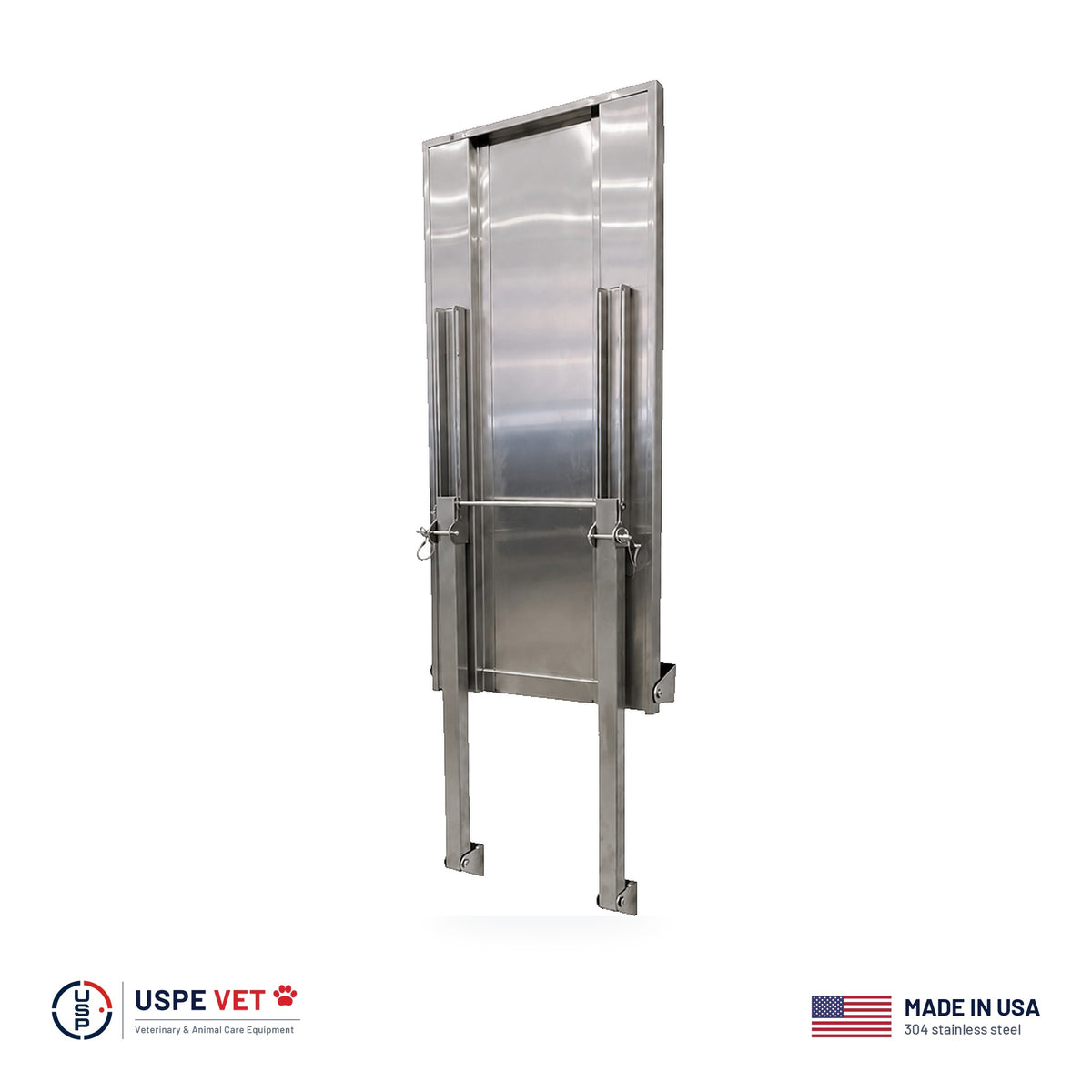

- Folds flat to the wall: no floor contact when stored

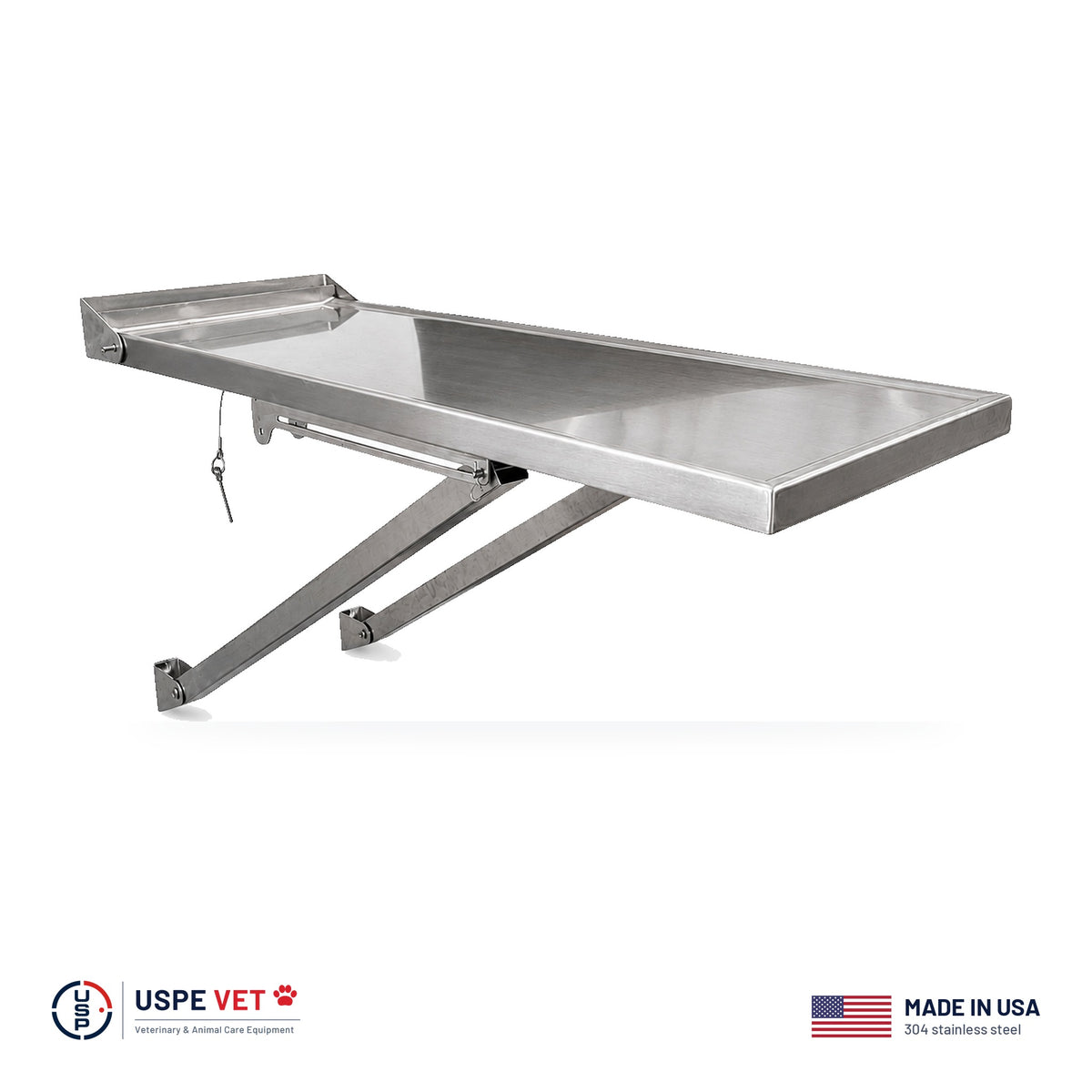

- Two 36½″ tubing supports and two 19″ support channels
- Four wall brackets at 20″ outside spacing
- Pull-pin locking with lanyards
- Raised edge and backsplash keep fluids and hair on the top
- Quote only: custom sizes built to order
Built for small rooms
Wall-mount tables suit exam rooms, treatment and triage areas, grooming and intake rooms, shelter medical rooms and veterinary teaching labs where a freestanding table would block the floor. Deployed, the top projects 45″ from the wall; stored, it stands flat against the wall. Set the work surface height to suit your staff when it is installed.
Specifications
| Brand / Model | USPE Vet (U.S. Pathology Equipment), USPE-VET-WM45 |
|---|---|
| Configuration | Base model, wall-mount fold-down |
| Material | Type 304 stainless steel, polished |
| Table top | 45″ L × 18½″ W |
| Edges | Raised perimeter edge, backsplash at the wall end |
| Projection from wall | 45″ deployed |
| Top overhang | 12¾″ past the outer end of the tubing supports |
| Supports | Two 36½″ stainless tubing supports, two 19″ support channels |
| Wall brackets | Four; 20″ outside spacing, 20½″ overall height, 18¼″ between pivots |
| Locking | Pull pins with lanyards |
| Stored position | Folds flat against the wall, no floor contact |
| Mounting | Concrete, block, or framed wall with solid blocking; anchors by installer |
| Custom sizes | Length, width and edge detail by quote |
| Country of origin | USA, Johnson City, Tennessee |
Installation
- Mount to concrete, block, or a framed wall with solid blocking or backing behind all four brackets. Do not mount to drywall alone.
- Wall anchors are not included; your installer selects fasteners for the wall and the heaviest animal and equipment load expected.
- Keep the 45″ swing area and the wall above the brackets clear of outlets, switches and casework.
- The data sheet includes the dimensioned drawing and a sign-off block for your order.
Care
Wash with warm water and a mild detergent, rinse and wipe dry. Use disinfectants per the label contact time and rinse afterward; chlorine and chloride residue left on stainless can cause pitting. Check anchors, pivots, pins and lanyards monthly.
Frequently asked questions
Is this the standard size?
Yes. The USPE-VET-WM45 is our base model with a 45″ × 18½″ top. Custom lengths, widths and edge details are built to order and quoted in writing.
How much floor space does it use?
None. It mounts to the wall, and when stored the top folds flat against the wall with no floor contact.
How is it deployed and stored?
Pull the pins, lower the top until the tubing supports seat, and reinsert the pins. To store, clear the top, pull the pins, fold it up to the wall and lock it with the pins.
What wall does it need?
Concrete, block, or a framed wall with solid blocking or backing behind all four brackets. Do not mount to drywall alone. Anchors are selected by your installer for the wall construction.
How do I order?
Add the base model to your quote on this page, or send a PO or RFQ to po@mymortuarycooler.com. Tell us the quantity, top size, work surface height and wall construction.
Where is it made?
In the USA, by U.S. Pathology Equipment in Johnson City, Tennessee.
Direct procurement: 1-888-792-9315 · po@mymortuarycooler.com · request catalog
Full custom models and finishes
Every U.S. Pathology Equipment model can be built to your specification. Common changes include length, width and working height, load capacity, left or right hand orientation, sinks, plumbing and ventilation, and drawer or door layouts. Custom powder-coat finishes are available on frames, bases, cabinets and exterior panels to match your facility colors, alongside Type 304 stainless steel work surfaces. You approve a shop drawing before fabrication starts.
Quote only. The price shown is the base model; every unit is built to order and confirmed on a formal written quote.
Built for institutional buyers and bid packages
We supply hospitals and health systems, medical examiner and coroner offices, county, state and federal agencies, VA and military facilities, universities, medical schools and research labs.
- Formal written quotes with model numbers, options, lead time and freight to your dock
- Responses to RFQs, RFPs, ITBs and formal bids, with spec sheets, submittals and drawings
- Brand-equal documentation and sole-source letters when your specification calls for them
- Purchase orders accepted. Net terms, W-9 and tax-exempt certificates for qualified institutions
- Multi-unit, full-room and multi-site project pricing
Request a quote or bid package · Purchase order policy · Request a W-9 · Full-room equipment packages · Bid and submittal documentation · Call 1-888-792-9315
Related U.S. Pathology Equipment
Veterinary Exam & Operating Table with Sink · Veterinary Exam Table with Knee Space · Stainless Veterinary Examination Table · Stainless Dissection Table
Shop Veterinary exam and necropsy tables, All U.S. Pathology Equipment. Planning a new facility? See our medical examiner facility design guide.
Veterinary resources: compare veterinary exam tables, see the full veterinary equipment supply line, read why a durable exam table matters, or request a veterinary equipment quote.
Your quote basket 0
Saved on this browser only. Adding models does not submit a request or place an order.
Review and request a quoteModel-specific purchasing information
Plan your USPE Vet Wall-Mount Fold-Down Veterinary Exam Table – Model USPE-VET-WM45 purchase
Product type: Veterinary Exam Table
Review the selected configuration, included components and product specifications above. Add eligible items through this product’s cart or quote controls; custom and quote-only equipment use the request action provided for this model.
Read the applicable written warranty information. Ask a documentation question and include the product name and selected configuration.
USPE Vet equipment planning
A fold-down veterinary exam table for rooms that need their floor space back
The USPE-VET-WM45 is a wall-mounted, folding veterinary examination table with a 45″ × 18½″ Type 304 stainless top. Its two tubing supports, four wall brackets and pull-pin locks belong to this model's design; confirm the installation drawing instead of carrying over the brackets or specifications from another exam table.
Plan the wall, swing and working height
The top projects 45″ from the wall when deployed. Keep that swing area clear of doors, cabinets and equipment. Mounting requires suitable concrete, block or a properly backed framed wall, not drywall alone; the installer selects the anchors for the actual construction and approved load.
Set the working height during installation. This base model is not advertised as a hand-crank or powered height-adjustable table. Confirm the rated animal-and-equipment load for the accepted configuration; another manufacturer's 150-lb rating does not establish this model's capacity.
Request the table your facility needs
For a custom veterinary wall table, provide the top length and width, intended working height, edge requirements, wall construction and expected load. USPE reviews the requested configuration and supplies the applicable drawing and written quotation before fabrication.
Coordinate related exam, treatment and necropsy tables, laboratory refrigerators and animal aftercare refrigeration as separate equipment selections. They are not included with the folding wall table.
Is a folding wall exam table the same as an elevating veterinary table?
No. Folding describes how the work surface stores against the wall; elevating describes a change in working height. Specify both requirements if your facility needs both functions, rather than assuming a fold-down table includes a lift mechanism.
Replacing a table identified as 1036-274, 1036-274A or CD500?
Include the existing model reference, photographs, dimensions and installation drawing in your replacement request. These are references to other equipment, not USPE model numbers. A replacement review does not establish matching wall brackets, dimensions, load rating or height adjustment, and the USPE-VET-WM45 is not represented as a direct-fit substitute.
Can a clinic, shelter or university submit a purchase order?
Use purchase-order review for an issued PO, or RFQ review for a proposed equipment order. Include the model, quantity, configuration and delivery location. Submission is a request for staff review, not automatic order acceptance.
Review the applicable written warranty terms and the configuration included in the formal quotation. This custom table remains on its specification-based RFQ path rather than an instant priced quote.
