USPE Hand-Crank Cadaver Lift | USPE-HCL10

USPE-HCL10 | Hand-Crank Cadaver Lift | Quote Only

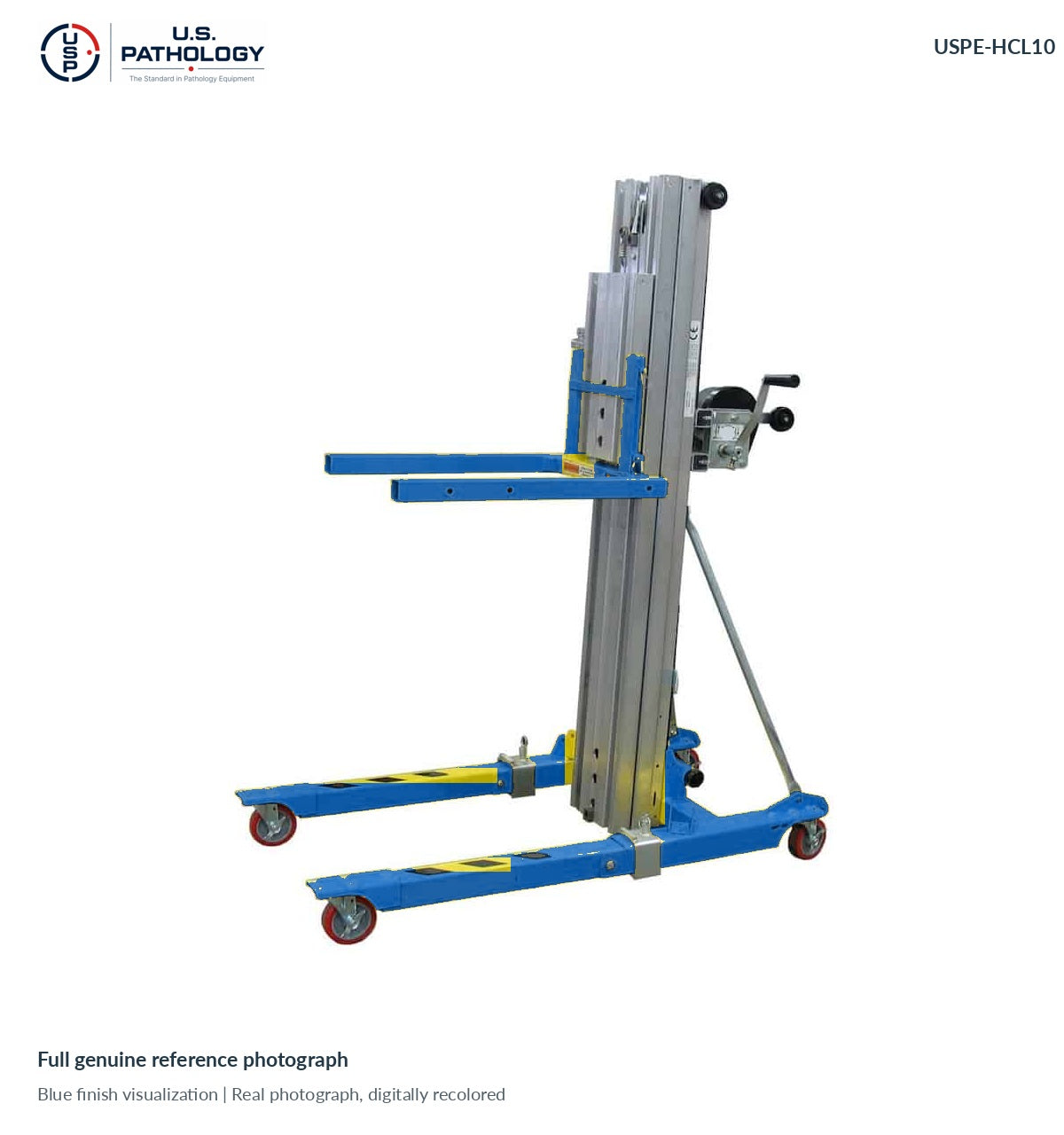

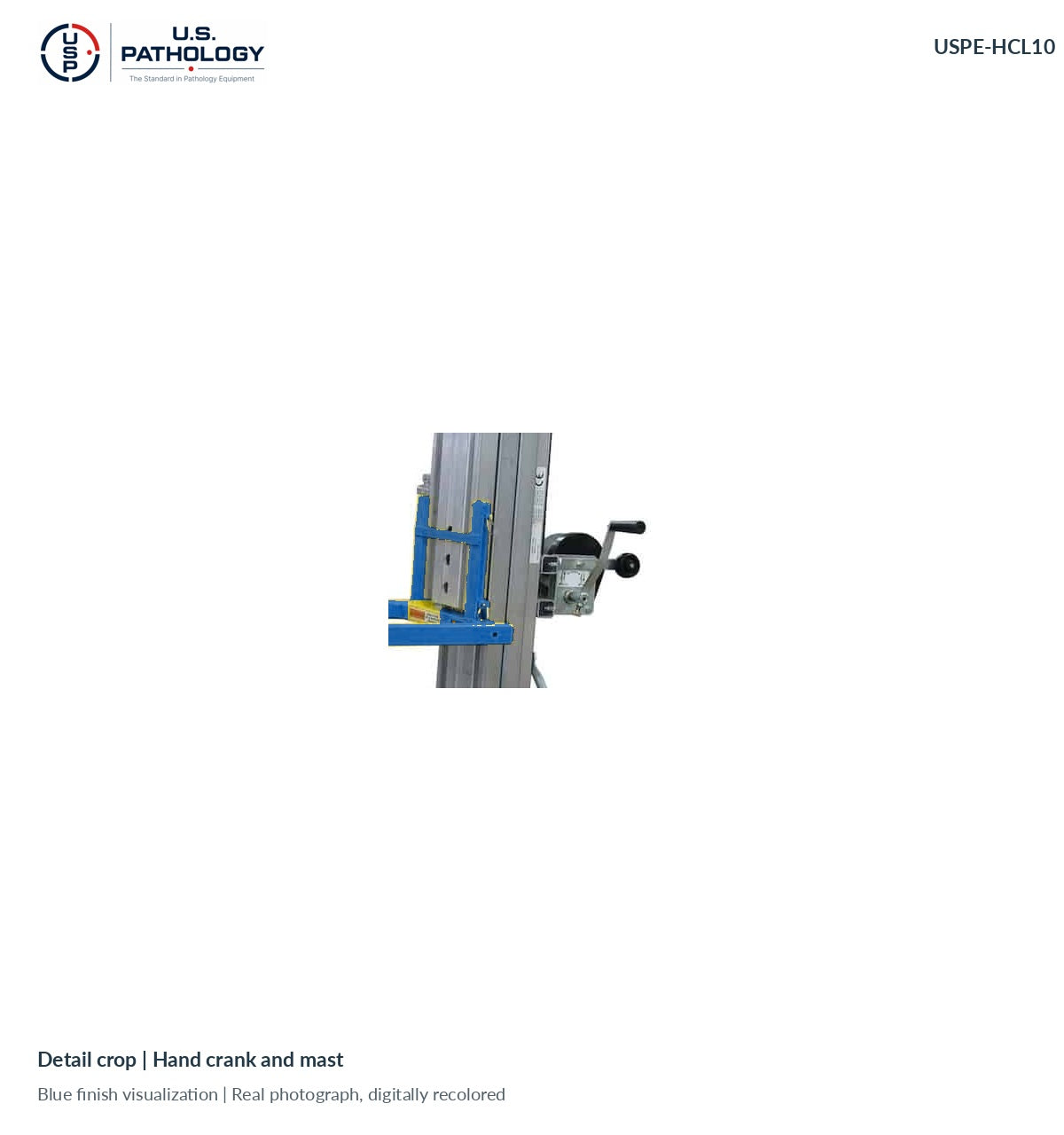

Specify a manual cadaver lift for mortuary receiving, body-tray handling and pathology storage workflows. The steel base and forks support an aluminum telescoping tower, with a metal hand crank for raising and lowering the fork carriage. No powered travel is claimed.

Fork height and load planning

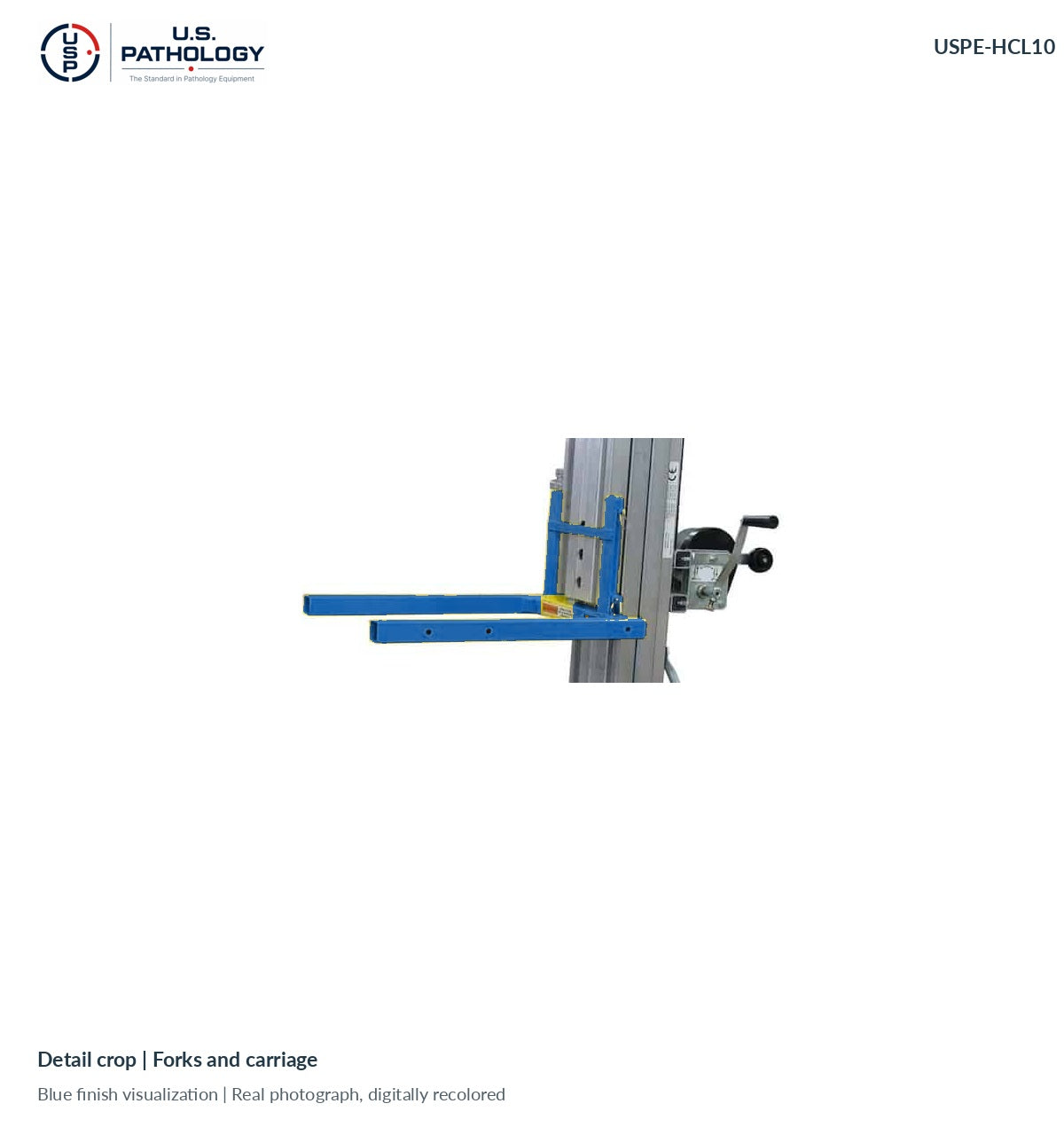

The published base-lift capacity is 1,000 lb. Fork height starts at 6 inches and reaches 103 inches in the standard orientation or 125 inches with the forks reversed. The specified load center is 14 inches. Fork reversal, attachments, extensions and the complete loaded assembly require their applicable load chart and configuration approval; the base capacity is not a universal attachment rating.

Detailed specifications

Controls and receiving-room layout

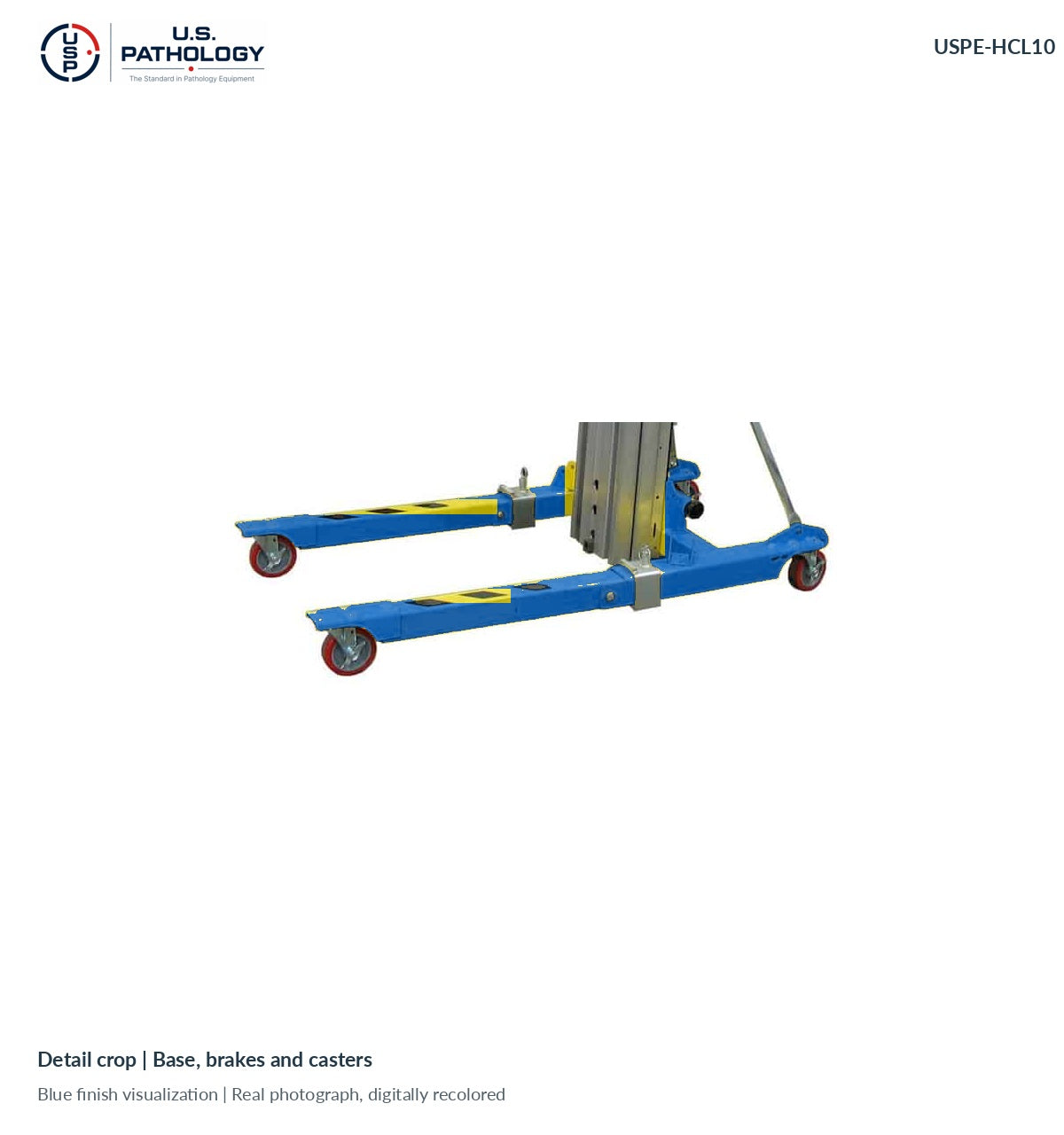

Four 5-inch lockable polyurethane casters support positioning. Removable handles and reversible forks provide configuration choices. Plan the full deployed footprint, turning and approach space, overhead clearance and tray support arrangement rather than assuming the overall width establishes doorway or aisle fit.

Options and associated equipment

Request the end-transfer roller pallet, weighing roller pallet, full-width roller pallet, side-transfer roller pallet or separate weighing-module review. These are individual quote requests, not included equipment or pre-approved combinations.

Fork extensions and a low-profile-leg arrangement are separate requests. The reference base platform requires its designated extension arrangement for its hand-crank-specific roller pallet and excludes its hydraulic-lift pallet interfaces. New USPE accessory designs must receive their own mounting, retention, load-center and rating review.

Receiving, operating documents and finish

USPE-HCL10 receiving and operator review guide (PDF): an original review draft, not released operating instructions. The approved unit-specific operator instructions and rating plate must accompany the supplied lift. Blue-finish images are digitally recolored genuine reference photographs, not photographs of a confirmed supplied USPE unit; final finish is confirmed with the quotation.

Common specification questions

Does the lift require electrical power?

The lifting control is a hand crank. This listing does not describe an electric-drive or powered-lifting model.

Is a roller pallet included?

No pallet, scale, extension, tray or custom attachment is included unless itemized in the accepted quotation. Select each requested accessory and its quantity for review.

Can the full 1,000 lb be lifted with any attachment?

No. Attachment weight, load center, fork orientation and each component's approved rating determine the permitted complete configuration. Never infer attachment capacity from the base-lift headline.

What belongs in the quote request?

Include lift quantity, tray dimensions, target transfer height, room and doorway measurements, attachment quantities and documentation requirements. Request a written configuration and interface review before ordering.

Compare roller transfer carriers and USPE pathology equipment for related planning. Links do not establish interchangeability.
