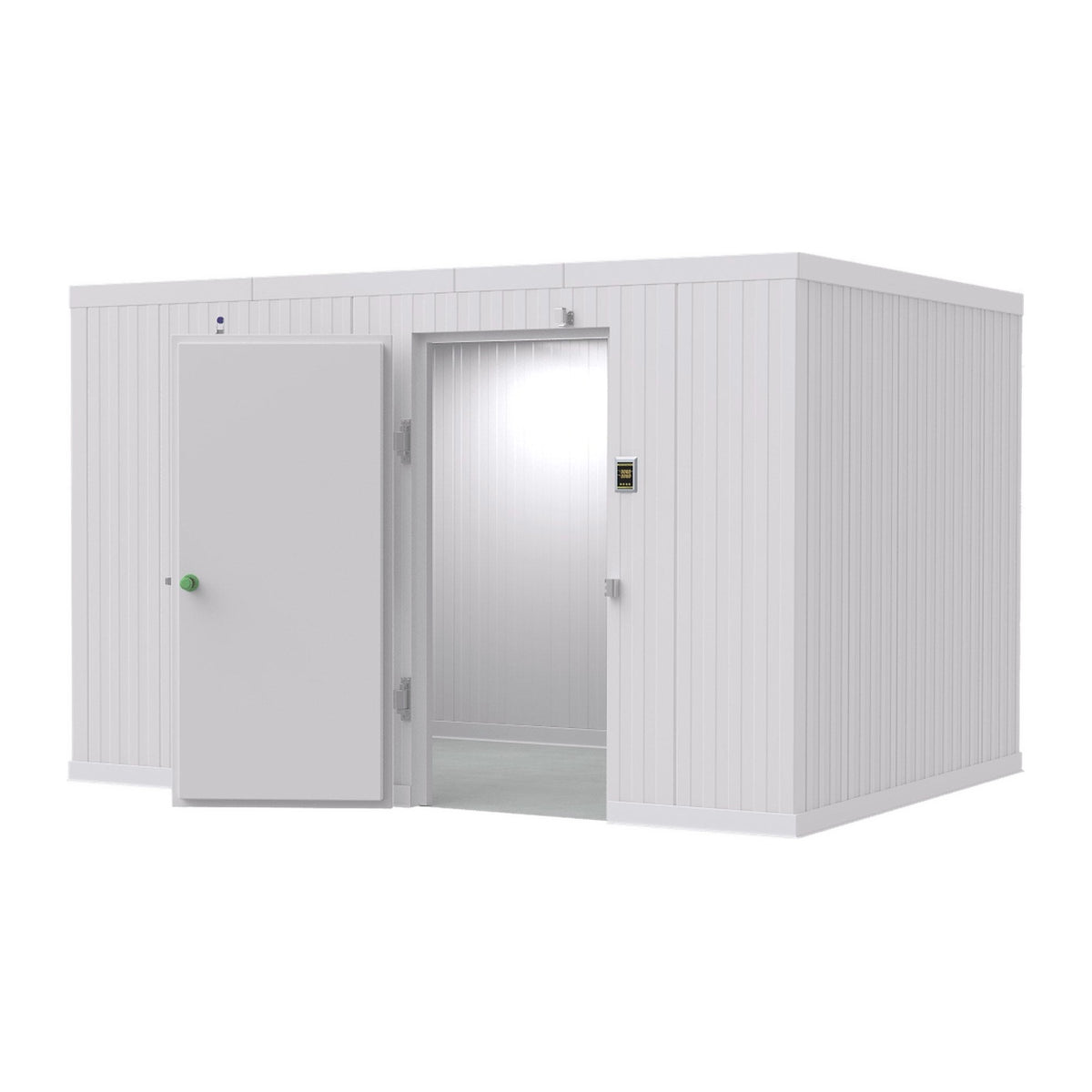

14x16 Walk-In Freezer System – Model 2001-1416F

Engineered for High-Capacity, Long-Term Preservation

The 14x16 Walk-In Mortuary Freezer System – Model 2001-1416F is a high-capacity solution engineered for facilities requiring significant and dependable sub-zero storage. With a spacious footprint, this unit is designed for the rigorous demands of county and metropolitan medical examiners, large funeral homes, and regional hospital systems. This complete package includes a heated door jamb to prevent frost buildup, a powerful remote refrigeration system, and a fully insulated floor.

Proudly built in our Tennessee facility, this system is a trusted choice for high-volume, long-term preservation.

Key Features

• USA-Made Craftsmanship – Manufactured in Tennessee using UL/NSF-approved panels and heavy-duty hardware for unmatched quality.

• Superior 5” Urethane Insulation Walls – R-36 rated panels provide exceptional temperature retention, crucial for maintaining sub-zero temperatures efficiently.

• Heated Door Jamb – An integrated heating element around the door frame prevents frost and ice buildup, ensuring the door is always easy to open and seals perfectly.

• Complete Package – This freezer comes standard with a fully insulated floor and a remote refrigeration system.

• Tongue & Groove Locking Panels – Precision-milled panels with cam-action locks ensure an airtight, structurally sound assembly.

• Flush-Mounted Self-Closing Door – A 36” x 76” door comes standard with a door closer and cam-lift hinges for a tight seal.

• Vapor-Proof LED Lighting – Bright, safe interior illumination included as standard.

• NSF Listed – Meets rigorous standards for public health and safety.

Technical Specifications

• Model: 2001-1416F

• Exterior Dimensions: Approx. 14' W x 16' D x 8' H*

• Interior Dimensions: 13’ 2” W x 15’ 2” D x 7’ 2” H

• Panel Thickness: 5” Urethane Insulation

• R-Value (Wall, Floor, Ceiling): R-36

• Refrigeration: Remote split system included

• Door System: 36” x 76” Flush-mounted, self-closing door with heated jamb and closer; choice of left/right swing

*Note: Choosing the optional Drop-In refrigeration system adds 30 inches to the overall height of the freezer box.

Refrigeration System Options

This freezer comes standard with our recommended remote refrigeration system.

• Standard: Remote Refrigeration System (Included) This is our required system for achieving and maintaining sub-zero temperatures efficiently in a high-capacity unit. The "split" design places the heat-generating condenser unit separately from the freezer, keeping heat and noise outside your workspace. The remote condenser can be installed on the roof of the box, on the roof of your building, or in a basement. To ensure peak performance and safety, all remote refrigeration systems must be installed by a certified professional.

• Optional: Drop-In Self-Contained Unit For certain applications, an all-in-one Drop-In unit may be available. This system mounts directly on the freezer's ceiling panel and is only suitable for large, well-ventilated, climate-controlled rooms where the ambient temperature will never exceed 80°F. Please note: selecting this option will add 30 inches to the overall height of the freezer. Call for details and pricing on this option.

Custom Door Configuration

• 🚪 Choose Your Door Hinge Orientation Select which side you would like the door hinges to be on, determined when you are facing the door from outside the unit.

  • Option 1: Right Hand Hinge (Hinges on the right, handle on the left)

  • Option 2: Left Hand Hinge (Hinges on the left, handle on the right)

• 📍 Choose Your Door Location Select on which wall of the walk-in unit you would like the door to be located.

  • Option 1: Center of 14' Wall

  • Option 2: Center of 16' Wall

  • Option 3: Custom Placement (Call to Configure)

Perfect For

• County & Metropolitan Morgues

• Large, High-Volume Funeral Homes

• Regional Hospital System Morgues

• Disaster Preparedness & Emergency Response

• Large-Scale University Anatomy Labs

Optional Add-Ons

• Anti-slip access ramp

• High-Capacity Modular Racking Systems

• Digital Thermometer with Alarm

• Redundant Refrigeration Systems

Industry-Leading Warranty

• 50-Year Thermal Panel Warranty

• 15-Year Panel Structural Warranty

• 5-Year Door & Floor Warranty

• 90 Day Parts & Labor Standard Warranty on all included and optional refrigeration systems.

Add Extended Warranty Coverage for Peace of Mind

• Option 1: No Extended Care – “We’ll Take the Risk” Included with every purchase. Enjoy 90 days of standard parts & labor coverage on refrigeration systems. After that, all repairs are out-of-pocket.

• Option 2: 1-Year Extended Warranty – Parts & Labor Add 12 full months of worry-free protection. Covers mechanical breakdowns, labor, and refrigeration support.

• Option 3: 2-Year Extended Warranty – Maximum Protection Get 2 full years of total coverage — our most popular plan. From diagnostics to repairs, we’ve got your back.

Add your plan at checkout or call us at 1-888-792-9315 to customize your protection.

FAQ – 14x16 Walk-In Freezer

• What is the capacity of this unit? Capacity depends on the racking system but is designed for high-volume facilities. Contact us to design a racking solution for your specific operational needs.

• Can this freezer be installed outdoors? Yes, when ordered with our weatherproof roof membrane and other necessary outdoor modifications, it is ideal for placement outside a main facility.

• Is a redundant refrigeration system available? Yes, for critical applications, we highly recommend a redundant refrigeration system to ensure constant operation. Please call us to configure this option.

Installation Notes

• Ships flat-packed for delivery.

• Must be installed on a level concrete surface.

• All refrigeration and electrical work must be performed by licensed professionals.

• Freight delivery requires a forklift or crane for unloading; inspect all components before signing the delivery receipt.
