AMC-1020

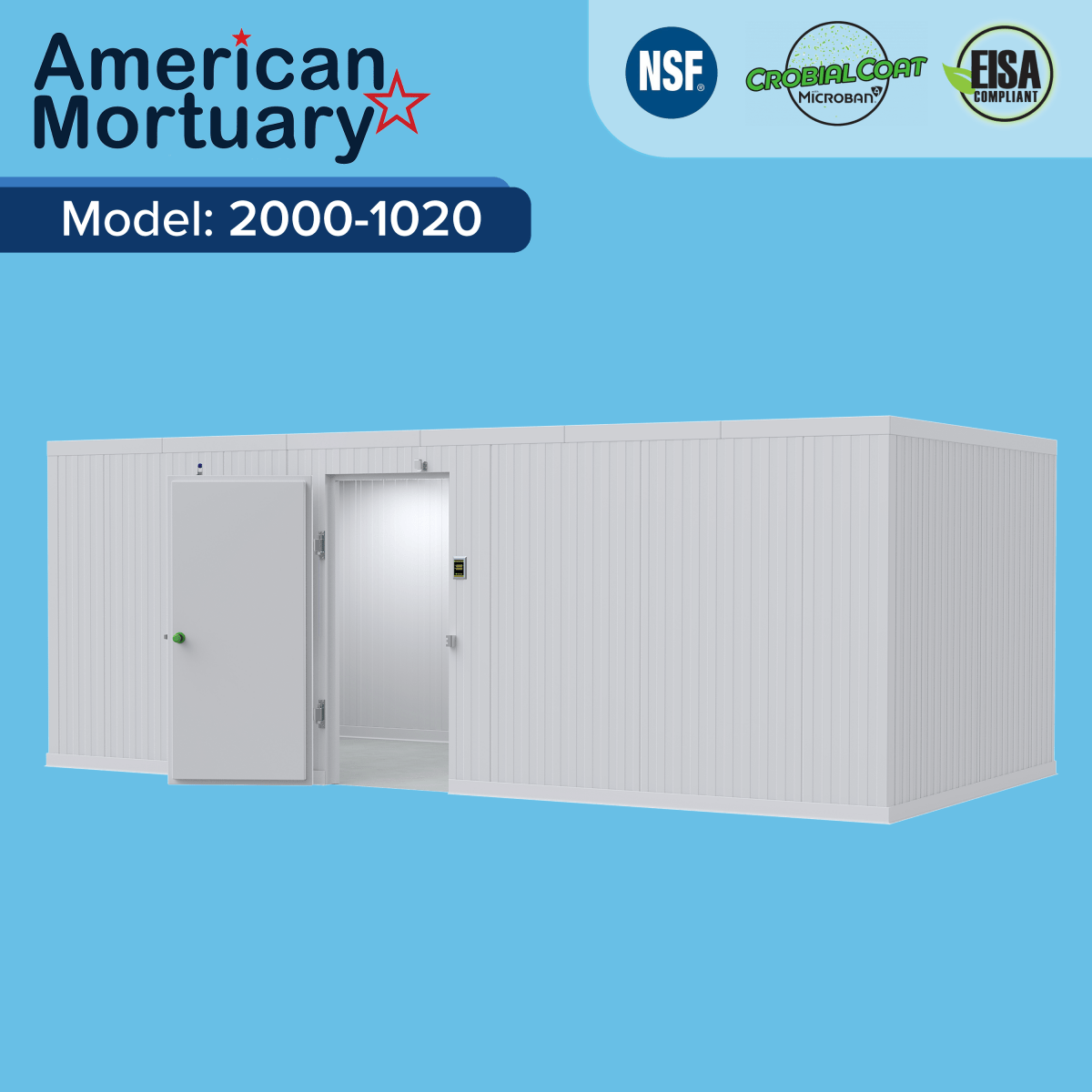

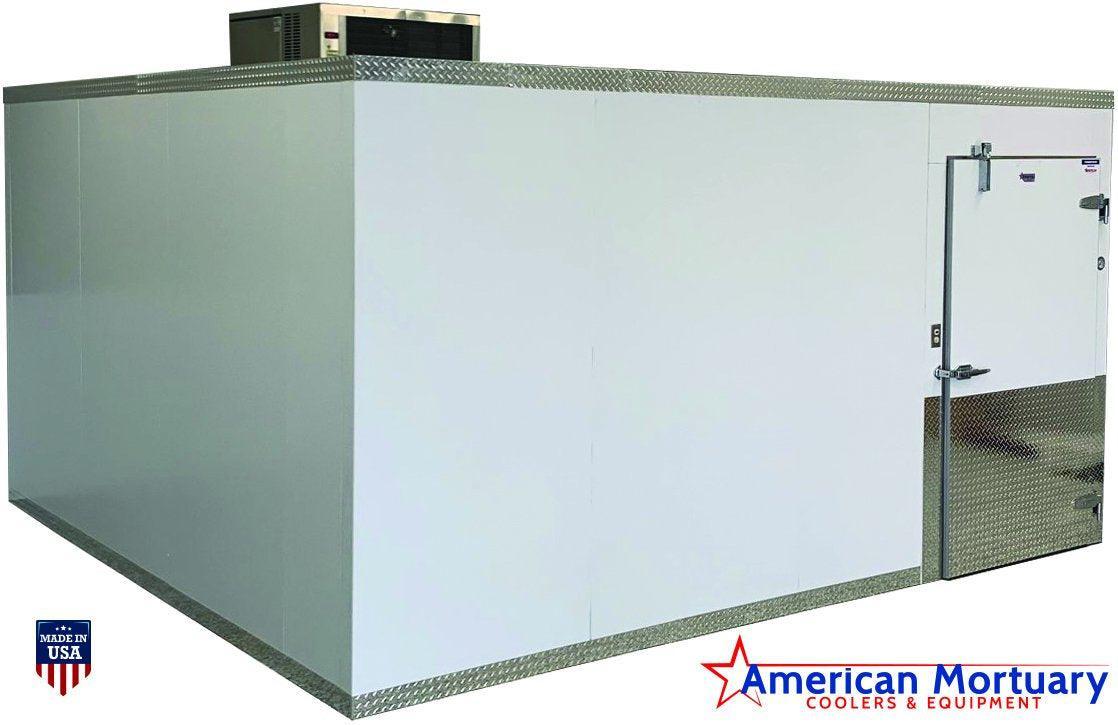

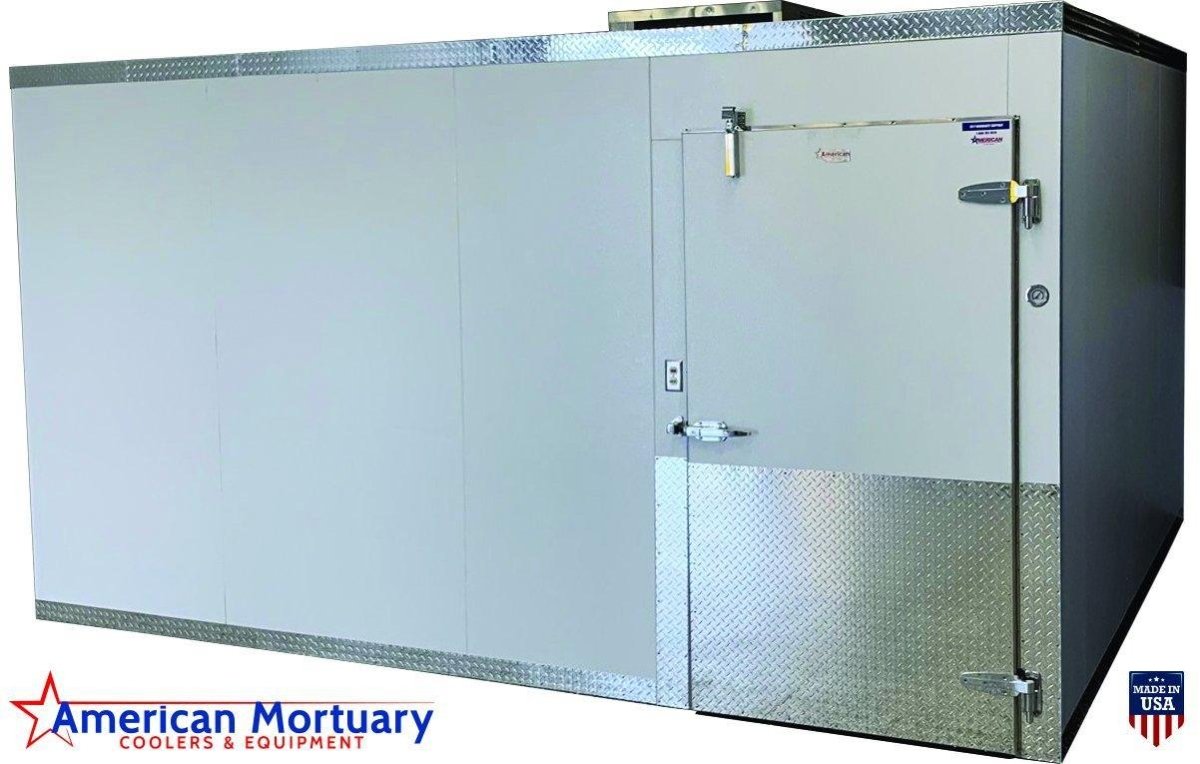

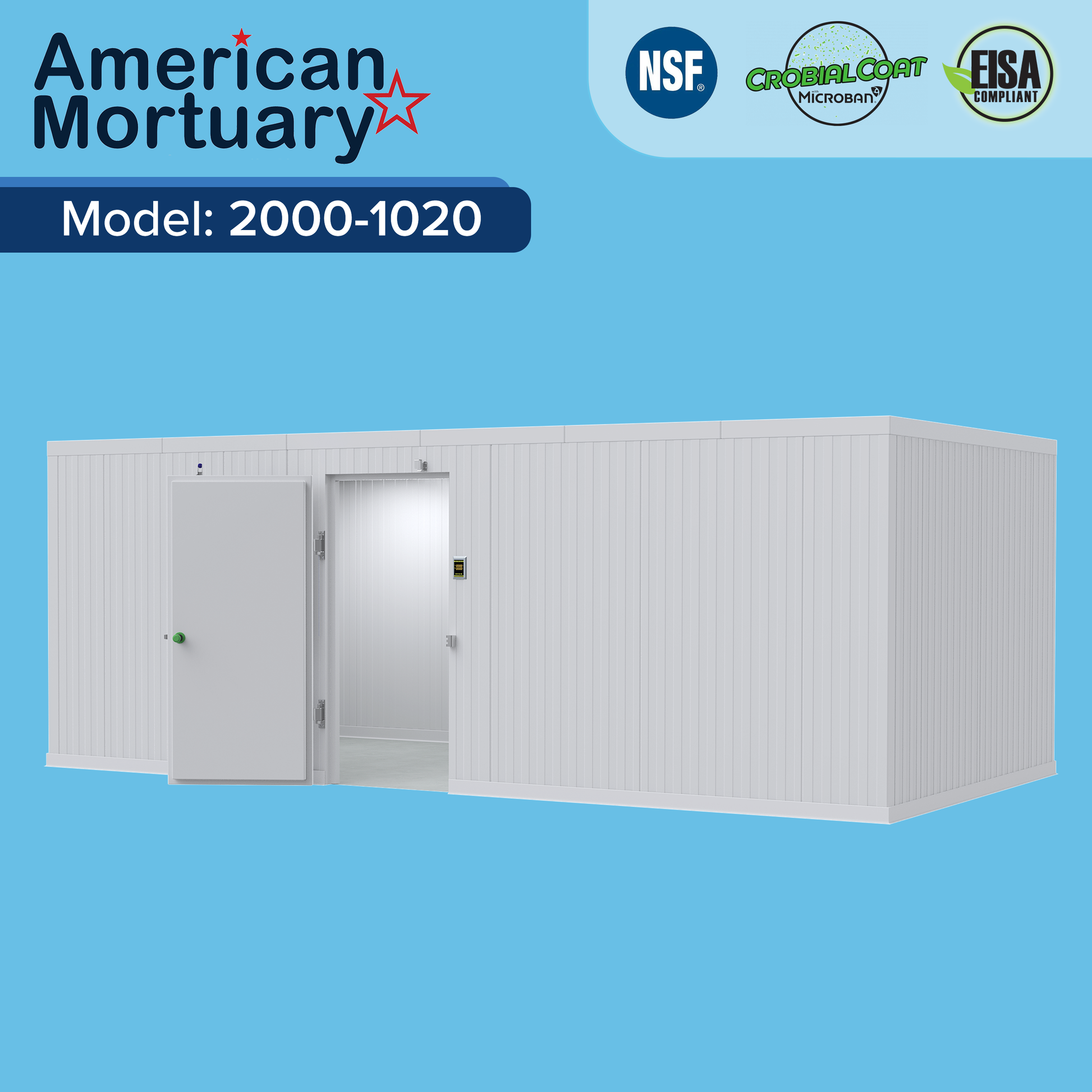

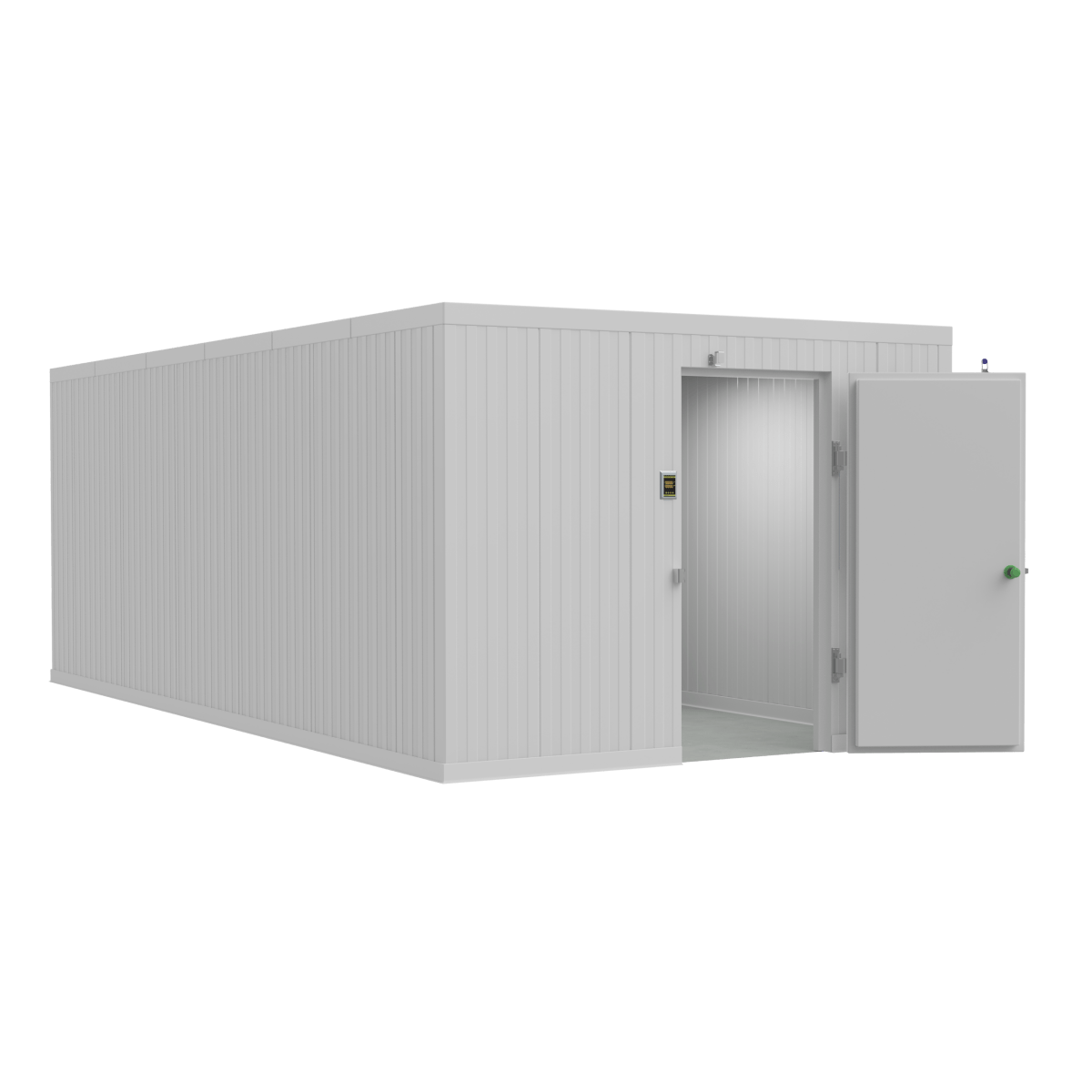

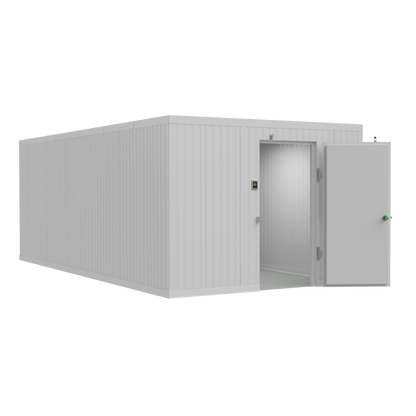

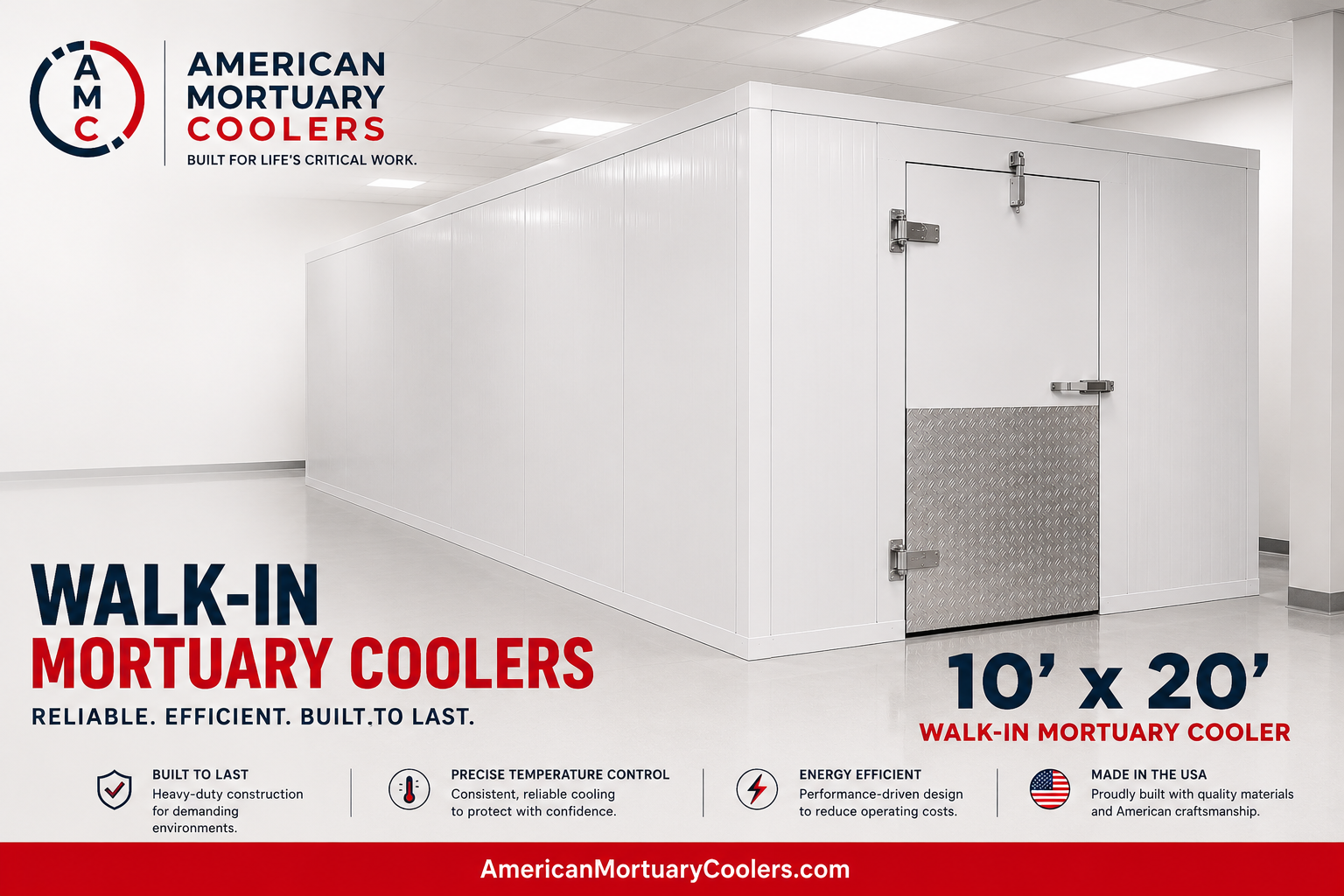

10×20 Walk-In Mortuary Cooler

$14,997.89

$14,997.89 ~~$20,104.00~~

Shipping calculated at checkout.

Over

21k

mortuary products sold since 2009

Up to 25% off

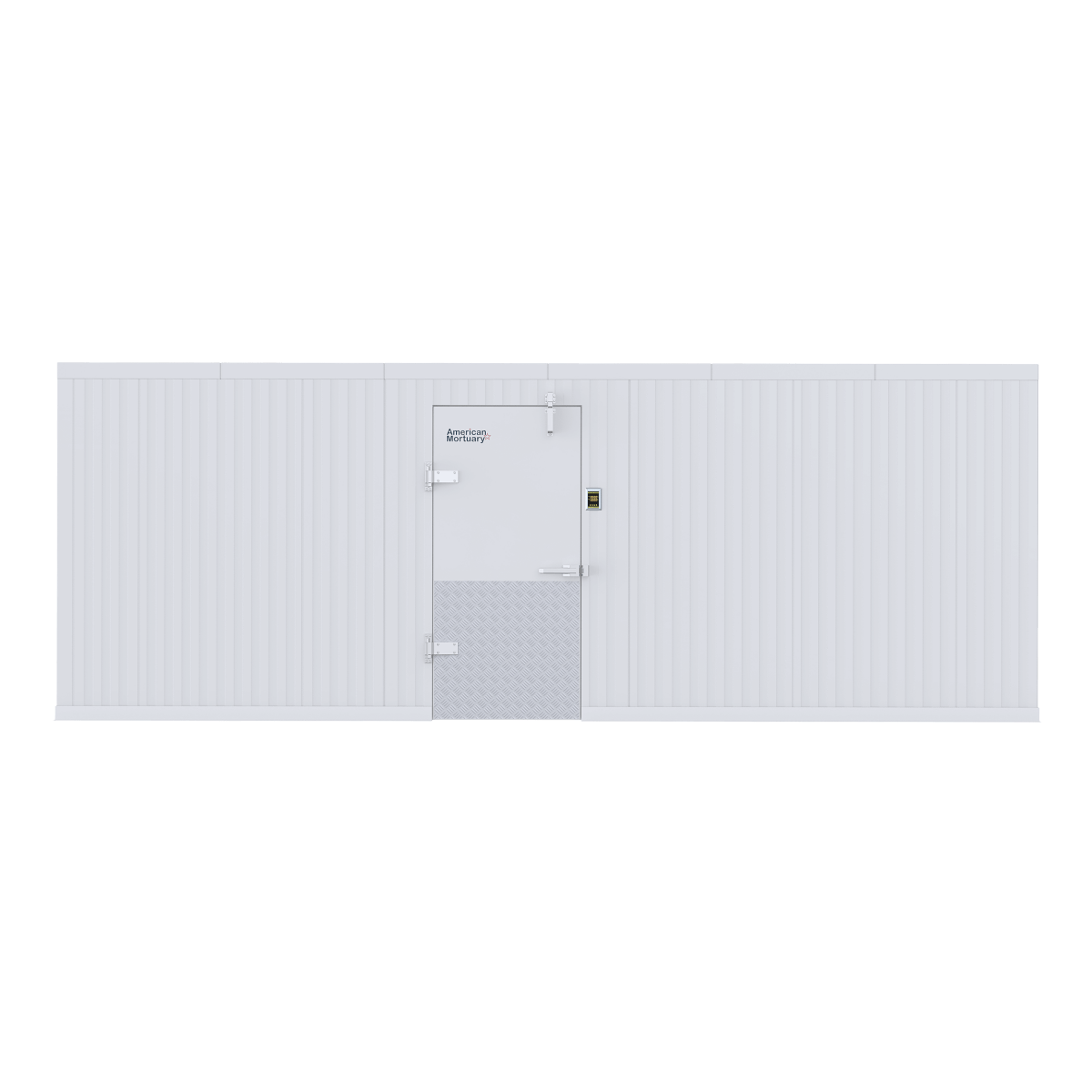

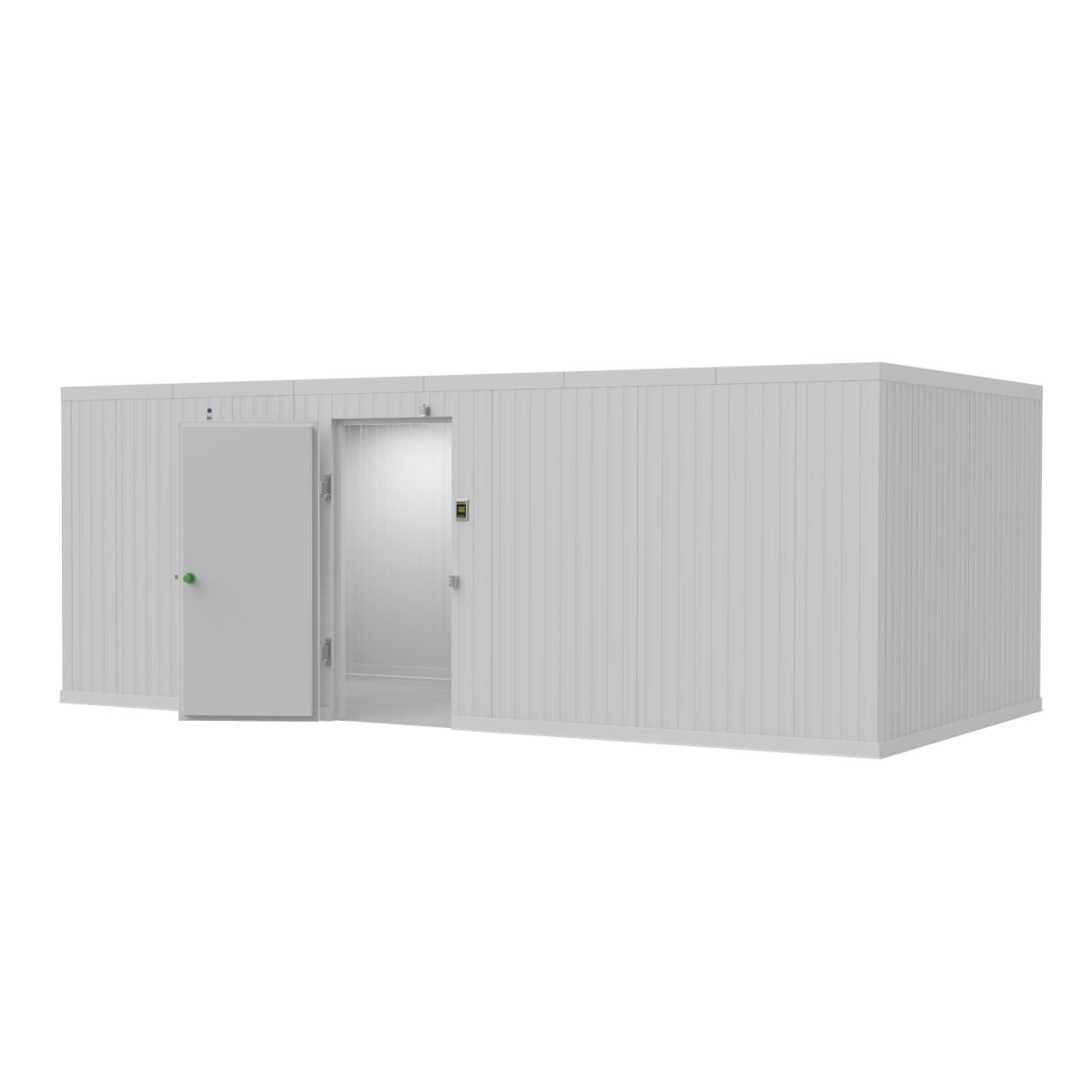

The 10×20 walk-in mortuary cooler is the largest standard footprint in the AMC wide-body walk-in series — 200 sq ft of insulated cadaver cold storage built for high-volume hospital morgues, regional medical examiner and coroner facilities, large-scale crematory operations, FEMA-contracted disaster-response staging, and university anatomy programs running parallel batched holding cycles.

At a glance

10′ × 20′ footprint (200 sq ft)
Model AMC-1020
Up to 20-body capacity with parallel banks of 4-tier side-loading racks

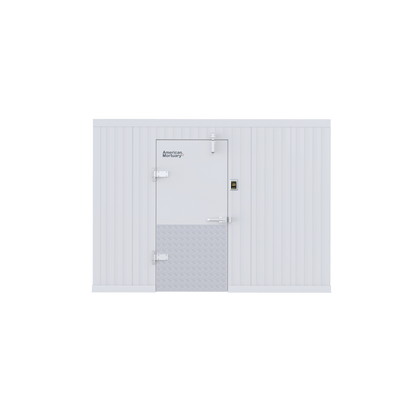

Modular insulated panels, 4′′ urethane core, cam-lock assembly
NSF, UL, ASTM E84 certified · EISA 2007 / DOE / EPA compliant

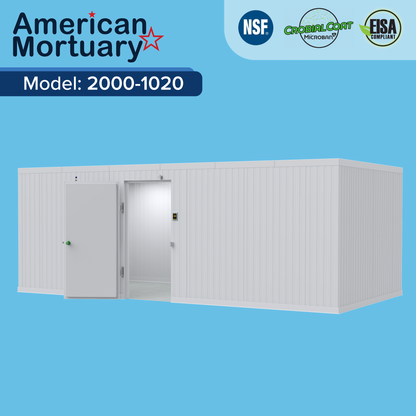

10-year structural panel warranty
Made in Johnson City, Tennessee

Where it fits in the walk-in line

The 10×20 is the largest standard wide-body walk-in AMC manufactures. Step down to the 10×16 (14-body) or 10×10 (8-body). For wider footprint at comparable capacity, see the 12×14.

For capacity beyond 20 bodies, see the custom-built mortuary cooler line and the multi-bay vault morgue cooler series. Sizing methodology: size guide.

Specifications

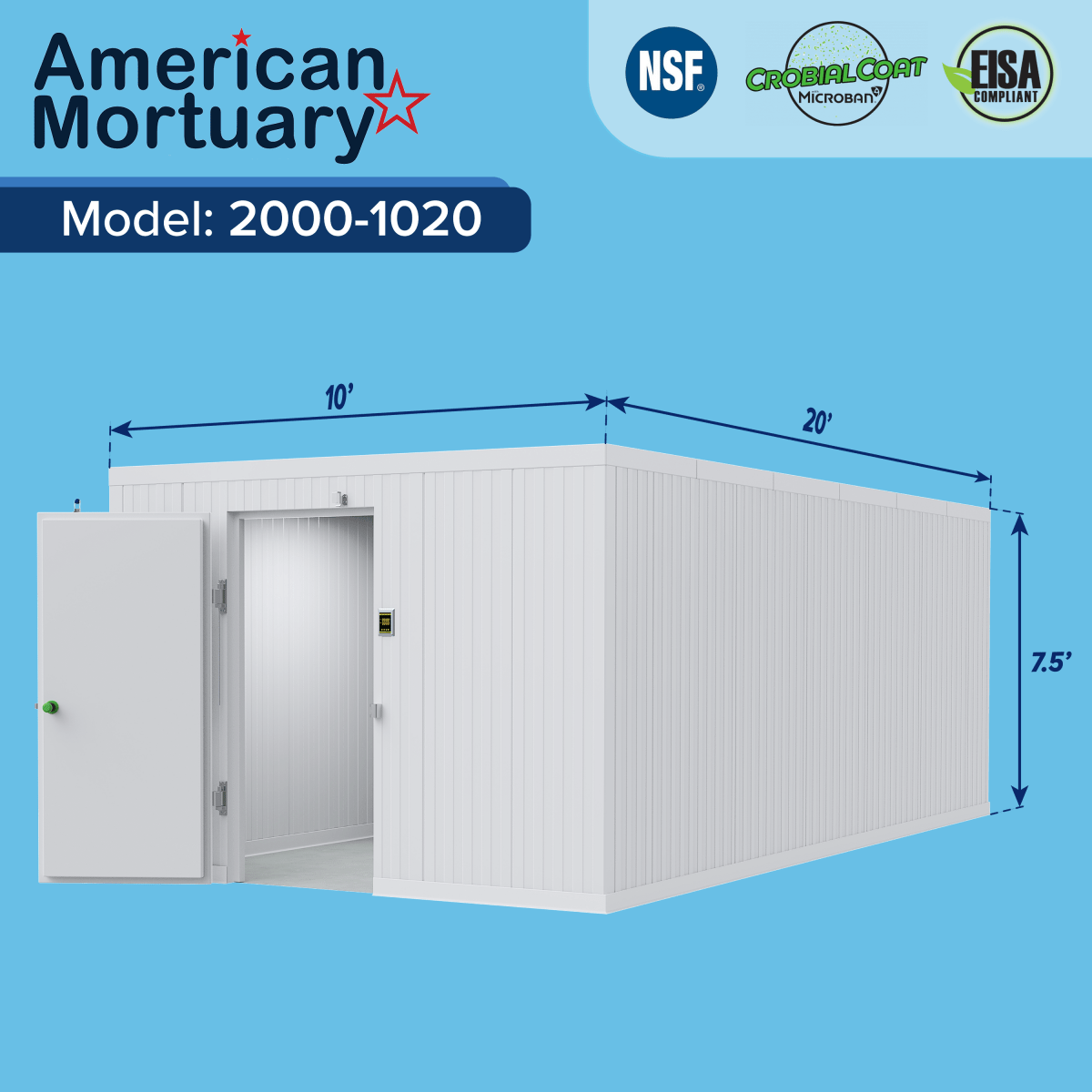

External dimensions	10′ × 20′ (200 sq ft, 84′′ standard ceiling)
Model number	AMC-1020
Body capacity	Up to 20 with parallel banks of 4-tier side-loading racks

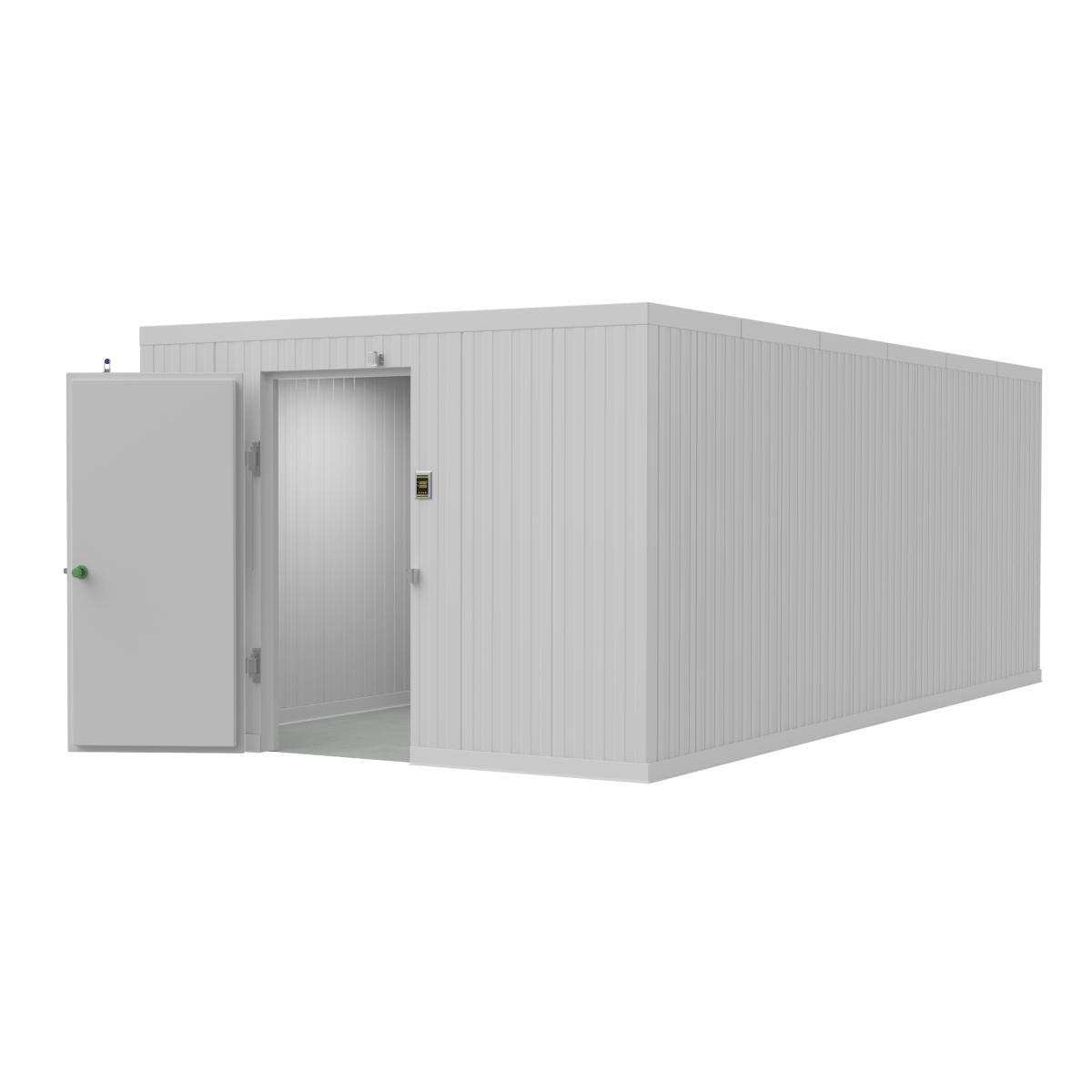

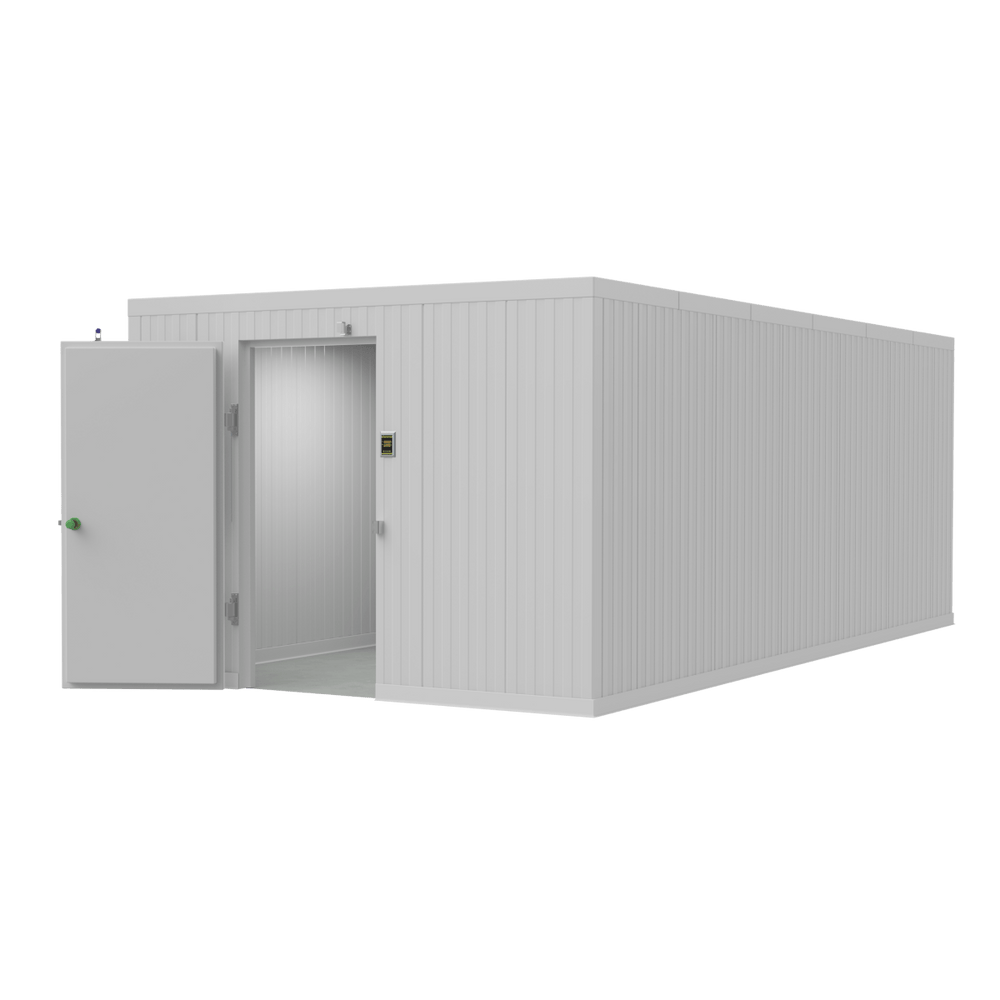

Panel construction	4′′ foamed-in-place urethane core, galvanized exterior, white food-service interior
Assembly	Cam-lock, two-person setup

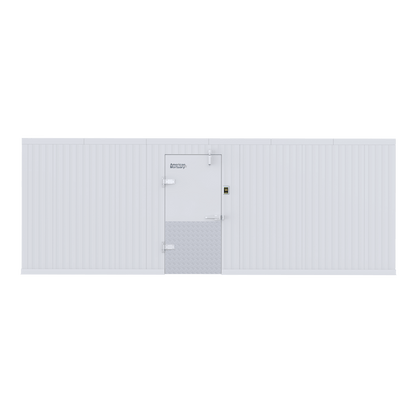

Refrigeration	Self-contained or remote split — Heatcraft, Russell, Copeland scroll available; R-404A standard, R-290 option
Operating range	34–40°F body holding
Voltage	208–230V, single-phase or three-phase
Floor	No-floor slab-mount standard; insulated floor optional
Certifications	NSF, UL, ASTM E84 Class A, DOE/EPA EISA 2007, Prop 65
Warranty	10-year panel structural
Country of origin	United States — Johnson City, Tennessee
Manufacturer	American Mortuary Coolers

Refrigeration and panel engineering

At 200 sq ft the load tier strongly favors remote-split Copeland scroll or Heatcraft systems with outdoor condensing units. The custom-built line handles remote-condenser builds, parallel-rack configurations, and dual-zone partitioning when a 200 sq ft footprint needs to separate active-case holding from long-term storage.

ASTM E84 Class A flame spread on the interior face matters under county morgue requirements and state body-storage code. For deeper background on refrigeration choices, see why mortuary refrigeration matters.

Installation and lead time

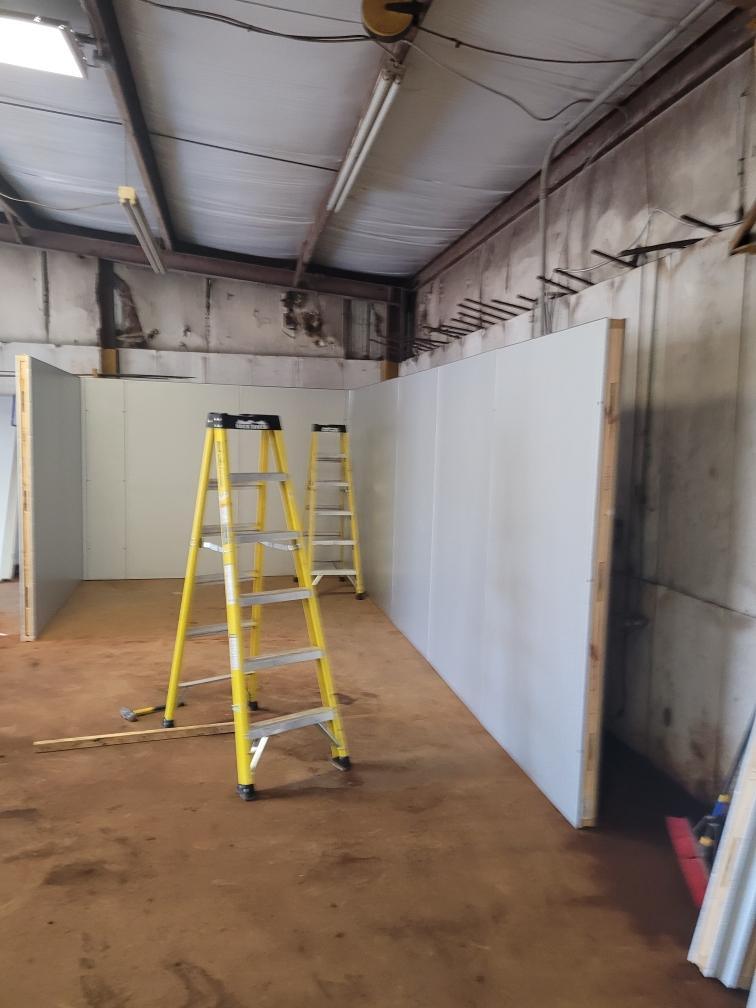

Ships as flat-pack panel kit from Tennessee. Lead time 5–15 business days for in-stock configurations; 4–6 weeks for custom remote-split builds. Pre-order site survey strongly recommended at this footprint — covered in the installation guide. Regional transit at delivery times by region.

Compliance and procurement

Documentation that ships with every quote: spec sheet, electrical schedule, NSF and UL listings, ASTM E84 Class A panel certifications, installation drawings. Net terms available for institutional, government, and FEMA buyers. Request the full equipment catalog or route through the Section 179 procurement page. See also the medical examiner equipment guide and forensic lab cooler guide.

Pricing and financing

Starts at $20,996.06 factory direct. Benchmark against the 2026 cost guide.

0% financing at checkout — Shop Pay Installments for qualified buyers
1% back on every Shop Pay purchase
Extended financing on orders over $5,000 — apply here
Section 179 in-year tax treatment — guidance here
Net terms for institutional, government, and FEMA buyers — contact procurement directly
Broader options: financing article

Racking and cot compatibility

Floor area accommodates parallel banks of 4 Tier Side-Loading Mortuary Racks. Roller-rack systems available for high-throughput operations — see the side-loading rack collection. Full catalog: racks and lifts and all-access racking. Cot-direct roll-in with the 500E and 1000E.

Competitor benchmarks

MOBI vs AMC · Mopec alternative · MortuaryMall alternative.

Regional shipping

Ships from Tennessee to all 48 contiguous states. Regional desks: Southeast · Midwest · Northeast · Southwest · Rocky Mountain · Pacific · Canada · Puerto Rico.

Frequently asked questions

How many bodies fit in a 10×20 walk-in?

Twenty with parallel banks of 4-tier side-loading racks. Higher density possible with roller-rack systems.

Who buys the 10×20?

High-volume hospital morgues, regional medical examiner and coroner facilities, large-scale crematory operations, FEMA-contracted disaster-response staging, university anatomy programs.

What temperature does it maintain?

34–40°F body holding standard. For long-term anatomy storage, see mortuary freezers.

What’s the lead time?

5–15 business days for in-stock configurations; 4–6 weeks for custom remote-split builds at this footprint.

Does the 10×20 require three-phase power?

Optional. 208–230V single-phase covers most installations; three-phase available when remote-split refrigeration is specified for compressor headroom.

Does it work for cot-direct roll-in?

Yes. No-floor slab-mount standard.

How does it compare to MOBI and Mopec at the 10×20 size?

Factory-direct pricing, American manufacturing, faster lead times, 10-year panel warranty, dual-zone partitioning available. See the MOBI vs AMC comparison.

Can it be financed?

Yes. 0% Shop Pay Installments at checkout, 1% back. Orders over $5,000 qualify for extended financing. Net terms available for institutional and government buyers.
