American Mortuary Coolers4-Tier Cantilever Mortuary Rack
Model: Model#4T-C-1
Model / SKU: Model#4T-C-1
Regular price
$949.00
Sale price
$949.00
List Price
$1,150.00
Save $201.00
Unit price
per
Estimated from
4-Tier Cantilever Mortuary Rack
$949.0
Apply with TimePayment (opens in a new tab)
Apply for financing
Equipment estimate only. Subject to lender approval and terms. Tax and delivery extra.
Zelle®
ACH
Shipping calculated at checkout.
Buying on a PO or net terms? Send a purchase order Request a formal quote 1-888-792-9315
Ordering questions
How do I select the correct configuration?
Choose the available options before adding the item to your cart. The selected configuration and model are carried through to the cart; check them against the dimensions and included components in the product details.
How can I confirm fit before ordering?
Use the dimensions and fit notes on this page. For a fit review, send the model, measurements and any equipment it needs to work with through our equipment quote form.
Where is shipping confirmed?
Shipping is calculated at checkout for the selected items, quantities and destination. Review the cart configuration and delivery address before placing the order.
Product information
Product details & specifications
Product details
Product description & specifications
Form AME-SO-2000-4TC · Rev. A · PDF
AME TITAN 2000-4TC 4-Tier Cantilever Mortuary Rack Sign-Off Drawing & Install Sheet
Dimensioned drawing, order quantities for racks, boards, trays and lifts, customer sign-off and installation steps.
Download PDFForm AME-OM-2000-TC · Rev. A · PDF
AME TITAN 2000-TC Cantilever Mortuary Rack User Manual (3, 4 & 5 Tier)
Safety, specifications, loading height and lift compatibility, assembly, daily use, care, troubleshooting and warranty for the 3, 4 and 5 tier racks.

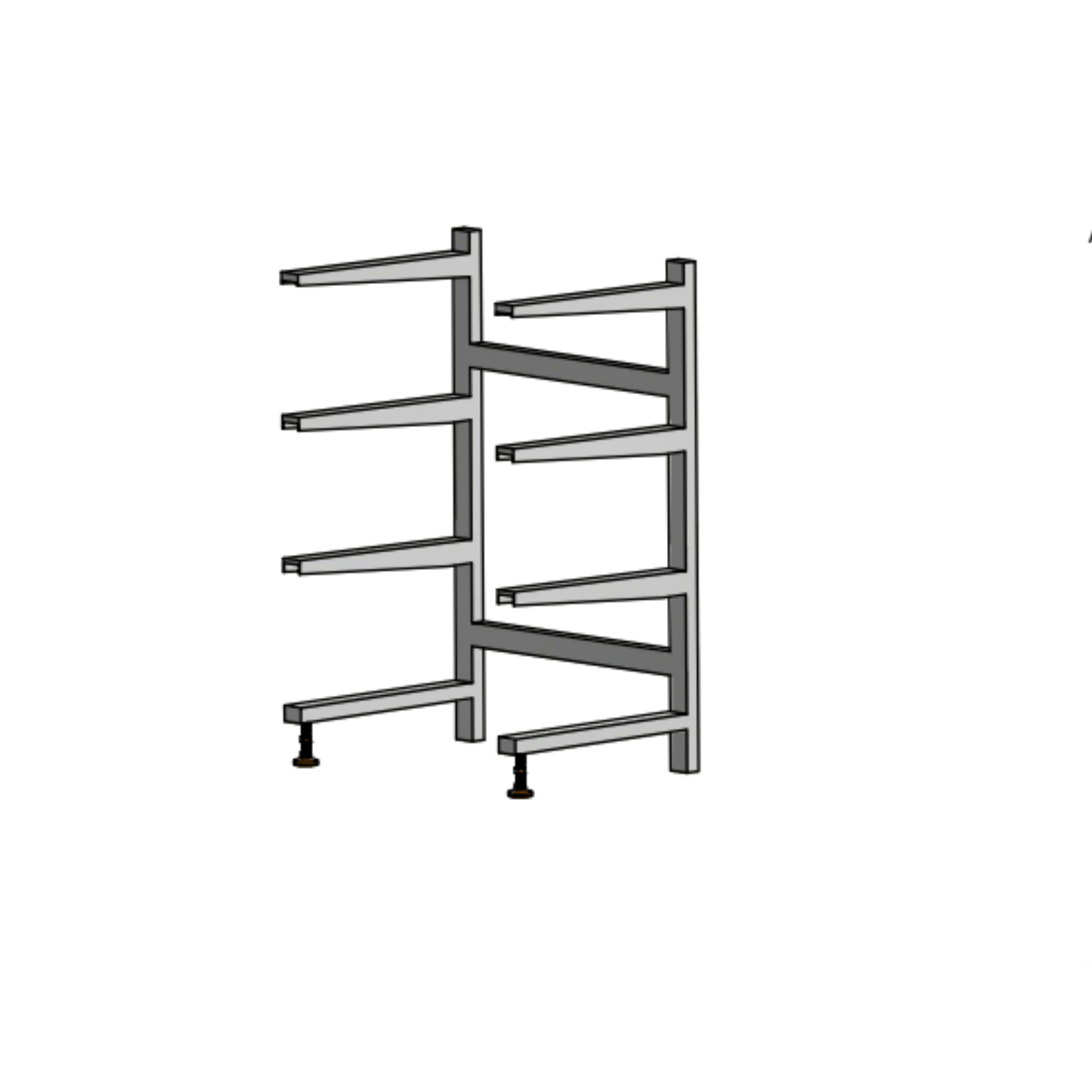

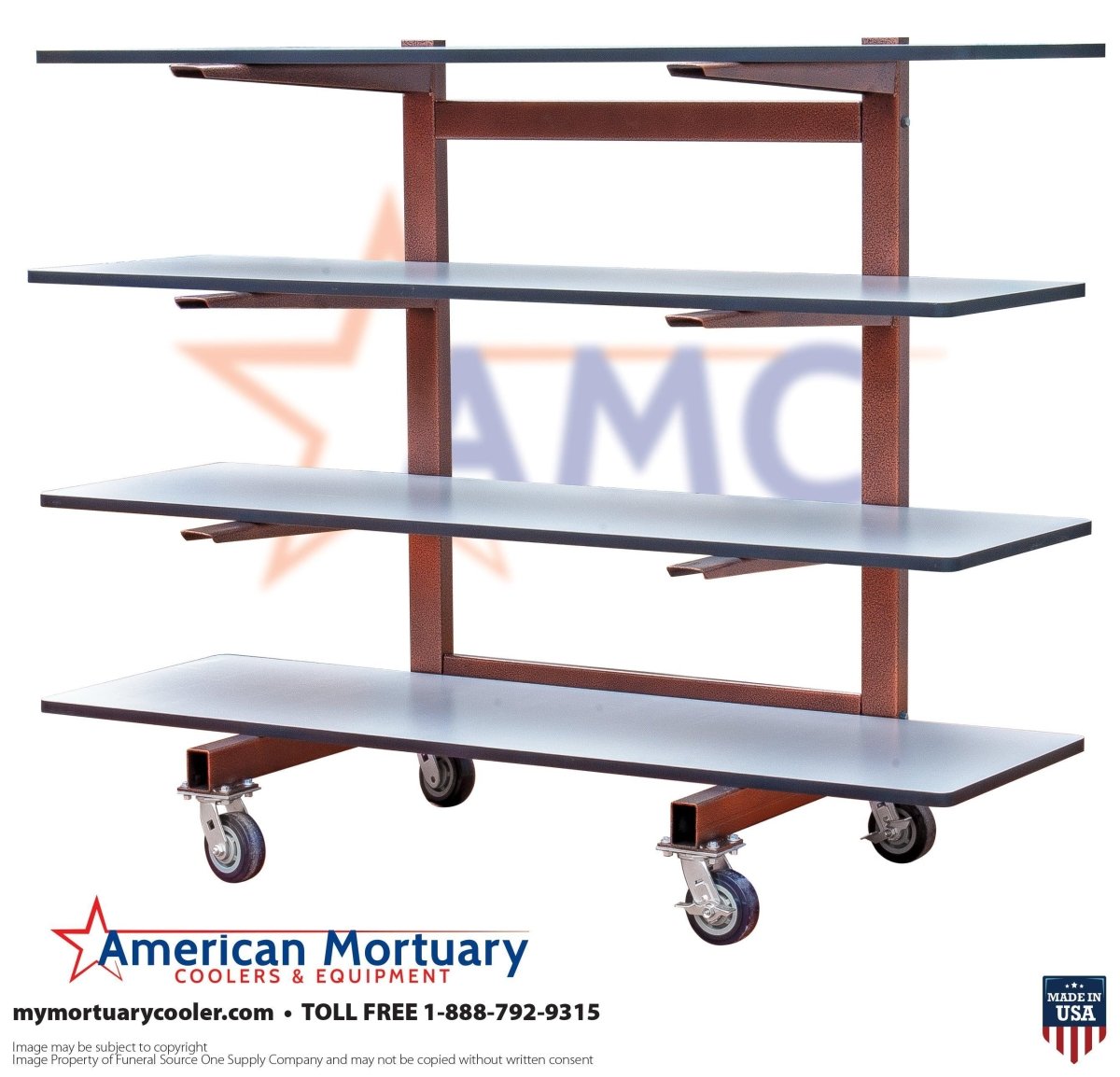

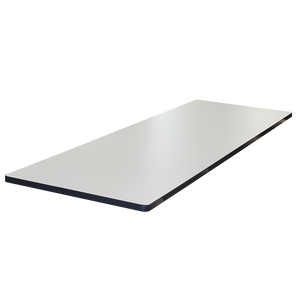

Download PDFThe 4-Tier Cantilever Mortuary Rack, Model 2000-4TC, stores four decedents on stainless trays or laminated body boards. The arms extend from one side of a welded steel frame, so the loading face has no front posts in the way. Choose four 6″ casters (-C) or leveling feet (-L).
Dimensions

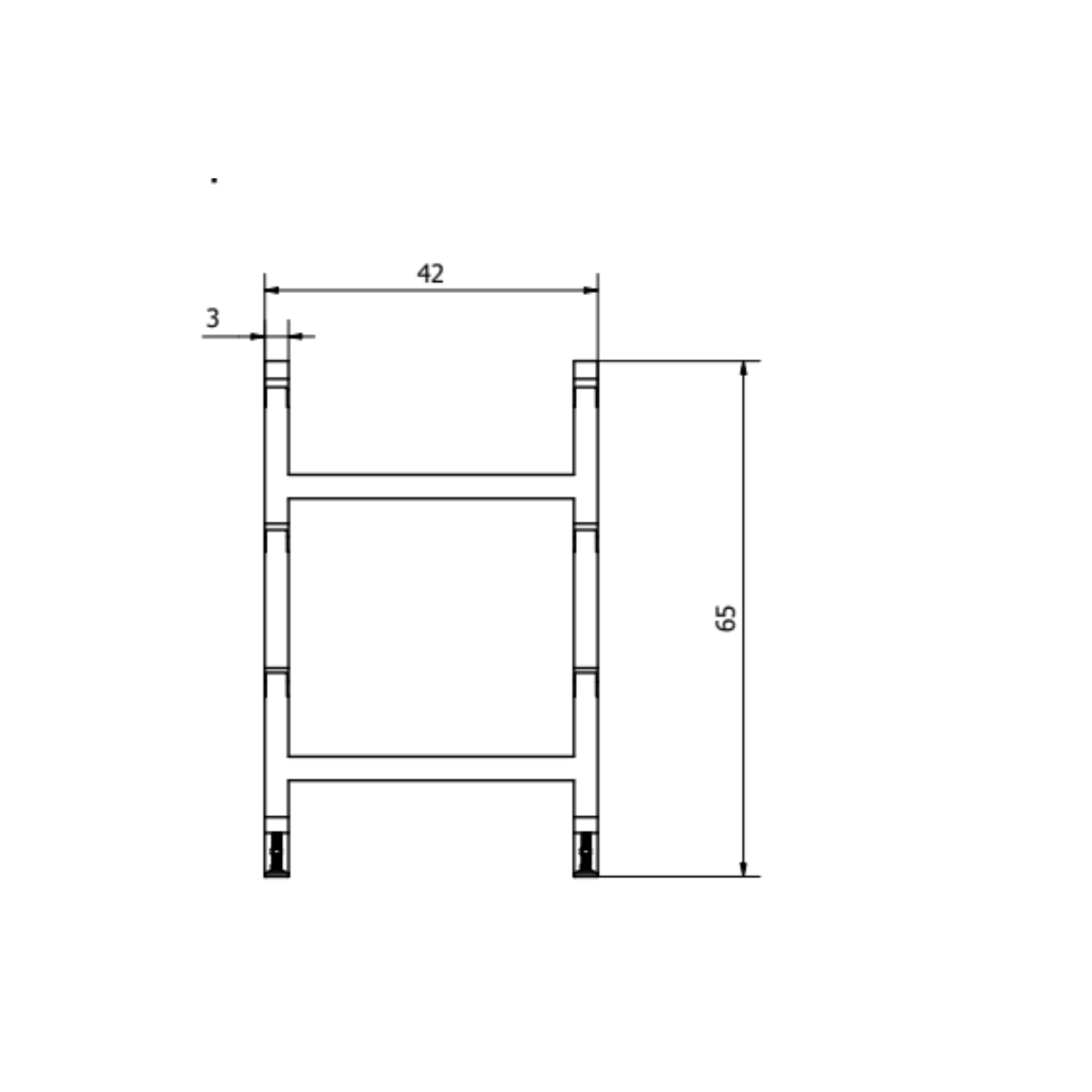

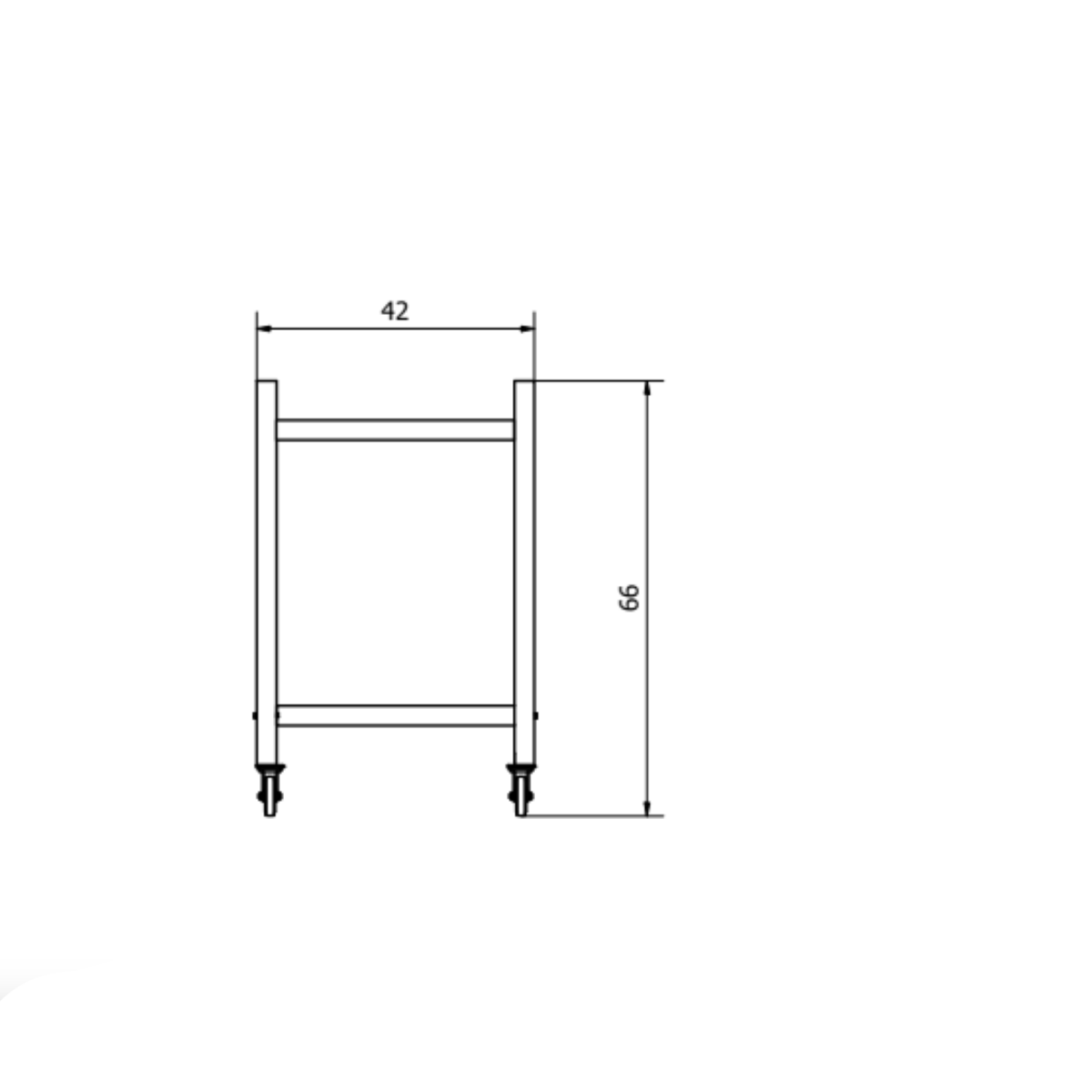

- Footprint: 42″ wide × 32″ deep
- Overall height: 66″ with casters, 65″ with leveling feet

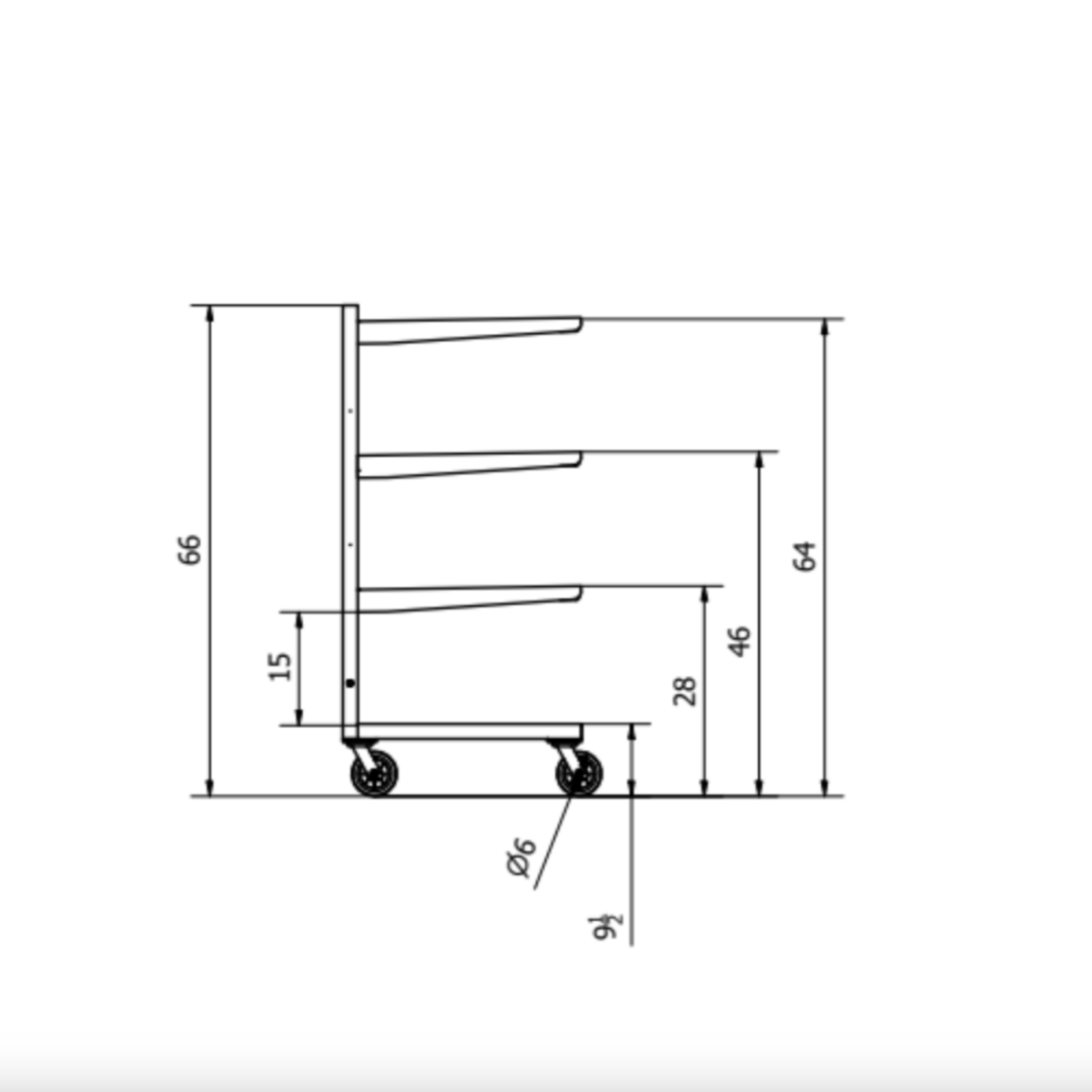

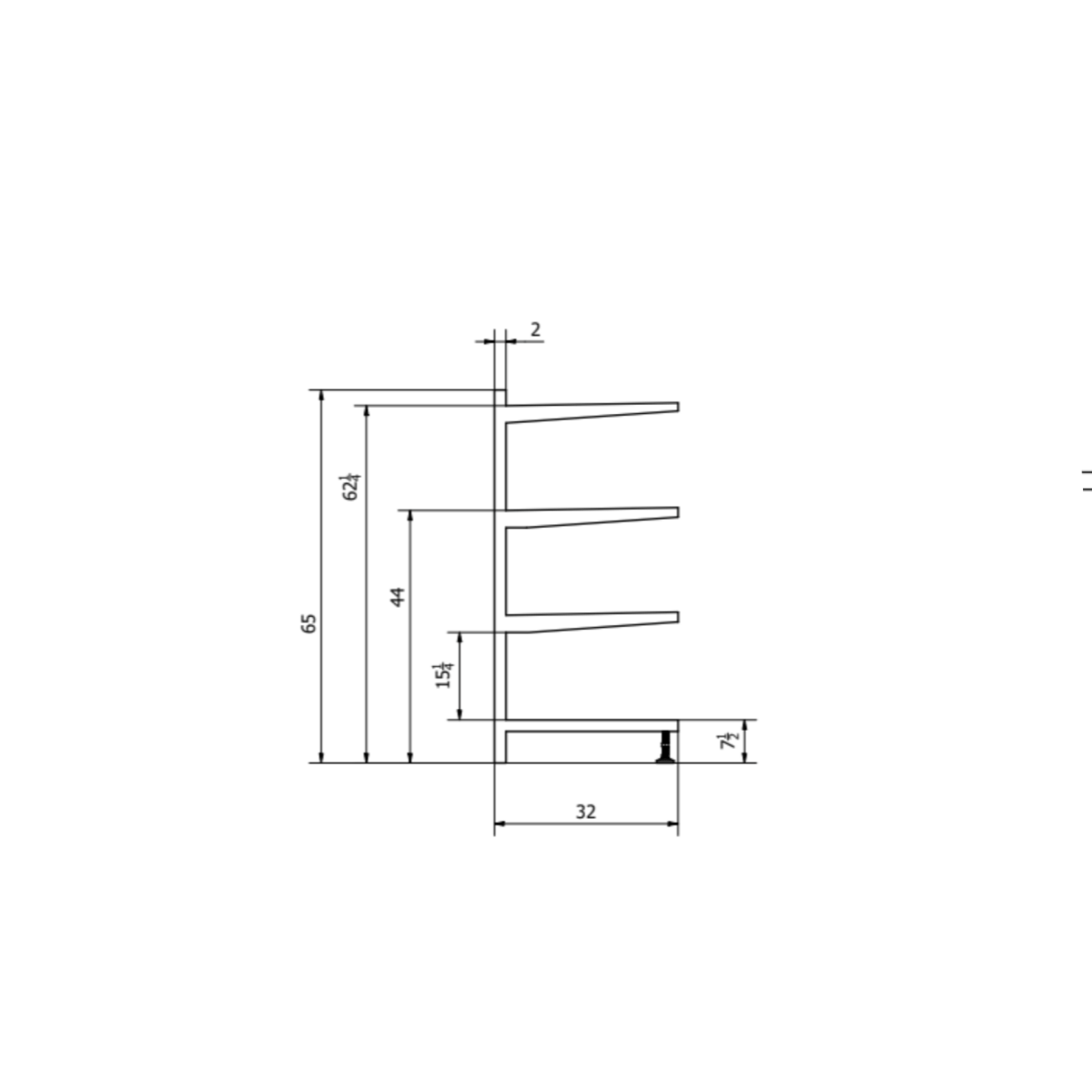

- Tier heights with casters: 9 1/2″, 28″, 46″, 64″. With leveling feet: 7 1/2″ base, 44″, 62 1/4″.
- Storage levels: 4 (base plus 3 arm levels)
- Uprights: 2″ side × 3″ face, welded steel, powder-coated
- Casters: four 6″ (-C models)
Loading height notice
The base level sits 9 1/2″ from the floor on casters (7 1/2″ on feet), below the lowest deck height of every AME lift. The TITAN 1030-LPL low-profile lift (13″ to 69″) is the only AME lift built for low-level work. The H1000-M manual scissor lift and the G1 lift do not meet the minimum loading height for most of our racks. Measure each level and confirm your lift before ordering. American Mortuary Equipment is not responsible for lift selection or ordering errors. See the Returns & Cancellations Policy (RC-1.0) and Terms of Purchase (TC-1.7).
Before you order
- Cooler interior height clears the 66″ frame (casters) plus the evaporator, lights and door header.
- Floor space for 42″ × 32″ per rack, plus a clear loading aisle in front of the arms.
- Load the lowest levels first and keep the rack level. Cantilever racks can tip when the top is loaded first.

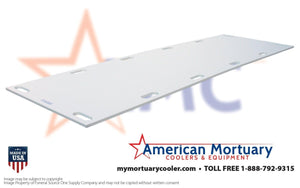

- Trays, boards and lifts are sold separately. HD plastic storage boards are not weight-bearing and must not span the arms.
Ships unassembled. Warranty coverage is listed in the Warranty Policy (WR-1.0).
Custom sizes, signed sheets and purchase orders: 1-888-792-9315 · po@mymortuarycooler.com
Specifications & product identity
Review Product details for the published product information, and confirm the specifications of your selected configuration before ordering.
| Product type | Cantilever mortuary rack |
|---|---|
| Model number | 2000-4TC |
| Tier count | 4 levels |
| Loading configuration | Open front cantilever |
| Frame | Welded steel, powder-coated |
| Mounting | 6 in casters or leveling feet |
| Material | Welded Steel |
| Casters or Leveling Feet options | Leveling Feet, Casters |
| Brand / vendor | American Mortuary Coolers |
|---|---|
| Equipment type | Mortuary Rack |
Dimensions & fit
| Footprint | 42 x 32 in |
|---|---|
| Height with casters | 66 in |
| Height with leveling feet | 65 in |
FAQs & buying help
How can I ask a question about this product?
Contact our team with the product name and the specification or option you want to confirm.
What should I include when requesting a quote?
Include the product, quantity, required configuration and delivery location in your quote request.
Where can I review shipping and purchase policies?
Open Shipping & support for the published freight, returns and custom-order policy links.
Resources & documents
Product-specific documents and planning links remain in Product details when a separate resources section is not available.
Plan delivery. Review the details.
Review the published policies and confirm product-specific requirements before placing your order.
Financing & purchase orders
Choose how to pay
Purchase through the product options above, or use one of these support paths for a financed or institutionally quoted order.
Formal quotes & purchase orders
Request documented pricing, freight planning, and configuration support before issuing a purchase order.
Request a formal quoteEstimates are for qualified buyers with approved credit (WAC) and reflect the equipment price only. Shipping, freight, and applicable taxes are not included and will increase your total and payments. Final amounts are set at checkout or on your quote.
Government and institutional buyers: request a PO quote.
Related equipment
Complete the Morgue Storage System

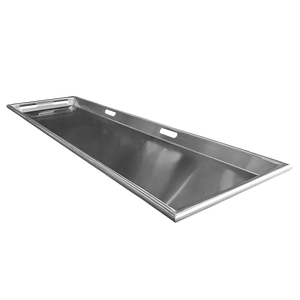

Match the rack with a mortuary lift, 23-inch stainless steel trays, heavy-duty body boards and the correct cooler capacity.
-
MADE IN

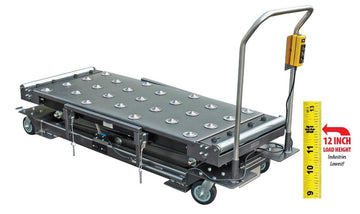

THE USAOn Sale12-inch loading height

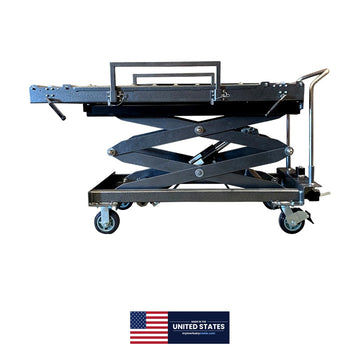

Low Profile Powered Crematory Lift
