What is the footprint of the 3-tier cantilever mortuary rack?

42 inches wide by 32 inches deep. Overall height is 48 inches with casters and 46 inches with leveling feet.

What can be stored on a cantilever rack?

One stainless tray or one laminated body board per level, centered across both arms. HD plastic storage boards are not weight-bearing and must not span the arms.

Which lift works with the base level?

The AME POWER 1030-LPL low-profile lift (13 to 69 inches) is the only AME lift built for low-level work. The H1000-M and G1 lifts do not meet the minimum loading height for most racks.

Casters or leveling feet?

Casters (-C) let you move the rack for cleaning. Leveling feet (-L) set the rack firmly on uneven floors.

Does it ship assembled?

No. The rack ships unassembled. Assembly steps are in the cantilever user manual.

Premium 3-Tier Cantilever Mortuary Rack

American Mortuary Coolers

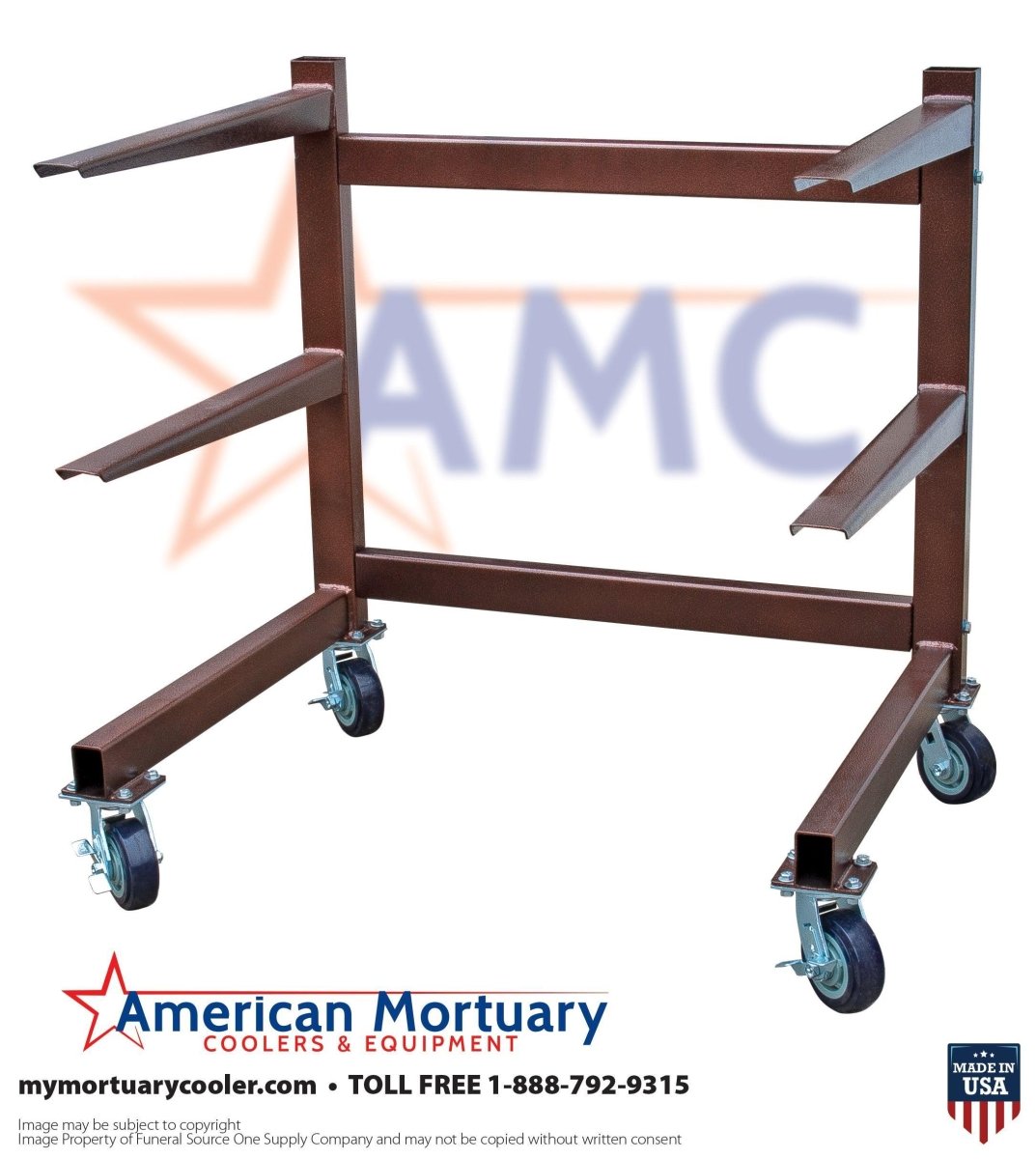

AMC Premium 3-Tier Cantilever Mortuary Rack; open-side body storage for walk-in coolers

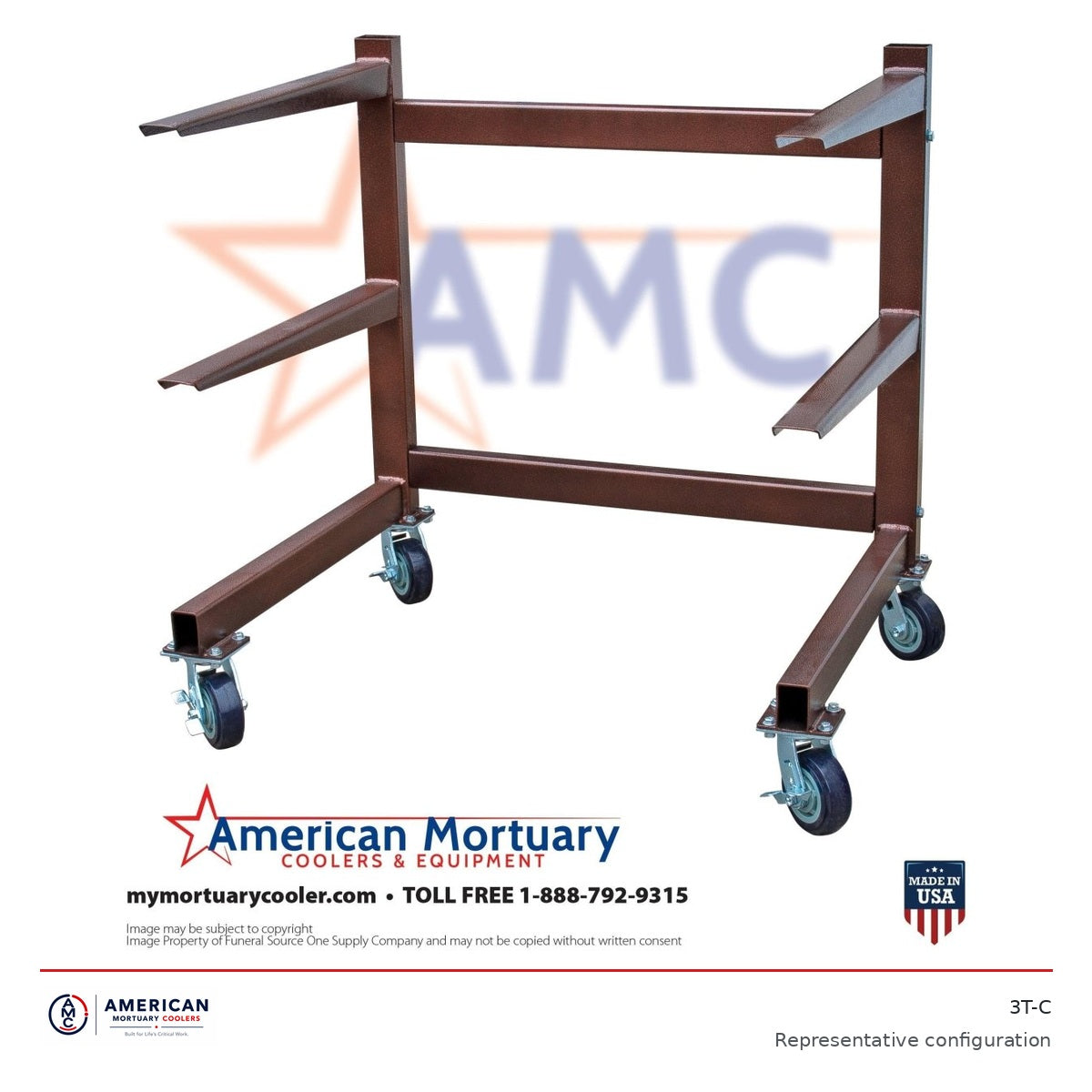

Representative configuration shown. Match tier count, base and tray selection to the written quote. Casters do not establish permission for loaded movement.

Rack configuration & care guide (review draft, PDF)

Sale

Model: Model#3T-C-1 · 2026 Model

Documents

Sign-Off DrawingPDF · Download

User ManualPDF · Download WarrantyWritten policy All manuals

Model / SKU: Model#3T-C-1

$939.55

~~$995.00~~ $939.55

Estimated from Apply with TimePayment Apply for financing Equipment estimate only. Subject to lender approval and terms. Tax and delivery extra.

Zelle® ACH

Pairs with this rack

The Low Profile Mortuary Lift works with every rack tier and every upright cooler model, for safer, faster body transfers.

Low Profile Mortuary LiftBattery powered · lowers to 13″

Shipping calculated at checkout.

How many racks?

List price

Mix any AMC racks: side-load, end-load, multi-directional and cantilever all count together. Savings apply automatically in the cart.

Add boards & trays

Sold separately

HD plastic mortuary barrier board for supported rack and cooler storage

HD Storage Board 23.5″ × 76″ · standard width $166.32 each

AMC laminated mortuary body board 78 x 24 inch with rubber edge

Laminated Body Board 78″ × 24″ · rubber edge $199.00 each

TITAN 23 inch stainless steel mortuary body tray

TITAN 23″ Tray Standard · 18 gauge stainless $536.70 each

TITAN 27 inch stainless steel mortuary body tray

TITAN 27″ Tray Oversize · 16 gauge stainless $770.40 each

HD boards are storage barrier boards, not for lifting or transfer. Trays and boards are quantity per order, not per rack.

Add a loading lift

Optional

No lift

Manual Scissor Lift Foot-pump hydraulic · lowers to 20.5″ +$4,153.05

Package total

Outfitting a full cooler or several sites? Build a bulk package →

Featured equipment

View all

Purchase terms & policies Shipping, returns, warranty and financing disclosures

Key details

Footprint: 42″ wide × 32″ deep; 36″ between uprights; 32″ arms
Overall height: 48″ with casters, 46″ with leveling feet
Level heights with casters: 9 3/4″, 28 1/4″, 46 1/4″, with 15″ clear between levels. With leveling feet: 7 1/2″ base, with 18″ clear between levels.
Storage levels: 3 (base plus 2 arm levels)
Uprights: 2″ side × 3″ face, welded steel, powder-coated

Full description & specifications

Product details

Product description & specifications

Form AME-SO-2000-3TC · Rev. B · PDF

AME TITAN 2000-3TC 3-Tier Cantilever Mortuary Rack Sign-Off Drawing & Install Sheet

Dimensioned drawing, order quantities for racks, boards, trays and lifts, customer sign-off and installation steps.

Download PDF

Form AME-OM-2000-TC · Rev. A · PDF

AME TITAN 2000-TC Cantilever Mortuary Rack User Manual (3, 4 & 5 Tier)

Safety, specifications, loading height and lift compatibility, assembly, daily use, care, troubleshooting and warranty for the 3, 4 and 5 tier racks.

Download PDF

The 3-Tier Cantilever Mortuary Rack, Model 2000-3TC, stores three decedents on stainless trays or laminated body boards. The arms extend from one side of a welded steel frame, so the loading face has no front posts in the way. Choose four 6″ casters (-C) or leveling feet (-L).

Dimensions

Footprint: 42″ wide × 32″ deep; 36″ between uprights; 32″ arms
Overall height: 48″ with casters, 46″ with leveling feet
Level heights with casters: 9 3/4″, 28 1/4″, 46 1/4″, with 15″ clear between levels. With leveling feet: 7 1/2″ base, with 18″ clear between levels.
Storage levels: 3 (base plus 2 arm levels)
Uprights: 2″ side × 3″ face, welded steel, powder-coated
Casters: four 6″ plate-mounted casters (-C models)

Loading height notice

The base level sits close to the floor (9 3/4″ on casters, 7 1/2″ on leveling feet), below the lowest deck height of every AME lift. The TITAN 1030-LPL low-profile lift (13″ to 69″) is the only AME lift built for low-level work. The H1000-M manual scissor lift and the G1 lift do not meet the minimum loading height for most of our racks. Measure each level and confirm your lift before ordering. American Mortuary Equipment is not responsible for lift selection or ordering errors. See the Returns & Cancellations Policy (RC-1.0) and Terms of Purchase (TC-1.7).

Before you order

Cooler interior height clears the 48″ frame (casters) plus the evaporator, lights and door header.
Floor space for 42″ × 32″ per rack, plus a clear loading aisle in front of the arms.
Load the lowest levels first and keep the rack level. Cantilever racks can tip when the top is loaded first.
Trays, boards and lifts are sold separately. HD plastic storage boards are not weight-bearing and must not span the arms.

Ships unassembled. Warranty coverage is listed in the Warranty Policy (WR-1.0).

Custom sizes, signed sheets and purchase orders: 1-888-792-9315 · po@mymortuarycooler.com

Rack warranty

American Mortuary Equipment mortuary racks are warranted part by part, with the longest term on the welded structure that carries each tier.

Part	Coverage
Structural frame, including welds, joints and connections (bolts and rivets excluded)	15-year limited structural warranty
Roller bearings	5-year limited warranty
Powder-coat finish	5-year limited finish warranty, with proper maintenance and care
Casters, bolts, rivets and other parts	1-year limited warranty

Loads must stay within the rated capacity per tier. Clean painted surfaces with a mild detergent; chlorine bleach, solvents and abrasive pads void the finish warranty, and chips from impact are not covered. Minor cosmetic marks that do not affect fit or function are not defects. On stainless steel racks the welded stainless frame carries the same 15-year structural warranty, and surface scratches or discoloration are not covered.

Coverage applies to defects in materials and workmanship under normal use, starting on the date of delivery to the original end user unless a different start is stated above. It is not transferable, and freight to and from our facility is not covered. Claims are made in writing with the order number, photos and a short description; claim handling follows the Warranty Policy (WR-1.0).

See every American Mortuary Equipment warranty in one place

Premium 3-Tier Cantilever Mortuary Rack: plan the fit before ordering

An affordable mortuary rack must fit the room and the transfer workflow. For the Premium 3-Tier Cantilever Mortuary Rack, compare the listed number of tiers, loading direction, overall dimensions and rated load with the space and equipment already in use. Check the clearance needed to move trays or boards into position.

Coordinate the rack, trays and lifting equipment

Review the listed tray or board compatibility and confirm which components are included. Do not infer capacity or compatibility from tier count alone. Compare the selected configuration with the other mortuary racks and lifting equipment before choosing the storage layout.

For replacement racks or a phased facility project, request an itemized mortuary-rack quote with the model, quantity, loading requirements and delivery location. Separate current purchasing from future budget phases, and review the equipment price, freight, tax and any financing cost as distinct parts of the decision.

Flexible payment options, with clear terms

Review the payment methods offered at checkout for your order. If a payment plan is available, its options and eligibility are shown by the provider. The equipment price and any financing cost are separate; compare the full payment terms before choosing a plan.

Enter payment details only in checkout or the payment provider's application. Use general customer support for product and order questions, not for sending full card numbers or sensitive financing information.

Specifications & product identity

Review Product details for the published product information, and confirm the specifications of your selected configuration before ordering.

Key specifications
Casters or Leveling Feet options	Leveling Feet, Casters

Product identity
Brand / vendor	American Mortuary Coolers
Equipment type	Mortuary Rack

Dimensions & fit

Published dimensions remain in Product details when a separate dimensions section is not available.

FAQs & buying help

How can I ask a question about this product?

Contact our team with the product name and the specification or option you want to confirm.

What should I include when requesting a quote?

Include the product, quantity, required configuration and delivery location in your quote request.

Where can I review shipping and purchase policies?

Open Shipping & support for the published freight, returns and custom-order policy links.

Resources & documents

Product-specific documents and planning links remain in Product details when a separate resources section is not available.

Plan delivery. Review the details.

Review the published policies and confirm product-specific requirements before placing your order.

Delivery planningFreight & shipping guide Purchase policiesReturns & cancellations Configured equipmentCustom built-to-order policy Product questionsContact buyer support

Ordering questions

How do I select the correct configuration?

Choose the available options before adding the item to your cart. The selected configuration and model are carried through to the cart; check them against the dimensions and included components in the product details.

How can I confirm fit before ordering?

Use the dimensions and fit notes on this page. For a fit review, send the model, measurements and any equipment it needs to work with through our equipment quote form.

Where is shipping confirmed?

Shipping is calculated at checkout for the selected items, quantities and destination. Review the cart configuration and delivery address before placing the order.

Premium 3-Tier Cantilever Mortuary Rack

$939.55

Financing & purchase orders

Choose how to pay

Purchase through the product options above, or use one of these support paths for a financed or institutionally quoted order.

For businesses

Equipment financing

Financing is subject to application and credit approval.

Apply with TimePayment

For institutions

Formal quotes & purchase orders

Request documented pricing, freight planning, and configuration support before issuing a purchase order.

Request a formal quote

Financing disclosures

Estimates are for qualified buyers with approved credit (WAC) and reflect the equipment price only. Shipping, freight, and applicable taxes are not included and will increase your total and payments. Final amounts are set at checkout or on your quote.

Government and institutional buyers: request a PO quote.

Model-specific purchasing information

Plan your Premium 3-Tier Cantilever Mortuary Rack purchase

Product type: Mortuary Rack

Casters or Leveling Feet: Leveling Feet, Casters

Review the selected configuration, included components and product specifications above. Add eligible items through this product’s cart or quote controls; custom and quote-only equipment use the request action provided for this model.

Review this model’s options Get an instant quote

Read the applicable written warranty information. Ask a documentation question and include the product name and selected configuration.

Current mobile-rack caster specification

The specified AME caster assembly uses four hard molded polyurethane wheels, not rubber: two swivel and two fixed/non-swivel, rated at 800 lb per caster, with a 4 × 4½-inch top-plate fastening size. This applies to the mobile/caster-equipped version, not a leveling-foot configuration. An individual caster rating does not increase the equipment’s approved load rating or authorize movement while loaded.

Read the caster quick fact sheet and upright caster-option guide. No wheel color is guaranteed; available colors include blue, gray, black, maroon and others.

Powder-coat color and other cosmetic details may differ from photographs as products and component selections improve. If a particular finish, material or functional configuration is essential, obtain written confirmation before ordering. This notice does not replace accepted specifications or the applicable written warranty.

Cantilever mortuary racks: plan the tray, board and lift together

Cantilever support arms leave the loading side open for the specified tray or board. Compare 2-tier, 3-tier, 4-tier and 5-tier cantilever racks by storage positions, support spacing and available height. These support-arm racks are not roller-transfer racks.

Choose leveling feet for a stationary installation or the specified caster configuration for a portable rack. Mobility does not establish permission to move a loaded rack; follow the instructions and load limits for the selected configuration.

Compare 2-, 3-, 4- and 5-tier rack layouts

Side-loading racks: compare the 2-tier, 3-tier, 4-tier 4TSL and 5-tier side-loading models.

End-loading racks: review the 2-tier end-load configuration, 3-tier, 4-tier 4TEL and 5-tier end-loading racks.

For access from more than one direction, compare 2-tier, 3-tier, 4-tier and 5-tier multi-directional racks.

Review 2-tier side-or-end loading, the USPE 2–5 tier side-load range and USPE end-load range for another layout. Cantilever racks offer support-arm storage rather than rolling tiers.

Choose stainless trays or the correct storage board

Compare the 23-inch stainless tray, 27-inch tray and 30-inch tray by overall size, gauge and rated load. Check support spacing, underside clearance, handholds and retaining arrangements against the rack. A wider tray is not automatically approved for the same tier.

For board storage, review the HD plastic body board, HDPE rack storage board and 29-inch oversized board. The rubber-edge laminated board and 78 × 24-inch laminated board provide other storage-surface choices. Select the board for the documented support arrangement, not simply its width.

Board packs and additional stainless tray choices

HD board packs: 5 boards, 6 boards, 48 boards or 74 boards. Oversized board packs are listed as 12 boards and 24 boards. Laminated boards are also available in sets of 3 and sets of 5.

Compare the stainless storage tray, stainless body tray range, low-profile tray pair and 3-pack. Additional package listings include five 23-inch trays and six stainless trays. Confirm each listing's included quantity and dimensions.

Compare the lift models before pairing equipment

Start with the H1000 manual hydraulic lift, G1 powered multi-directional lift or 1030-LPL low-profile powered lift. Compare the lowest and highest transfer surfaces with every intended tier; the low-profile name does not establish bottom-tier access.

Other platform choices include the aluminum-alloy powered lift, stainless mortuary lift trolley, USPE cadaver lift trolley, USPE cadaver transport scissor lift, covered cadaver lift and LowLoad powered lift listing. Each has its own deck, load and height requirements.

Body and casket handling equipment

Review the heavy-duty body and casket lifter, TITAN Power Body & Casket Lift XL, casket jack set and lift straps for their intended handling tasks. These are not automatic substitutes for a tray-supporting rack lift.

Frame finish, wheels and the written equipment scope

Powder-coated rack frames and their trays, rollers or boards have separate material specifications. A stainless tray does not make a steel rack frame stainless. Coating colors and cosmetic details can change as products are improved; use the selected model's stated construction and accepted order for the required finish.

For a new facility or phased replacement, list the tier count, side or end access, stationary or caster base, tray or board quantities, cooler opening and intended lift. Identify existing equipment so support surfaces and transfer heights can be checked together. Request country-of-origin documents and the applicable written warranty for the models being ordered.

Get an instant priced quote Request a rack-and-lift fit review Submit a purchase order Roller construction guide Caster facts Equipment financing
