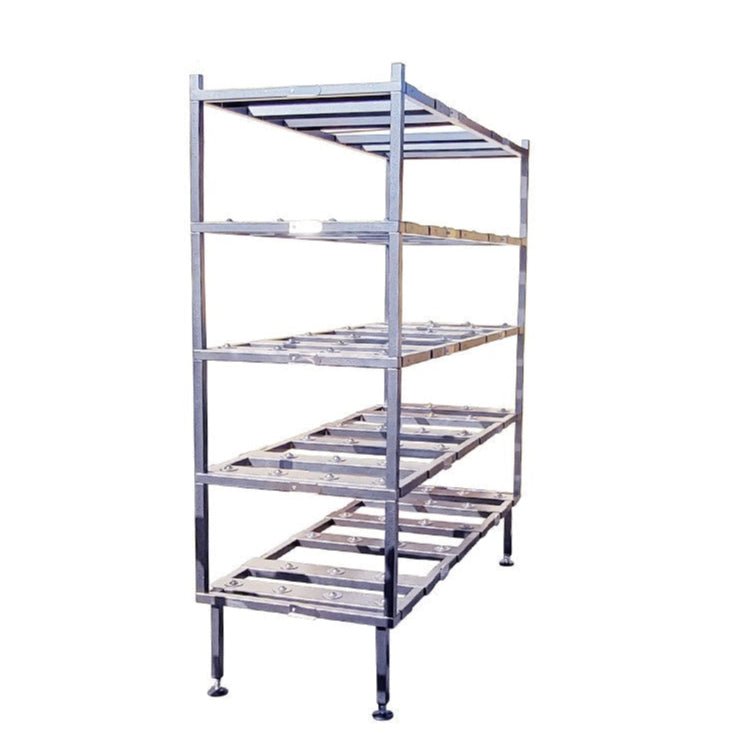

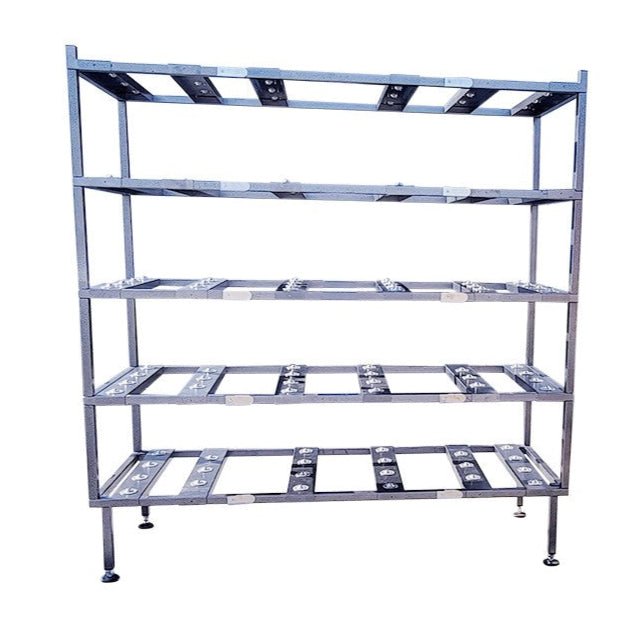

5-Tier Stainless Steel Multi-Directional Mortuary Rack

Introducing the maximum-capacity storage solution from American Mortuary Coolers & Equipment , the Model 2000-5TMD-SST .

Maximum Capacity, Uncompromised Quality

When floor space is at a premium, building vertically is the answer. Our 5-tier rack offers high storage density, making it the ideal choice for busy crematories, university medical centers, and state medical examiner offices. The industrial-grade, welded stainless steel frame is built to handle the significant weight of full capacity, providing a safe and reliable structure for decades of service.

Premium Stainless Steel Construction

This rack is constructed entirely from industrial-grade stainless steel, a material for any environment where sanitation and longevity are critical. The non-porous surface is impervious to rust and corrosion, withstands harsh cleaning protocols, and provides a clean, professional appearance that will last for the life of your facility.

Innovative Multi-Directional Tiers & Stable Placement

Each of the five tiers is designed for multi-directional loading, featuring our 1.9" gravity-free rollers that allow for smooth and dignified transfer from the side or the end. For facilities requiring mobility, optional heavy-duty locking casters are available upon request.

Features

• 5-Tier High-Capacity Design: Maximizes your vertical storage space.
• Standard Adjustable Leveling Feet: Ensures a perfectly stable and permanent installation.

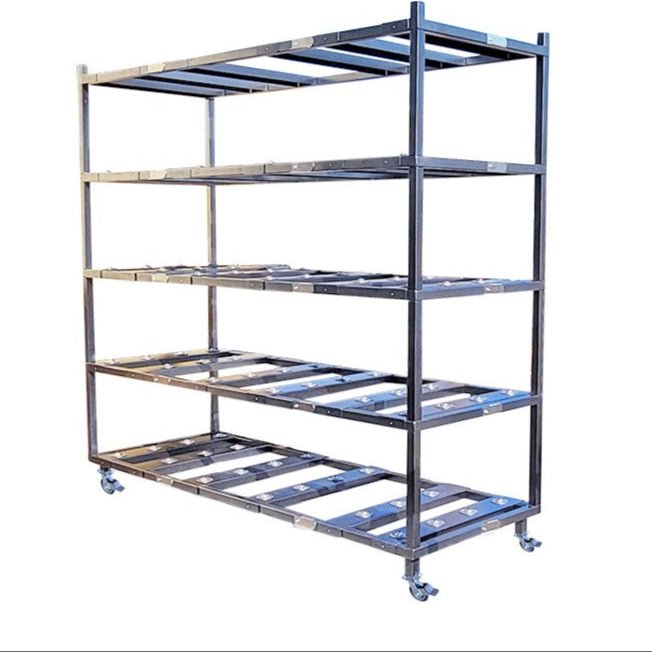

• Optional Heavy-Duty Casters: Add mobility to your rack system if needed.
• Break-Apart / Knock-Down Design: Allows for installation in areas with limited access.

Base Specifications:

• Overall Footprint: 31" Width × 85" Length
• Standard End Opening: 28"
• Standard 1st Tier Height: 21"
• Vertical Space Between Each Tier: 16.25"
• Per-Tier Capacity: 1,000 lbs evenly distributed (5,000 lbs total)
• Approx. Overall Height: 94" (7' 10"), confirm ceiling clearance

Frequently Asked Questions

What is the weight capacity? Each tier is rated for 1,000 lbs, for a total rack capacity of 5,000 lbs when evenly distributed.

What is the approximate total height? The top of the fifth tier sits at approximately 94 inches (7' 10"). Please ensure adequate ceiling clearance; a minimum 9-foot ceiling is recommended for safe top-tier use with a body lift.

Does this rack come with wheels? It comes standard with adjustable leveling feet for fixed, stable placement. Heavy-duty locking casters are available as an optional add-on and can be added later.

Is the break-apart design standard? Yes, the knock-down design is standard to facilitate shipping and installation through standard-sized doorways.

Is this model in stock or built to order? Our 5-tier racks are typically built to order.

Custom sizes & colors available. Call 1-888-792-9315 or email cool@mymortuarycooler.com.
