Apply with TimePayment (opens in a new tab)Turbo Air LED225BENC Low Profile Freezer Evaporator
Model: LED225BENC
Regular price
$4,174.63
Sale price
$4,174.63
List Price
$5,084.00
Save $909.37
Unit price
per
Estimated from

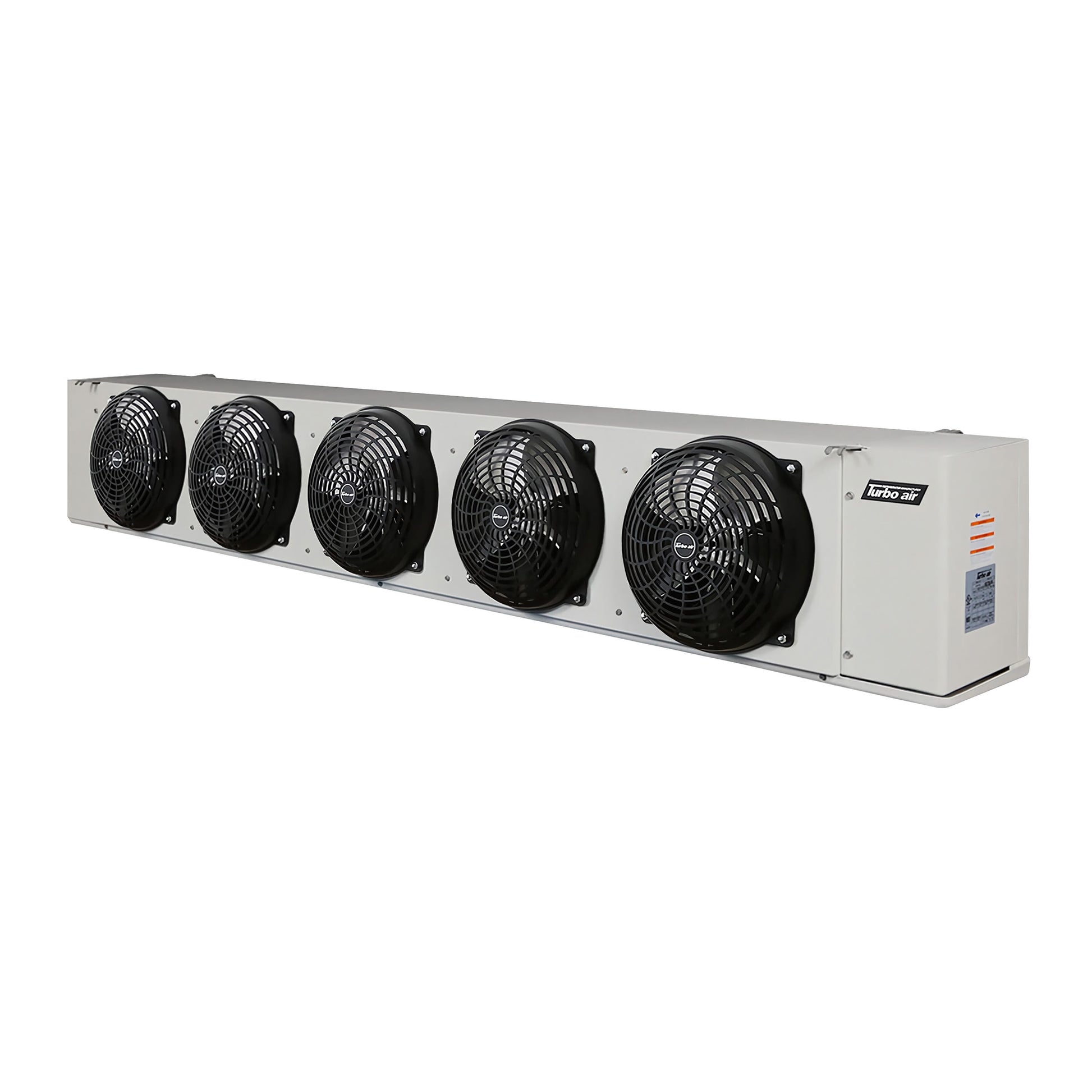

Turbo Air LED225BENC Low Profile Freezer Evaporator
$4174.63
Apply with TimePayment (opens in a new tab)
Apply for financing
Equipment estimate only. Subject to lender approval and terms. Tax and delivery extra.
Zelle®
ACH
Shipping calculated at checkout.
Related equipment & policies Related equipment and purchase terms
Ordering questions
How can I confirm fit before ordering?
Use the dimensions and fit notes on this page. For a fit review, send the model, measurements and any equipment it needs to work with through our equipment quote form.
Where is shipping confirmed?
Shipping is calculated at checkout for the selected items, quantities and destination. Review the cart configuration and delivery address before placing the order.
Product information
Product details & specifications
Product details
Turbo Air LED225BENC is a commercial walk-in cooler evaporator configured for professional walk-in refrigeration systems. Its published model-specific capacity, electrical requirements, and refrigerant information help contractors and facility teams evaluate system compatibility before ordering.
Turbo Air LED225BENC specifications
- Model: LED225BENC
- Equipment type: Walk-In Cooler Evaporator
- Capacity: 22,500 BTU
- Power supply: 208-230V/60Hz/1Ph
- Refrigerant: R448A / R449A
- Compressor / application: Electric Defrost for Freezer 6PFI
- Application: Indoor
- Depth (in): 15.44
- For Use With: Walk-In Refrigeration
- Height (in): 16.19
- Hertz: 60
- Manufacturer: Turbo Air
- Mounting Location: Walk-In Interior
- Part Type: Evaporator
Turbo Air LED225BENC model Q&A
What is Turbo Air LED225BENC?
Turbo Air LED225BENC is a commercial walk-in cooler evaporator. Use the exact model number when comparing replacement equipment, project schedules, service documents or refrigeration equipment lists.
Is Turbo Air LED225BENC the correct replacement for my existing unit?
Do not select a replacement by appearance or model family alone. Confirm the complete model number, refrigerant, voltage and phase, application temperature, design load, dimensions and paired condensing unit. A qualified refrigeration professional should verify the final selection.
Can I replace only the evaporator?
Sometimes, but the replacement must be compatible with the complete refrigeration system. Confirm refrigerant, capacity, electrical requirements, controls and the paired condensing unit before ordering.
How do I match this Turbo Air evaporator to my walk-in cooler?
Have a qualified refrigeration professional evaluate design temperature, ambient conditions, insulation, product load, door openings, heat load, refrigerant, line-set requirements and paired equipment.
Specifications & product identity
Review Product details for the published product information, and confirm the specifications of your selected configuration before ordering.
| Model | LED225BENC |
|---|---|
| Manufacturer | Turbo Air |
| Type | Low profile unit cooler |
| Defrost | Electric defrost |
| Capacity, R-404A (-20°F SST, 10°F TD) | 22,711 BTUH |
| Capacity, R-448A/R-449A (-20°F SST, 10°F TD) | 22,509 BTUH |
| Airflow | 3,860 CFM |
| Fans | 5 |
| Electrical | 208-230V / 1 ph / 60 Hz |
| Fan motor | EC motor, 1/25 HP, 2.25 total amps, 125 W |
| Defrost heaters | 4,800 W, 20.9 A at 230/1/60 |
| Coil inlet | 1/2 OD |
| Suction | 1-1/8 ID |
| Equalizer | 1/4 OD |
| Drain | 3/4 MPT |
| Valve package | R-448A/R-449A TXV, solenoid valve and digital temperature control, factory mounted |
| Approx. net weight | 116 lb |
| Brand / vendor | Turbo Air |
|---|---|
| Equipment type | Walk-In Cooler Evaporator |
| Model | LED225BENC |
| SKU | LED225BENC |
Dimensions & fit
| Width (overall length, dim. A) | 93.5 in |
|---|---|
| Depth | 15-7/16 in |
| Height | 16-3/16 in |
| Approx. net weight | 116 lb |
