Apply with TimePayment (opens in a new tab)Turbo Air TS055XR404A2A Walk-In Cooler Condensing Unit
Model: TS055XR404A2A
Regular price
$5,937.62
Sale price
$5,937.62
List Price
$6,984.00
Save $1,046.38
Unit price
per
Estimated from

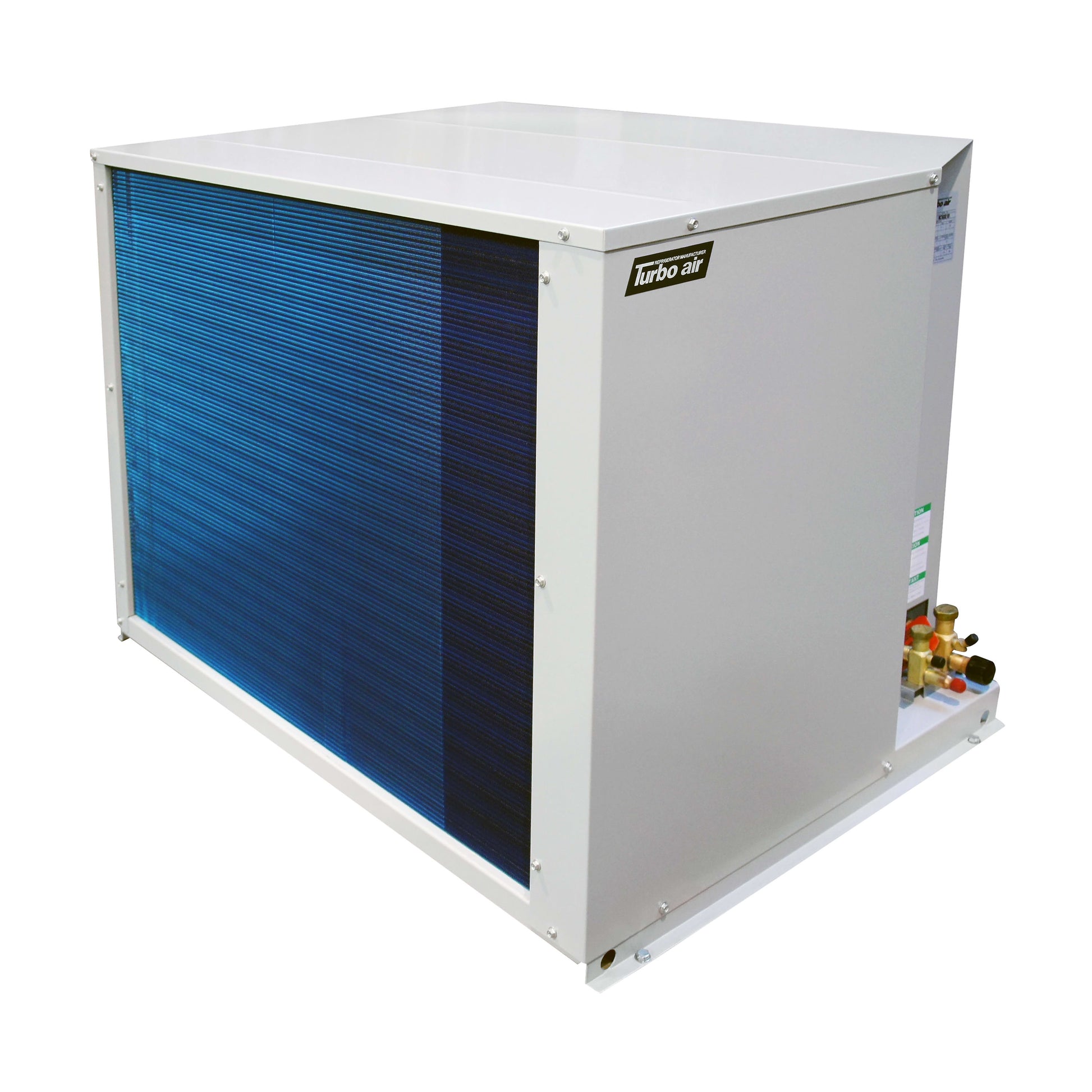

Turbo Air TS055XR404A2A Walk-In Cooler Condensing Unit
$5937.62
Apply with TimePayment (opens in a new tab)
Apply for financing
Equipment estimate only. Subject to lender approval and terms. Tax and delivery extra.
Zelle®
ACH
Shipping calculated at checkout.
Related equipment & policies Related equipment and purchase terms
Ordering questions
How can I confirm fit before ordering?
Use the dimensions and fit notes on this page. For a fit review, send the model, measurements and any equipment it needs to work with through our equipment quote form.
Where is shipping confirmed?
Shipping is calculated at checkout for the selected items, quantities and destination. Review the cart configuration and delivery address before placing the order.
Product information
Product details & specifications
Product details
Turbo Air TS055XR404A2A is a commercial walk-in cooler condensing unit configured for professional walk-in refrigeration systems. Its published model-specific capacity, electrical requirements, and refrigerant information help contractors and facility teams evaluate system compatibility before ordering.
Equipped with adjustable low-pressure control and a head pressure control system, the Turbo Air TS055XR404A2A remote outdoor refrigeration system protects against irregular refrigerant flow. A single fan supplies uniform airflow, while the control box pairs with a wiring harness to facilitate quick setup and upkeep. For reliable heat removal, the scroll compressor runs on R448A or R404A refrigerant. 2 1⁄6-inch legs anchor the 43-inch-wide by 30 1⁄4-inch-deep by 29 3⁄4-inch-high prepainted galvanized steel cabinet to avoid unwanted movement. Blue anti-corrosion fins and seamless inner-groove copper tubing increase the condenser's ability to release heat during prolonged operation.
Turbo Air TS055XR404A2A specifications
- Model: TS055XR404A2A
- Equipment type: Walk-In Cooler Condensing Unit
- Capacity: 5 HP
- Power supply: 208-230V/60Hz/1Ph
- Refrigerant: R404A, R407C, R448A / R449A
- Compressor / application: ZF15K4E-PFV
- Application: Outdoor
- Depth (in): 30.25
- For Use With: Walk-In Refrigeration
- HP: 5.5
- Height (in): 29.75
- Hertz: 60
- Manufacturer: Turbo Air
- Mounting Location: Remote
Turbo Air TS055XR404A2A model Q&A
What is Turbo Air TS055XR404A2A?
Turbo Air TS055XR404A2A is a commercial walk-in cooler condensing unit. Use the exact model number when comparing replacement equipment, project schedules, service documents or refrigeration equipment lists.
Is Turbo Air TS055XR404A2A the correct replacement for my existing unit?
Do not select a replacement by appearance or model family alone. Confirm the complete model number, refrigerant, voltage and phase, application temperature, design load, dimensions and paired evaporator. A qualified refrigeration professional should verify the final selection.
Can I replace only the condensing unit?
Sometimes, but the replacement must be compatible with the complete refrigeration system. Confirm refrigerant, capacity, electrical requirements, controls and the paired evaporator before ordering.
How do I match this Turbo Air condensing unit to my walk-in cooler?
Have a qualified refrigeration professional evaluate design temperature, ambient conditions, insulation, product load, door openings, heat load, refrigerant, line-set requirements and paired equipment.
Specifications & product identity
Review Product details for the published product information, and confirm the specifications of your selected configuration before ordering.
| Model | TS055XR404A2A |
|---|---|
| Manufacturer | Turbo Air |
| Type | Condensing unit, scroll compressor |
| Application | Extra-low temperature (freezer) |
| Nominal horsepower | 5.5 HP |
| Compressor | ZF15K4E-PFV |
| Electrical | 208-230V / 1 ph / 60 Hz |
| Compressor RLA / LRA | 27.5 / 169.0 |
| Fan motor FLA | 2.40 |
| MCA / MOPD | 36.8 A / 60 A |
| Refrigerant | R-448A/R-449A or R-404A |
| Liquid line (ID) | 1/2" |
| Suction line (ID) | 1-1/8" |
| Receiver, 90% full | 18 lb |
| Condenser fans | 1 (3,809 CFM) |
| Sound level | 76 dBA |
| AWEF (R-404A / R-448A) | 3.2 / 3.2 |
| Approx. net weight | 346 lb |
| Brand / vendor | Turbo Air |
|---|---|
| Equipment type | Walk-In Cooler Condensing Unit |
| Model | TS055XR404A2A |
| SKU | TS055XR404A2A |
Dimensions & fit
| Width | 30.25 in |
|---|---|
| Depth | 42.4 in |
| Height | 29.75 in |
| Approx. net weight | 346 lb |
