Fully Custom — Built to Your Facility

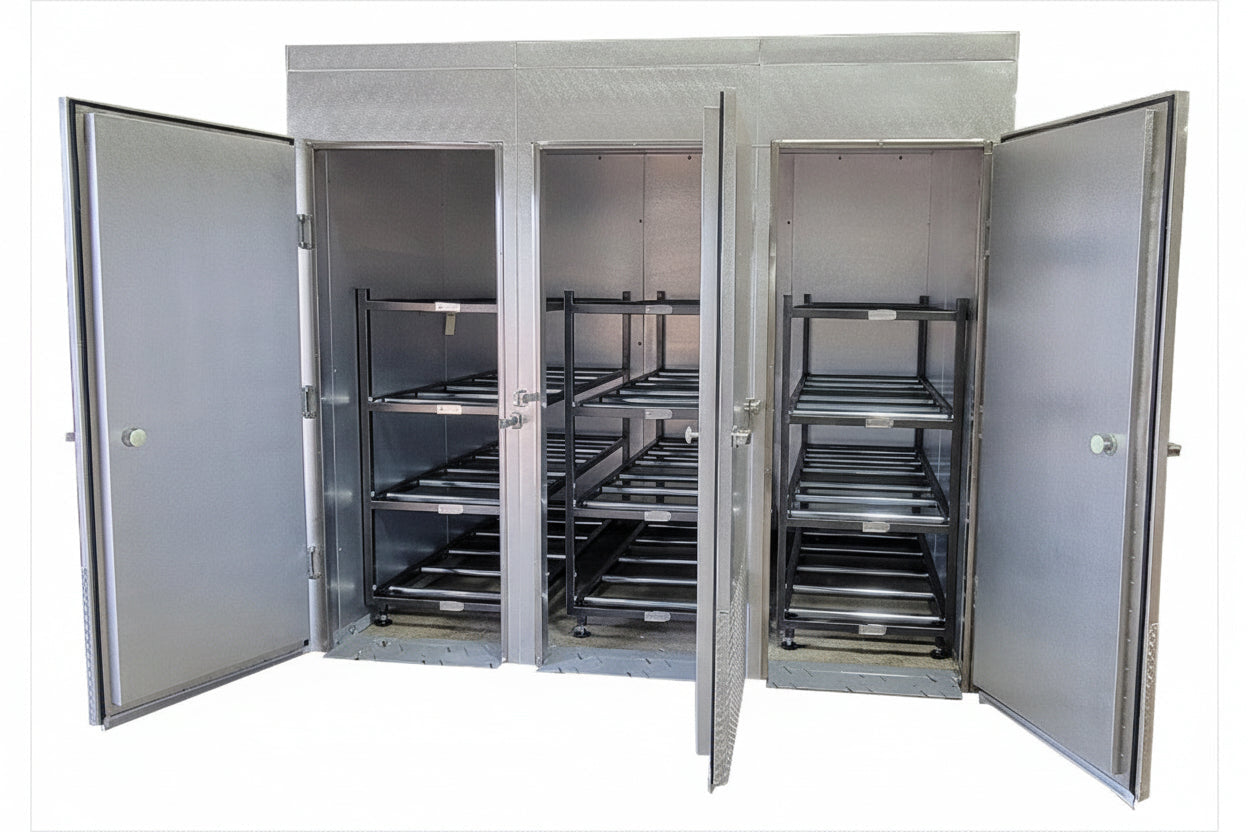

The AMC-12B-3D 12-Body Triple-Door Mortuary Cooler is a built-to-order, fully customizable high-density system — not a fixed catalog appliance. Every unit is configured to your facility: size, layout, refrigeration, electrical, rack package, lighting, and flooring are all specified to your project. The size shown is a custom 10×10 triple-door build; yours is sized and laid out to your space and caseload.

It comes standard with remote 2-piece (split) refrigeration — the condenser is located away from the storage bay to move heat and compressor noise out of the prep room — plus two interior light fixtures standard, triple 4-tier roller racks (12 positions), and 31.5" oversized door clearances on 208-230V power. Professional installation is required.

What's Included & What's Customizable

Standard Configuration

• Three independent sealed bays — 4 positions per bay, 12 total; thermal & chain-of-custody isolation per door.
• Triple 4-tier roller rack systems — one per bay, included standard.
• Remote 2-piece (split) refrigeration — condenser separated from the storage bay; 208-230V high-output system.
• Two interior light fixtures — standard, for loading, retrieval & inspection.
• 31.5" oversized door clearances — on each of the three doors.
• High-density industrial construction — reinforced support, insulated cam-lock panels, 24/7-rated components.

Customizable to Your Project

• Size & layout — the pictured unit is a custom 10×10 triple-door; yours is built to your footprint.
• Refrigeration — split-remote sizing and configuration to your space and condenser location.
• Electrical — 208-230V configuration to your service and local code.
• Rack package — tier counts and rack options adjusted to caseload.
• Lighting & flooring — additional fixtures, reinforced/insulated flooring.

Industrial-Scale Upright — Without a Walk-In Build-Out

At twelve bodies, the gap between a multi-door upright and a walk-in narrows — but they remain different tools. The AMC-12B-3D delivers 12-body capacity in a vertical upright footprint with three independent sealed bays that preserve thermal isolation per access event — without the construction, floor penetrations, and room-modification scope of a walk-in project. It stands against a wall, accesses all 12 positions through three front doors, and never requires staff to enter the unit to retrieve a body — ideal where floor space is constrained and a dedicated walk-in room isn't available.

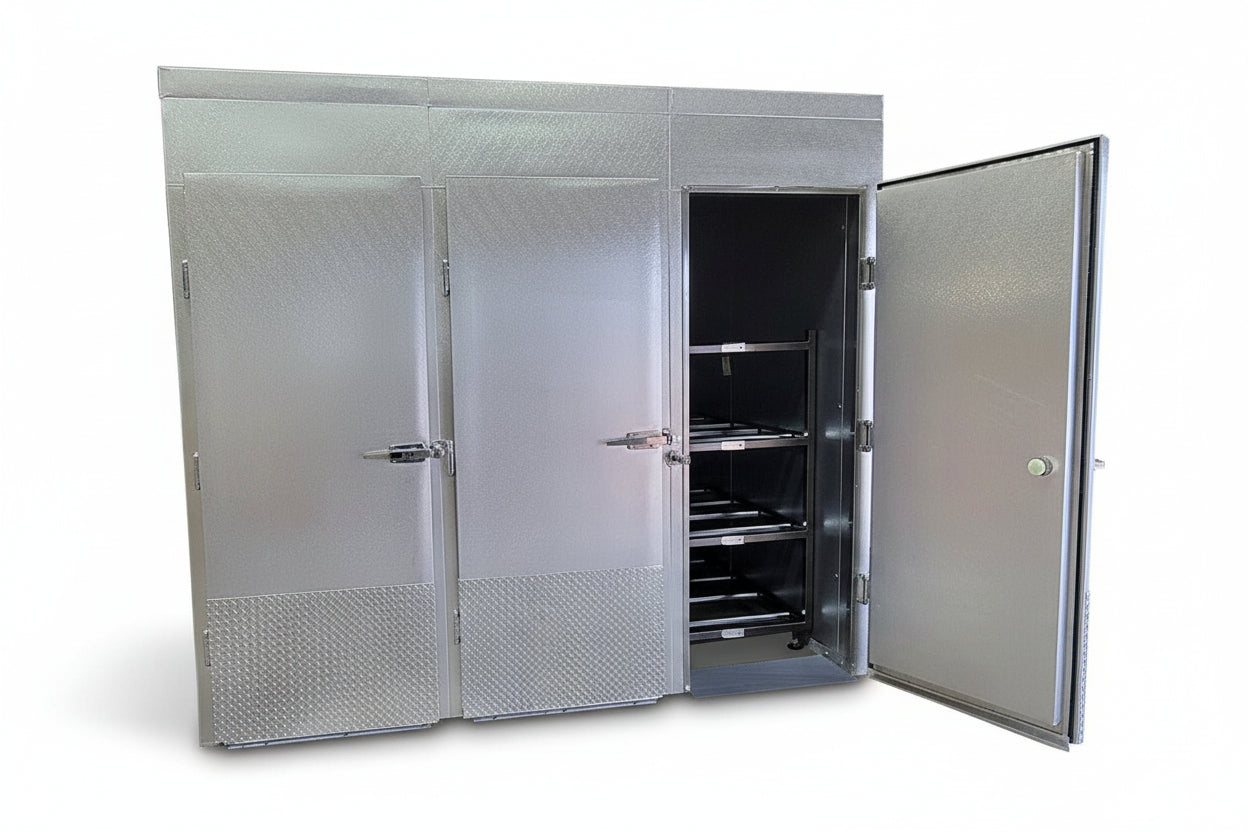

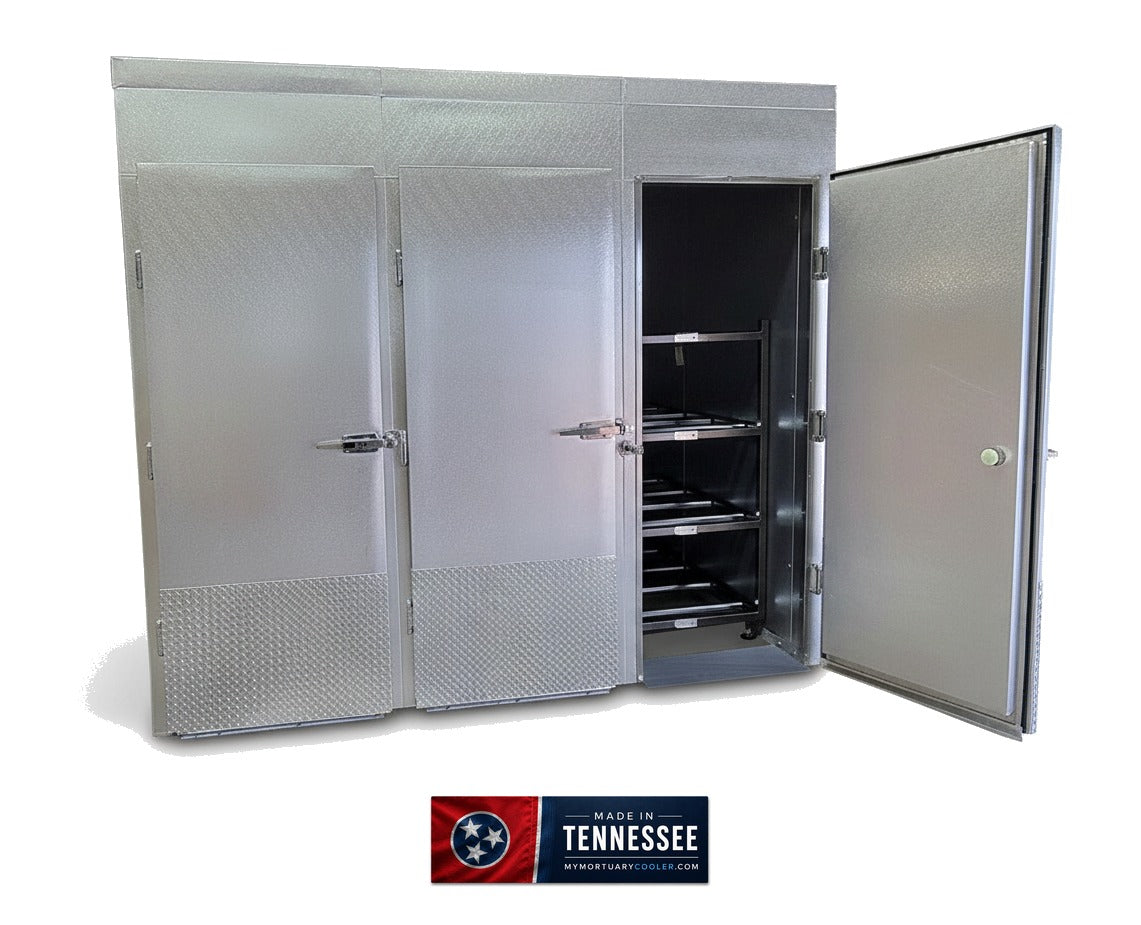

Why Three Independent Bays at 12-Body Scale

A single-door 12-body unit would expose all 12 positions to ambient temperature on every opening. Three independent doors mean each access event exposes only four positions — the three closed bays stay sealed and temperature-stable. Across 15–20 access events per day, the cumulative thermal difference over a week is significant.

The three-bay design also supports clean workflow zoning: bay one for intake, bay two for cases pending preparation, bay three for releases pending family pickup — physical separation that supports chain-of-custody without extra units or procedural tracking.

Split Remote Refrigeration & 208-230V — Installation Required

The standard remote 2-piece (split) refrigeration locates the condenser away from the storage bay. Three planning consequences:

• Heat removed from the prep room — the condenser moves thermal load to a mechanical room, exterior wall, or remote location.
• Compressor noise reduced — the loudest components are remotely located, keeping the storage area quieter.
• Line set path planning required — a licensed HVAC/refrigeration tech runs refrigerant line sets from the unit to the condenser; plan and clear this path before delivery.

The unit requires 208-230V electrical service (not compatible with 110V) and a licensed electrician for hard-wired connections and local code compliance. Electrical and line-set readiness are the most common pre-delivery items on industrial-scale units.

Pre-Delivery Checklist — Confirm Before Ordering

• 208-230V electrical service confirmed at the installation location
• Licensed electrician engaged for circuit installation & local code compliance
• Licensed HVAC/refrigeration tech engaged for line-set run & condenser connection
• Remote condenser mounting location selected and cleared; line-set path planned & unobstructed
• Ceiling height confirmed — unit ~88–92 inches plus overhead clearance for condenser connections
• Floor confirmed level, sealed concrete or masonry; room dimensions allow all three doors to open fully
• Delivery access confirmed — panel dimensions, doorway widths, dock or forklift availability
• Mortuary lift selected or on order (see lift planning below); permits/inspection confirmed with contractor

Mortuary Lift Planning — Required for Upper-Tier Access

A 4-tier rack places the upper two tiers where manual loading is unsafe without a mechanical assist. For all high-density uprights with 3+ tiers, a mortuary lift is a workflow safety requirement, not an option. The HD 1000 Low-Profile Mortuary Lift is the standard companion — low-profile base clears the 4-tier floor rail, 1,000 lb rated, 4-way positioning across all three bays. See the Mortuary Rack Buying Guide.

Technical Specifications

12-Body Triple-Door vs. Walk-In Mortuary Cooler

For walk-in systems see Walk-In Mortuary Coolers. Lower-capacity multi-door: 4-Body 2-Door.

Warranty

• 15-year warranty on insulation panels & doors
• 5-year warranty on mechanical components
• 2-year warranty on parts & labor

All coverage subject to written warranty terms, professional HVAC and electrical installation, correct site conditions, and normal professional use. Split refrigeration warranty requires certified technician installation of line sets and condenser. Backed directly by American Mortuary Coolers, Johnson City, Tennessee.

Financing & Procurement

Shop Pay Installments (3–4 interest-free payments at checkout for qualifying orders) and traditional equipment financing with extended monthly terms for large facility projects; IRS Section 179 deductions typically apply. For multi-unit orders, facility-wide projects, and government procurement bids, our senior technical team handles full scope — PO-compatible pricing via procurement@mymortuarycooler.com. See Financing or call 1-888-792-9315.
