Review financing options3-Body Vertical Vault Morgue Cooler
Item #: AMC-866595630 Model: 1070-3BVU-1
AMC itemAMC-866595630Model 1070-3BVU-1
Regular price
$20,899.00
Sale price
$20,899.00
List Price
Factory-direct published price
Unit price
per
Zelle®
ACH
Shipping calculated at checkout.
- Set freight rates, calculated at checkoutFreight
- 15-year panel and 2-year refrigeration parts warranty Warranty
- Buying on a purchase order? PO // RFQ
Related equipment & policies Related equipment and purchase terms
Over
mortuary products sold since 2009
Product information
Product details & specifications
Product details
3-body vertical vault storage and retrieval planning
The 3-Body Vertical Vault Morgue Cooler gives facilities a 3-body vault-format option for refrigerated body storage. Its vertical designation makes access to the selected storage levels a central part of the equipment review.
For three-body vault storage, draw a retrieval path for each of the three positions. Compare that access pattern with a three-body upright or triple-wide roll-in before matching the cabinet to an existing prep-room workflow.
Choosing the right configuration
For this vertical vault model, check the handling method at each level and review the installation height separately from the loading height. Match tray clearance and the selected lift to the published configuration, and leave the service space required by the refrigeration system.
Build the equipment plan around this model, then compare mortuary cooler configurations and body-storage racks and lifts. Use the freight and delivery planning guide to prepare the receiving route before the order is finalized.

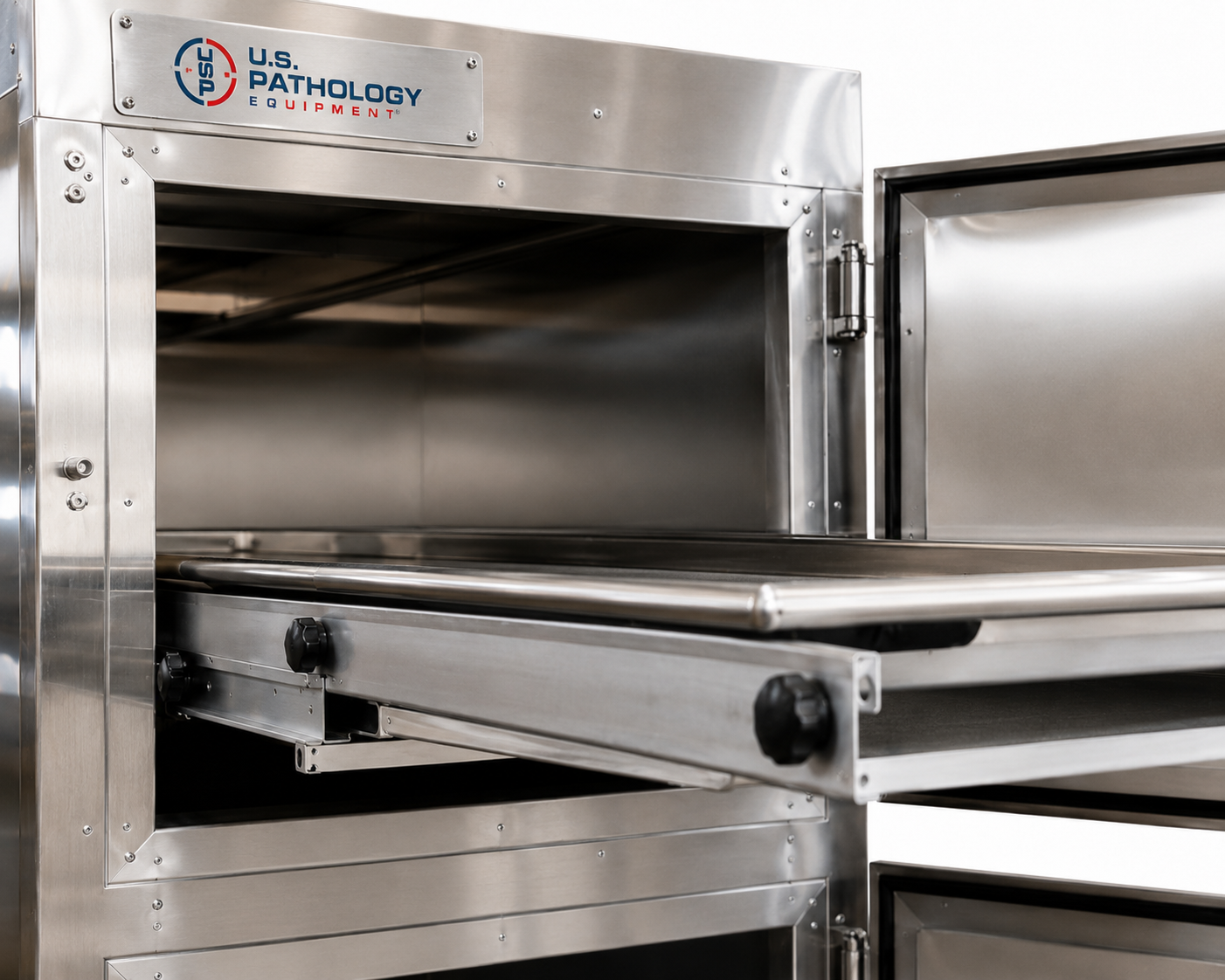

Equipped with MortuaryGlide™ full-extension telescoping rails: single-operator, no-lift cadaver tray access. Learn more →

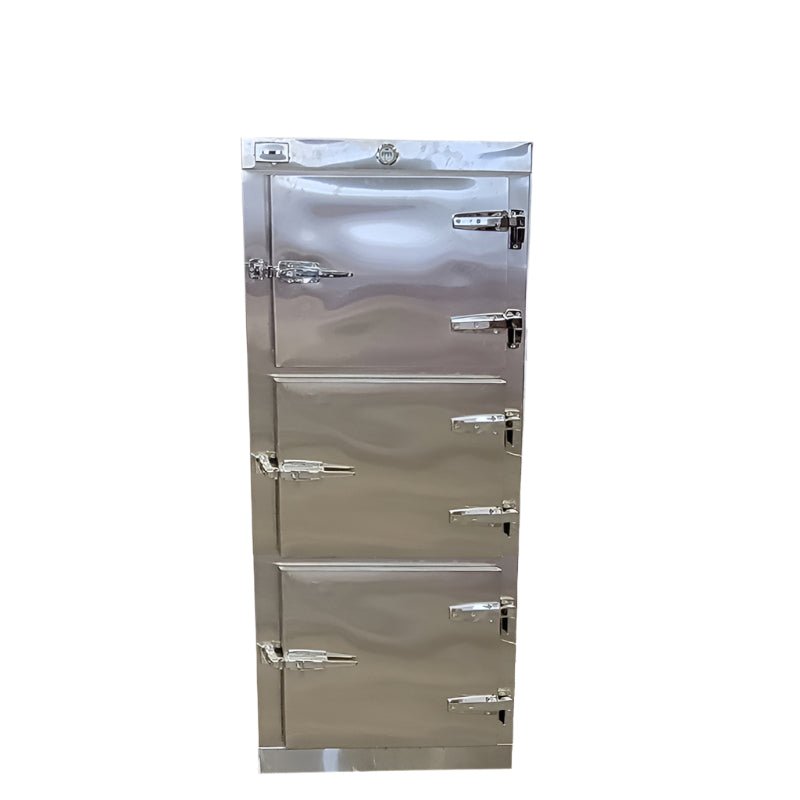

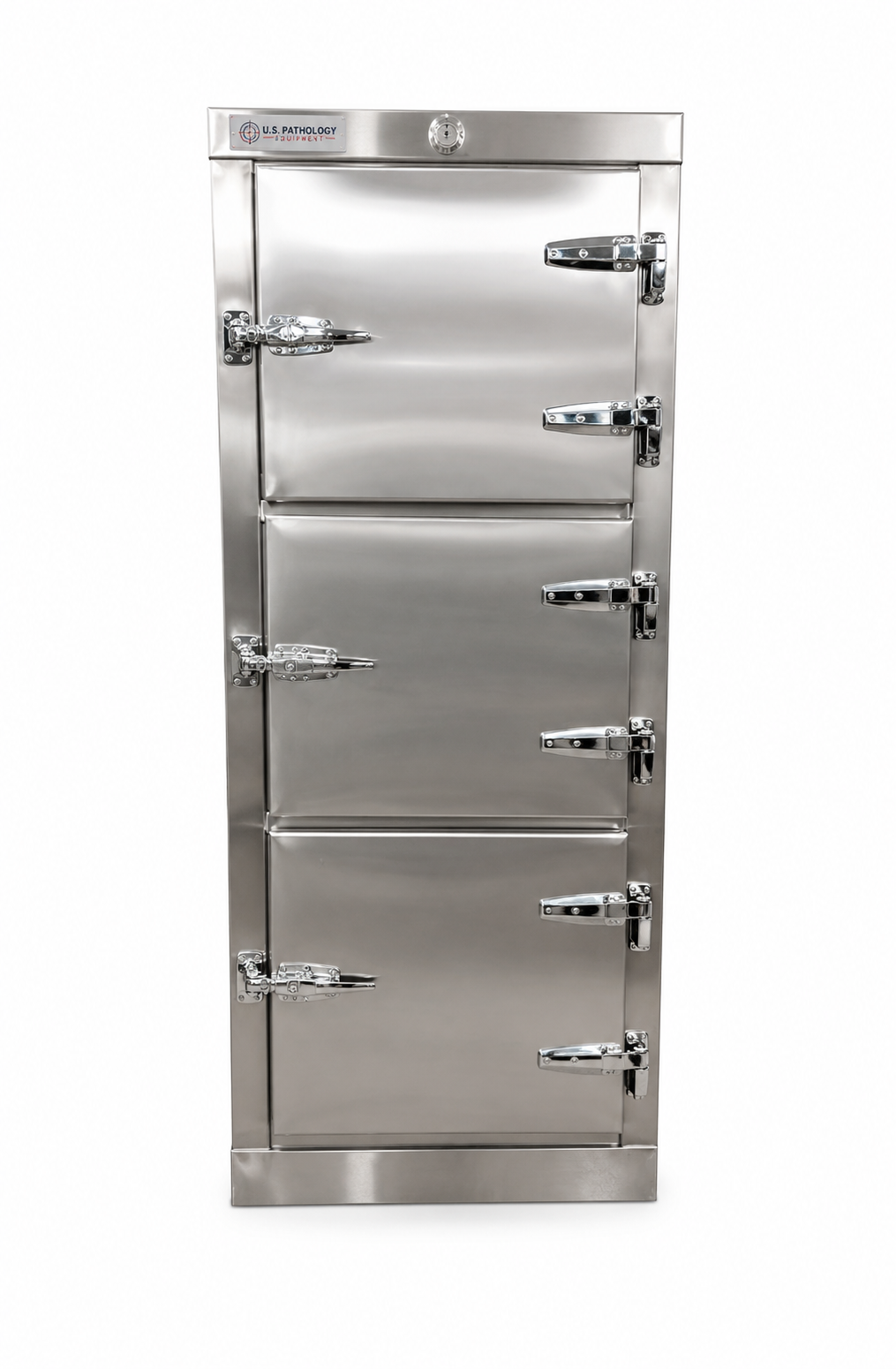

The 3 Bay Vertical Vault-Style Morgue Cooler (Model 1070-3BVU) is the vertical individual-access mortuary cabinet in the AMC 1070 series, 3 stacked chambers with door-hinge selectability. Built for hospital morgues, ME field offices, university anatomy teaching labs, and forensic facilities where floor-area is constrained but per-case isolation is non-negotiable.
At a glance
- 3 vertically-stacked individually-accessed chambers
- Door hinge selectable: right-hand or left-hand (specify at order)
- Standard freight OR turnkey installation
- Stainless steel slide-out trays
- 304 stainless interior, modular insulated panels
- Self-contained refrigeration
- NSF, UL, ASTM E84 certified
- 10-year structural warranty
- Made in Johnson City, Tennessee
Where it fits in the vault cooler line
The 3 Bay Vertical Vault is the small-footprint stacked vault, same 3-body capacity as the 3-Door Vault (horizontal) but in a vertical stack that reduces floor area. Step up to the 4 Bay Vault or 6 Bay Vault.
For the 2-body vertical variant, see the 2 Body Vertical Vault (1070-2BVU). Full catalog: multi-bay vault morgue coolers.
Why vertical stacking
At 3-body capacity the horizontal 3-Door Vault occupies more floor area than the vertical 3 Bay. Vertical configuration is the right call when the prep room is floor-area-constrained, common in retrofit installations, hospital outpatient morgues, and small ME field offices. All three bays still get individual-access with stainless steel slide-out trays.
Door hinge selection
All three doors hinge on the same side, either all right-hand (hinges on right, handles on left) or all left-hand (hinges on left, handles on right). Match to the prep-room workflow so the operator has unobstructed access from the staging side.
Standard freight vs. turnkey installation
- Standard Freight Delivery: cabinet ships, customer installs
- Turnkey Installation Service: AMC installs and commissions on-site (+$2,682)
Specifications
| Model number | 1070-3BVU |
|---|---|
| Capacity | 3 cadavers, vertically-stacked individual chamber access |
| Hinge configuration | Right-hand or left-hand (all three doors same side) |
| Tray system | Stainless steel slide-out trays |
| Interior construction | 304 stainless steel |
| Cabinet | Modular insulated panels, 4″ urethane core |
| Refrigeration | Self-contained |
| Operating range | 34–40°F body holding |
| Voltage | 208–230V, single-phase |
| Certifications | NSF, UL, ASTM E84 Class A, DOE/EPA EISA 2007, Prop 65 |
| Warranty | 10-year structural |
| Country of origin | United States, Johnson City, Tennessee |
| Manufacturer | American Mortuary Coolers |
Pricing and financing
Standard Freight (RH or LH): $16,797.99 · Turnkey Installation: $19,479.99 factory direct.
- 0% financing at checkout: Shop Pay Installments for qualified buyers
- 1% back on every Shop Pay purchase
- Extended financing: apply here
- Section 179 in-year tax treatment
- Net terms for institutional and government buyers
Shipping
Ambient Room Temperature & Refrigeration Sizing, Read Before You Order
The temperature of the room around your vault matters as much as the vault itself. Every refrigeration system rejects heat into that room. The hotter the room, the longer the compressor runs, and the harder it is to hold a steady 34–40°F. Standard refrigeration is sized for a conditioned, ventilated indoor room. If your space runs warm, upsize the refrigeration when you order. It costs far less than a struggling system, temperature swings, or a warranty claim later.
| Room conditions at the vault | Recommended refrigeration | Upgrade |
|---|---|---|
| Climate-controlled prep room, 65–75°F, normal door use | Standard | Included |
| Warm room that regularly reaches 80°F | Level 1 | +$3,896.00 (20%) |
| Hot room up to 90°F, or heavy daily door traffic | Level 2 | +$4,285.60 (22%) |
| Room up to 100°F, high humidity, or nearby heat-producing equipment | Level 3 Extreme | +$4,675.20 (24%) |
Why ambient temperature is critical
- Holding temperature: an undersized system in a hot room cannot recover after each door opening, so box temperature drifts above 40°F.
- Compressor life: long, continuous run times in high heat wear out the compressor and fans early.
- Condensation & humidity: warm, humid rooms produce more condensate. Connect the drain line, and route it to the external drain or a condensate pump.
- Warranty: incorrect sizing, installation or placement voids the warranty. Choose the level that matches your hottest conditions, not your average.
How to choose
- Measure the room where the vault will sit at the hottest time of day in the hottest month, not when the HVAC is running at its best.
- Account for heat from nearby equipment, sun-facing walls, bay doors and how often the vault is opened.
- Keep the condensing unit's air path open, with no cabinetry, soffits or stored goods blocking intake or discharge. A starved condenser behaves like a hot room.
- Install indoors only. Unconditioned garages, mechanical rooms and rooms next to crematory retorts need a review before ordering, call 1-888-792-9315.
Upgrades are priced as a percentage of the base cooler price before casters and other options: Level 1 +20%, Level 2 +22%, Level 3 Extreme +24%. Select Refrigeration Upsize above. Full terms: Warranty Policy (WR-1.0)
Frequently asked questions
How many bodies does the 3 Bay Vertical Vault hold?
Three cadavers, one per vertically-stacked individually-accessed chamber.
Vertical 3 Bay vs. horizontal 3-Door Vault, which is right?
Vertical wins when floor area is constrained (retrofit installations, hospital outpatient morgues). Horizontal wins when ceiling height is constrained or when operator ergonomics favor low-bay access.
How do I pick right-hand vs. left-hand hinging?
Match to prep-room workflow. All three doors hinge on the same side.
What temperature does it maintain?
34–40°F body holding.
Can it be financed?
Yes. 0% Shop Pay Installments. Qualifies for extended financing.
Where is it manufactured?
Johnson City, Tennessee. American Mortuary Coolers, family-owned since 2009, A+ Rated by the Better Business Bureau.
Direct procurement: 1-888-792-9315 · po@mymortuarycooler.com · request catalog · dealer inquiries
Return Policy: All coolers, racks, lifts, and other products are non-returnable, no exceptions. All refrigeration products purchased on or after 1/1/2026 are 100% non-returnable under any circumstances. Please review our full Return Policy before purchasing.
Specifications & product identity
Review Product details for the published product information, and confirm the specifications of your selected configuration before ordering.
| Brand / vendor | American Mortuary Coolers |
|---|---|
| Equipment type | Vault Morgue Cooler |
| Model | 1070-3BVU-1 |
Dimensions & fit
Published dimensions remain in Product details when a separate dimensions section is not available.
FAQs & buying help
How can I ask a question about this product?
Contact our team with the product name and the specification or option you want to confirm.
What should I include when requesting a quote?
Include the product, quantity, required configuration and delivery location in your quote request.
Where can I review shipping and purchase policies?
Open Shipping & support for the published freight, returns and custom-order policy links.
Resources & documents
Product-specific documents and planning links remain in Product details when a separate resources section is not available.
