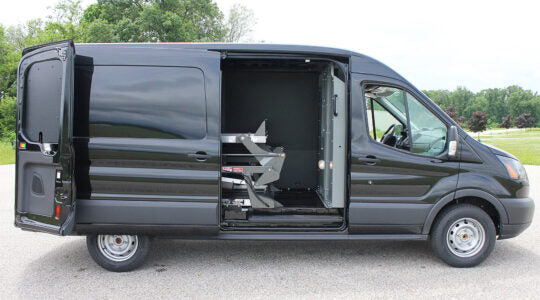

AME-DD2000-XLC Double-Deck Mortuary Transport System | Cargo Van

Double-Deck System for Full-Size Cargo Vans | Cots, Cremation Containers & Caskets

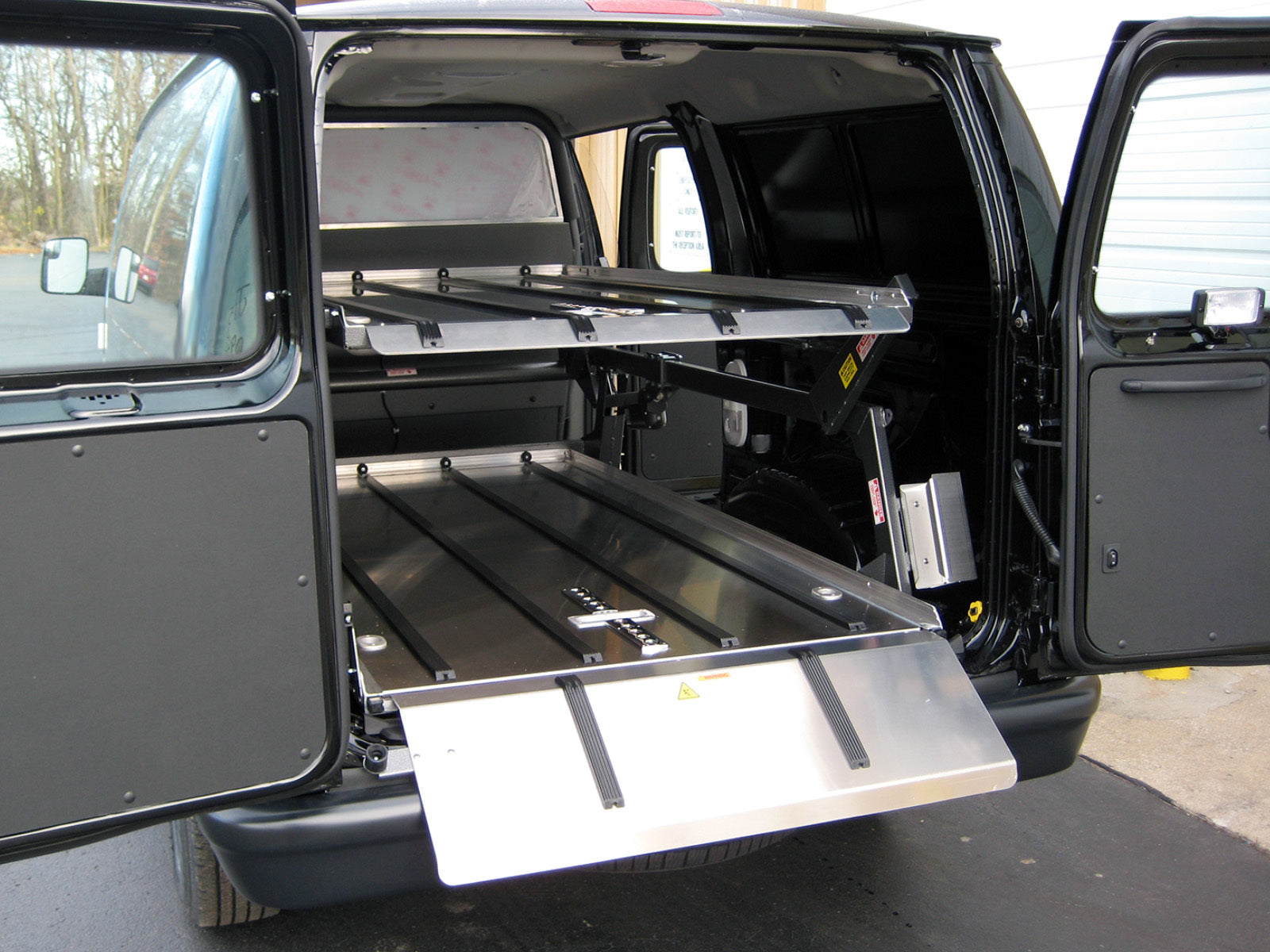

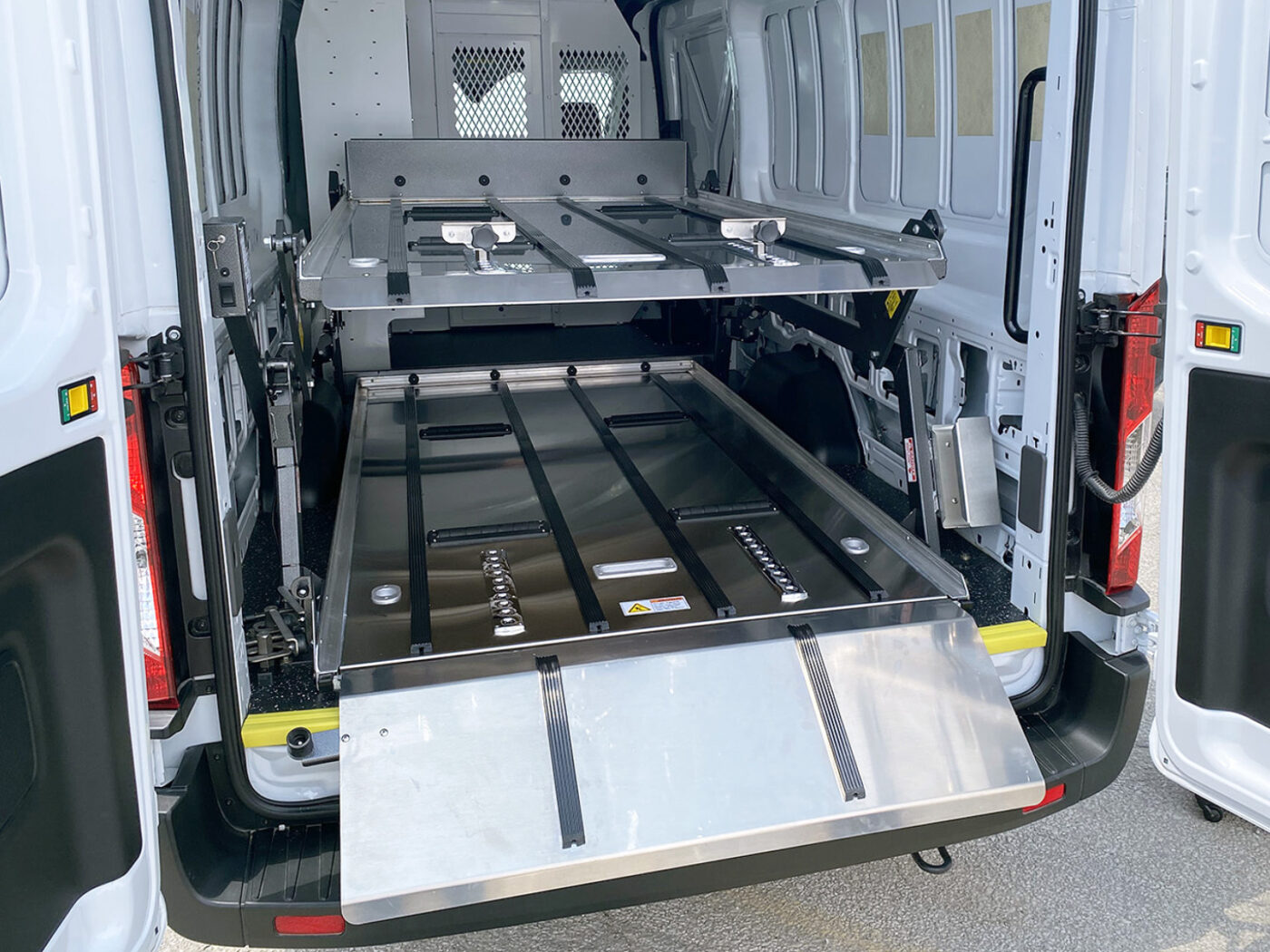

The AME-DD2000-XLC is the industry's first double-deck system engineered to accommodate both standard and oversized cots side-by-side. Designed for full-size cargo vans, it doubles your transport capacity — allowing a single operator to safely move four cots, four cremation containers, two air trays, or two caskets per run.

Key Features

• Fits Standard & Oversized Cots Side-by-Side — 50.5" upper deck and 51.8" lower deck width accommodate today's larger cot sizes simultaneously.
• Powered Upper Deck with Safety Latch — Raises and lowers in seconds via control switch at deck entry. Integrated safety latch locks deck in place if actuators fail.
• 600 lb. Upper Deck Capacity — Reinforced frame with simplified lifting geometry built for daily professional use.
• 4 Interchangeable Bier Pin Plates — 2 on each deck, 10-hole plates for ultimate securing flexibility.
• 8 Nylon Casket Rollers — 4 per deck for easier loading and unloading of caskets, air trays, and cremation containers.
• Recessed Solid Cast Aluminum Cot Cups — Prevent cots from shifting during transport on both decks.
• Aluminum Deck with Glide Strips — Protects the vehicle floor and reduces friction during loading.
• High-Impact Fold-Down Bumper Ramp — Protects the rear of the vehicle and assists in loading and unloading.
• User-Friendly Control Switch — Located at the deck's entry point for easy one-handed operation.
• 12-Volt Compatible | 750 lbs. | Min. 140" Wheelbase

Vehicle Compatibility & Product Codes

Specifications

Note: Double-deck installation requires a van partition bulkhead. Vehicles with rear A/C or dual rear-wheel packages will restrict installation.

EV Warning: Must be professionally installed by a trained technician in Electric Vehicles. Higher voltage EV batteries — improper drilling may cause serious injury or death.

Compatible Accessories

• Bier Pin Kit — Additional interchangeable bier pins for varied casket and container sizes.
• Roller Kit — Extra casket rollers for improved loading and unloading.
• Cargo Kit — Supplemental cargo management for securing additional load types.

Also Consider

• AME-DD4000 — 4-Casket Double-Deck Transporter (Sprinter, Nissan NV, ProMaster EXT)
• AME-DD-EX2 — Double-Deck for Mid-Size Vans (Mercedes Metris)
• AME-SS150XLC — Oversize Single-Deck: Standard + Oversized Cots Side-by-Side
• AME-SS150XL — Single-Deck with Casket Rollers (22+ Vehicle Fits)
• AME-SS150 — Single-Deck System (Widest Vehicle Compatibility)
• Shop All AME Mortuary Vehicle Deck Systems
• First Call Mortuary Cots & Stretchers

Availability: Made to order — please allow 6–8 weeks for production and fulfillment. Contact us to confirm vehicle fitment before ordering.
