1036-9WCU Embalming Water Control Unit with Hydro Aspirator

American Mortuary Equipment

1 6

Model: AME-1036-9WCU-1 · 2026 Model

Documents

User ManualPDF · Download WarrantyWritten policy All manuals

$2,302.99

Estimated from Apply with TimePayment Apply for financing Equipment estimate only. Subject to lender approval and terms. Tax and delivery extra.

Zelle® ACH

Shipping calculated at checkout.

Featured equipment

View all

Purchase terms & policies Shipping, returns, warranty and financing disclosures

Key details

Tall swivel filler spout for an embalming-machine tank, with master mixing valves to adjust the supplied water temperature.
Table-rinse outlet with serrated hose connection and controlled flow.
Hydro-aspirator with a dedicated cold-water valve, vacuum breaker, clear-sight drain and air gap.
Preassembled, pre-plumbed construction on a heavy-gauge stainless steel base plate.
Left, right or no-preference filler-spout configuration. A no-preference order does not guarantee a left-hand unit and cannot be changed after orde...

Full description & specifications

Product details

The AME 1036-9WCU Water Control Unit combines the tall filler spout, table-rinse outlet and hydro-aspiration controls on a pre-plumbed stainless steel countertop plate. Select the filler-spout position before adding the complete unit to your cart. Replacement parts remain quote-only.

Form AME-OM-1036-9WCU Rev. B · Last updated October 29, 2026 · PDF, 16 pages

AME 1036-9WCU Water Control Unit Owner & Service Manual

Cutout and mounting, plumbing rough-in, commissioning, operation, numbered parts diagram with AME part numbers, plumber detail pages for the mixing valves, aspirator and vacuum breaker, care, troubleshooting, state drain codes and service records. Scan the QR code on the cover to open the equipment reference page.

Download Owner & Service Manual All manuals & forms

Complete countertop water control unit

Tall swivel filler spout for an embalming-machine tank, with master mixing valves to adjust the supplied water temperature.
Table-rinse outlet with serrated hose connection and controlled flow.
Hydro-aspirator with a dedicated cold-water valve, vacuum breaker, clear-sight drain and air gap.
Preassembled, pre-plumbed construction on a heavy-gauge stainless steel base plate.
Left, right or no-preference filler-spout configuration. A no-preference order does not guarantee a left-hand unit and cannot be changed after ordering.

Specifications

Base plate	18″ W × 14″ D heavy-gauge stainless steel, radiused corners
Mounting holes	4, on 16″ × 12″ centers
Hot and cold supply	½″ NPT each
Drain	1½″ to a standard P-trap; 2″ on request
Outlets	OUT 1 table rinse; OUT 2 tall filler to the embalming machine
Aspiration	Hydro-aspirator with vacuum breaker, clear-sight drain and air gap; dedicated cold water valve; water wand
Configurations	1036-9WCU-1 left, 1036-9WCU-2 right, 1036-9WCU-3 no preference
Countertop	Drop-in cutout; counters as shallow as 18″ deep

Configuration and installation

Handedness is identified by the position of the tall filler spout, not by the hot/cold inlet side. This is a countertop-mounted assembly, not a freestanding sink or wall-mounted service station. Confirm the countertop cutout, drain arrangement, service clearance and utility connections against the model-specific manual and approved installation drawing.

The complete unit includes the installed aspirator, faucet valves, tall filler faucet and braided supply lines, plus a water wand and two 10-foot lengths of clear tubing. Counter fasteners and sealant are not included. Qualified personnel must make and check the connections; the facility's plumbing professional and local authority must confirm requirements for the actual installation.

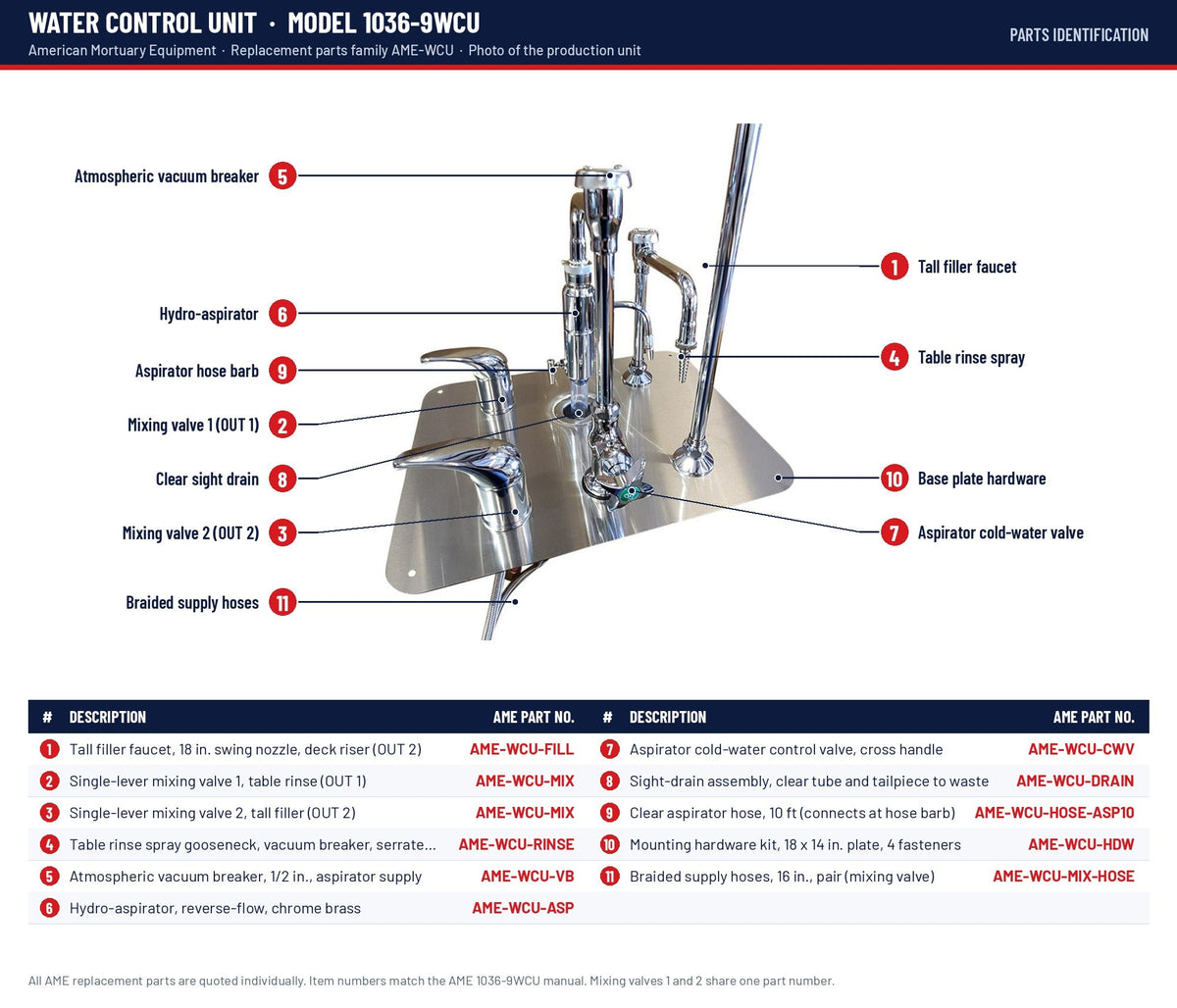

Replacement parts for the Water Control Unit

Every serviceable part on the 1036-9WCU plate has an AME part number. Match the installed part to the numbered diagram, then open the part page for the detail photo, connection sizes and plumber notes.

Item	AME part no.	Description
1	AME-WCU-FILL	Tall fill faucet with 18 in. swing nozzle
2, 3	AME-WCU-MIX	Single-lever mixing valve (2 per unit); cartridge, handle, hoses
4	AME-WCU-RINSE	Spray rinse gooseneck with vacuum breaker, tip and 10 ft hose
5	AME-WCU-VB	Atmospheric vacuum breaker, 1/2 in. NPT; repair kit
6	AME-WCU-ASP	Reverse-flow hydro-aspirator; venturi, handle, service kit, wand head, extension
7	AME-WCU-CWV	Cold-water control valve, cross handle
8	AME-WCU-DRAIN	Sight drain assembly with 1-1/2 in. tailpiece
9	AME-WCU-HOSE-ASP10	Clear aspirator hose, 10 ft; 5 ft sight-drain hose
10	AME-WCU-HDW	Mounting hardware kit, 4 × 10-24 × 2 in.
11	AME-WCU-MIX-HOSE	Braided supply hoses, 16 in., pair

All AME replacement parts are quote only: open the part page and use Add to Quote, or call 1-888-792-9315 with the model, serial number and part number. Parts carry a one-year warranty with proper use (replacement parts only, no labor); parts sales are final.

Shop the complete Water Control Unit parts family · Owner and service manual with removal and refit steps (PDF)

Prep-room planning

Use the embalming station planning guide to compare equipment layouts, and browse Prep Room Equipment. For operating and service instructions, use the model-specific manual above.

Ordering 1036-9WCU Embalming Water Control Unit with Hydro Aspirator
