12x12 Walk-In Mortuary Cooler

This 144 sq ft (12x12) walk-in mortuary cooler has cam-lock urethane panels, a 36-inch door you can hinge left or right at no charge and a starting price of $17,072.

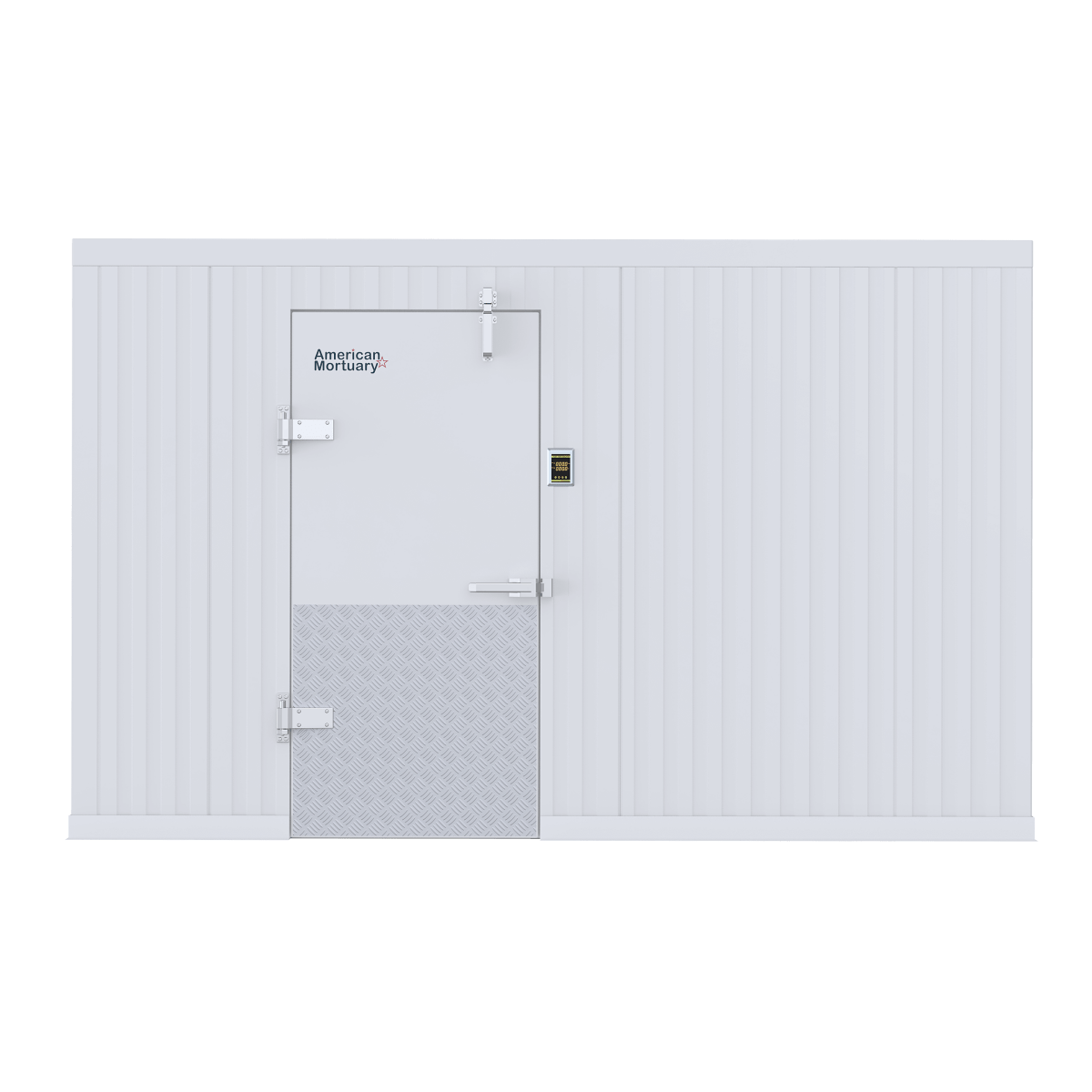

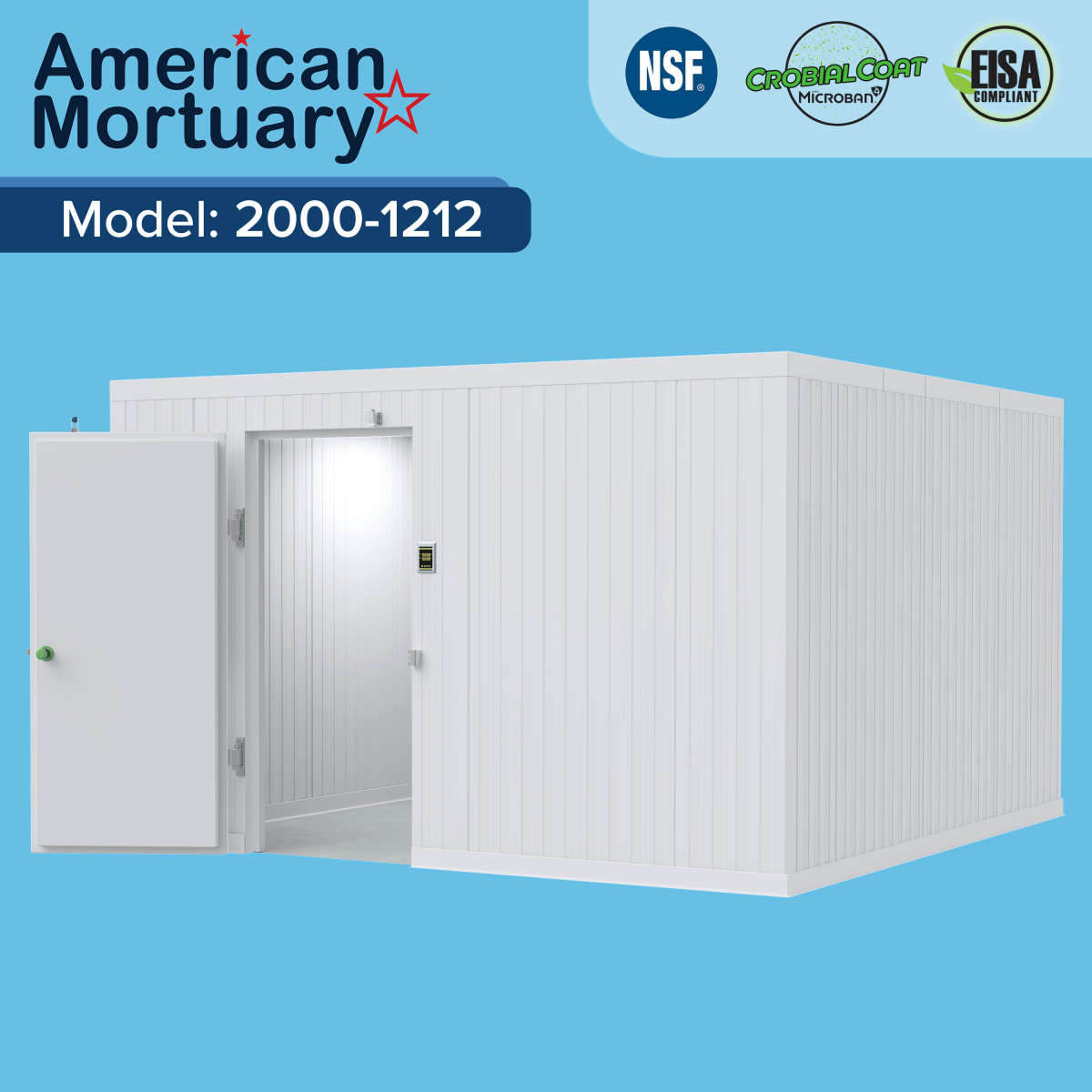

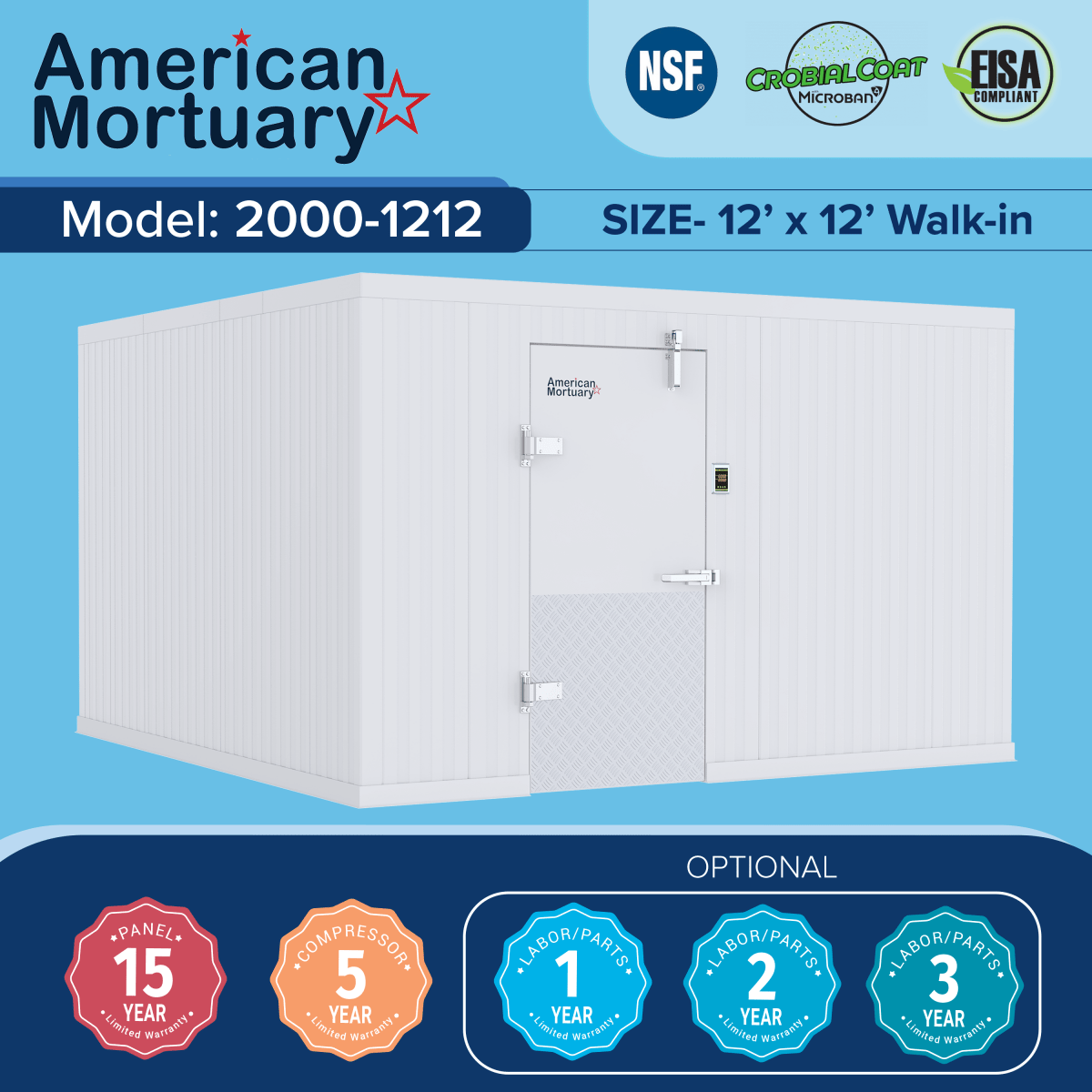

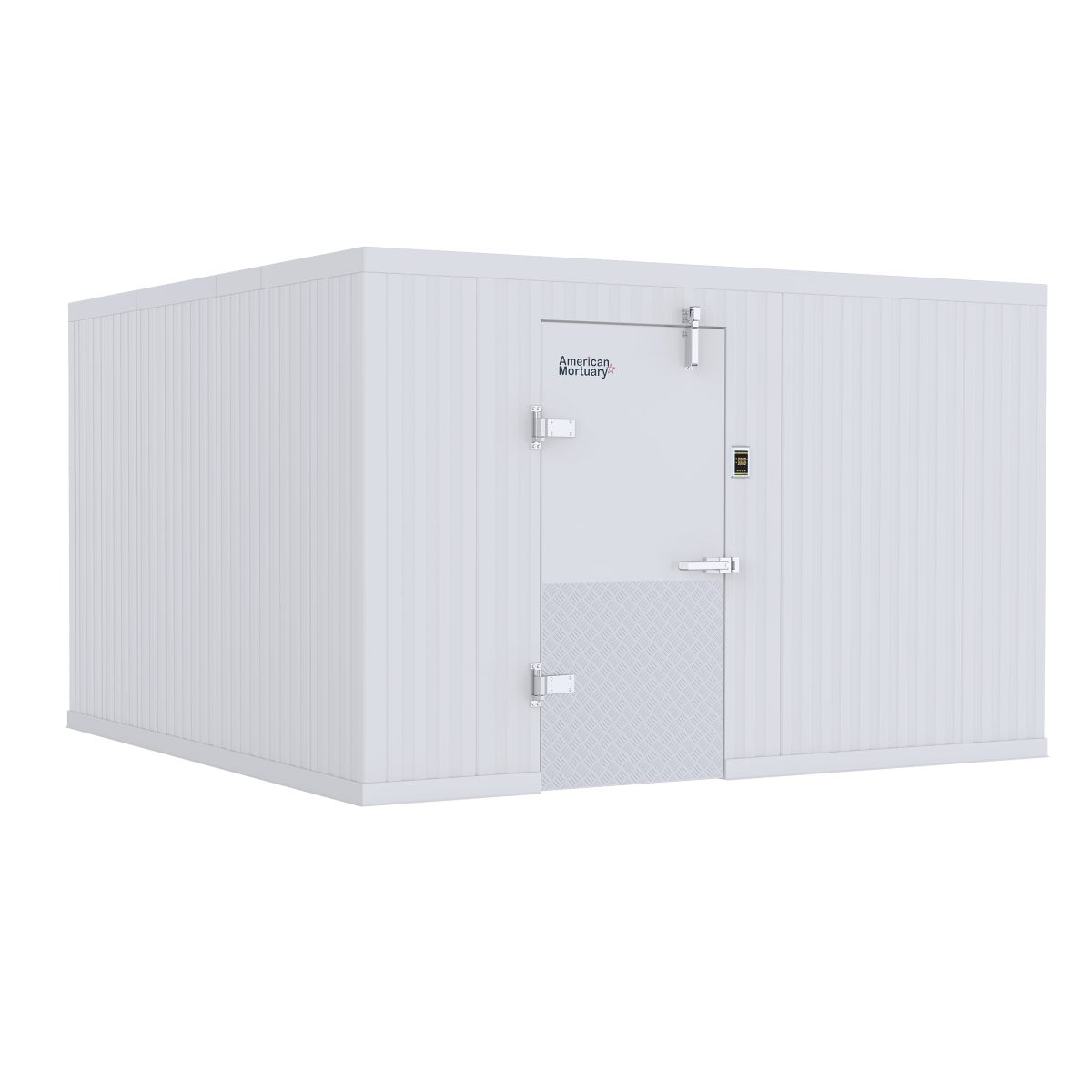

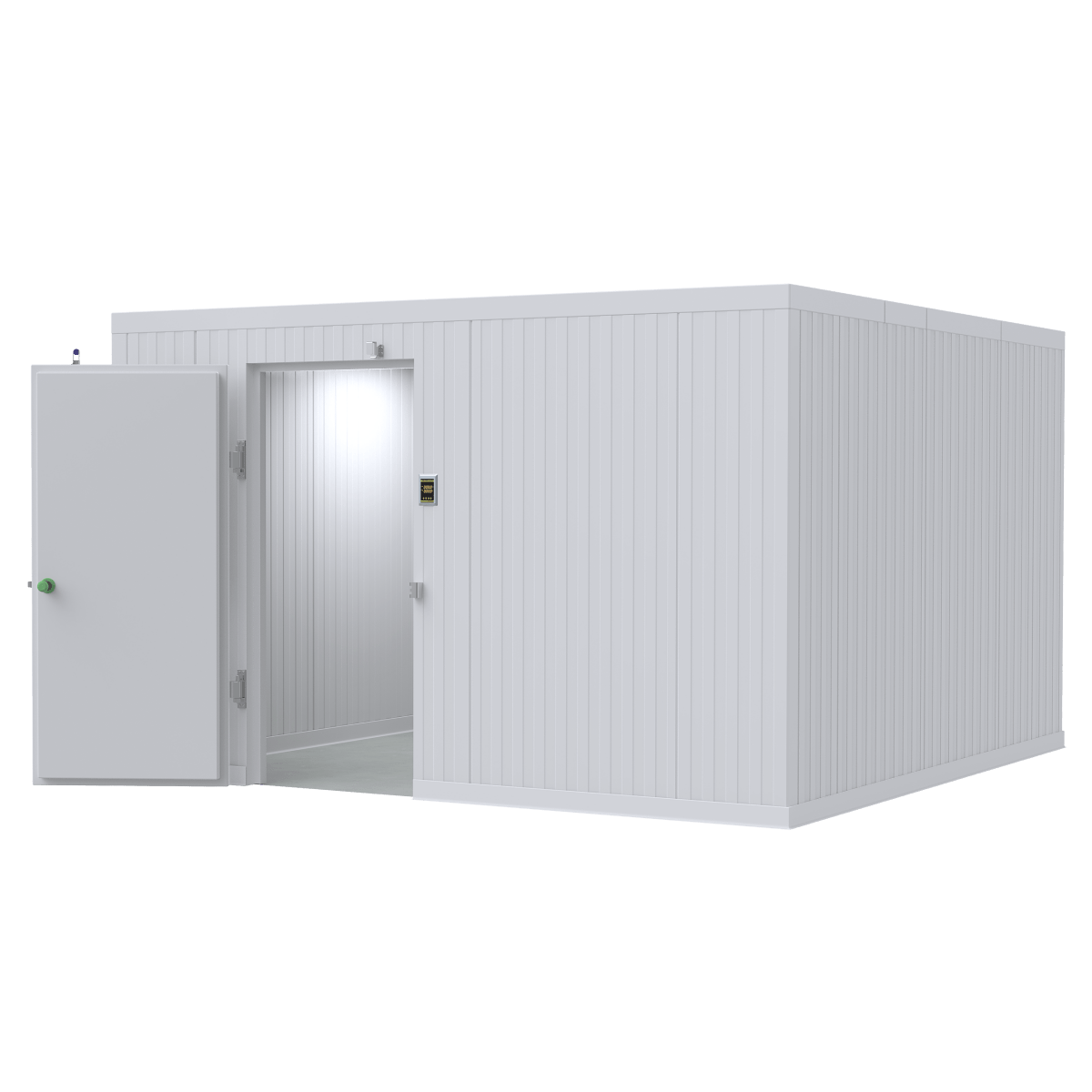

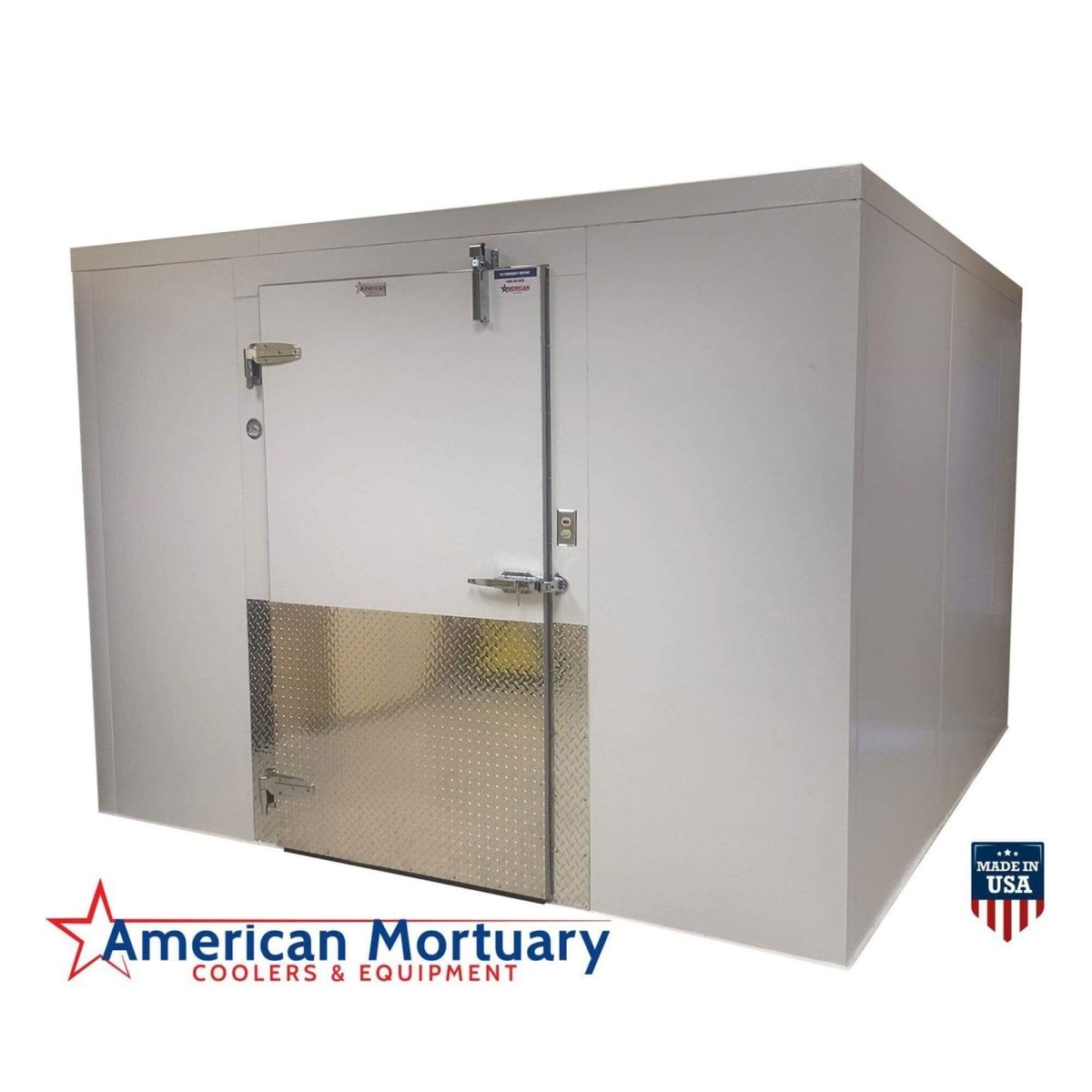

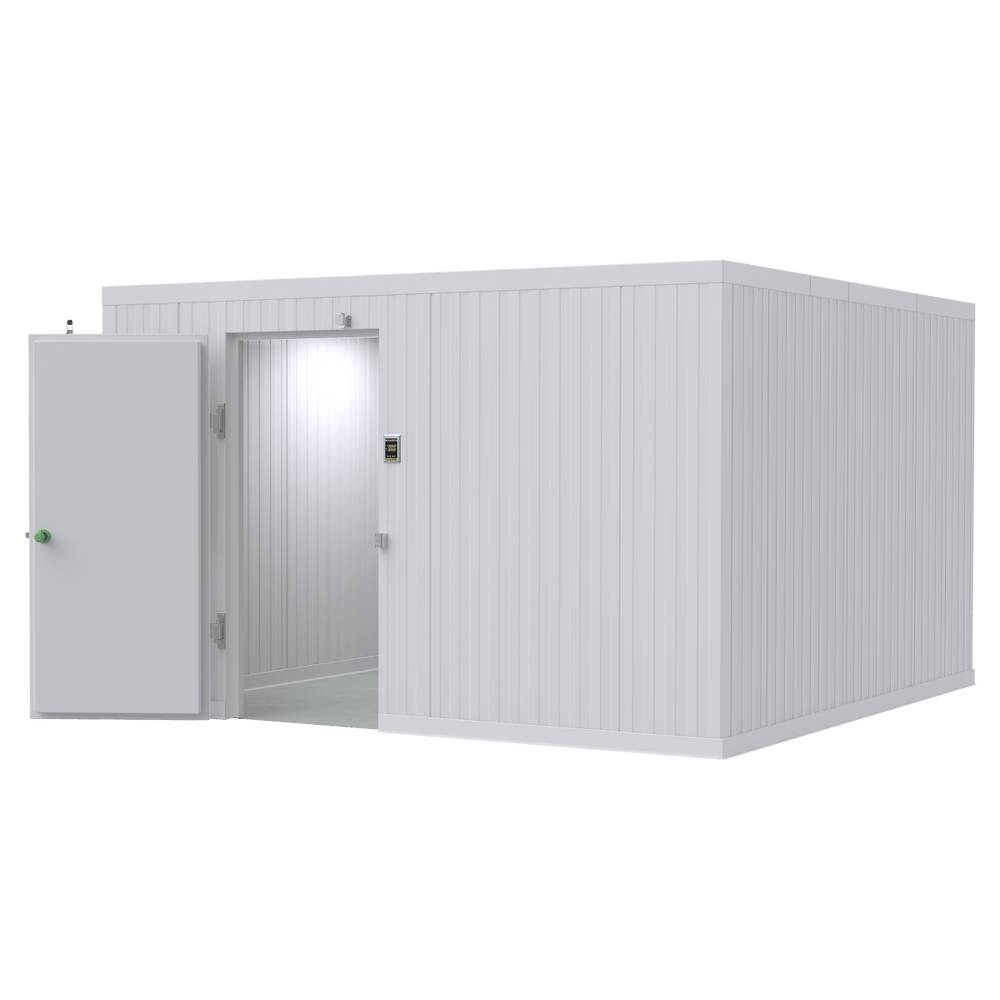

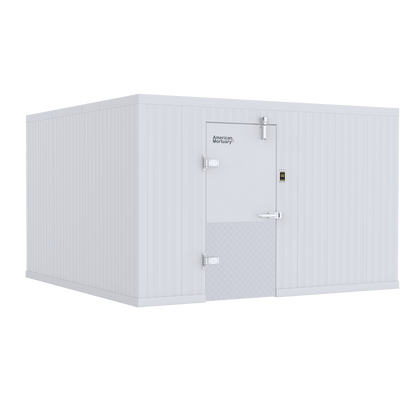

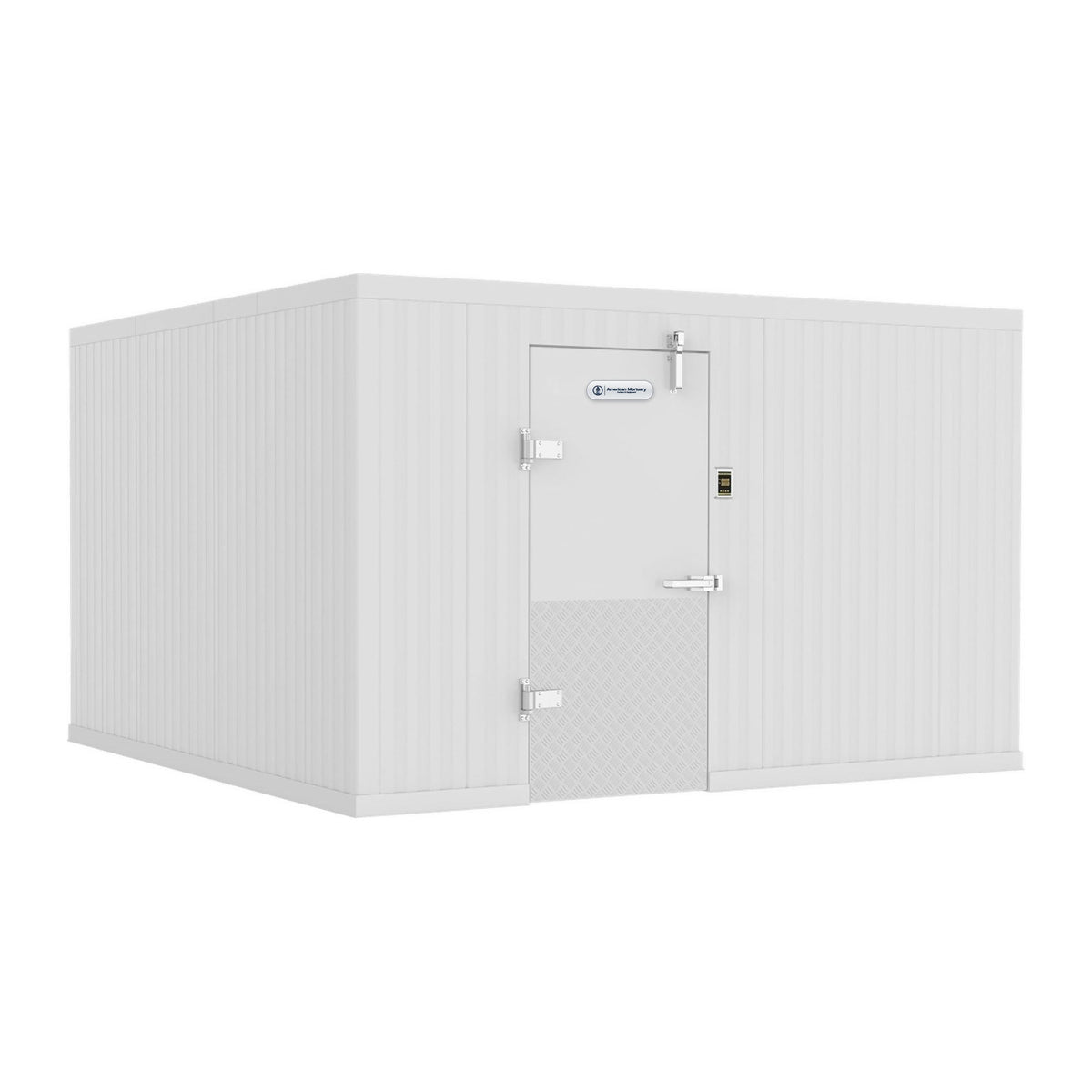

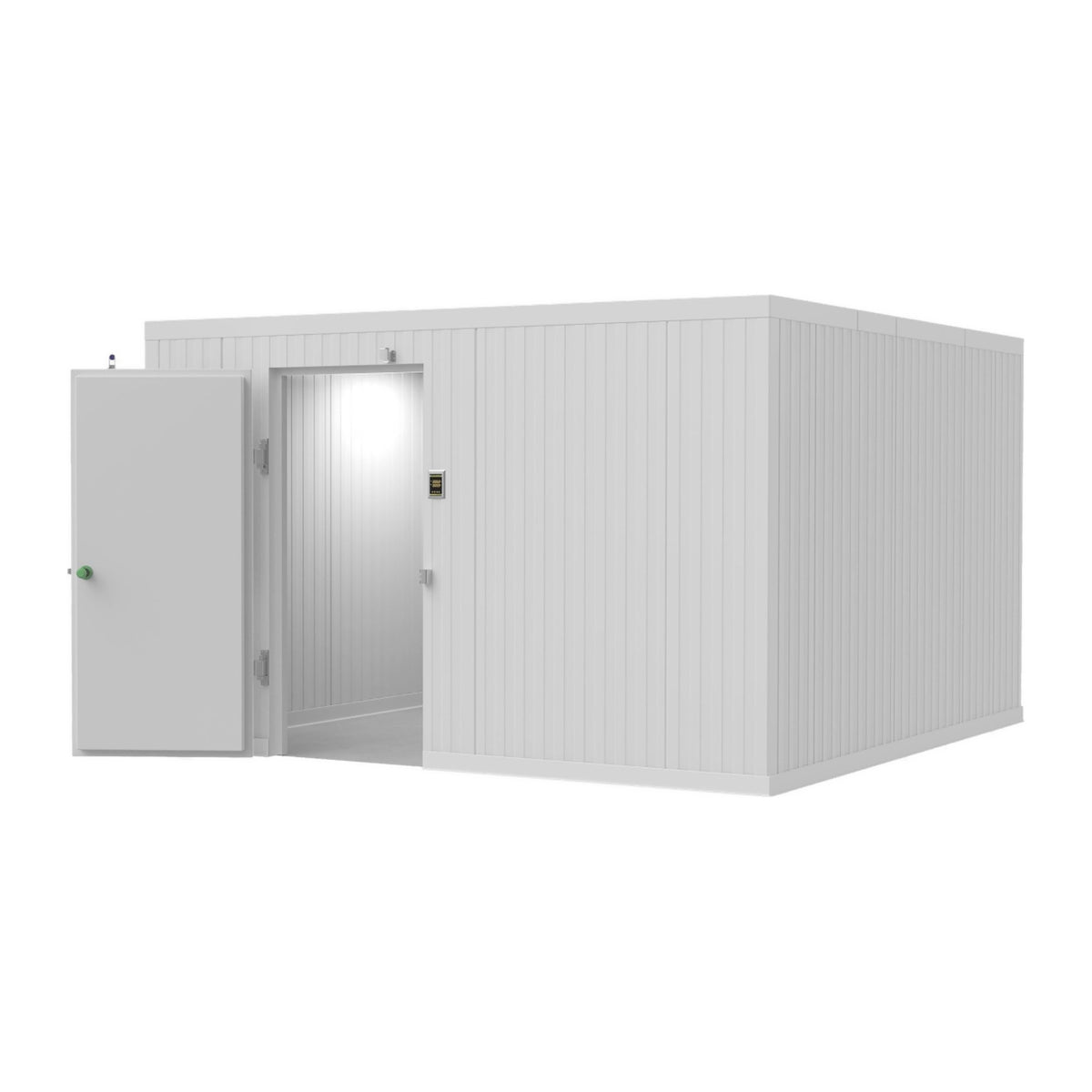

The 12′ × 12′ walk-in mortuary cooler is a 144 sq ft insulated box built from 4″ foamed-in-place urethane panels that lock together with cam-action fasteners. Painted 26-gauge steel skins, chrome-plated door hardware and NSF-, UL- and ETL-listed construction make it a commercial-grade walk-in built for years of daily use.

Site requirements

• A solid, flat, level concrete slab at ground level for floorless installation (see floor requirements below)
• At least 2″ of clearance around the box

Questions about sizing, door placement or freight? Call 1-888-792-9315 (Mon–Fri, 9–5 ET) or email cool@mymortuarycooler.com. Purchase orders are accepted, and business financing is available.

Specifications

Description of materials supplied

This walk-in is supplied as a complete insulated panel box with refrigeration equipment. The following materials are included in the price:

1. Wall panels. 4″ foamed-in-place urethane, R-25 wall panels with painted 26-gauge steel skins inside and out, tongue-and-groove edges and cam-action locks for airtight joints, sized for the 12′ × 12′ box.
2. Ceiling panels. 4″ foamed-in-place urethane, R-25 ceiling panels of the same painted 26-gauge steel construction, cam-locked to the wall panels.

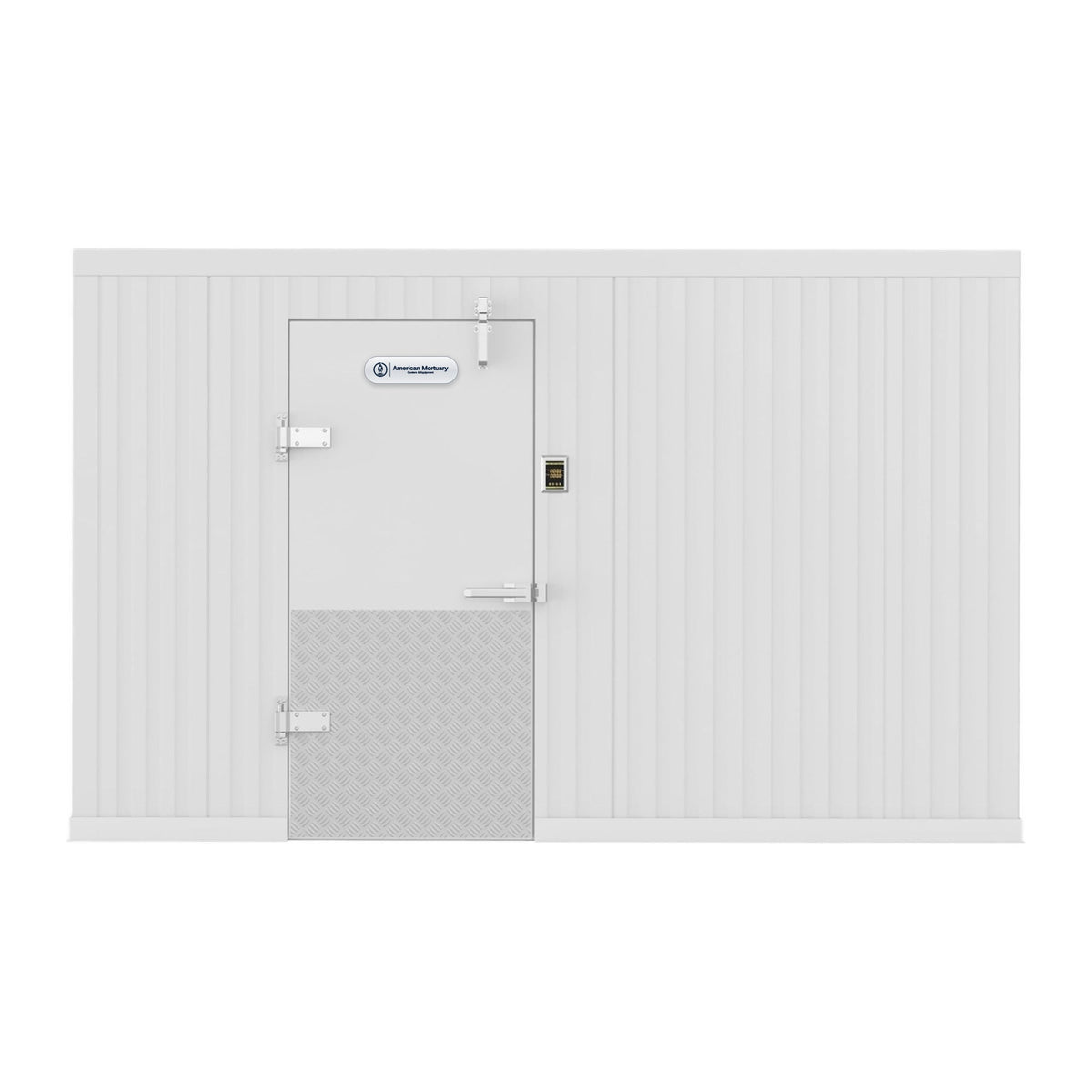

3. Door. One 36″ × 76″ flush-mounted, self-closing door with a standard heavy-duty, non-lockable door handle, chrome-plated hinges, perimeter gasket seal, roller-magnet door closer and interior safety release.
4. Floor screeds. U-shaped floor screeds for floorless installation on a qualifying slab (see floor requirements below).
5. Refrigeration system. One remote two-piece refrigeration system: condensing unit and evaporator coil. The system is DOE-compliant, energy-efficient and designed for A2L refrigerant. Equipment only.
6. Documentation. Panel layout and assembly instructions.

Not included, by others

• Refrigerant (Freon) and the system charge
• Refrigeration line sets, fittings and line insulation
• Electrical wiring, conduit, disconnects and breakers
• Condensate drain line and drain piping
• Installation labor, installation materials and supplies
• Refrigerant leak detection where required by code for A2L systems
• Permits and inspections

LED lighting, insulated floors, ramps and other accessories are optional and are supplied only when listed on your order.

Floor requirements

Floorless installation requires a solid, flat, level concrete slab at ground level with no cracks, dips, humps or other imperfections, and no basement, crawl space or occupied space below. An insulated floor is required when the existing floor is not level, and when the walk-in is installed on a second story, mezzanine or any floor above a basement, crawl space or occupied space. The insulated floor is not a leveling system, and above-grade installations need the structural load confirmed by a qualified professional. Selecting No floor confirms these site conditions.

Refrigeration scope

The remote two-piece refrigeration system is supplied as equipment only. Refrigerant, line sets, wiring, drain and installation materials are not included. A licensed refrigeration contractor installs, evacuates, charges and starts up the system according to local codes and the A2L safety requirements that apply to your site. Panels meet the DOE minimum insulation requirements for walk-in coolers (R-25) under 10 CFR 431.306.

Dimensions

Interior dimensions are approximate. Final exterior dimensions are confirmed with your order.
