6 Body Dual-Door Walk-In Mortuary Refrigerator

American Mortuary Coolers American Mortuary Coolers
Skip to product information
1 of 6

Model: AMC 3x3-S · 2026 Model

ELECTRICAL208/230 Volts

Model: AMC 3x3-S


Regular price From $16,695.53
List price Sale price From $16,695.53
Base configuration · options shown below
Estimated from Apply with TimePayment (opens in a new tab) Apply for financing Equipment estimate only. Subject to lender approval and terms. Tax and delivery extra.
American Express DiscoverMastercard Visa Zelle® ACH
Shipping calculated at checkout.

Add boards & trays

Optional · sold separately
HD plastic mortuary barrier board for supported rack and cooler storage
HD Storage Board 23.5″ × 76″ · standard width $166.32 each
0
TITAN 23 inch stainless steel mortuary body tray
TITAN 23″ Tray Standard · 18 gauge stainless $536.70 each
0
TITAN 27 inch stainless steel mortuary body tray
TITAN 27″ Tray Oversize · 16 gauge stainless $770.40 each
0

Add as many stainless trays and HD boards as you need. HD boards are storage barrier boards, not for lifting or transfer.

Add a loading lift

Ships with the cooler
Package total
Purchase terms & policies Shipping, returns, warranty and financing disclosures

Key details

  • Dated, signed quarterly maintenance logs are a condition of every warranty claim, so keep the completed record page with the cooler.
  • Use it alongside the walk-in cooler maintenance checklist and the seasonal bulletins in the Mortuary Cooler Maintenance Center.
  • Parts, manuals and the Remove From Service steps are on the tech support and service hub; call 1-888-792-9315 with your model and serial number.
Full description & specifications

Ordering questions

How can I confirm fit before ordering?
Use the dimensions and fit notes on this page. For a fit review, send the model, measurements and any equipment it needs to work with through our equipment quote form.
Where is shipping confirmed?
Shipping is calculated at checkout for the selected items, quantities and destination. Review the cart configuration and delivery address before placing the order.

Product description & specifications

A 6 body dual-door walk-in mortuary refrigerator from American Mortuary Coolers: a two-door modular walk-in with a 36-inch door (48-inch optional), two-piece refrigeration and your choice of door location, from $16,695.53.

A 6-body dual-door walk-in mortuary refrigerator is a modular refrigerated enclosure with two-door access for six-body storage; this American Mortuary Coolers configuration starts at $16,695.53 with the standard two-piece refrigeration package.

Review the selected layout, rack arrangement and door clearances before ordering, and have your installer confirm the site and utility requirements. Compare walk-in mortuary refrigerator configurations or request a written quote tied to your room and handling equipment.

BUILD IT OUT - CONFIGURE THIS 6-BODY DUAL-DOOR

Total0.00
Procurement codes: NAICS 333415 | UNSPSC 42261805
Related NAICS industry reference
333415: Air-Conditioning and Warm Air Heating Equipment and Commercial and Industrial Refrigeration Equipment Manufacturing
UNSPSC commodity reference
42261805: Morgue walk in refrigerators

NAICS describes an industry, not a product identifier or registered-business certification. The UNSPSC reference above may identify a broader segment, family or class rather than an exact commodity; confirm the level required by your purchasing department. Customs HS/HTS and manufacturer identifiers require separate verification.

Check the U.S. Census industry-code reference and the United Nations procurement-code register. See the procurement classification reference desk for purchasing guidance.

FREE DOWNLOADS

Maintaining your walk-in mortuary cooler: free maintenance guide and service log

Every AMC walk-in mortuary cooler and freezer ships with a printable two-page AMC Walk-In Mortuary Cooler & Freezer maintenance guide and service log (PDF). Page one is a daily, weekly, monthly, quarterly and annual walk-in mortuary cooler maintenance checklist written for the remote two-piece refrigeration system, the 4-inch R-25 panel box and the door hardware, with the warranty conditions that apply to this model and a compliance summary of its lower-GWP refrigerant and current DOE and EPA rules. Page two is a quarterly maintenance log, a service and repair record and a notes section to keep with the unit.

Download the walk-in maintenance guide & service log (PDF)

Mortuary refrigerator and freezer options

This is the regular mortuary refrigerator configuration, also commonly called a mortuary cooler. For a different holding requirement, compare the upright mortuary freezers or walk-in freezer family; select by the confirmed temperature range, working layout and final order drawing, not the product name alone.

Model-specific parts and service

Use the equipment parts library and the replacement-parts planning guide to identify parts offered for this exact equipment. Provide model, serial number, year and component photographs before ordering. Cabinet doors, gaskets and shelving components must be matched separately from external rack and lift parts; no cross-model or other-brand fit is implied. Unlisted replacements require a confirmed match rather than a nearest-looking substitute.

Parts and panel tools for this cooler

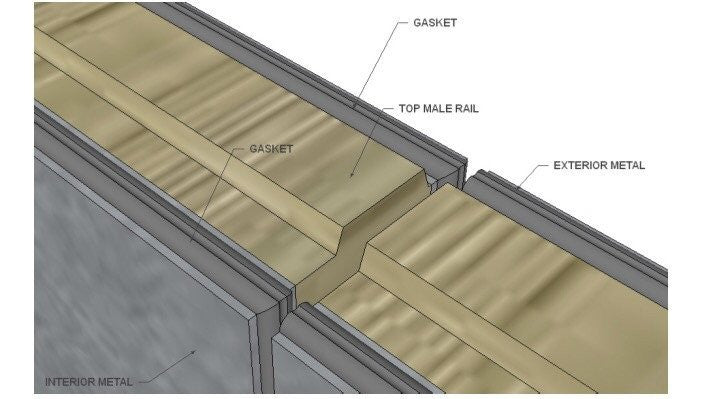

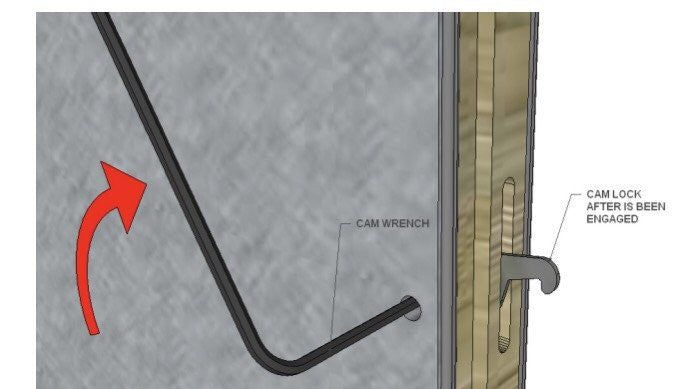

The insulated panels easily lock together with our Kason 1145 cam-lock hex wrench, a 5/16 in. hardened-steel wrench for installation, relocation and re-tightening panel joints. Finish the access holes with Kason finish caps.

We also stock replacement parts for mortuary cooler refrigeration and doors: genuine Heatcraft refrigeration parts, Kason hinges, latches and door closers, controllers, thermostats and timers and the full MortuaryCoolerParts department. Send your model and serial number through the equipment parts library and we will confirm the exact match.

Bid spec standard

Specified by coroners, medical examiners and government buyers

American Mortuary Coolers models are written into coroner, medical examiner, hospital and county bid specifications as the basis of design. In November 2026 the East Baton Rouge Parish Coroner specified the AMC 10x10 Walk-In Mortuary Refrigerator, Model AMC-1010-RH. To make this unit the standard in your solicitation, specify “American Mortuary Coolers 6 Body Dual-Door Walk-In Mortuary Refrigerator, or approved equal” and request the model spec sheet for the bid file.

County bid spec guide · CSI spec planning · Spec sheet request · Procurement packet · Government procurement

Instant quote · Submit RFQ or PO · Bid spec standard

6 Body Dual-Door Walk-In Mortuary Refrigerator: specifications & ordering details

6 Body Dual-Door Walk-In Mortuary Refrigerator is an AMC walk-in model with selectable refrigeration and configuration options. Plan the layout around your facility’s handling equipment and access route. Review the published measurements below alongside the original model description and selected options.

Model specifications

Published model details and configuration requirements
Model6 Body Dual-Door Walk-In Mortuary Refrigerator
Item / SKU#AMC 3x3-S
Nominal model sizedouble ft
Published exteriorConfirm exact exterior dimensions on the final factory drawing
Usable interior (W × D × H)Confirm usable interior dimensions on the final factory drawing
RefrigerationA refrigeration selection is required. Choose from the systems listed for this model; electrical requirements and clearances depend on the selected system.
Door configurationComplete the required door selections shown in the configurator. Check the opening, hinge and location against your equipment route.
Insulated floorOptional and priced separately; not included in any walk-in package.
External rampOptional 36-inch external ramp: $595 separately. Requires an insulated floor and the 36-inch standard door.
FreightCooler freight uses built-in set pricing; no separate freight quote is required. Review final order charges before payment.

Nominal size is a model designation, not usable interior space. Use the factory drawing for final fit, including the selected refrigeration equipment, door swing and service clearances. Unpublished measurements are not inferred from the model name.

Installation planning

Measure the receiving entrance and full route to the installation area. Check the finished slab, threshold, ceiling clearance and room for loading equipment to turn. Have qualified trades review the electrical supply, refrigeration installation and condensate handling for the selected equipment before installation.

Frequently asked questions

Is the model size the same as the interior size?

No. Nominal size identifies the model. The published exterior and usable interior dimensions are listed separately above when verified measurements are available. Allow additional room for the door swing, refrigeration equipment and service access shown on the final drawing.

Which choices must I complete before ordering?

Complete every field marked required in the configurator and review optional accessories separately. You can then add the complete configured build to your cart, or request an itemized AMC quote for procurement review.

Is an insulated floor included?

No. An insulated floor is optional and priced separately in every walk-in package. Review your slab and installation conditions before choosing a floor. Where a floor price is not published, obtain the confirmed item price before purchasing that option.

Which door does the optional ramp fit?

The external ramp is 36 inches wide and is priced from the current catalog in the builder. It requires an insulated floor and the 36-inch standard door. It is a separate add-on; selecting a floor does not automatically add a ramp. No internal or 48-inch ramp is offered in this configuration.

What should I check before installation?

Check the delivery and assembly route, slab condition, thresholds, ceiling height and equipment turning space. Review power, condensate handling and service clearance with qualified trades using the selected refrigeration system’s requirements. Do not infer electrical ratings from nominal room size.

Does the displayed price include every accessory?

The configured price includes the base unit and each published-price option you select. Any preference identified as unpriced requires confirmation on an itemized AMC quote. Freight, tax and installation are shown or confirmed separately as applicable.

Do I need a freight quote?

Cooler freight uses built-in set pricing; no separate freight quote is required. Review final order charges and available delivery services before payment. Check site access and unloading arrangements against the shipping policy.

Which warranty and order terms apply?

Warranty coverage depends on the supplied equipment and applicable conditions. Review the warranty policy and returns and cancellations policy before ordering. Keep the equipment documentation for installation, operation and any warranty claim.

Ordering 6 Body Dual-Door Walk-In Mortuary Refrigerator

Review the listed specifications, selected options and included items before ordering. Use the configuration selector for the current price and availability; do not assume that accessories pictured with a product are included unless the listing says so.

Source funeral supplies and mortuary equipment from one supplier, with nationwide shipping. For an equipment package or a multi-location order, request an itemized quote with the selected products, quantities and delivery ZIP codes. Confirm freight and delivery requirements for the equipment you choose.

Flexible payment options, with clear terms

Review the payment methods offered at checkout for your order. If a payment plan is available, its options and eligibility are shown by the provider. The equipment price and any financing cost are separate; compare the full payment terms before choosing a plan.

Enter payment details only in checkout or the payment provider's application. Use general customer support for product and order questions, not for sending full card numbers or sensitive financing information.

Product information

Product details & specifications

Product details

A 6-body dual-door walk-in mortuary refrigerator is a modular refrigerated enclosure with two-door access for six-body storage; this American Mortuary Coolers configuration starts at $16,695.53 with the standard two-piece refrigeration package.

Review the selected layout, rack arrangement and door clearances before ordering, and have your installer confirm the site and utility requirements. Compare walk-in mortuary refrigerator configurations or request a written quote tied to your room and handling equipment.

BUILD IT OUT - CONFIGURE THIS 6-BODY DUAL-DOOR

Total0.00
Procurement codes: NAICS 333415 | UNSPSC 42261805
Related NAICS industry reference
333415: Air-Conditioning and Warm Air Heating Equipment and Commercial and Industrial Refrigeration Equipment Manufacturing
UNSPSC commodity reference
42261805: Morgue walk in refrigerators

NAICS describes an industry, not a product identifier or registered-business certification. The UNSPSC reference above may identify a broader segment, family or class rather than an exact commodity; confirm the level required by your purchasing department. Customs HS/HTS and manufacturer identifiers require separate verification.

Check the U.S. Census industry-code reference and the United Nations procurement-code register. See the procurement classification reference desk for purchasing guidance.

FREE DOWNLOADS

Maintaining your walk-in mortuary cooler: free maintenance guide and service log

Every AMC walk-in mortuary cooler and freezer ships with a printable two-page AMC Walk-In Mortuary Cooler & Freezer maintenance guide and service log (PDF). Page one is a daily, weekly, monthly, quarterly and annual walk-in mortuary cooler maintenance checklist written for the remote two-piece refrigeration system, the 4-inch R-25 panel box and the door hardware, with the warranty conditions that apply to this model and a compliance summary of its lower-GWP refrigerant and current DOE and EPA rules. Page two is a quarterly maintenance log, a service and repair record and a notes section to keep with the unit.

Download the walk-in maintenance guide & service log (PDF)

Mortuary refrigerator and freezer options

This is the regular mortuary refrigerator configuration, also commonly called a mortuary cooler. For a different holding requirement, compare the upright mortuary freezers or walk-in freezer family; select by the confirmed temperature range, working layout and final order drawing, not the product name alone.

Model-specific parts and service

Use the equipment parts library and the replacement-parts planning guide to identify parts offered for this exact equipment. Provide model, serial number, year and component photographs before ordering. Cabinet doors, gaskets and shelving components must be matched separately from external rack and lift parts; no cross-model or other-brand fit is implied. Unlisted replacements require a confirmed match rather than a nearest-looking substitute.

Your product information and configuration controls remain together above these tabs. View product details & configuration.

Specifications & product identity

Review Product details for the published product information, and confirm the specifications of your selected configuration before ordering.

Key specifications
Body capacity6 cadavers
Loading styleWalk-in, room-scale access
CabinetModular insulated, 4 inch urethane core
Interior304 stainless steel
ExteriorGalvanized steel with food-service-grade interior
TypeSelf-contained refrigeration
Voltage208-230V single-phase
Operating temperature34-40°F cadaver holding
Door safetyEmergency interior release handle (standard)
Term15-year structural
Material304 Stainless Steel
Product identity
Brand / vendorAmerican Mortuary Coolers
Equipment typeWalk-In Mortuary Cooler
ModelAMC 3x3-S

Dimensions & fit

Dimensions

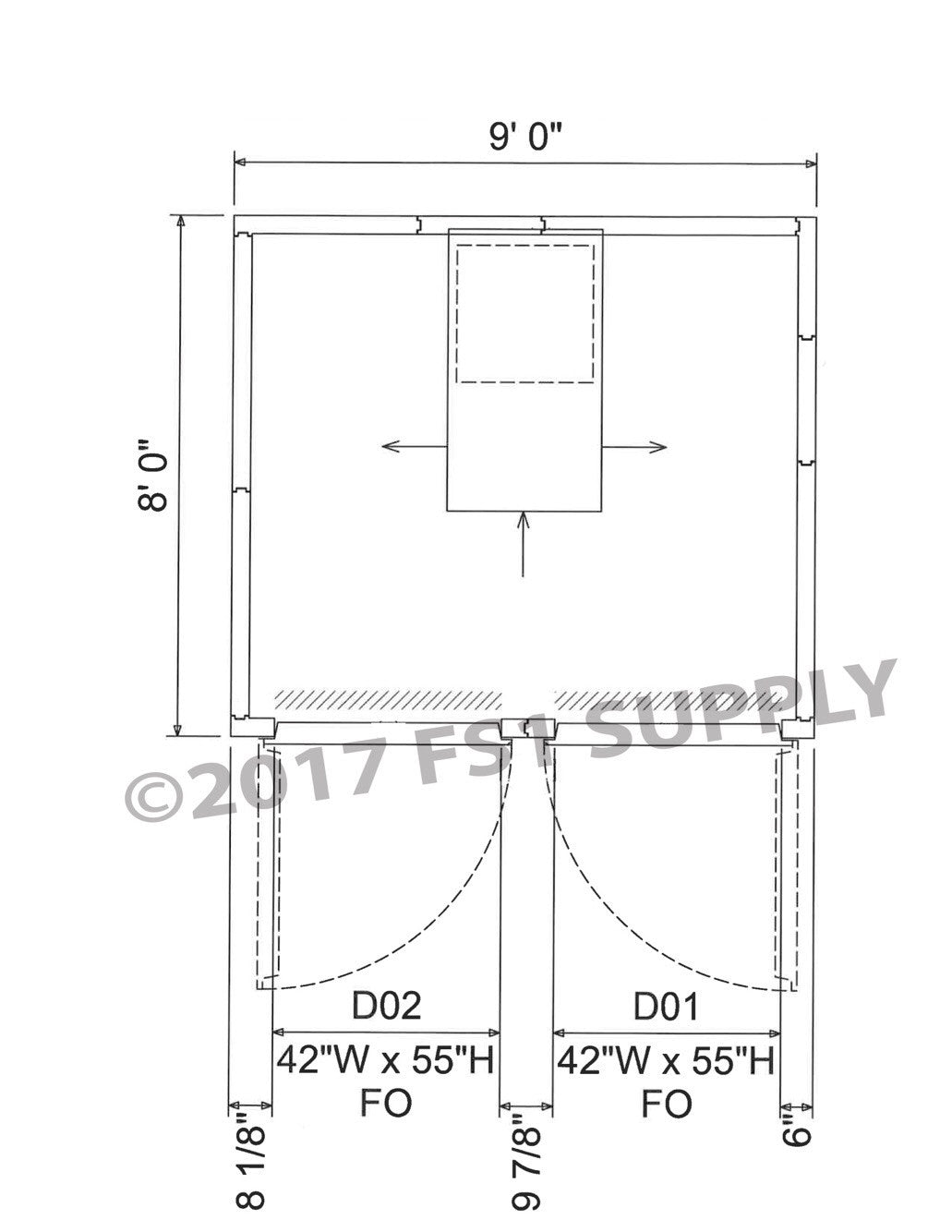

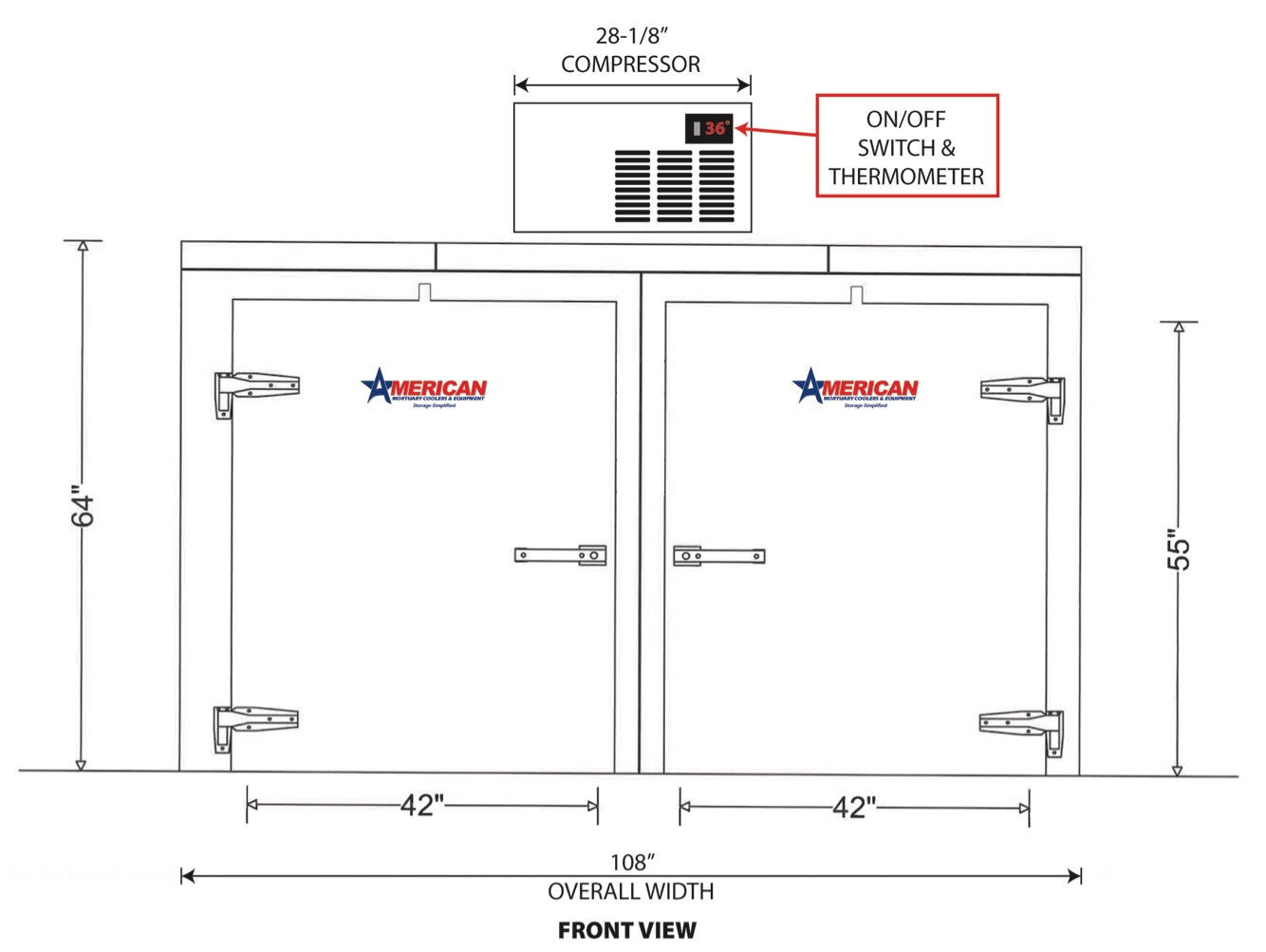

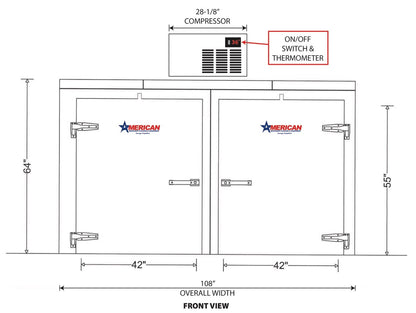

Exterior footprint9′ 0″ W × 8′ 0″ D
DoorsTwo doors (D01, D02)
Door frame opening42″ W × 55″ H each

FAQs & buying help

Review the original product information & configuration above for product-specific guidance.

How can I ask a question about this product?

Contact our team with the product name and the specification or option you want to confirm.

What should I include when requesting a quote?

Include the product, quantity, required configuration and delivery location in your quote request.

Where can I review shipping and purchase policies?

Open Shipping & support for the published freight, returns and custom-order policy links.

Resources & documents

Product-specific documents and planning links remain in Product details when a separate resources section is not available.

Plan delivery. Review the details.

Review the published policies and confirm product-specific requirements before placing your order.



6 Body Dual-Door Walk-In Mortuary Refrigerator

$16,695.53

Financing & purchase orders

Choose how to pay

Purchase through the product options above, or use one of these support paths for a financed or institutionally quoted order.

For institutions

Formal quotes & purchase orders

Request documented pricing, freight planning, and configuration support before issuing a purchase order.

Request a formal quote
Financing disclosures

Estimates are for qualified buyers with approved credit (WAC) and reflect the equipment price only. Shipping, freight, and applicable taxes are not included and will increase your total and payments. Final amounts are set at checkout or on your quote.

Government and institutional buyers: request a PO quote.

Plan your next step with Mortuary360

Explore supported cooler models and handling equipment in the Mortuary360 builder. Save a planning reference, then confirm the selected equipment and room requirements with AMC.

A builder view is a planning aid, not an engineered installation or confirmation that every catalog model is supported.
