Walk-In Cooler Insulation: Panel Thickness, R-Value & What It Means
The insulation inside your walk-in cooler is the single most important factor in its long-term performance. It's also the spec most buyers never ask about.
Thin insulation means poor temperature hold, higher energy costs, faster thermal cycling, and more compressor wear. Premium insulation means a unit that holds 37°F reliably in a 80°F ambient environment for 20+ years without performance degradation. The difference in panel specs is the difference between a walk-in cooler that pays for itself and one that doesn't.
Back to the complete walk-in cooler buyer's guide →

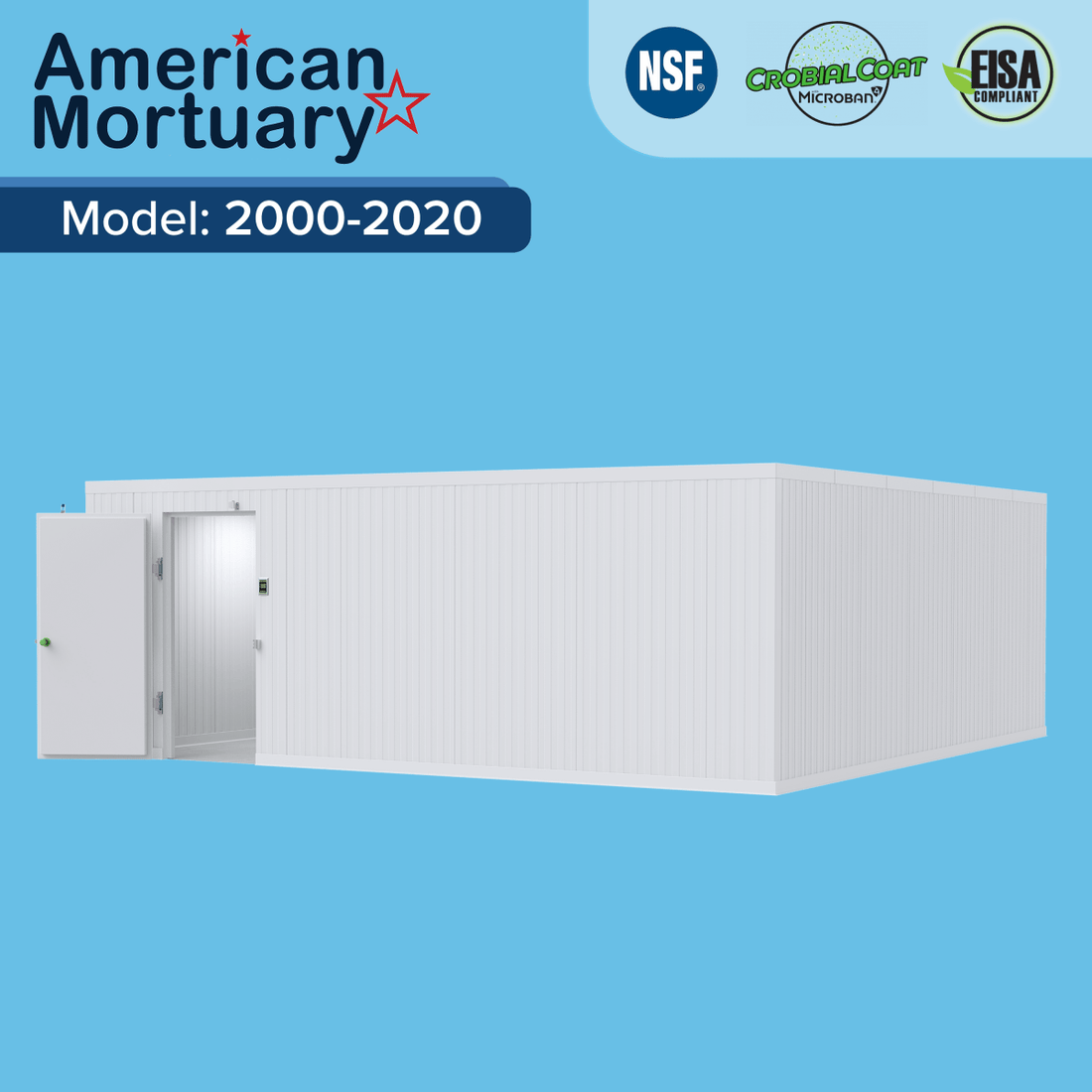

Walk-in cooler panel insulation explained
Panel construction basics
Walk-in cooler walls, ceiling, and (where applicable) floor are constructed from insulated panels. Each panel is a sandwich: two metal face skins (typically steel or aluminum) surrounding a foam insulation core. The core material and thickness determine thermal performance.
R-value: what it means
R-value is the thermal resistance of the insulation material. Higher R-value = better insulation = less cold loss through the panel. For institutional walk-in coolers maintaining 36–39°F:
- R-25 or below: Insufficient for high-ambient institutional applications. Common in budget food service units.
- R-32: Minimum acceptable for institutional cold storage in normal operating environments.
- R-40 and above: Optimal for high-ambient environments, large units, and applications where energy efficiency matters over a 20-year lifecycle.
Panel thickness and R-value
Panel thickness directly correlates with R-value:
- 2-inch panels: R-14 to R-16 — inadequate for most institutional applications
- 4-inch panels: R-28 to R-32 — the institutional standard minimum
- 5-inch panels: R-36 to R-40 — optimal for warm climates and high-ambient environments
AMC uses 4-inch minimum panel thickness across all institutional configurations. Upgrade to 5-inch panels is available for facilities in high-ambient environments or those prioritizing maximum energy efficiency.
Foam core materials
Polyurethane foam
Polyurethane foam is the institutional standard. It achieves R-values of approximately 6–7 per inch, provides structural rigidity, bonds strongly to metal face skins, and maintains performance over decades. AMC uses polyurethane foam core across all walk-in configurations.
Polystyrene foam (EPS/XPS)
Lower-cost food service walk-in coolers often use polystyrene foam. R-values of 3.5–5 per inch — significantly lower than polyurethane at the same thickness. To match a 4-inch polyurethane panel, you'd need a 5.5–6-inch polystyrene panel. Institutional buyers should specify polyurethane core panels.
Panel connection systems
How panels connect to each other affects both thermal performance and structural integrity. Cam-lock connection systems — the institutional standard — pull panel edges tight against each other with minimal thermal bridging. Inferior connection systems leave gaps that allow condensation, thermal bypass, and structural instability over time.
AMC panels use cam-lock connections and are pre-assembled at our Tennessee facility before shipment. Every panel join is tested before the unit ships.
Ceiling and floor insulation
Ceiling insulation is often under-specified. Heat rises, and a poorly insulated ceiling causes refrigeration load to increase significantly in warm environments. AMC matches ceiling insulation R-value to wall panel R-value as standard.
For no-floor walk-in configurations, the concrete slab provides structural support. A vapor barrier and perimeter insulation at the slab-to-wall junction is standard in AMC no-floor builds to prevent condensation and thermal bridging at the base.
No-floor walk-in cooler guide →
The 20-year cost of insulation decisions
A walk-in cooler running 24/7/365 for 20 years accumulates significant energy cost. Premium insulation (4-inch polyurethane vs. 2-inch polystyrene) reduces refrigeration load by 40–60% in high-ambient conditions. Over 20 years, that difference far exceeds the upfront panel upgrade cost.
