Anatomy Lab Storage Systems | Refrigeration, Racks & Specimen Handling

Storage is the backbone of every anatomy lab operation. The quality of your storage systems — refrigeration, racks, specimen containers, and documentation infrastructure — directly determines how efficiently cadavers and specimens move through the program, how well tissue integrity is maintained, and how cleanly your facility passes regulatory and accreditation review. This guide takes a full-system view of anatomy lab storage, covering every layer from body racks to freezer archives to chain-of-custody records.

Body Racks and Lifts: The Foundation of Walk-In Storage

In anatomy labs using walk-in cold room infrastructure, body racks are the primary organizational system. Racks hold cadaver trays at stacked tiers, allowing a single cold room to store significantly more bodies than a flat-floor system. Selecting the right rack configuration requires attention to several variables:

Rack Tier Count and Tray Dimensions

Standard walk-in cold room racks are available in 2-tier, 3-tier, and 4-tier configurations. Tier count is limited by the ceiling height of the cold room and by the practical reach of staff without powered lift assistance. 2-tier racks are ergonomically accessible to most staff without lifts; 3-tier and above require a powered body lift at the head of the rack row.

Tray dimensions must match your cadaver population. Standard trays are 23 inches wide; programs in regions with higher rates of bariatric donors should specify 27-inch or 30-inch tray systems, which require correspondingly wider rack bays. Confirm tray width specifications before purchasing rack systems to ensure compatibility. See our full racks and lifts collection for current configurations including multi-tier cantilever racks and multi-directional loading systems.

Body Lifts for Upper-Tier Access

Powered body lifts are not optional for any rack system with a top tier above 60 inches from the floor. Manual lifting of occupied trays to upper tiers creates serious musculoskeletal injury risk for anatomy lab staff. Battery-powered scissor lifts and hydraulic body lift systems position trays at precise heights for smooth rack loading and unloading. AMC's lift selection includes covered cadaver scissor lifts, battery-powered low-profile lifts for crematory and anatomy applications, and hydraulic models rated for bariatric weight ranges.

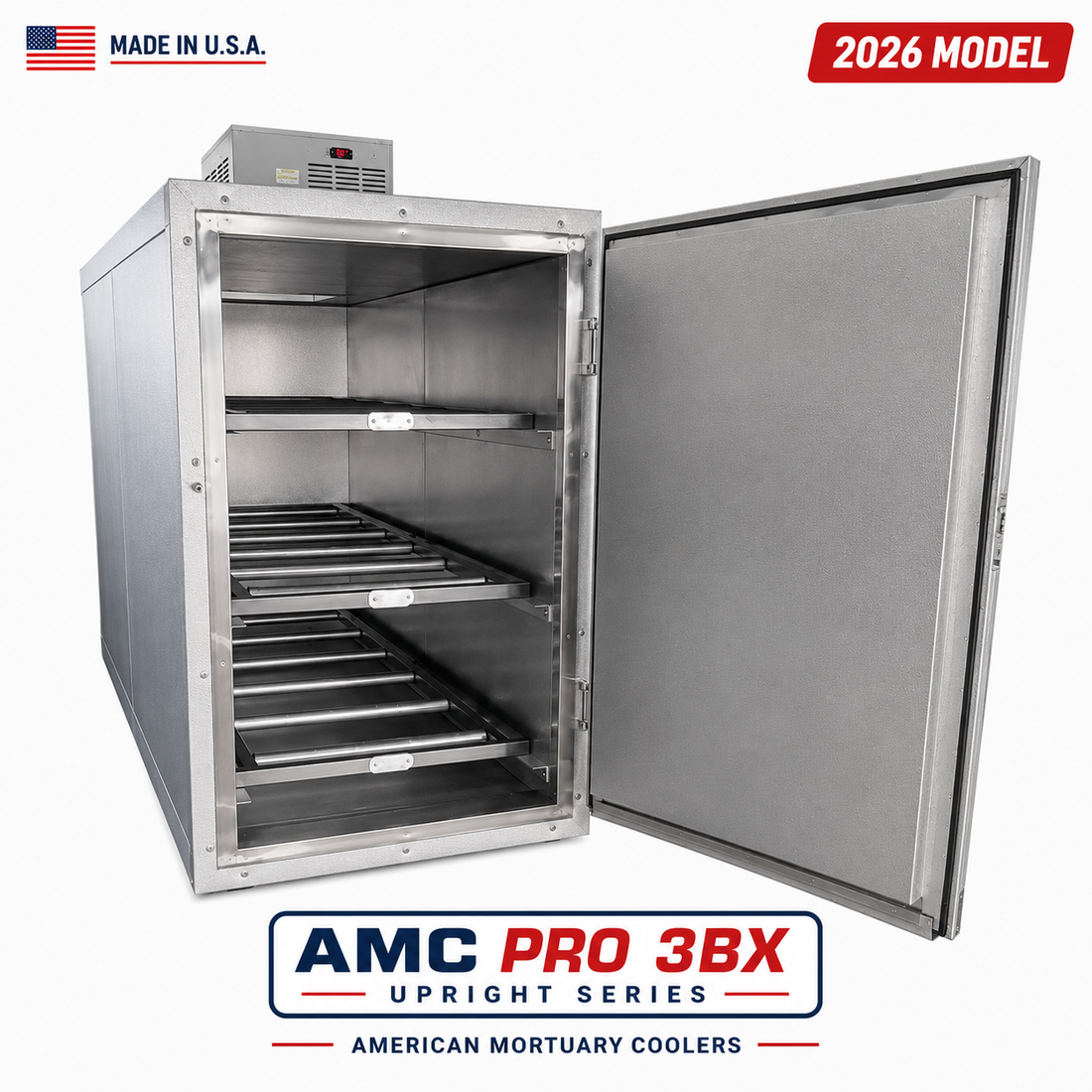

Vault-Style Individual Bay Storage: Anatomy Lab Advantages

Vault-style refrigeration provides a fundamentally different storage paradigm than open rack systems in walk-in rooms. Individual bays offer anatomy programs specific advantages that walk-in racks cannot replicate:

Chain-of-Custody Integrity

Every vault bay is a discrete, labeled storage unit. A cadaver assigned to bay 7 at intake occupies bay 7 for the duration of the course and is returned to bay 7 after every dissection session. There is no opportunity for tray confusion or cadaver mix-up during the multiple weekly transfer cycles of an active anatomy program. For programs subject to state anatomical board oversight or institutional research compliance requirements, this individual bay accountability is a significant audit advantage.

Individual Temperature Environment

Each vault bay maintains its own sealed temperature environment. When staff access one bay, the thermal environment of all other bays is undisturbed. This is particularly valuable in programs where some bays hold cadavers in active dissection (requiring frequent access) while others hold cadavers in long-term pre-course storage (requiring minimal access). Browse our lab and pathology vault coolers and the 10-body upright high-density mortuary cooler for programs requiring both high capacity and bay-level access control.

Long-Term Anatomy Freezers

Not all anatomy storage is at refrigerator temperature. Some programs maintain frozen cadaver inventories, preserve specific tissue specimens for multi-year research use, or archive gross pathology materials from dissection courses. These applications require true freezer-grade equipment capable of sustained sub-zero performance.

American Mortuary Coolers' mortuary freezers for long-term anatomy storage are available in vault-style and walk-in configurations. Vault-style freezer units maintain -20°C per individual bay with independent refrigeration circuits — making them suitable for programs that need to maintain different temperature protocols for different specimens within the same equipment footprint. Key features include:

• -10°C to -30°C operating range depending on configuration
• Integrated high-low temperature alarms with optional remote monitoring connections
• Type 304 stainless steel interiors for frost-free cleaning compatibility
• Self-contained refrigeration systems that allow independent bay servicing

Specimen Container Compatibility and NSF Surface Requirements

Gross anatomy programs generate excised tissue, organ specimens, skeletal preparations, and histology samples that require separate containment from whole-body storage. Specimen container selection must account for two compatibility factors:

Physical Compatibility

Specimen containers must fit within your cooler's interior dimensions. For vault-style coolers, this means containers must fit within the tray area of the assigned bay — typically 23 inches wide by 74–80 inches long. For open-shelf storage inside walk-in rooms, standard lab containers can be shelved on NSF-rated shelving units. Container height must not exceed the clear tier height of your rack system.

NSF Surface Compliance

NSF International standards require that all surfaces in contact with biologics — including cooler interiors, shelving, and container surfaces — meet non-porous, smooth-surface specifications that allow complete disinfection without surface degradation. AMC refrigeration interiors are constructed entirely from Type 304 stainless steel with welded joints and no exposed fasteners in the storage area. NSF-compliant edge gaskets complete the sealed interior system. For programs seeking documentation of NSF compliance for accreditation purposes, AMC provides compliance certification letters with all refrigeration orders.

Access Control and Chain-of-Custody Documentation

Many state anatomical boards and institutional research compliance offices require anatomy programs to maintain chain-of-custody records for every cadaver from intake through final disposition. A well-designed storage system supports this documentation requirement at every step.

Physical Access Control

Vault-style cooler bays can be fitted with individual bay locks, limiting access to authorized personnel. This is particularly relevant for programs serving multiple departments or research groups who share storage infrastructure but must maintain independent chain-of-custody records. Walk-in cold rooms typically use room-level access control (keyed or card-based entry), which is suitable for single-program operations with a defined, badged staff population.

Documentation Infrastructure

Chain-of-custody records for anatomy programs typically include: intake documentation (donor identification, date, condition), location assignment (bay number or rack position), access log (who accessed the bay, date, time, purpose), transfer records (date and time of each cooler-to-table and table-to-cooler transfer), and final disposition records. Many programs use a combination of a physical log posted at each cooler bay and a digital anatomy management system (AMS). AMC coolers are compatible with all major AMS platforms and can be specified with bay-numbering systems matching your program's labeling convention.

Building Your Complete Anatomy Storage System

American Mortuary Coolers supplies the full stack of anatomy lab storage infrastructure: vault coolers, walk-in cold rooms, long-term freezers, body racks, powered lifts, and transport carts. Our factory-direct manufacturing model and Johnson City, Tennessee facility allow us to customize configurations for specific program sizes, room dimensions, and workflow requirements.

Explore our racks and lifts collection and our long-term anatomy freezer collection to begin your system specification. For programs planning a complete anatomy lab setup or upgrade, contact our team at 1-888-792-9315 or sales@mymortuarycooler.com for a full-system consultation. Our financing page includes institutional terms for educational and healthcare buyers.
