What is a mortuary scissor lift used for?

A mortuary scissor lift is used to raise cadavers or transport carts to the height of vault cooler trays, autopsy tables, or other transfer surfaces, enabling safe body transfers without manual lifting. The scissor mechanism raises the platform from a low loading position to a higher transfer height.

What is the weight capacity of AMC's powered scissor lift?

AMC's powered HD scissor lift (Model HD-1000-AA) is designed for heavy-duty use. Contact AMC at 1-888-792-9315 for the specific rated weight capacity to confirm compatibility with your case weight requirements.

Does the AMC scissor lift require electrical service?

The powered scissor lift requires electrical service at the installation location. Contact AMC for specific electrical requirements to coordinate with your facility's electrical design.

Can the scissor lift be used for bariatric cases?

AMC's powered HD scissor lift is designed for heavy-duty applications including bariatric cases. Verify the specific weight rating against your maximum case weight with AMC's team at 1-888-792-9315.

Does AMC provide installation for scissor lift systems?

Yes. Qualifying orders include FREE Level 2 White-Glove Installation, which includes proper positioning, leveling, and operational verification of the scissor lift system.

Mortuary Scissor Lift Systems — Powered & Covered Models for Cadaver Handling in Forensic Facilities

May 31, 2026 4 min read

Eliminating the Most Dangerous Lift in the Morgue

Loading a body from a transport cart onto a vault cooler tray — or from a cooler tray onto a transport cart — is one of the highest-injury-risk manual handling tasks in morgue and pathology lab operations. The cooler tray is positioned at a fixed height that may differ significantly from the transport cart height; the load weight is substantial (often 150-300+ lbs for an adult); and staff performing this task are typically already fatigued from the case work that preceded the storage step. The combination of heavy load, height mismatch, and staff fatigue creates a high-risk injury scenario that occurs multiple times daily in active facilities.

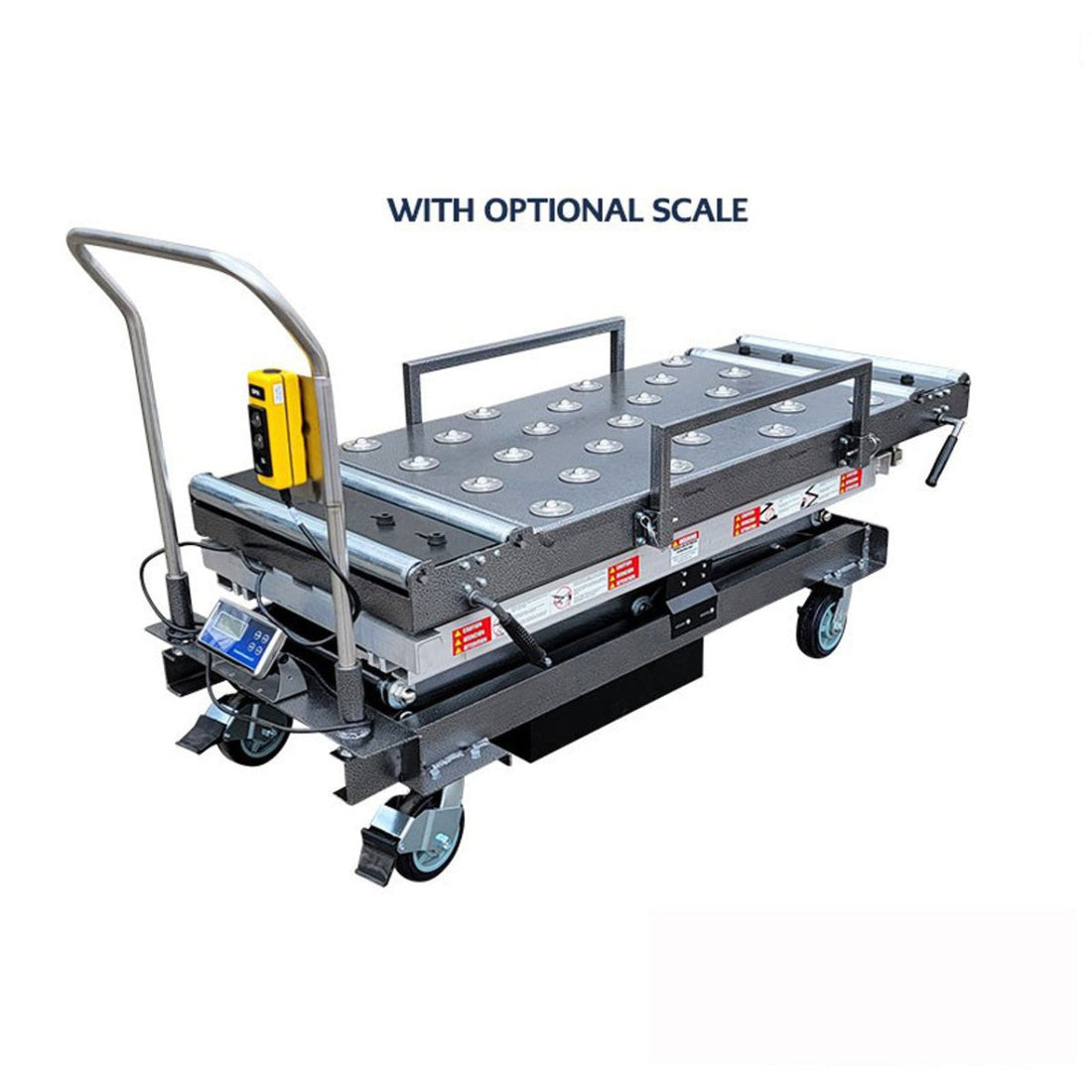

AMC's powered HD scissor lift (Model HD-1000-AA) eliminates this injury risk by providing mechanical lifting assistance that raises the body or transport platform to the required height for safe lateral transfer. For the complete transport system context, see our cadaver transport cart guide and our hydraulic cadaver transport cart guide.

How Mortuary Scissor Lifts Work

The Scissor Mechanism

A scissor lift uses an X-shaped crossed-arm mechanism that extends or contracts to raise or lower a platform. In the lowered position, the platform is at or near floor height — ideal for receiving a body from a transport cart or a patient bed with minimal lateral transfer distance. Activating the lift raises the platform to the target height (autopsy table height, cooler tray height) for transfer. The scissor mechanism provides smooth, stable lifting that maintains the load level throughout the height range.

Powered Operation

AMC's powered scissor lift uses an electric motor and hydraulic system for platform elevation. The operator activates the lift via a control switch — the motor does the work of raising the full load without physical effort from the operator. This powered operation is particularly critical for heavy loads (bariatric cases) and for facilities with high-volume case throughput where manual operation of a mechanical lift would create cumulative staff fatigue.

Platform Design

The scissor lift platform is designed to receive transport carts directly or to support body positioning for transfer. The platform surface must be non-slip and cleanable, and sized appropriately for the transport cart or load dimensions. Contact AMC for specific platform dimensions to confirm compatibility with your transport cart equipment.

Integration with Vault Cooler Loading Workflow

The Standard Loading Sequence

An efficient vault cooler loading workflow using a scissor lift follows this sequence:

Transport cart with body arrives at vault cooler bay from examination area
Scissor lift platform is lowered to cart height (or cart is positioned on lowered scissor platform)
Body is transferred laterally from transport cart to scissor platform (or cart + body is positioned on platform)
Vault cooler tray is withdrawn from the bay to the transfer position
Scissor lift raises body to tray height (matching cooler tray height precisely)
Body is transferred laterally from scissor platform to tray
Tray with body is returned to the vault cooler bay

This sequence eliminates every vertical lift — all transfers are lateral, the safest possible transfer configuration. Pair with AMC's low-profile cadaver trays for the receiving tray surface within the vault cooler.

Cooler Bay Height Coordination

For the scissor lift system to work effectively, the lift's maximum platform height must match or exceed the height of the highest vault cooler tray position used for body loading. For multi-tier vault coolers, the upper tier tray height may be 48-60 inches or more — verify that the scissor lift's height range encompasses all tray positions used for loading in your cooler configuration. AMC's vault cooler line includes the 6-bay, 8-door, and 12-bay configurations.

All-Access Lift Systems for Comprehensive Cadaver Handling

AMC also provides all-access mortuary racking and lift systems for comprehensive cadaver handling solutions beyond the scissor lift. Our all-access mortuary racking and lift systems collection and cadaver storage racks collection complement the scissor lift for complete mechanical handling solutions. For facilities requiring ceiling-mounted or rail-guided lift systems, contact AMC to discuss available configurations.

Safety Features and Operational Considerations

Load Stability

The scissor lift must remain stable at all height positions throughout the lift cycle. AMC's powered HD scissor lift is designed with a stable footprint and appropriate structural cross-section for the rated load. Verify that the lift is installed on a floor surface with adequate load-bearing capacity — a loaded scissor lift with a heavy case concentrates significant weight on the lift's footprint area.

Emergency Lowering

Powered scissor lifts should include an emergency manual lowering capability — the ability to lower the platform in the event of power failure or motor malfunction. This safety feature prevents a loaded platform from being stranded at height. Verify emergency lowering capability with AMC at 1-888-792-9315.

Staff Training

Scissor lift operation should be included in new staff orientation and periodic safety training. Proper operation — correct loading position, height limits, emergency procedures — prevents both equipment damage and injury. Contact AMC's service team for operator training resources.
